• Frigidaire Self-Cleaning Oven Not Working What You Can Do The center wire on the three-wire cord is neutral and will always be installed in the center of the terminal block.
• The outer wire on the left.

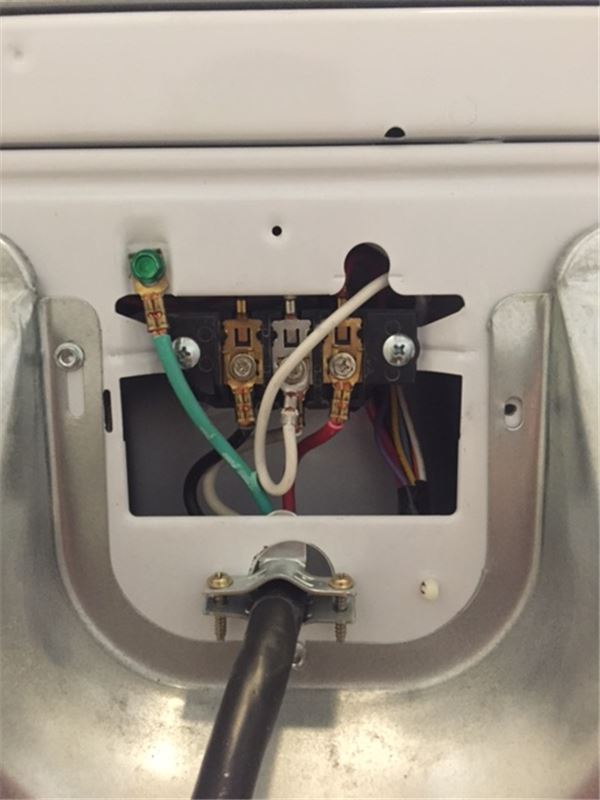

Here we have the four-wire cord. If your running a new circuit, I highly recommend that you bring your outlet up to code and install a 4-prong dryer outlet. Connect the New 4-Prong Cord Connect the green cord wire to the ground screw.

Connect the white cord wire to the center neutral terminal. How to Freeze Eggs Looking at the cord end without the plug, the left and right wires are the hot wires and the middle wire is the neutral. 3 Wire Cord Most older homes are wired for the 3-wire outlet as shown below The 3-wire connection is now outdated where current dryers are wired with a 4-wire cable.

In a 4-wire circuit, the neutral and ground are isolated. Next, remove the three-quarter inch screws that are securing the wire terminals to the terminal block. The outer wire on the left-hand side is line one and the outer wire on the right-hand side is line two.

Wire A Dryer Cord The ground is now a dedicated wire also. As mentioned earlier, the neutral and ground are really the same but this wiring method is more accurate because a return line or grounded neutral should be a white wire and not green. It should be directly above the place where the cord comes out.

Pull the cord out through the hole to remove it from the dryer. In the first section, I will be showing you how to connect a dryer cord that matches your 3-prong or 4-prong outlet. Using a quarter-inch nut driver, remove the one-quarter inch screw securing the terminal block cover in place.

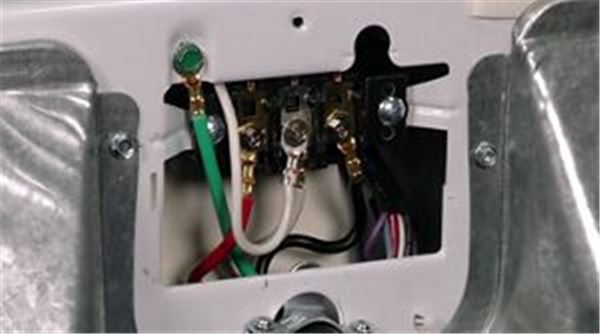

Secure the neutral wire to the terminal block. You may have one of two different configurations If there is a white wire coming from inside the dryer and connecting to the ground screw, remove it from the ground screw and connect it to the neutral center terminal on the dryers wiring block. The Spruce Attach the Strain-Relief Fitting to the New Cord To install a new strain relief fitting, first slip the tab of the top half of the fitting and position the saddle semi-circle of the fitting over the top of the cord.

Your Answer Some panel or breaker boxes will have a dedicated neutral bar and a dedicated ground bar, but they will still be physically connected. Next, attach the line one and line two to the terminal block. Remove the Strain-Relief Fitting Remove the screws on the strain-relief fitting that secures the cord to the back panel of the dryer.

1. White is neutral and red is L2 or line two and green wire goes to the ground.
2. The green wire Ground will attach to the frame of the dryer which protects the unit from stray or live voltage.
3. As you can see, there is now an added dedicated neutral.

Wire a Dryer Outlet

Here we can clearly see that the center wire is labeled neutral. Web, Dryer Cord Wiring, How To Wire a 4 Prong and 3 Prong Dryer Cord and Dryer Outlet, and take a look at the 30amp dryer circuit wiring as installed in the electrical panel. How to.

• Be sure to connect the dryer vent duct if you removed it or if its a new installation before using the dryer.
• Tip Your old strain-relief fitting probably wont work for your new 4-prong cord.
• WebIn the early s, electric dryers used a 3-prong cord for a volt circuit.

Since then, homes built after are required to have a 4-prong dryer plug with a volt, amp. How to Hook Up a 4-Prong Dryer Cord From a 3-Prong Cord Here is a picture of a 3-wire cable outlet A 3-wire cord consist of 3 wires molded together. This allows current to be rerouted safely to avoid fires and other electrical hazards.

Here is a picture of a 4-wire cable outlet The 4-wire connection is the new updated circuit. Neutral will always go to the center of the terminal block. Connect the black cord wire to either the left or right terminal.

Move the neutral wire over so it comes up and underneath of the terminal block. I will cover both situations. If there is a short white wire or metal strap connected to the neutral terminal on the wiring block and the ground screw, remove the wire or strap from the ground screw.

If any cross threading happens during this process, the screw and the nut it secures to will both need to be replaced. The neutral line is a return line for the voltage and should not be done through the green ground wire, even though a neutral and ground are really the same, so new codes require a dedicated neutral line as well as a dedicated ground line. A 3-prong cord typically is flat, while a 4-prong cord usually is round and requires a fitting with a rounded area in its center.

The only difference is the addition of an isolated ground wire separate from the neutral as mentioned earlier. It is important to understand that the screws that come with the terminal block are specifically threaded for the terminal block and only these screws can be used. Once the strain relief is in position, secure it with the two Phillips head screws it came with.

This circuit originates from the breaker box containing a 2-pole 30 Amp breaker. Its purpose is to prevent loose connections and avoid outcomes such as dryer fires. The center wire on the three-wire cord is neutral and will always be installed in the center of the terminal block.

• Next, bring the two neutral wires together and secure them to the terminal block.
• Do the same with the bottom half of the fitting below the cord.
• The definitively correct way is to run a ground wire to the socket location (which you can, without needing to follow or replace the present.

Wire a Dryer Cord

In many states, it is required by law that this is installed. Some dryers depending on their age will show labels on the screw connections. Our black wire will represent L1 or line one.

The only difference is the addition of an isolated ground wire separate from the neutral, but the 3-wire circuit is still fine and does not have to be upgraded. Share this page. Nut driver or socket wrench as needed Adjustable pliers optional UL-listed, amp, 4-prong dryer cord Strain-relief fitting for 4-prong cord Instructions Remove Cover Plate for Electrical Connections Make sure the dryer is unplugged from the electrical source, then remove the metal plate covering the cords wiring connections on the back of the dryer.

• Connect the red cord wire to the other hot terminal.
• See Also.

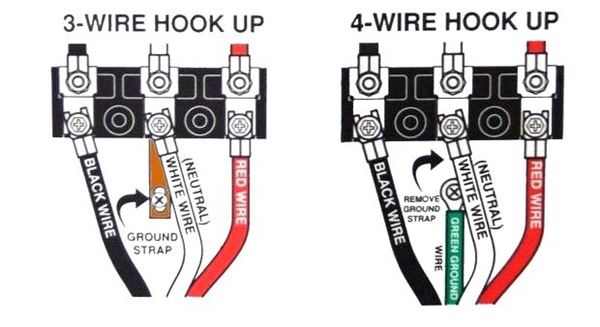

• Wire a Dryer Outlet 3-Prong Dryer Outlet The 3 prong wiring diagram above shows the proper connections for both ends of the circuit.

• Run the dryer for a few minutes to make sure everything works.
• I will typically go by the wires that are connected internally from the dryer.
• This is to align the threads on the screws correctly with the nuts that they secure to in the terminal block.

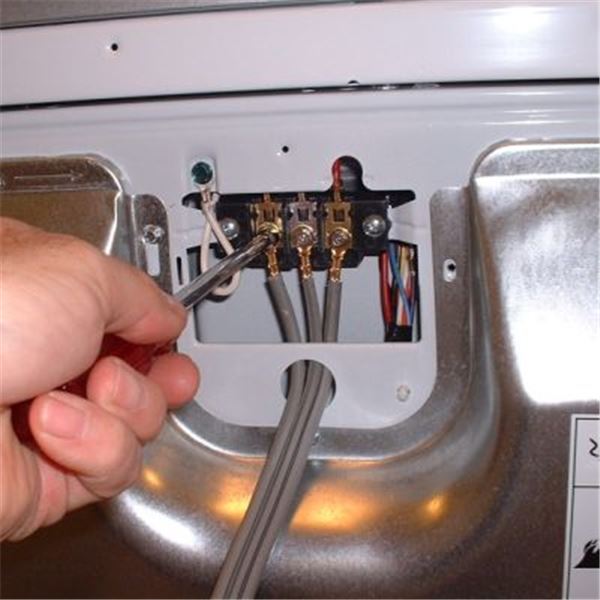

Turning the screws counter-clockwise before turning them clockwise aligns the threads, preventing any cross-threading from happening. What Youll Need Throughout this process you may notice that at times I turn the nut driver counter clockwise before turning it clockwise. Next push the cord slightly into the cabinet and install the strain relief.

Again, the black wire represents line one and the red wire represents line two. You may want to check with your local codes to verify this. The Spruce Tip Use a magnetic screwdriver or nut driver or socket wrench to remove the plates screws.

The two outer terminals are the hot terminals, and the center terminal is the neutral. Once the cord is installed, attach the strain relief as stated in the four wire section. The hot terminals are interchangeable each can connect to the black or the red wire, but only one wire goes on each terminal.

The green wire on the four-wire cord is ground. To test the dryer for proper operation, check the dryers control knob s to confirm that everything is in the off position, then plug the dryer into a 4-prong dryer outlet. Do not use a strain-relief fitting that doesnt fit the cord.
