When installing a standard on/off switch for a light fixture, it’s crucial to follow the correct connection procedure to ensure safety and proper function. Begin by connecting one terminal of the switch to the power source. The other terminal should then be linked to the light’s input. Always make sure the flow of current is properly interrupted when the switch is in the off position.
Ensure the neutral wire is directly connected to the light fixture. The live wire should not be interrupted between the switch and the light source to avoid potential electrical faults. This method maintains consistent power delivery, with the switch serving only as an on/off control.
Double-check all connections before testing the circuit. Using proper tools and safety equipment is essential during the setup. Additionally, verify the load and ensure it’s suitable for the current rating of the switch to prevent overheating or damage to the system.
Basic Switch Circuit: A Practical Guide
When installing a simple on/off switch, start by connecting the power source to the input terminal of the switch. The second terminal should be wired to the device or light fixture you intend to control. Make sure the switch is rated for the appropriate voltage and amperage to ensure safety.
Ensure the circuit is grounded by connecting the ground wire from the power source to the metal parts of the switch box, if applicable. This reduces the risk of electrical shock or short circuits.
If you’re replacing an old switch, take note of the existing connections before removing the old device. This helps to avoid mistakes during reinstallation. Always turn off the power before working on electrical components.
For easier troubleshooting in the future, label wires clearly when working with multiple circuits or complex setups. This way, if any issues arise, you can quickly identify and address the problem without confusion.
When choosing materials, use high-quality connectors and insulated wire to prevent any potential short circuits or failures. Proper insulation and secure connections are key for long-lasting, safe operation.
How to Read and Understand a Switch Circuit Schematic
Start by identifying the components: a simple on/off switch, a power source, and the device being controlled. Typically, the switch has two terminals, one for the input (power) and one for the output (load). The power source is connected to one terminal, and the other terminal connects to the load, such as a light or appliance.
Examine the path of the current. In an open position, the switch interrupts the flow of electricity, preventing the load from being powered. When the switch is closed, the electrical connection is completed, allowing current to flow and activating the device.
Key connections: Look for the “common” terminal, which is usually the input, and the terminal connected to the output load. The current flows from the power source through the switch to the load, and the switch controls this flow.
Note that a diagram often shows a line representing the electrical current’s path, which breaks when the switch is in the off position and completes when it’s on. Understand that the orientation of the switch in the schematic doesn’t affect how it functions, only how the components are connected.
Tips: Follow the circuit step-by-step, confirming that every element, including the switch, the power source, and the load, are properly connected. Ensure that the power supply and load are rated correctly to avoid overloads or damage to components.

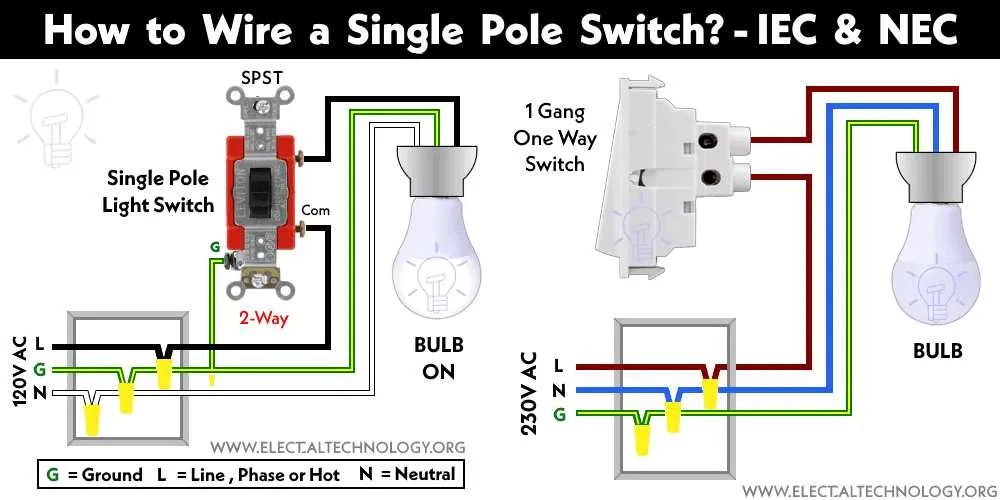

Step-by-Step Connection Process for a Basic Switch
To begin, turn off the power at the breaker box to ensure safety. Verify with a voltage tester that no current is present in the wires you’ll be working with.
Start by attaching the black (hot) wire to the terminal screw of the switch. This is typically the brass-colored screw. Tighten the screw securely, making sure the wire is wrapped around the terminal in a clockwise direction to prevent it from loosening over time.
Next, connect the white (neutral) wire directly to the neutral bus bar in the electrical box. This ensures a complete return path for the current when the circuit is closed.
Now, take the ground wire (usually bare or green) and attach it to the ground screw on the switch. If the switch has a metal box, this connection may be made to the box itself using a grounding screw.
Ensure that all connections are tightly secured. Any loose connections can result in malfunction or safety hazards. Once the connections are complete, carefully position the switch inside the electrical box and fasten it with screws.
Finally, restore power at the breaker and test the switch. When you flip the switch, the connected device (light, fan, etc.) should function properly, indicating a successful installation.
Common Mistakes to Avoid When Setting Up a Basic Circuit
Ensure proper grounding is in place before connecting any components. Failing to ground correctly can result in electrical hazards and equipment damage.
- Incorrect Wire Sizing: Using wires with insufficient amperage capacity can lead to overheating and potential fires. Always match the wire gauge to the expected load.
- Loose Connections: Loose terminal connections can lead to sparking, inconsistent power flow, and even fire. Tighten all connections securely to avoid these risks.
- Ignoring the Switch Placement: Installing the switch incorrectly (either too close to the power source or far from it) can cause inconvenience or faulty operation. Ensure it is positioned for easy access and effective control.
- Not Following Color Code: Avoid using the wrong color for specific wires (such as neutral and hot). This can lead to confusion during troubleshooting or future maintenance.
- Overloading the Circuit: Connecting too many devices or appliances to one circuit increases the risk of overheating. Ensure the load does not exceed the circuit’s rating.
- Neglecting Code Compliance: Always adhere to local electrical codes to ensure safety and avoid legal issues. Non-compliance can result in costly fines and dangerous conditions.
Thoroughly double-check all connections and components before activating the circuit. Missteps in the setup process can compromise safety and performance.
