If you’re facing issues with your vehicle, identifying the specific components and understanding their placement is crucial. For maintenance or repairs, refer to the engine layout, as it highlights the positioning and function of each essential element. Knowing how the ignition system interacts with the transmission or where the exhaust system connects can prevent unnecessary disassembly and reduce repair time.
Critical components like the carburetor, clutch assembly, and brake system require regular inspection. A detailed schematic ensures you can quickly locate damaged parts and make informed decisions about replacement. For example, understanding how the drive chain and sprockets work together will help you diagnose performance issues more accurately.
When replacing components, always match them with the correct specifications. Cross-check the engine serial number or consult the specific model’s parts list to ensure compatibility. Accurate identification of each part’s role in the system will streamline repairs, increase safety, and prolong the life of the engine.
Key Components and Assembly Overview
Ensure to check the alignment of the engine block and chassis before assembling the frame and drivetrain for optimal performance. A clear understanding of the individual components and their interconnections is essential.
- Engine: Pay attention to the ignition system, carburetor, and exhaust placement. Secure all mounting bolts and ensure proper sealing to prevent leakage.
- Transmission: Verify the correct position of gears and shafts. Lubricate moving parts and inspect seals for any wear.
- Suspension: Double-check shock absorbers and springs for wear. Proper tension adjustment on the front and rear suspension can significantly affect handling.

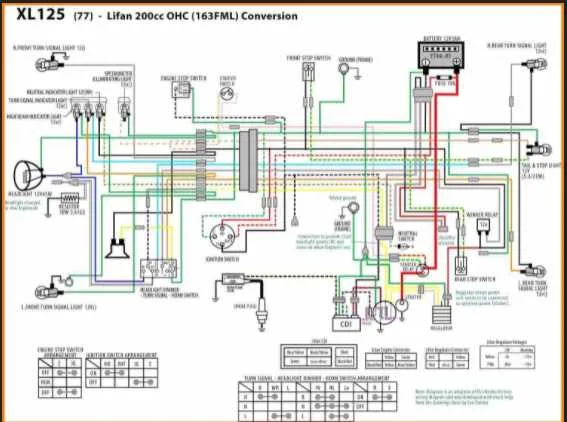

When working on the electrical system, always disconnect the battery before making any repairs or replacements. Follow the color-coded wiring system to avoid confusion and errors.
- Brakes: Ensure brake pads are free from excessive wear, and check fluid levels in hydraulic systems. Regular maintenance is crucial for effective stopping power.
- Wheels: Inspect tire pressure regularly. Replace tires with proper specifications to maintain stability and control.
- Fuel System: Clean or replace the fuel filter periodically. Inspect fuel lines for cracks or leaks.
Always consult the service manual for torque specifications and maintenance schedules. Regular inspection and timely replacements of worn-out parts prevent more significant issues and improve the overall lifespan of the vehicle.
Understanding the Engine Components of a 125cc Utility Quad
Ensure you focus on the key engine components that influence performance and longevity. The cylinder head is crucial for efficient combustion. Inspect it regularly for cracks or signs of wear, as any damage here can lead to overheating or engine failure.
The piston and cylinder must be in proper condition to maintain compression. A damaged piston can cause loss of power, so check for any scoring or unusual wear. A worn cylinder will reduce efficiency, requiring either honing or replacement.
The crankshaft is responsible for converting the force from combustion into rotary motion. Ensure it is free of cracks and well-lubricated. Regular checks of the bearings and seals around the crankshaft prevent leaks and prolong engine life.
The valve system plays a significant role in controlling the intake and exhaust of gases. Proper adjustment of the valve clearance ensures smooth engine operation and prevents damage from improper timing.
Pay attention to the carburetor for fuel efficiency. It should be cleaned regularly, as dirt and debris can affect fuel flow and cause stalling or inconsistent engine performance.
Finally, the ignition system, including the spark plug and coil, must be in optimal condition. A misfire or weak spark can result in poor acceleration and engine stuttering. Always check for signs of wear and replace components as necessary.

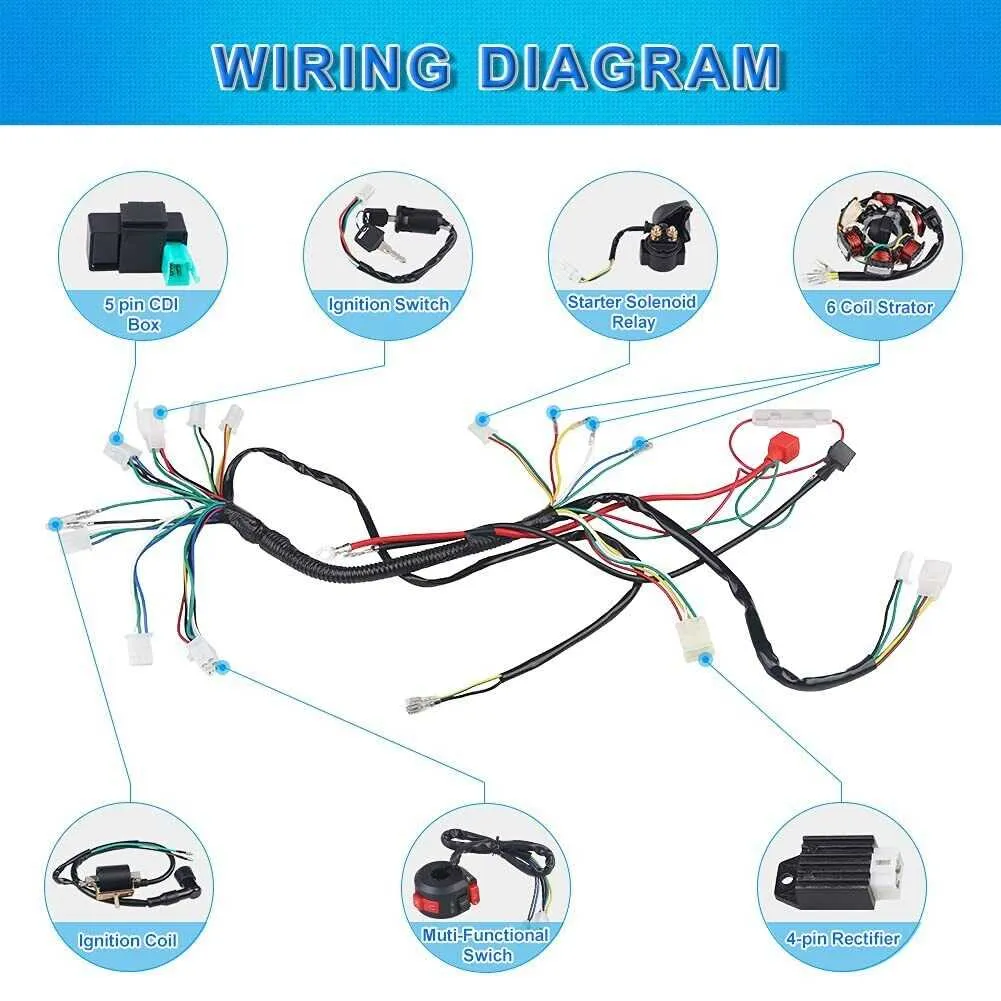

Common Issues with the Electrical System and How to Identify Them
Start by checking the battery voltage. A low or dead battery is the most frequent issue. Use a multimeter to test the voltage; anything below 12.4V indicates a problem. If the battery is fine, move to the fuse box. Blown fuses often cause loss of power to essential systems, such as the lights or ignition. Replace any blown fuses with the correct rating.
Next, inspect the wiring for any visible damage, such as fraying or wear. Broken or exposed wires can cause short circuits or prevent proper power flow. Pay special attention to the wiring near the engine and the steering column, as these areas are prone to heat and mechanical stress.
If the engine starts but doesn’t run properly, check the spark plug. A dirty or worn spark plug may cause misfiring or difficulty starting. Clean or replace it to restore proper combustion. Ensure the spark plug cable is tightly connected to both the plug and the ignition coil.
Faulty ignition coils often lead to poor engine performance or no start condition. If there’s no spark at the spark plug, test the ignition coil using an ohmmeter to check for continuity. If it shows no continuity, replace the coil to restore proper function.
For issues with the lights or electrical accessories, inspect the stator. A malfunctioning stator can cause the lights to dim or flicker, as it generates the electrical current for these components. Use a multimeter to check for proper output; if it’s defective, the stator must be replaced.
Inconsistent or erratic performance often points to a faulty voltage regulator. It manages the voltage output from the stator to prevent overcharging the battery. Check the regulator with a voltmeter while the engine is running. If the voltage fluctuates above 14.8V, the regulator is likely defective.
Step-by-Step Guide to Replacing Suspension Components
Begin by lifting the vehicle using a jack and secure it with stands. Ensure the wheels are off the ground to avoid any pressure on the suspension system during the process.
Remove the bolts securing the shock absorber to the frame and swingarm. These bolts can be stubborn, so use penetrating oil if needed. Use a wrench to loosen and remove the bolts, then carefully take out the shock absorber.
Next, focus on the front fork. Loosen the fork clamp bolts and remove the fork from its mount. Depending on your model, you may need to remove additional components such as the brake caliper or wheel. Slide the fork out gently to prevent damage to the seals.
Inspect all suspension bushings and bearings for wear. If damaged, replace them immediately to ensure proper movement and prevent unnecessary strain on the suspension. Press new bushings into place carefully using the appropriate tools.
Once all components are removed and inspected, install the new shock absorbers and forks by reversing the disassembly steps. Tighten all bolts securely, ensuring they are torqued to manufacturer specifications to avoid any movement or vibration during use.
Reassemble any other components removed during the process, such as the wheel and brake caliper. Test the suspension by gently lowering the vehicle back onto the ground and checking the alignment and range of motion of the new parts.
Perform a test ride to verify proper function. Check for any unusual noises or movements and ensure the vehicle handles smoothly. If any issues arise, reassess the installation of the suspension components.
