When setting up an electromagnetic control device, proper electrical connection ensures its smooth operation and longevity. Start by identifying the correct terminals for both the input power and the control signal. Typically, the power side will connect to a high-voltage supply, while the control side will interface with a low-voltage signal, often triggered by a relay or switch.
Ensure the polarity is respected to avoid malfunction. A common mistake is incorrectly wiring the positive and negative leads, which can lead to overheating or failure. Check the manufacturer’s guidelines for voltage and current ratings before making any connections. Always use wires that can handle the required load to avoid overheating.
Grounding is a crucial step in installation. Proper grounding prevents electrical shock hazards and reduces the likelihood of electromagnetic interference. Connect the ground wire directly to a reliable, earth-based grounding point to ensure safety and compliance with electrical standards.
For remote control, it’s essential to understand the type of signal that actuates the device. Some setups require pulse width modulation (PWM), while others rely on continuous current. The method you choose will depend on the specific model and the desired response time.
After wiring is complete, conduct a functional test to ensure the device operates as expected. This includes checking for proper activation, responsiveness, and power flow. If any inconsistencies arise, verify the integrity of your connections and ensure no wires are loose or damaged.
Electrical Connection Guide for Electromagnetic Control Units
To ensure proper function and safety, follow these steps when connecting electromagnetic control units:
- Identify the control leads: Typically, there are two primary terminals for power (live and neutral) and additional terminals for the control signal.
- Ensure proper voltage compatibility: Double-check the voltage ratings of the unit and the power source to avoid overheating or malfunction.
- Verify the polarity: Correctly connect the positive and negative wires, particularly when dealing with DC-powered systems, as reversed polarity can damage the components.
- Grounding: Connect the unit to a reliable ground to prevent electrical shock hazards and minimize interference.
When linking the signal terminal to the control system, ensure that the triggering mechanism matches the specifications of the electromagnetic unit. This is especially critical for systems involving PLCs or relays that control actuation.
- Check current ratings: Ensure that the current provided by the control system is within the acceptable range for the unit’s specifications.
- Use a relay for inductive loads: If dealing with high currents, consider adding a relay to protect the control system from overloads.
For systems with multiple control units, ensure that each device is wired in accordance with the required sequence to prevent conflicts in signal flow.
Lastly, after installation, conduct thorough testing to ensure there are no short circuits or misconfigurations. Use a multimeter to check continuity and voltage levels at various points along the circuit.

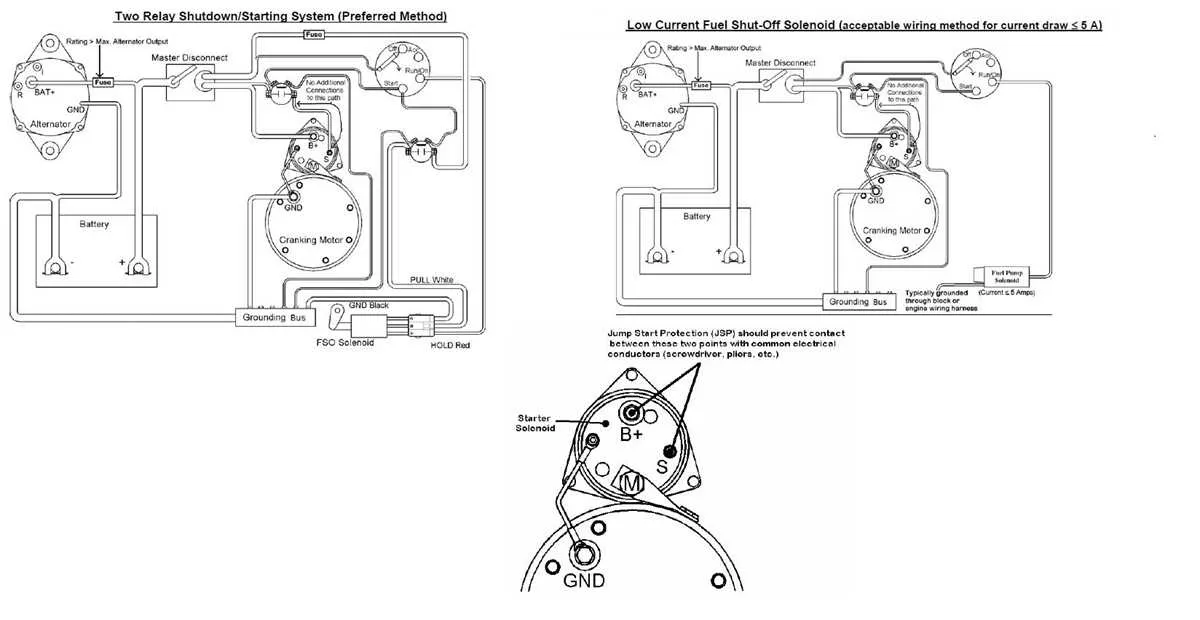

How to Read an Electromagnetic Actuator Circuit Layout
Start by identifying the power supply terminals. These are typically labeled as “+” and “-” or “L” (Live) and “N” (Neutral), and they provide the voltage to operate the system. Ensure that the power is correctly rated for the component in question.

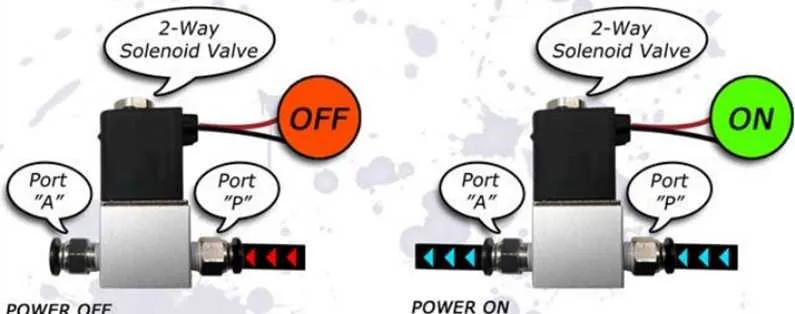

Next, locate the control terminals. These will usually be connected to a switching device such as a relay or a control board. The presence of two control terminals, often marked as “A” and “B,” indicates the presence of a dual-action mechanism, which allows for both on and off functionality or the reversal of fluid flow.
Check for additional components like diodes or resistors. A diode placed across the control terminals protects against voltage spikes that may occur when the electromagnetic field is de-energized. Resistors are often used to limit the current flowing into the actuator to prevent overheating or damage to the circuit.
Review the connections for any ground or earth terminals, typically marked with a symbol or letter “G.” Grounding is crucial for preventing electrical surges and ensuring the safety of the system.
Lastly, observe the continuity of connections. Broken or disconnected lines could lead to malfunctions. For troubleshooting, use a multimeter to check continuity across the terminals and ensure proper operation.
Common Connection Errors in Electromagnetic Actuators
One of the most frequent mistakes in connecting electromagnetic actuators is incorrect polarity. Reversing the positive and negative connections can prevent the actuator from functioning, or worse, cause permanent damage. Always verify the terminal designations before making the connections to avoid such issues.
Another common issue is inadequate grounding. Failing to properly ground the device can lead to electrical noise or erratic operation. Ensure that all grounding points are clean and secure, providing a stable return path for the electrical current.
Using incorrect voltage can also cause significant problems. Check the actuator’s voltage rating before powering up the system. Connecting a 24V device to a 12V power supply can lead to sluggish performance, while exceeding the recommended voltage can cause overheating and failure.
Loose connections are a major cause of intermittent operation. Always tighten the terminals securely to prevent arcing or loss of signal. A secure connection ensures consistent performance and minimizes the risk of damage due to voltage spikes.
Incorrect wire size is often overlooked but critical. Using wires that are too thin for the current can cause overheating, leading to insulation breakdown or fire hazards. Always use wires rated for the correct current to ensure safety and optimal operation.
Not using a diode for inductive load protection is another common error. When an actuator is de-energized, the collapsing magnetic field can cause a voltage spike that damages the control electronics. Installing a flyback diode can protect the circuit from such spikes and extend the lifespan of the components.
Finally, improper polarity during signal control can lead to malfunction. Always check the actuator’s control circuit to ensure the signal is directed correctly, especially in systems using alternating or direct current signals for activation.
Choosing the Right Power Supply for Electromagnetic Actuator Systems
For efficient operation, select a power source that matches the voltage and current ratings of the actuator. Verify the required voltage–most systems use either 12V or 24V DC, though some applications may require 110V or 220V AC, especially in industrial settings. Ensure the supply can deliver sufficient current, which typically ranges from 0.1 to 1.0 amps depending on actuator size and function.
Consider the power rating of your actuator to avoid overloading. Opt for a supply with at least 20% higher capacity than the peak demand of the system to ensure stable performance. This cushion compensates for transient power spikes during activation.
For DC systems, use a regulated power source to prevent voltage fluctuations that can affect actuator response times and reliability. If your system uses AC, include a rectifier and filter to convert it to stable DC power suitable for the actuator’s needs.
Pay attention to the quality of the power supply. Look for units with built-in protections like overcurrent, overvoltage, and thermal shutoff to prevent damage in case of electrical faults.
In remote or outdoor applications, ensure the power source is rated for environmental factors, such as humidity, dust, and temperature extremes. For industrial environments, use power supplies with a higher ingress protection (IP) rating.
