Ensure proper placement of the power source by connecting the primary supply to the start relay, where it powers the starter motor and coil. This is crucial for initiating the system. Use high-quality connectors to avoid voltage drops that can impact performance.
Check the link between the key switch and starter relay. The key switch should provide a secure contact that triggers the activation of the relay. Misconnections here can prevent the vehicle from starting or cause intermittent issues. Always verify that the connection is tight and free from corrosion.
Verify the ground connections between the battery, engine block, and vehicle chassis. Poor grounding can lead to erratic behavior and system malfunctions. A dedicated ground strap is recommended to improve stability and reduce interference.
Inspect the wire gauge and insulation. For reliable operation, select the appropriate wire thickness to handle the current flow without overheating. Use wires with proper insulation rated for high temperatures to prevent potential failures.
Electrical Setup for Starting System
Ensure a secure connection between the battery’s positive terminal and the starter relay’s input. The relay acts as the primary switch to deliver power to the starter motor when prompted by the key. The other end of the relay should be connected to the starter motor itself. Make sure the negative terminal of the battery is properly grounded to the chassis.
The signal from the ignition switch must reach the relay’s control terminal. This is typically accomplished via a dedicated wire, usually a smaller gauge, that runs from the switch to the relay. Proper insulation of the wire is critical to avoid accidental shorts.
Double-check the connection between the ignition switch and the relay; it is important that the signal is only sent when the key is in the “start” position. A misconnection here can lead to malfunction or failure to crank the engine.
Also, make sure the starter motor is securely attached to the engine, with its ground wire directly linked to the vehicle’s chassis. An improper grounding can cause weak starting performance or failure to start.

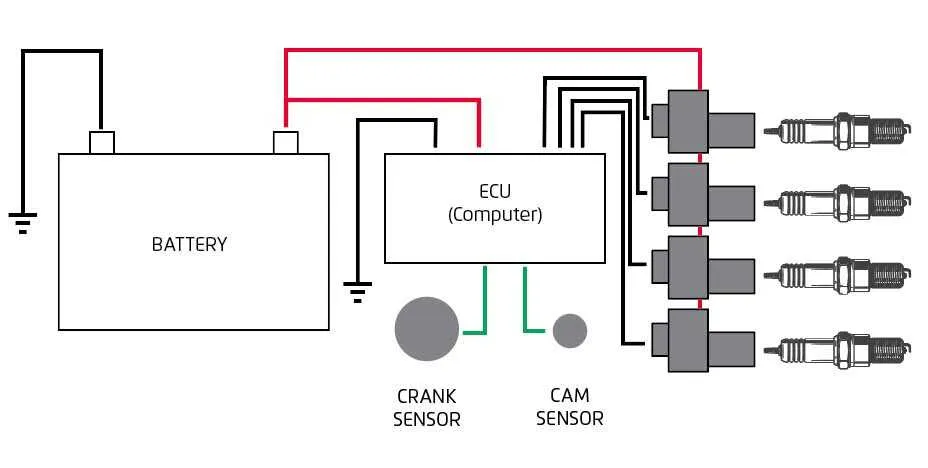

Identifying Key Components in an Ignition System
To properly troubleshoot or replace key parts, focus on the following critical elements of the system:
- Spark Plug: Ensures the electrical charge ignites the fuel-air mixture. Check for wear, fouling, or corrosion.
- Coil: Converts low voltage to the high voltage needed to create a spark. Look for cracks, wear, or signs of overheating.
- Distributor: Directs electrical current to the correct cylinder. Inspect for moisture or carbon buildup that may cause misfires.
- Battery: Supplies power to the system. Test voltage with a multimeter and inspect terminals for corrosion.
- Relay and Fuse: Protect the system from overcurrent conditions. Ensure proper connection and replace if blown.
- Crankshaft Position Sensor: Monitors the engine’s rotational position. A malfunction can disrupt timing and performance.
- Timing Belt or Chain: Controls the engine’s valve timing. Ensure it’s tight and free from wear.
By understanding and inspecting these components, you can effectively diagnose issues related to the spark-creation process and ensure the engine operates optimally.

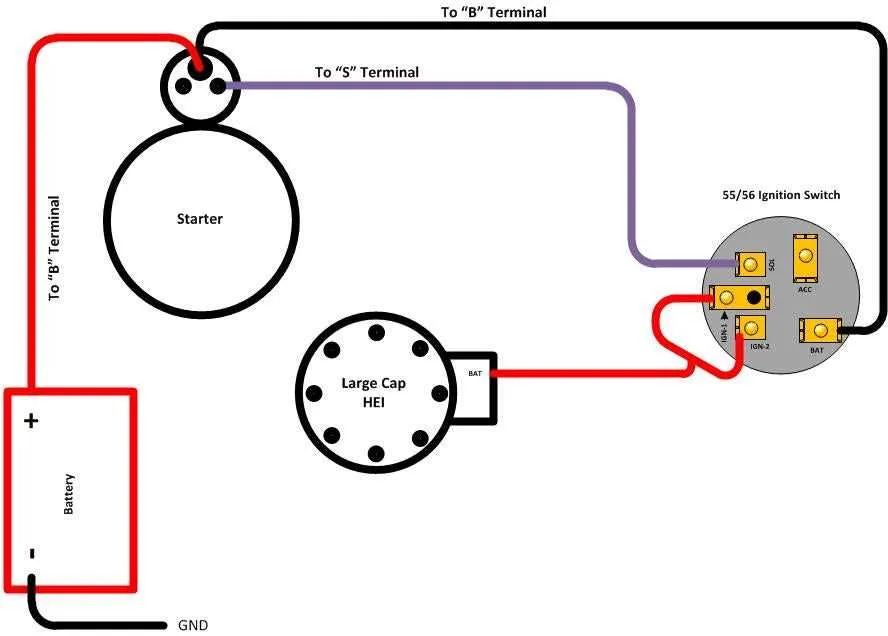

Step-by-Step Instructions for Connecting the Switch
Start by disconnecting the vehicle’s battery to avoid any electrical hazards. Identify the terminals on the switch: the primary terminal is often labeled “B” or “Bat” for battery connection, while the secondary terminals control the start and accessory circuits.
Begin with the battery terminal. Use a thick gauge wire to connect the “B” terminal to the battery’s positive terminal. Secure this wire firmly, ensuring there is no exposed copper that could cause a short.
Next, connect the start terminal to the starter relay. Use a smaller gauge wire for this connection. Be sure the connection is tight and that the wire is routed away from any moving parts that could cause abrasion.
For the accessory terminal, connect the wire to the accessory fuse block. This terminal powers items like the radio or lights when the switch is in the “on” position. Use an appropriately rated fuse to protect the circuit from overcurrent.
Ensure each connection is secure with proper terminals and insulation. Check that no wires are in contact with ground surfaces or other conductive materials. After all connections are made, reconnect the battery and test the system. The switch should activate the starter and accessory circuits as expected without any electrical issues.
Troubleshooting Common Ignition Electrical Issues
Check for Power Loss: Ensure the battery is fully charged and providing sufficient voltage. A common issue is a weak or dead battery preventing proper electrical flow. Test the voltage with a multimeter to verify if it’s within the required range (12-14V for most systems). If the battery is fine, inspect the connections for corrosion or loose terminals that could hinder current flow.
Inspect the Relay: A faulty relay can cause failure in activating the starter motor or fuel system. Use a test light or multimeter to check the relay’s operation. Replace it if the circuit is not closing as intended. A relay that clicks but does not pass power is usually a sign of internal damage.
Verify the Fuse: Blown fuses often result from an overload or short circuit. Always check the condition of fuses related to the electrical system you’re troubleshooting. If you find a blown fuse, replace it with the appropriate rating. Look for signs of damage in the wiring that could have caused the fuse to blow.
Check Ground Connections: Bad ground points can prevent proper functionality. Ensure that all ground wires are securely connected to the frame or engine block, free from rust or corrosion. Use a continuity tester to confirm that there is no break in the ground path.
Examine Switches and Sensors: Malfunctioning switches or sensors may prevent the system from activating. Test the key switch, neutral safety switch, and any other related sensors for proper operation. Replace any faulty components as necessary.
Inspect the Distributor and Rotor: In systems that use distributors, check the condition of the rotor and cap. Worn or damaged components can cause poor contact and misfires. Clean or replace these parts if there is visible wear or corrosion.
Test the Ignition Module: If the above steps show no issues, consider testing the ignition control module. Use a diagnostic tool or voltmeter to verify its operation. A faulty module may fail to send the correct signals to the coil, preventing the engine from starting.
