Identifying movement on this diagram requires recognizing specific points, such as critical point and triple point, and how substance changes across various conditions of pressure and temperature. Each line and area reveals regions where states shift, offering a clear visualization of solid, liquid, and gas coexistence.
To track evolution, follow changes from liquid to gas or from solid to liquid based on temperature increase at constant pressure, or at constant temperature, how pressure affects transition. These insights are essential in predicting behavior under specific conditions.
Key tip: Focus on boundary lines marking phase boundaries, as they define critical points of change, highlighting triple line where coexistence happens.

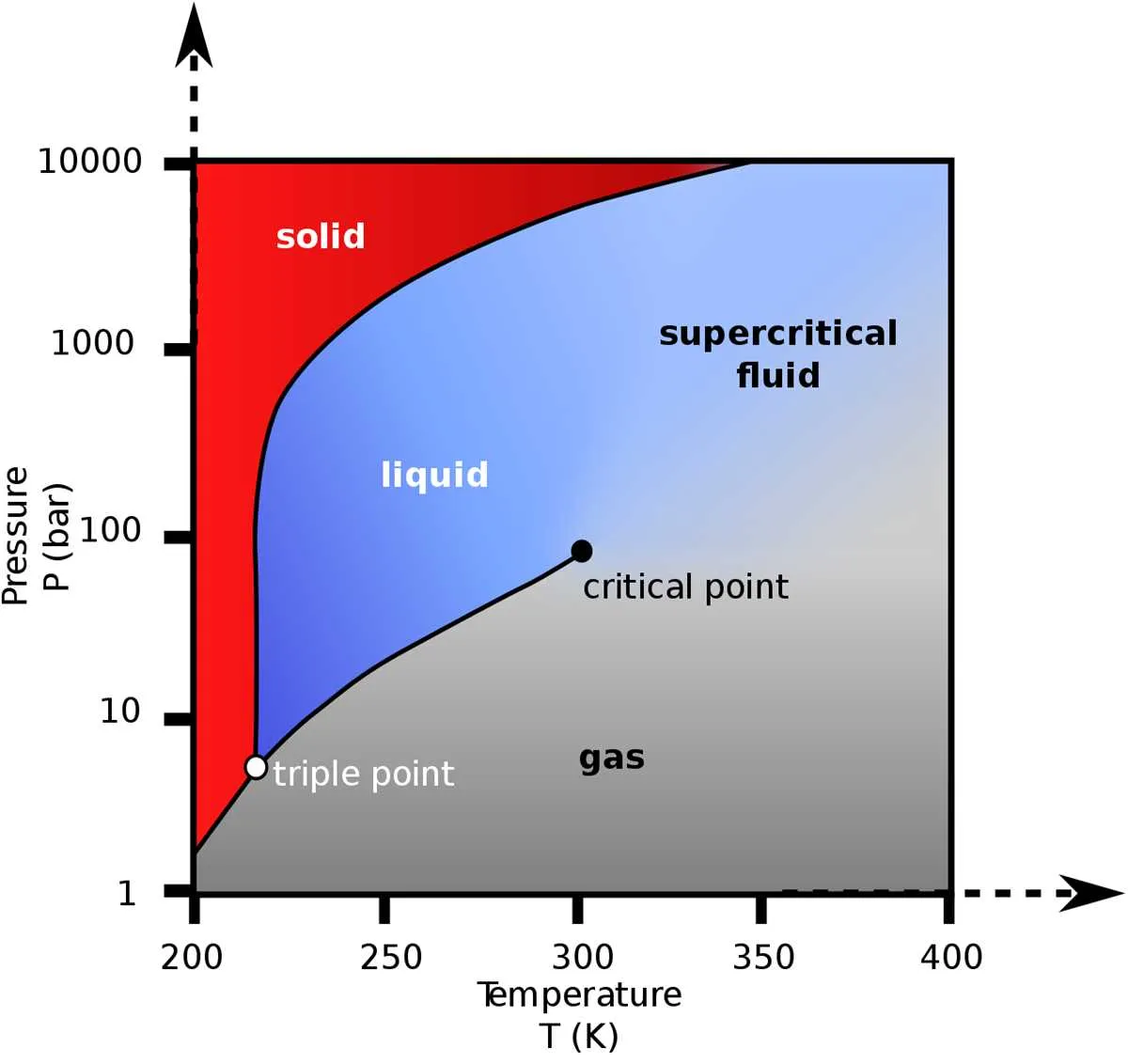

Phase Diagram for Water: Indicating the Direction
In this model, crucial transitions occur when temperature and pressure vary. Begin by focusing on boundary lines representing equilibrium states between solid, liquid, and gas forms. Moving along these lines will result in phase change, depending on energy input or removal.
For instance, increasing pressure at lower temperatures will shift solid-liquid equilibrium upwards, while reducing pressure at high temperatures causes vaporization. Keep in mind, altering pressure at constant heat can lead to shifts across critical boundaries, such as liquid-gas equilibrium or solid-vapor shifts.
In regions where states are stable, equilibrium is maintained. Each point within specific zones has fixed parameters of pressure and temperature. Moving across boundaries changes internal structure or phase, influenced by energy flow. Pay attention to critical points, as they define limits beyond which no distinct boundary exists.
Use this understanding to predict behavior under varying conditions. Knowing which transition zone to aim for helps in applications requiring precise control over substance states, whether cooling or heating processes are involved.
Understanding Critical Points in H2O’s Behavior
To grasp critical transitions in H2O’s behavior, focus on key regions where its characteristics change dramatically. Pay close attention to these vital zones:
- Critical Temperature: 374°C, where liquid and gas phases become indistinguishable.
- Critical Pressure: 22.06 MPa, where gas can no longer condense into liquid despite cooling.
- Triple Junction: 0.01°C, 611.657 Pa, where solid, liquid, and gas coexist in equilibrium.
Understanding these critical conditions allows prediction of behavior across various states under extreme conditions.
How Temperature and Pressure Influence State Transitions
Temperature and pressure determine where a substance exists as solid, liquid, or gas. Adjusting these factors directly alters its phase behavior.
At low pressures, solid becomes liquid when temperatures rise above a certain point. This is known as melting, and occurs at a specific melting point depending on pressure conditions.
Increasing temperature while maintaining constant pressure causes liquid to turn into gas once it hits boiling point. For example, at normal atmospheric conditions, water transitions into steam at 100°C. However, raising pressure raises boiling point, allowing gas formation at higher temperatures.
High pressures can prevent boiling at temperatures where liquid would normally transition to gas. Conversely, decreasing pressure below certain thresholds can cause liquid to vaporize even at lower temperatures.
In colder conditions, high pressure can force a substance to remain solid, while low pressure may cause it to sublimate directly from solid to gas without passing through liquid state.
Understanding how temperature and pressure influence state shifts is key in industrial processes and natural phenomena. Consider experiments at varying altitudes, where reduced pressure lowers boiling point, or in pressurized systems where substances can remain liquid at higher temperatures.
Practical Applications of Water’s Phase Diagram in Engineering
Understanding equilibrium points is crucial in thermodynamic systems. For example, engineers designing heat exchangers use knowledge about solid-liquid-gas transitions to optimize energy consumption. By understanding critical conditions, processes can be modified to ensure maximum efficiency in cooling and heating systems.
In chemical industries, knowing how liquid behaves under varying pressure and temperature allows for accurate control over processes such as distillation or refrigeration. Engineers manipulate pressures to achieve desired liquid-vapor transitions, enhancing production rates and reducing energy usage.
Hydraulic systems also rely on this concept to avoid potential problems related to cavitation. By maintaining proper conditions, engineers ensure that pressure doesn’t drop below the vaporization point of a liquid, avoiding damage to system components.
Designing freeze-thaw resistant materials involves precise understanding of solid-liquid transitions. When creating durable materials for construction, such as concrete or road salt, knowing at which temperatures ice will form helps prevent cracks and damage from freezing water.
Heat treatment processes in material science also benefit from insights into how a substance transitions between solid and liquid states. By controlling cooling rates, engineers can control the hardness and ductility of metals and alloys, improving product durability.
