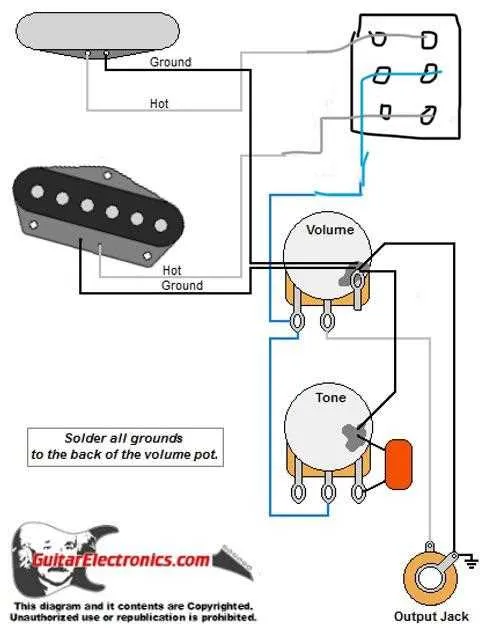

Start with a standard 3-lug lever mechanism. Connect the middle terminal to the output jack or volume control. The remaining two lugs correspond to the neck and bridge transducers. Solder each pickup’s hot wire to its designated contact point–neck to the upper lug, bridge to the lower.
Ensure ground continuity across all components. The backs of potentiometers serve as effective common grounding points. Link all ground wires–including pickup grounds, shielding, and jack sleeve–to a shared node for minimal hum and optimal signal clarity.
To include a center (both pickups) position, confirm the internal tabs of the selector make simultaneous contact with both outer lugs when centered. This enables parallel operation, blending both sound sources for a fuller tone. No additional components are required for passive blending in this configuration.
When using humbuckers with coil-splitting capabilities, consider integrating push-pull pots or mini toggles. This allows more tonal flexibility without altering the primary selection scheme. Maintain clear wire separation to prevent crosstalk or phase issues.
Test with a multimeter before applying power. Confirm continuity from each pickup to the output in all three positions. This ensures the selector performs as intended and avoids signal loss or unwanted noise during operation.
3 Position Selector Configuration
Use a three-position lever to connect neck, bridge, or both signal sources. Start by grounding the common terminal to the output jack sleeve. Solder the hot wire from the neck pickup to the first lug on one side, and the bridge output to the opposite lug. The center terminals carry the signal to the volume pot’s input.
For the middle selection to activate both pickups, ensure each side’s inner terminal is linked with a short jumper. Use shielded cable for signal paths to reduce noise. Route all grounds to a single point near the volume pot casing to minimize hum.
Confirm continuity using a multimeter before stringing the instrument. If you plan to reverse phase or coil-split, add push-pull pots or mini toggles; the selector alone only provides basic combinations. Secure all solder joints firmly and insulate exposed leads to prevent short circuits.
How to Wire a 3 Position Selector for Two Humbuckers with Coil Splitting
Use a 3-position blade or toggle unit with six terminals. Connect the neck and bridge outputs from each humbucker to lugs 1 and 3, respectively. Lug 2 functions as the common terminal and goes to the master volume input.
For coil splitting, install push-pull potentiometers or mini toggles. Each humbucker must have four-conductor cabling plus shield. Solder the series link (typically red and white wires) to the switch terminal on the push-pull pot. When pulled, it routes these to ground, isolating one coil for single-coil tone.
Ground the bare shield to the casing of the corresponding volume pot. Send the black wire (hot output) to the selector, and green wire (or green and bare, depending on color code) to ground.
Ensure all grounds converge at a central location to prevent buzz. Test for proper function: position 1 = bridge only, center = both in parallel, position 3 = neck only. Activate each coil tap to verify split behavior.
Troubleshooting Common Issues in 3 Position Selector Setup
Start by testing continuity with a multimeter across each terminal position. No reading indicates a failed contact or cold solder joint.
- No Output in Middle Position: Confirm both pickup hot leads are correctly routed to the selector. Inspect for lifted lugs or broken internal blades.
- One Pickup Always On: Check for a short between lugs due to excess solder or frayed wire strands. Ensure grounding paths are isolated from signal lines.
- Intermittent Signal: Oxidized metal contacts can cause dropouts. Clean with isopropyl alcohol and a fine brush. Avoid abrasive materials that can damage contact surfaces.
- Excessive Hum: Confirm all ground connections are secure, especially at the output jack and tone circuitry. Verify shielding continuity across cavities.
- Wrong Output Configuration: Use a schematic to verify lug positions–some models reverse hot and output paths depending on manufacturer.
After repair, always test under load with volume and tone controls active. Mechanical function alone does not guarantee proper signal routing.
Selecting the Right 3-Position Selector for Your Instrument Circuit
For optimal performance, choose a rotary selector with a short shaft if mounting space is limited, or a toggle type for easier switching during live play. Ensure the unit supports both on-on-on and on-off-on configurations depending on whether you need to isolate pickups or blend them.
Prioritize components with gold-plated contacts to minimize signal degradation and noise. The current rating should be at least 1 ampere at 250 volts AC to handle typical pickup outputs without wear.
Consider whether a DPDT or a 3PDT model suits your configuration; DPDT is standard for simple pickup selection, while 3PDT allows additional functions like coil splitting or phase reversal. Confirm terminal layouts and spacing match your control cavity for seamless integration.
For players seeking vintage tones, unsealed switches replicate classic response but require careful maintenance. Modern sealed units offer durability and consistent contact pressure, reducing crackle during operation.
