When it comes to maintaining and repairing your 2015 Dodge Journey with a 3.6-liter engine, understanding the serpentine belt diagram is essential. The serpentine belt, also known as the drive belt, is responsible for powering various engine components such as the alternator, power steering pump, and air conditioning compressor. Without a properly functioning serpentine belt, the engine’s performance and functionality can be compromised.

The 2015 Dodge Journey 3.6 serpentine belt diagram provides a visual representation of how the belt routes around different pulleys in the engine. This diagram serves as a guide for replacing or adjusting the belt, ensuring that it is properly aligned and tensioned. It is crucial to follow the diagram accurately to avoid any issues or potential damage to the engine.

With the serpentine belt diagram, you can easily identify the correct path for the belt, ensuring that it is secured tightly around each pulley. This diagram helps prevent the belt from slipping off or becoming loose, which can lead to a loss of power to essential components and potential engine failure. Following the diagram also ensures that the belt is correctly aligned, minimizing any unnecessary wear or damage.

Regularly inspecting and maintaining the serpentine belt of your 2015 Dodge Journey is vital for optimal engine performance. Familiarizing yourself with the serpentine belt diagram and understanding its importance can help you carry out routine maintenance tasks and identify potential issues before they become major problems. By following the diagram, you can ensure that your Dodge Journey continues to operate smoothly and efficiently.

Overview of the 2015 Dodge Journey 3.6

The 2015 Dodge Journey 3.6 is a mid-size crossover SUV that offers a powerful and efficient performance along with a spacious and comfortable interior. It is equipped with a 3.6-liter V6 engine that delivers a strong 283 horsepower and 260 lb-ft of torque, providing plenty of power for acceleration and passing on the highway. The engine is paired with a six-speed automatic transmission, ensuring smooth and responsive shifting.

One of the highlights of the 2015 Dodge Journey 3.6 is its versatility. It offers seating for up to seven passengers, making it an ideal choice for families or those who need to transport a larger group of people. The second row features a 60/40 split-folding design, allowing for easy access to the third row or creating additional cargo space when needed. The third row can also be folded down completely to provide a flat loading floor.

In terms of technology and convenience features, the 2015 Dodge Journey 3.6 does not disappoint. It comes standard with a 4.3-inch touchscreen display, allowing easy access to the Uconnect infotainment system. Bluetooth connectivity is also included, allowing for hands-free phone calls and audio streaming. Other available features include a rearview camera, rear parking sensors, and a dual-zone automatic climate control system.

The 2015 Dodge Journey 3.6 also offers a smooth and comfortable ride, thanks to its suspension tuning and well-insulated cabin. It handles well on both city streets and highways, providing a confident and composed driving experience. Safety is also a priority, with standard features such as antilock brakes, stability control, and a comprehensive airbag system.

Understanding the key features and specifications of the 2015 Dodge Journey 3.6 model

The 2015 Dodge Journey 3.6 is a versatile and reliable midsize SUV that offers a range of features and specifications designed to enhance the driving experience. From its powerful engine to its spacious interior, this model is a popular choice among families and individuals alike.

Key Features:

• Engine: The 2015 Dodge Journey 3.6 is equipped with a 3.6-liter V6 engine that delivers 283 horsepower and 260 pound-feet of torque. This powerful engine allows for smooth acceleration and confident performance on the road.
• Interior: The interior of the Dodge Journey is spacious and comfortable, with seating for up to seven passengers. The second row features a 60/40-split folding seatback, while the third row offers a 50/50-split folding seatback for added flexibility and cargo space.
• Technology: The 2015 Dodge Journey 3.6 comes equipped with a range of technology features, including a 8.4-inch touchscreen display, Bluetooth connectivity, and a six-speaker sound system. Additionally, available features include a rearview camera, navigation system, and rear-seat DVD entertainment system.
• Safety: The Dodge Journey is equipped with a variety of safety features, including stability control, antilock brakes, and a comprehensive airbag system. Available safety features include a rearview camera, rear parking sensors, and a rear-seat video monitoring system.

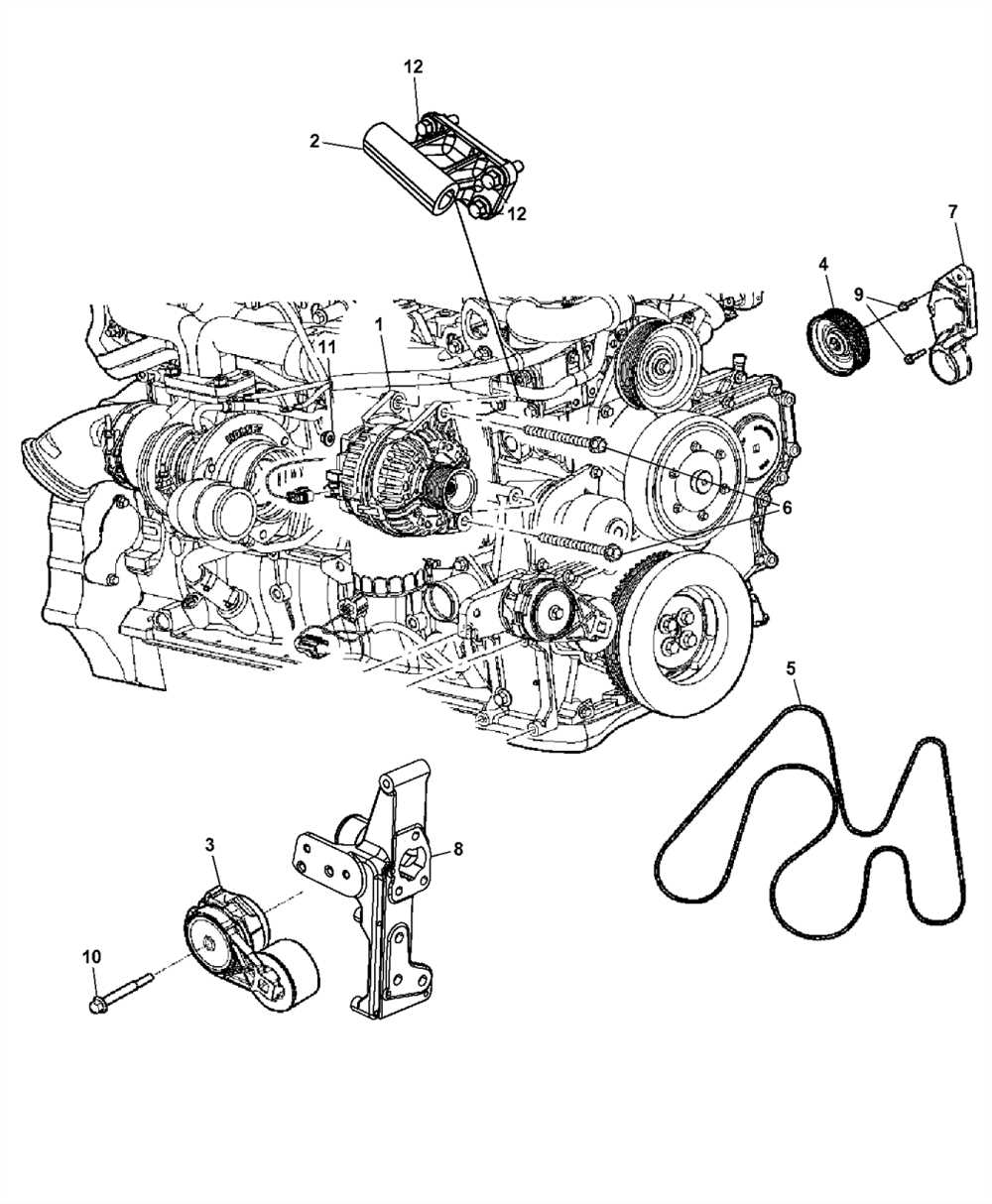

Specifications:

Engine	3.6L V6
Horsepower	283 hp
Torque	260 lb-ft
Transmission	6-speed automatic
Drivetrain	Front-wheel drive / All-wheel drive
Fuel Economy	17 city / 25 highway mpg
Seating Capacity	7
Cargo Space	10.7 cubic feet (behind third row)

Overall, the 2015 Dodge Journey 3.6 is a versatile and capable midsize SUV that offers a range of features and specifications designed to enhance the driving experience. With its powerful engine, spacious interior, and advanced technology features, this model offers a comfortable and enjoyable ride for drivers and passengers alike.

Importance of the Serpentine Belt in the 2015 Dodge Journey 3.6

The serpentine belt plays a crucial role in the functioning of the 2015 Dodge Journey 3.6. This belt is responsible for transferring power from the engine to various components of the vehicle, ensuring the smooth operation of essential systems. Without the serpentine belt, the Dodge Journey would not be able to function properly.

One of the primary functions of the serpentine belt is to drive the alternator. The alternator is responsible for charging the battery and providing power to the electrical systems of the vehicle. Without a functioning serpentine belt, the alternator would not be able to produce electricity, leading to a dead battery and the loss of electrical power in the vehicle.

In addition to the alternator, the serpentine belt also drives the power steering pump, air conditioning compressor, and water pump. The power steering pump assists in turning the wheels of the vehicle, making it easier for the driver to steer. The air conditioning compressor is responsible for providing cool air in the cabin, while the water pump circulates coolant throughout the engine to prevent overheating.

Due to the importance of the serpentine belt, it is essential to regularly inspect and replace it when necessary. Over time, the belt may become worn, cracked, or damaged, which can lead to failure and the loss of power to the various components it drives. Regular maintenance and timely replacement of the serpentine belt can help prevent unexpected breakdowns and ensure the continued smooth operation of the 2015 Dodge Journey 3.6.

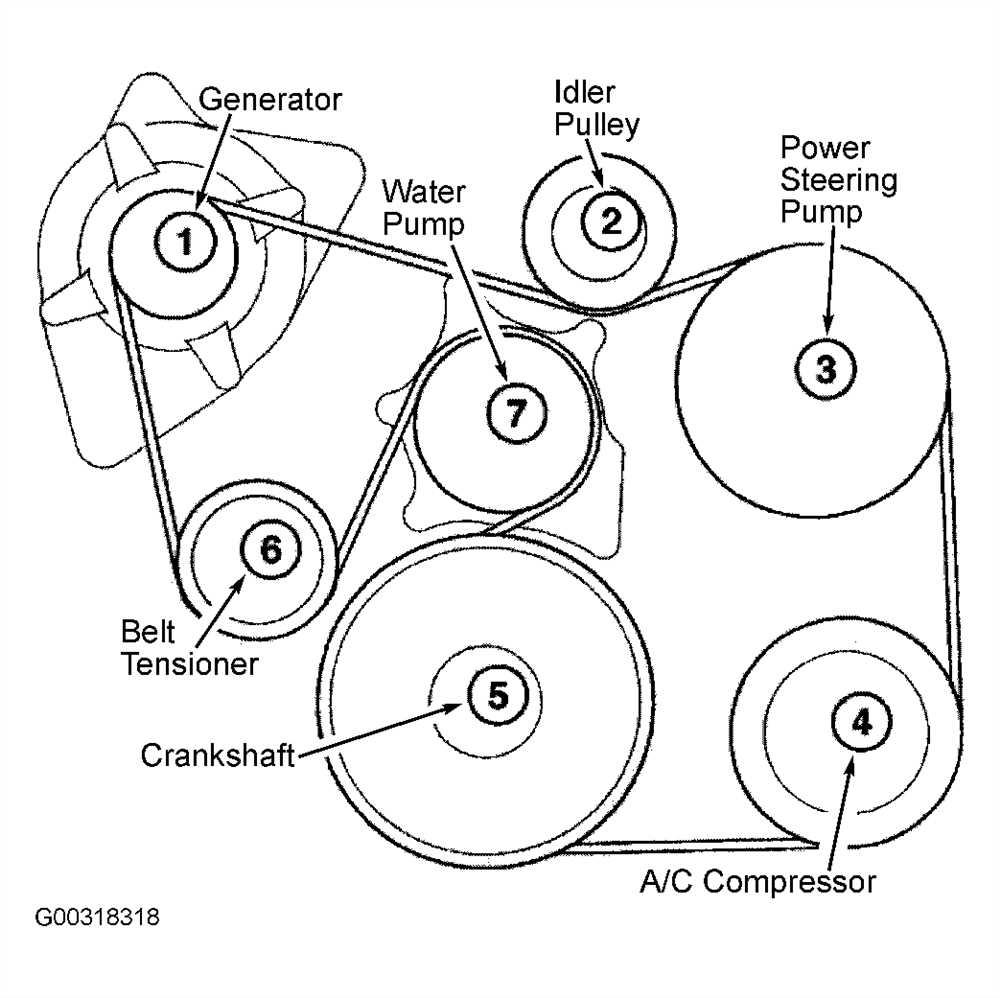

The Function and Significance of the Serpentine Belt in the Engine System

The serpentine belt is a vital component in an engine system as it plays a crucial role in driving multiple engine accessories. It is a long, winding belt that wraps around various pulleys to power essential components such as the alternator, power steering pump, air conditioning compressor, and water pump. Without the serpentine belt, these accessories would not be able to function properly, leading to a decrease in overall engine performance.

The serpentine belt is designed to transfer power from the engine’s crankshaft to the various accessories it drives. It is responsible for providing electrical power to the alternator, which charges the battery and powers the electrical systems of the vehicle. Additionally, the serpentine belt drives the power steering pump, allowing for easy steering control, and the air conditioning compressor, which provides cool air in hot weather. The water pump, another component driven by the serpentine belt, is essential for maintaining proper engine temperature by circulating coolant through the engine block.

In summary, the serpentine belt is a critical component in an engine system as it drives multiple accessories necessary for a vehicle’s overall performance. It ensures the proper functioning of the alternator, power steering, air conditioning, and cooling systems, all of which are integral to the smooth operation of a vehicle. Regular inspection and maintenance of the serpentine belt is essential to ensure its optimal performance and prevent any potential failures that could lead to costly repairs.

Explaining the Serpentine Belt Diagram for the 2015 Dodge Journey 3.6

The serpentine belt in the 2015 Dodge Journey 3.6 is an important component of the vehicle’s engine system. It plays a crucial role in driving multiple engine accessories, such as the alternator, power steering pump, and air conditioning compressor. Understanding the serpentine belt diagram is essential for proper maintenance and troubleshooting.

The serpentine belt diagram for the 2015 Dodge Journey 3.6 illustrates the path and orientation of the belt around the various pulleys in the engine. In this model, the belt starts at the crankshaft pulley and wraps around the tensioner pulley, water pump pulley, power steering pump pulley, and alternator pulley. It then loops around the air conditioning compressor pulley before returning to the crankshaft pulley.

The diagram helps mechanics and DIY enthusiasts identify the correct routing of the serpentine belt and ensures that it is installed properly. It also provides a visual representation of the order in which the pulleys should be aligned and the correct tension required for optimal performance. Following the diagram is crucial to prevent belt slipping, excessive wear, and potential damage to the engine system.

Inspecting the serpentine belt regularly is recommended to detect any signs of wear, cracking, or damage. It is important to replace the belt if any issues are found to maintain the proper functioning of the engine accessories. When replacing the serpentine belt, it is essential to refer to the diagram to ensure the new belt is installed correctly.

In conclusion, the serpentine belt diagram for the 2015 Dodge Journey 3.6 is a valuable guide for understanding the correct routing and alignment of the belt around the engine pulleys. It provides crucial information for proper installation, tensioning, and maintenance of the belt, ensuring the smooth operation of the engine accessories. Regular inspection and replacement of the serpentine belt are essential to prevent potential issues and maintain the overall performance of the vehicle.

Visual Representation and Explanation of the Serpentine Belt Routing in the Engine

When it comes to the engine in a 2015 Dodge Journey 3.6, understanding the serpentine belt routing is crucial for proper maintenance and troubleshooting. The serpentine belt is a single, continuous belt that drives multiple engine components, including the alternator, water pump, power steering pump, and air conditioning compressor. Without the serpentine belt, these essential components would not be able to operate.

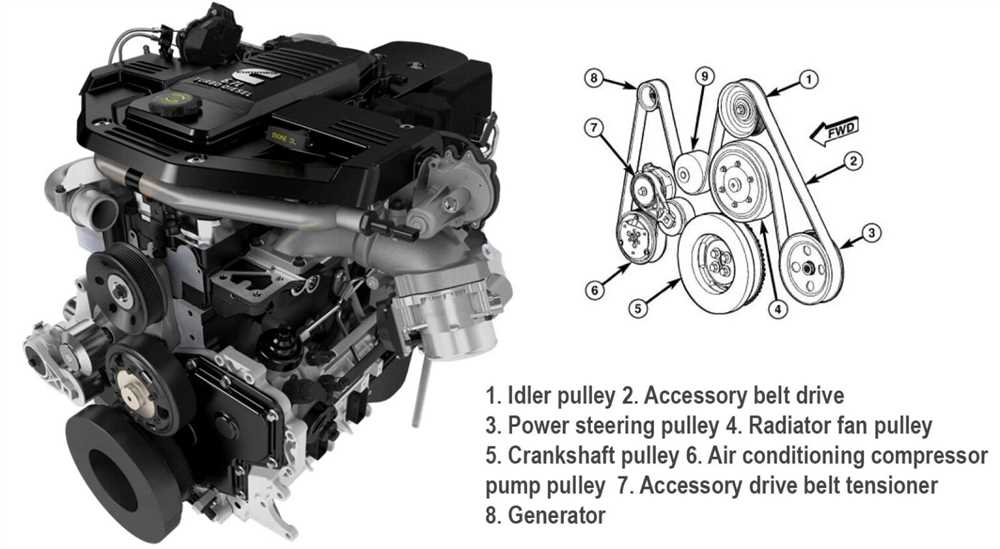

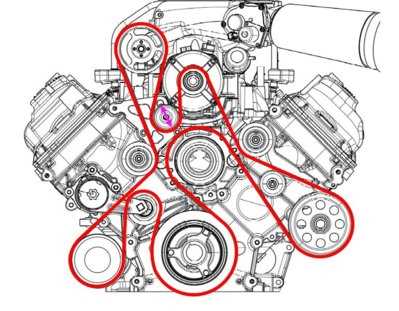

To visualize the serpentine belt routing, it’s helpful to refer to a diagram. The diagram showcases the path that the belt takes around the various pulleys in the engine. This path is determined by the design of the engine and the placement of the different components. By following the diagram, you can identify each pulley and understand how the belt wraps around it.

Starting from the crankshaft pulley, the serpentine belt typically makes its way around the alternator, water pump, power steering pump, and finally the air conditioning compressor. The exact routing may vary slightly depending on the specific engine model, but the general pattern remains the same.

It’s important to note that the serpentine belt routing can be different for different vehicle models and engine configurations. Therefore, always refer to a reliable source, such as the vehicle’s service manual or the manufacturer’s website, to obtain the correct diagram for your particular vehicle.

• Key components: The serpentine belt is responsible for driving the alternator, water pump, power steering pump, and air conditioning compressor in the engine.
• Diagram: A diagram visually represents the belt’s path around the pulleys, helping to identify each pulley and understand the routing.
• Routing pattern: The belt typically starts at the crankshaft pulley and wraps around the alternator, water pump, power steering pump, and air conditioning compressor.
• Variations: The serpentine belt routing may vary slightly depending on the specific engine model and vehicle configuration, so always refer to the correct diagram for your vehicle.

By understanding the serpentine belt routing in the engine of a 2015 Dodge Journey 3.6, you can ensure proper maintenance and troubleshooting. Regularly inspecting the belt for wear and following the correct routing pattern will help to keep the engine’s components functioning efficiently and prevent any potential issues. If you’re unsure about the serpentine belt routing or need assistance, it’s always best to consult a professional mechanic or refer to the vehicle’s service manual.

Steps to Replace the Serpentine Belt in the 2015 Dodge Journey 3.6

Replacing the serpentine belt in a 2015 Dodge Journey 3.6 is a relatively straightforward process that can be completed with a few common tools. The serpentine belt is responsible for powering various engine components, such as the alternator, power steering pump, and air conditioning compressor. Over time, the belt can wear out and start to crack, which can lead to decreased performance and potential engine damage. It’s essential to replace the serpentine belt at the first sign of wear or damage to maintain the proper functioning of the vehicle. Here are the steps to replace the serpentine belt in the 2015 Dodge Journey 3.6:

1. Prepare the Vehicle: Before beginning the replacement process, ensure the vehicle is parked on a level surface and the engine is turned off. Open the hood and locate the serpentine belt diagram, usually located on the radiator support or the inside of the hood. This diagram will serve as a guide for routing the new belt.

2. Loosen the Tensioner: Use a wrench or socket to rotate the tensioner pulley in a counterclockwise direction. This will release the tension on the belt, allowing for easier removal. Once the tension is released, slide the old belt off the pulleys and set it aside.

3. Install the New Belt: Refer to the serpentine belt diagram and route the new belt along the appropriate path, ensuring it is correctly aligned with each pulley. Take care not to twist or kink the belt during installation. Once the belt is properly aligned, release the tensioner pulley to apply tension to the new belt.

4. Verify Proper Installation: After the new belt is installed, visually inspect the belt to ensure it is correctly aligned on all pulleys. If necessary, make any adjustments to ensure proper alignment. Start the engine and let it run for a few minutes, checking for any unusual noises or vibrations. If everything sounds and feels normal, the serpentine belt replacement is complete.

While replacing the serpentine belt in the 2015 Dodge Journey 3.6 can be done by a confident DIYer, it is always recommended to consult the vehicle’s owner’s manual or seek professional assistance if unsure about any part of the process. Proper installation of the serpentine belt is crucial for the overall performance and longevity of the vehicle’s engine.

Q&A:

What tools do I need to replace the serpentine belt in the 2015 Dodge Journey 3.6?

You will need a serpentine belt tool or a socket wrench, a short extension, and a 15mm socket.

Where is the serpentine belt located in the 2015 Dodge Journey 3.6?

The serpentine belt is located on the front of the engine, connecting various engine components.

How do I remove the old serpentine belt from the 2015 Dodge Journey 3.6?

First, locate the tensioner pulley and use a serpentine belt tool or a socket wrench with a short extension and a 15mm socket to rotate the tensioner pulley counterclockwise. This will release the tension on the belt. Then, slide the belt off the pulleys.

How do I install the new serpentine belt in the 2015 Dodge Journey 3.6?

Start by routing the new belt around the pulleys, following the correct belt routing diagram. Then, rotate the tensioner pulley counterclockwise to release the tension on the belt, and slide the belt onto the last pulley. Finally, release the tensioner pulley, making sure the belt is properly seated on all pulleys.

How do I check the tension of the new serpentine belt in the 2015 Dodge Journey 3.6?

You can check the tension of the new serpentine belt by pressing on the belt with your thumb. It should have about a 1/2-inch of deflection. If it is too loose or too tight, you may need to adjust the tensioner pulley.

When it comes to electrical safety in your home, it is crucial to have the right wiring in place. One important component of this is the 2 pole GFCI (Ground Fault Circuit Interrupter) breaker. This specialized breaker is designed to protect you and your home from electrical shock by quickly shutting off the power when a ground fault is detected.

Proper installation of a 2 pole GFCI breaker is essential to ensure its effectiveness and your safety. This article will guide you through the steps of wiring a 2 pole GFCI breaker, ensuring that you have a solid understanding of the process and the necessary precautions to take.

Before beginning any electrical work, it is crucial to shut off the power to the circuit you will be working on. This can be done by turning off the main breaker in your electrical panel. Once the power is off, you can safely proceed with the installation.

When wiring a 2 pole GFCI breaker, it is important to follow the manufacturer’s instructions and local electrical codes. Generally, the process involves connecting the hot wires from the circuit to the breaker’s terminals, the neutral wire to the neutral bar in the electrical panel, and the ground wire to the grounding bar.

After the wiring is complete, it is important to test the functionality of the GFCI breaker. This can be done by turning the power back on and using a GFCI tester to verify that the breaker responds correctly to a ground fault. Regular testing and maintenance of the GFCI breaker are essential to ensure its ongoing effectiveness.

By following the proper wiring procedures and taking necessary precautions, you can ensure that your 2 pole GFCI breaker is installed correctly and provides the highest level of protection for you and your home. Remember, if you are uncertain about any aspect of the installation process, it is always best to consult a licensed electrician to ensure your safety and the safety of your home.

How to install a 2 pole GFCI breaker in your electrical panel

If you are looking to install a 2 pole GFCI breaker in your electrical panel, it is important to follow the proper steps to ensure safety and compliance with electrical codes. A 2 pole GFCI breaker is designed to protect both hot wires in a circuit, making it an essential component for certain applications, such as providing ground fault protection for large appliances or outdoor circuits.

Here is a step-by-step guide on how to install a 2 pole GFCI breaker:

1. Turn off the power: Before beginning any electrical work, it is crucial to turn off the power to the circuit you will be working on. Locate the main service panel and flip the corresponding breaker to the “off” position. Use a voltage tester to ensure that the power has been successfully disconnected.
2. Remove the panel cover: Using a screwdriver, remove the screws that secure the panel cover in place. Carefully lift off the cover and set it aside in a safe location.
3. Identify the circuit: Locate the circuit that you will be installing the 2 pole GFCI breaker on. Make note of the wire colors and their corresponding positions on the existing breaker. This information will be helpful when wiring the new GFCI breaker.
4. Remove the existing breaker: Carefully loosen the screws that secure the existing breaker to the panel’s bus bar. Gently pull the breaker out of the panel, being mindful of any connected wires. Disconnect the wires from the breaker and set it aside.
5. Wire the new GFCI breaker: Take the wires that were previously connected to the original breaker and attach them to the corresponding terminals on the new GFCI breaker. Follow the manufacturer’s instructions for proper wiring techniques and tightening the connections.
6. Install the new GFCI breaker: Insert the new GFCI breaker into the panel’s bus bar, aligning it with the proper position. Carefully push the breaker until it is fully seated. Use the screws provided to secure the breaker in place.
7. Replace the panel cover: Place the panel cover back onto the electrical panel and secure it with the screws. Make sure the cover is properly aligned and snug.
8. Restore power: Once all the steps have been completed, turn the main service breaker back on to restore power to the circuit. Test the GFCI breaker to ensure it is functioning correctly by pressing the “test” button and then the “reset” button.

It is important to consult a licensed electrician or follow local electrical codes when performing any electrical work to ensure safety and compliance. If you are unsure about any aspect of the installation process, it is best to seek professional assistance.

Step 1: Ensure Safety Precautions

Before starting any electrical work, it is crucial to prioritize safety to prevent any potential accidents or injuries. When working with a 2 pole GFCI breaker, follow these essential safety precautions:

1. Turn off the power: Before handling any electrical components, make sure to turn off the power at the main circuit breaker. This will help prevent electric shocks and ensure your safety during the installation process.
2. Wear protective gear: Always wear personal protective equipment (PPE) such as insulated gloves, safety glasses, and non-slip footwear. These will provide an additional layer of protection against electrical hazards and minimize the risk of injury.
3. Inspect the breaker: Before installing the 2 pole GFCI breaker, carefully inspect it for any signs of damage or defects. Ensure that it is the correct type and rating for your specific electrical circuit.
4. Read the manufacturer’s instructions: Familiarize yourself with the manufacturer’s instructions and guidelines for installing the 2 pole GFCI breaker. This will ensure that you understand the proper installation procedure and any specific requirements.
5. Work in a dry and well-lit area: Choose a well-lit and dry location to carry out the installation. This will improve visibility and minimize the risk of accidents or slips.
6. Use insulated tools: When handling electrical components, always use insulated tools to prevent accidental contact with live wires. Insulated tools provide an extra layer of protection and minimize the risk of electric shock.
7. Test the circuits: After the installation is complete, carefully test the circuits to ensure proper functioning of the 2 pole GFCI breaker. Use a voltage tester to verify that there is no power running through the circuit before proceeding.

By following these safety precautions, you can ensure a safe and successful installation of a 2 pole GFCI breaker. Remember to prioritize safety at all times and consult a professional electrician if you are unsure about any aspect of the installation process.

Step 2: Turn off the power

Before beginning any electrical work, it is crucial to ensure that the power is completely turned off to prevent any potential accidents or injuries. The following steps outline the process of turning off the power:

1. Identify the correct breaker: Locate the circuit breaker that controls the specific area or appliance you will be working on. Refer to your circuit breaker panel directory or use a voltage tester to confirm the correct breaker.
2. Switch off the breaker: Once you have identified the correct breaker, switch it off by moving the breaker handle to the “off” position. Make sure the handle is firmly in the off position and not in between the on and off positions.
3. Double-check the power: To ensure the power is truly off, use a voltage tester to test the wires or outlets in the area you will be working on. If the tester does not detect any voltage, it is safe to proceed with your work.

By following these steps and ensuring the power is completely turned off, you can work on installing a 2 pole GFCI breaker safely and efficiently.

Step 3: Remove the panel cover

Before starting the wiring process, it is important to first remove the panel cover of the electrical panel. This panel cover is typically held in place by screws or clips and protects the wiring and components inside.

To remove the panel cover, you will need a screwdriver or a tool appropriate for the type of fasteners used. Carefully unscrew or unclip the panel cover, making sure to set aside any screws or clips for reassembly later.

It is crucial to ensure that the power to the electrical panel is turned off before removing the panel cover. This can usually be done by switching off the main breaker or disconnecting the power source. Always double-check that the power is off by using a voltage tester before proceeding.

Once the panel cover is removed, you will have access to the interior of the electrical panel. Take note of the existing wiring and components, as it will guide you in properly installing the 2 pole GFCI breaker.

Step 4: Identify the hot and neutral wires

Before wiring the 2 pole GFCI breaker, it is important to correctly identify the hot and neutral wires in your electrical circuit. The hot wire is the one that carries the current from the electrical source to the load, while the neutral wire provides a return path for the current.

To identify the hot wire, you can use a voltage tester or a multimeter. Turn off the power to the circuit from the main electrical panel and then disconnect the wires from the existing breaker. Use the voltage tester or multimeter to test each wire to determine which one carries the voltage. The wire that shows a voltage reading is the hot wire.

Once you have identified the hot wire, you can then identify the neutral wire. Usually, the neutral wire is connected to the neutral bus bar in the electrical panel. Look for a white wire that is connected to the neutral bus bar and trace it back to the circuit you are working on. This wire is the neutral wire.

Step 5: Connect the GFCI Breaker to the Hot and Neutral Wires

After properly installing the 2 pole GFCI breaker into the electrical panel, the next step is to connect the hot and neutral wires to the breaker. This will allow the breaker to provide both overcurrent protection and ground fault protection for the circuit. Follow the steps below to ensure a safe and proper connection:

1. Identify the Hot and Neutral Wires

Before making any connections, it is crucial to identify the hot and neutral wires coming into the panel. The hot wire is typically black or red and the neutral wire is usually white or gray. If you are unsure, it is recommended to use a voltage tester to confirm the wires.

2. Connect the Hot Wire

Locate the terminal on the 2 pole GFCI breaker labeled “Line” or “Load” for the hot wire. Strip a small portion of insulation from the end of the hot wire using wire strippers. Insert the exposed end of the hot wire into the appropriate terminal and tighten the screw securely with a screwdriver. Make sure the hot wire is connected to the correct terminal based on the wiring diagram provided by the manufacturer.

3. Connect the Neutral Wire

Locate the terminal on the GFCI breaker labeled “Neutral” or “N” for the neutral wire. Strip a small portion of insulation from the end of the neutral wire. Insert the exposed end of the neutral wire into the appropriate terminal and tighten the screw securely. Again, refer to the wiring diagram to ensure the neutral wire is connected to the correct terminal on the breaker.

4. Double-check the Connections

Before proceeding, double-check all connections to make sure they are secure and properly tightened. Additionally, ensure that the wires are correctly connected to the appropriate terminals on the GFCI breaker according to the manufacturer’s instructions.

Once the hot and neutral wires are connected to the 2 pole GFCI breaker, the electrical circuit is ready for testing. But before turning on the power, it is important to perform a final inspection of the entire wiring setup to ensure everything appears correct and safe.

Note: This guide provides general instructions for connecting a 2 pole GFCI breaker to hot and neutral wires. It is always recommended to consult the specific instructions and wiring diagram provided by the manufacturer for your particular breaker model to ensure proper installation.

Step 6: Mount the GFCI breaker in the electrical panel

Once you have properly connected the wires to the two poles of the GFCI breaker, the next step is to mount the breaker in the electrical panel. This is an important step as it ensures the breaker is securely installed and properly positioned within the panel.

To mount the GFCI breaker, first, open the electrical panel door. Locate the appropriate slot or space for the breaker. This slot should match the size and shape of the breaker. Carefully insert the breaker into the slot, making sure that the end with the wiring connections is positioned correctly.

Once the breaker is in the correct position, firmly push it into place until it is snugly secured. You may need to apply some pressure, but be careful not to use excessive force that could damage the breaker or the panel. Make sure the breaker is lined up correctly with the panel’s bus bars.

After mounting the GFCI breaker, close the electrical panel door, ensuring that it is tightly sealed. This will help protect the wiring and the breaker from any potential hazards. It is important to follow the manufacturer’s instructions and any applicable electrical codes when mounting the GFCI breaker.

Step 7: Test the GFCI breaker

After completing the wiring of the 2 pole GFCI breaker, it is essential to test its functionality to ensure proper installation and electrical safety. Here are the steps to perform the GFCI breaker test:

1. Reset the GFCI breaker by switching it off and then back on.
2. Plug a GFCI tester into an outlet connected to the GFCI breaker.
3. Press the “Test” button on the GFCI tester to simulate a ground fault.
4. Observe the behavior of the GFCI breaker:
• If the GFCI breaker immediately trips and cuts off power supply, this indicates proper functioning.
• If the GFCI breaker does not trip, it may be faulty, and further troubleshooting or replacement may be necessary.
5. Reset the GFCI breaker again and switch it back on after testing.
6. Repeat the test on other outlets connected to the GFCI breaker to ensure complete coverage.

Testing the GFCI breaker is crucial to ensure that it will effectively respond to ground faults and provide electrical protection. It is recommended to periodically test the GFCI breaker to ensure continuous safety in your electrical system.

If you’re looking to wire a 115/230 volt electric motor, it’s essential to understand the correct wiring diagram. This diagram will guide you through the process of connecting the motor to a power source and allow it to function efficiently. The voltage rating of 115/230 volts means that the motor can operate on either 115 volts or 230 volts, depending on the wiring configuration.

When wiring a motor with a dual voltage rating, it’s vital to determine the correct voltage for your particular setup. The wiring diagram will show you how to connect the motor for either 115 volts or 230 volts, depending on your power supply. Using the wrong voltage can lead to damage and potentially dangerous situations.

The wiring diagram for a 115/230 volt electric motor typically includes instructions for connecting the motor’s power supply, starter, and any additional components. It may also include information on wire sizing, connection points, and grounding requirements. It’s crucial to follow the diagram precisely to ensure a safe and successful installation.

In conclusion, understanding the wiring diagram for a 115/230 volt electric motor is essential for a proper and safe installation. The diagram will guide you through connecting the motor to the correct voltage and include instructions for additional components. Following the diagram precisely will enable the motor to function efficiently and prevent any potential damage or hazards. If you’re unsure about the wiring process, it’s always best to consult a professional electrician for assistance.

Understanding Electric Motors: A Comprehensive Guide

Electric motors are devices that convert electrical energy into mechanical energy. They are used in a wide range of applications, from powering household appliances to driving industrial machinery. Understanding how electric motors work and how to properly wire them is essential for anyone working with or around these devices.

Motors Basics: Electric motors consist of several main components, including a stator, a rotor, and a power supply. The stator is the stationary part of the motor and is made up of a set of electromagnets. The rotor, on the other hand, is the rotating part of the motor and is usually connected to a shaft. When electric current flows through the motor, it creates a magnetic field that interacts with the rotor, causing it to rotate.

Wiring Diagram: A wiring diagram is a visual representation of the electrical connections and components within an electric motor. It provides a roadmap for properly connecting the motor to a power source and any additional devices or controls. The diagram typically includes information on how the motor is wired for different voltage options, such as 115 volts or 230 volts. Understanding how to read and interpret a motor wiring diagram is crucial for ensuring proper installation and operation.

115/230 Volt Motors: One common type of electric motor is the 115/230 volt motor, which can be wired to operate on either 115 volts or 230 volts, depending on the available power supply. The wiring diagram for a 115/230 volt motor will typically show two sets of connections, one for 115 volts and one for 230 volts. It is important to correctly match the wiring configuration to the power supply to avoid damaging the motor or causing it to malfunction.

Proper Wiring Techniques: When wiring an electric motor, it is crucial to follow the manufacturer’s instructions and adhere to electrical code requirements. Some important considerations include selecting the appropriate wire gauge for the motor’s current rating, properly grounding the motor, and using the correct connectors or terminals. It is also important to check for any damaged or frayed wires and ensure that all connections are secure and tight.

Maintenance and Troubleshooting: Electric motors require regular maintenance to ensure optimal performance and longevity. This includes cleaning the motor, lubricating moving parts, and checking for any signs of wear or damage. If a motor is not functioning correctly, troubleshooting techniques can be used to identify and fix common issues, such as faulty wiring connections, burnt-out components, or motor overheating.

In conclusion, understanding electric motors and how to properly wire and maintain them is essential for anyone working with or around these devices. By familiarizing yourself with the basics of motor operation, interpreting wiring diagrams, and following proper wiring practices, you can ensure safe and efficient operation of electric motors in various applications.

The Importance of Wiring Diagrams

Wiring diagrams play a crucial role in the installation and maintenance of electrical systems. These diagrams provide a visual representation of the connections and components involved in an electrical circuit or system. They are essential tools for electricians and technicians as they allow them to understand and troubleshoot complex electrical systems.

Understanding the Connections: One of the primary purposes of wiring diagrams is to provide a clear understanding of how different components are connected in an electrical system. The diagrams show the pathways of electrical current, the switches, fuses, and other devices that control the flow of electricity. By studying these diagrams, electricians can easily identify which wires are connected to specific components and ensure correct installation and proper functioning of the system.

Troubleshooting and Repairs: When electrical problems occur, wiring diagrams are essential in diagnosing and repairing the issues. With a wiring diagram in hand, technicians can trace the path of electrical current, identify potential points of failure, and pinpoint the faulty component or connection. This saves time and effort in troubleshooting, reduces the risk of further damage, and ensures that repairs are done accurately the first time.

Compliance with Safety Standards: Wiring diagrams also ensure compliance with electrical safety standards. They provide an organized and standardized representation of the electrical system, making it easier to identify potential hazards and ensure that safety precautions are taken during installation and maintenance. These diagrams also aid in following proper grounding and insulation practices, which are critical for preventing electrical shocks and fires.

Training and Education: Wiring diagrams serve as valuable training and educational tools for electricians and technicians. They help newcomers understand the basics of electrical circuits, learn about different components, and grasp the fundamentals of electrical system design and installation. By studying wiring diagrams, individuals can enhance their skills and knowledge in the field of electrical engineering.

In conclusion, wiring diagrams are indispensable in ensuring the proper installation, maintenance, and troubleshooting of electrical systems. They provide a visual representation of connections, aid in diagnosing faults, ensure compliance with safety standards, and serve as valuable educational tools. Electricians and technicians rely on wiring diagrams to ensure electrical systems function correctly and safely, making them an essential part of the electrical industry.

Basic Principles of 115/230 Volt Electric Motors

An electric motor is a device that converts electrical energy into mechanical energy. The 115/230 volt electric motor is a common type of motor used in various applications, including household appliances, power tools, and industrial machinery. It is capable of operating on either 115 volts or 230 volts, depending on the wiring configuration and the user’s power supply.

The basic principles of operation for a 115/230 volt electric motor are similar to those of other types of electric motors. The motor consists of a stator, which is the stationary part, and a rotor, which is the rotating part. The stator is typically made up of electromagnets that create a magnetic field when an electric current is passed through them. The rotor, on the other hand, is usually a permanent magnet or an electromagnet that is free to rotate within the magnetic field created by the stator.

When the motor is connected to a power supply, an electrical current flows through the stator windings, creating a magnetic field. This magnetic field interacts with the magnetic field of the rotor, causing the rotor to rotate. The direction of rotation can be changed by reversing the direction of the current flowing through the stator windings.

The wiring diagram for a 115/230 volt electric motor shows two sets of wires, one for each voltage option. These wires can be connected in different ways to change the motor’s operating voltage. For example, in a 115-volt configuration, the motor may be connected in series, where the voltage across each winding is 115 volts. In a 230-volt configuration, the motor may be connected in parallel, where the voltage across each winding is 230 volts.

It is important to follow the wiring diagram provided by the manufacturer when wiring a 115/230 volt electric motor to ensure proper operation and to prevent damage to the motor. Additionally, it is crucial to ensure that the power supply matches the selected voltage configuration to avoid overheating or other electrical issues.

##

Wiring Configuration for 115/230 Volt Motors

When it comes to wiring a 115/230 volt electric motor, there are a few different wiring configurations that you can use depending on your specific needs. The wiring configuration refers to how the motor’s coils are connected to the power supply in order to achieve the desired voltage.

One common wiring configuration for a 115/230 volt motor is the dual voltage, or “high-low” configuration. In this configuration, the motor has two sets of windings: one set for 115 volts and another set for 230 volts. The motor also has a switch or jumper settings that allow you to select the desired voltage. To wire the motor for 115 volts, you would typically connect the low voltage winding in parallel, and for 230 volts, you would connect the high voltage winding in series. This configuration allows the motor to be used with either voltage depending on your needs.

Another wiring configuration for a 115/230 volt motor is the “switchless” configuration. In this configuration, the motor is designed to automatically sense and adjust to the incoming voltage. This eliminates the need for a switch or jumper settings. Instead, the motor is wired in a way that allows it to detect whether 115 volts or 230 volts is being supplied and adjust its internal connections accordingly. This configuration is often more convenient and user-friendly, but may be more complex to wire.

It’s important to note that the specific wiring configuration for a 115/230 volt electric motor can vary depending on the manufacturer and model of the motor. Therefore, it’s always a good idea to consult the motor’s wiring diagram or the manufacturer’s instructions to ensure that you are wiring the motor correctly and safely.

• Dual voltage or “high-low” wiring configuration: In this configuration, the motor has two sets of windings for 115 volts and 230 volts, with a switch or jumper settings to select the desired voltage.
• “Switchless” wiring configuration: In this configuration, the motor is designed to automatically sense and adjust to the incoming voltage, eliminating the need for a switch or jumper settings.
• Always consult the motor’s wiring diagram or the manufacturer’s instructions for the specific wiring configuration of your motor to ensure proper and safe wiring.

Step-by-Step Guide to Wiring a 115/230 Volt Electric Motor

Wiring an electric motor can seem like a daunting task, but with the right instructions, it can be a straightforward process. In this guide, we will walk you through the steps to properly wire a 115/230 volt electric motor.

Step 1: Gather the Necessary Tools and Materials

Before you begin, make sure you have all the tools and materials you will need. This includes wire strippers, electrical tape, wire nuts, a Phillips screwdriver, and a voltage tester. Additionally, ensure you have the correct wiring diagram for your specific motor model.

Step 2: Disconnect Power Supply

Before working on any electrical components, it is crucial to disconnect the power supply. Locate the circuit breaker or fuse that controls the motor and turn it off to ensure your safety.

Step 3: Determine the Motor’s Voltage

Identify the voltage of your electric motor. Most motors can be wired to operate at either 115 or 230 volts, depending on your specific needs. Refer to the motor’s labeling or the wiring diagram to determine the correct voltage setting.

Step 4: Prepare the Wires

Using the wire strippers, remove approximately 1 inch of insulation from the end of each wire. This will expose the copper conductors and allow for a secure connection.

Step 5: Connect the Power Supply Wires

Locate the terminal box on the motor. Typically, there will be three terminals labeled “L1,” “L2,” and “L3.” These are the power supply terminals. Connect the power supply wires to these terminals following the wiring diagram. Use wire nuts to secure the connections and wrap them with electrical tape for added protection.

Step 6: Connect the Motor Leads

Next, locate the motor leads, which are typically labeled with numbers or letters. These leads will determine the motor’s rotation direction and speed. Match the motor leads to the corresponding terminals in the terminal box and secure the connections with wire nuts and electrical tape.

Step 7: Test the Wiring

Once all the connections are made, double-check your wiring against the motor’s wiring diagram. Then, use a voltage tester to ensure that there is no power present in the wires. This will help prevent any accidental shocks during the testing and operation of the motor.

Following these steps will help you safely and correctly wire a 115/230 volt electric motor. Remember to always prioritize safety and consult a professional electrician if you are unsure about any steps or procedures.

Troubleshooting Common Wiring Issues

In the world of electrical motors, wiring issues can often be the source of problems. Whether you are dealing with a 115/230 volt electric motor or any other type, it is important to familiarize yourself with common wiring issues and how to troubleshoot them. Here are some common wiring issues and their possible solutions:

1. Loose or Incorrectly Connected Wires

One of the most common wiring issues is loose or incorrectly connected wires. This can happen due to vibration, improper installation, or simply wear and tear. If you notice that your electric motor is not functioning properly, check all the wires for any signs of looseness or incorrect connections. Tighten any loose connections and ensure that the wires are connected to the correct terminals. Be sure to follow the wiring diagram specific to your motor to avoid any further issues.

2. Short Circuits

Another common wiring issue is short circuits. Short circuits occur when there is a direct and unintended connection between two or more wires. This can cause damage to the motor and may result in overheating or even electrical fires. If you suspect a short circuit, turn off the power immediately and inspect the wiring for any signs of damage, such as exposed wires or melted insulation. Replace any damaged or faulty wiring and ensure that all connections are secure.

3. Overloaded Circuits

Overloaded circuits can also be a cause of wiring issues. When a circuit is overloaded with too much current, it can lead to overheating and potential damage to the motor. To troubleshoot this issue, check the power supply and make sure it is compatible with the motor’s voltage requirements. Also, ensure that the wiring and connectors are capable of handling the current. If necessary, consult an electrician to determine if a circuit upgrade is needed.

By understanding and addressing these common wiring issues, you can ensure the proper functioning of your electric motor. Regular inspection and maintenance of the wiring system can help prevent further problems and extend the lifespan of your motor.

When it comes to working on your Polaris vehicle, having access to an exploded parts diagram can be invaluable. Whether you’re a seasoned mechanic or a do-it-yourself enthusiast, these diagrams provide a clear and detailed view of the various components that make up your Polaris machine. From the engine to the transmission, suspension to the electrical system, a parts diagram can help you identify, locate, and order the exact parts you need.

By using a Polaris exploded parts diagram, you can quickly and easily navigate through the intricate network of components that make up your vehicle. Each part is clearly labeled and numbered, making it simple to identify what you’re looking for. This detailed view allows you to see how the various parts fit together and how they interact with one another. Whether you’re replacing a worn-out component or upgrading to a higher-performance part, a parts diagram can help ensure that you’re choosing the right part for your specific model.

Not only are these diagrams useful for repairs and upgrades, but they can also be a valuable tool for routine maintenance. When it comes time to change the oil, replace the filters, or adjust the brakes, having a parts diagram on hand can simplify the process. Instead of guessing where each component is located, you can refer to the diagram to find the exact location of the part you need to work on. This can save you time and frustration, allowing you to complete the task with confidence.

Whether you own a Polaris ATV, UTV, or snowmobile, a Polaris exploded parts diagram can be an indispensable resource. With its clear and detailed view of the various components, you can easily identify, locate, and order the parts you need. Whether you’re performing repairs, upgrades, or routine maintenance, having a parts diagram on hand can streamline the process and ensure that you’re getting the job done right. So, before you start your next project, be sure to consult a Polaris exploded parts diagram to make your work as efficient and successful as possible.

Polaris Exploded Parts Diagram: A Comprehensive Guide

If you own a Polaris vehicle, such as an ATV, UTV, or snowmobile, it’s essential to have a good understanding of its parts and how they fit together. One valuable resource for this is the Polaris exploded parts diagram, which provides a comprehensive visual guide to the various components and their respective positions.

The Polaris exploded parts diagram is a detailed illustration that shows the disassembled view of the vehicle’s parts. It allows you to see how each part fits into the whole and provides a clear understanding of its function and relation to other components. With this diagram, you can easily identify parts, locate their positions, and understand how they interact with each other.

Understanding the Polaris exploded parts diagram is particularly useful in several scenarios:

• Repair and Maintenance: Whether you’re fixing a minor issue or conducting a major overhaul, the exploded parts diagram helps you identify the specific part you need and its location within the vehicle. This knowledge saves time and effort by eliminating guesswork and ensures the correct replacement or repair.
• Upgrades and Modifications: If you’re looking to upgrade or modify your Polaris vehicle, the exploded parts diagram is an invaluable resource. You can easily pinpoint where new parts or modifications should be installed, ensuring a seamless integration into the existing system.
• Educational Purposes: Whether you’re a Polaris enthusiast, a mechanic, or a student studying the inner workings of vehicles, the exploded parts diagram provides a wealth of knowledge. It helps in understanding the complexities of the vehicle’s design and enhances your overall knowledge of Polaris systems.

In addition to these benefits, the Polaris exploded parts diagram is often accompanied by a parts list with detailed descriptions and part numbers. This information further simplifies the process of identifying and acquiring the required parts for your Polaris vehicle.

Overall, the Polaris exploded parts diagram is an indispensable tool for anyone working on or studying Polaris vehicles. Its detailed visual representation and accompanying parts list provide a comprehensive guide that streamlines repairs, upgrades, and educational endeavors. By utilizing this resource, you can ensure the proper functioning and longevity of your Polaris vehicle.

Understanding Polaris Vehicles

Polaris vehicles are known for their durability, performance, and versatility. Whether you are a recreational rider or a professional off-roader, Polaris offers a wide range of vehicles to suit your needs. From ATVs to side-by-side vehicles, Polaris has been a trusted brand in the powersports industry for years.

One of the key features of Polaris vehicles is their modular design. This means that many parts can be easily replaced or upgraded, allowing owners to customize their vehicles to their specific preferences. The exploded parts diagram for Polaris vehicles is a valuable resource for understanding the different components and how they fit together.

Exploded Parts Diagram

The exploded parts diagram visually breaks down the different parts of a Polaris vehicle, showing how they are assembled and connected. This diagram provides a clear understanding of the various components, such as the engine, transmission, suspension, and electrical systems. By referring to the diagram, owners can easily identify and locate specific parts, making it easier to perform maintenance or repairs.

Additionally, the exploded parts diagram can be useful for troubleshooting issues. If a Polaris vehicle is experiencing a problem, such as a malfunctioning brake system or a faulty ignition, the diagram can help identify the potential causes and guide the owner in finding the appropriate solution. With this visual representation, owners can gain a better understanding of how their vehicle works and how to address common issues.

The Importance of Exploded Parts Diagram

In the world of mechanical devices, whether it’s an automobile engine or a household appliance, understanding how the different components fit together is crucial for proper assembly, maintenance, and repair. This is where exploded parts diagrams come into play. These visual representations provide a detailed breakdown of the individual parts of a complex system, showcasing their relationship to one another and helping technicians and users navigate through the intricate design.

Clear and Precise Understanding: The use of an exploded parts diagram ensures that users have a clear and precise understanding of how the various components of a product or system fit together. By visually representing the arrangement and interconnections, it becomes easier to identify the exact location of each part and its relationship to the whole. This knowledge is invaluable for both assembly and disassembly processes, minimizing the risk of errors or damage.

Easier Troubleshooting: When faced with a malfunctioning mechanical device, it is crucial to identify and rectify the problem quickly and efficiently. An exploded parts diagram can be a valuable tool in this process, as it allows technicians to pinpoint the faulty part within the system. By visually referencing the diagram, they can follow a step-by-step approach to identify, remove, and replace the problematic component, saving time and preventing unnecessary dismantling of unaffected parts.

Enhanced Communication: Exploded parts diagrams also aid in effectively communicating the intricacies of a product or system to different stakeholders. Whether it’s a customer seeking clarification or a technician explaining a repair process, these diagrams offer a universal language that transcends linguistic barriers. By referring to a visual representation, it becomes much easier to convey complex information accurately and concisely.

Improved Documentation and Training: Exploded parts diagrams are invaluable assets when it comes to documentation and training. They can serve as a reference guide for future repairs, ensuring that technicians have a comprehensive record of the product’s components and their arrangement. Additionally, these diagrams can be utilized as training materials, allowing new technicians to familiarize themselves with the product’s design and quickly grasp its assembly and disassembly procedures.

In summary, exploded parts diagrams play a vital role in understanding the intricate structure of mechanical systems. By providing visual representations of the individual components and their relationships, these diagrams enhance productivity, efficiency, and communication in various contexts, from assembly and troubleshooting to documentation and training.

How to Read Polaris Exploded Parts Diagram

When it comes to repairing or maintaining your Polaris vehicle, understanding and interpreting the exploded parts diagram is crucial. This diagram is a visual representation of the different components and parts that make up your vehicle, showing how they fit together and interact with each other. By learning how to read this diagram, you can easily identify and locate the specific parts you need to replace or repair.

1. Familiarize yourself with the key: Before diving into the diagram, take a moment to familiarize yourself with the key that accompanies it. This key will provide you with important information such as part numbers, descriptions, and quantities. It is important to refer to the key throughout your analysis of the diagram to ensure accuracy.

2. Identify individual components: The exploded parts diagram will typically show an assembly or system broken down into its individual components. Each component will be represented by a numbered bubble or shape, which corresponds to its part number in the key. By identifying the specific component you are looking for, you can easily trace its location in the diagram.

3. Analyze the arrows and lines: Arrows and lines in the diagram indicate the direction or path of movement for a particular part. They may also represent connections or fittings between components. Pay attention to the arrows and lines to understand how the different parts interact and fit together in the overall assembly.

4. Note the exploded view: The exploded parts diagram provides an exploded view of the assembly or system, showing how the different components fit together. This view helps you visualize the order of installation and disassembly for repair or maintenance purposes. Use the exploded view to guide your disassembly and reassembly process.

5. Cross-reference with the part numbers: As you locate the specific components you need in the diagram, cross-reference them with the part numbers in the key. This step ensures that you are selecting the correct part for replacement or repair. Incorrectly identifying or selecting a part can lead to a mismatch and potential issues down the line.

6. Take measurements if necessary: If you are unsure about the sizing or dimensions of a particular part, make note of any measurements mentioned in the diagram. These measurements can help you verify the compatibility of the part you need to order or source for your Polaris vehicle.

By following these steps and taking the time to understand and interpret the Polaris exploded parts diagram, you can confidently navigate the world of replacement parts and successfully repair and maintain your vehicle.

Exploring Polaris ATV Parts Diagram

If you own a Polaris ATV, understanding its parts and components is essential for proper maintenance and repairs. One helpful resource for this is a Polaris ATV parts diagram, which provides a visual representation of the various parts and their locations on the vehicle. By exploring this diagram, you can gain a better understanding of how your ATV is assembled and identify the specific parts you may need for repairs or upgrades.

A Polaris ATV parts diagram typically includes detailed illustrations or photographs that highlight different areas of the vehicle, such as the engine, suspension, electrical system, and drivetrain. These diagrams often include numbered labels and descriptions for each part, making it easier to identify and locate specific components. Whether you’re a seasoned ATV enthusiast or a beginner, referencing a parts diagram can be incredibly valuable when working on your vehicle.

Engine Components

• The engine is the heart of your Polaris ATV, and its diagram will provide an overview of its key components, including the cylinder, piston, crankshaft, and camshaft.
• Other essential engine parts, such as the intake manifold, carburetor or fuel injection system, and exhaust system, will also be clearly labeled in the diagram.

Suspension and Chassis Parts

• The suspension system on an ATV is responsible for providing a smooth and stable ride. The parts diagram will showcase components such as the front and rear shocks, control arms, and sway bar.
• The chassis diagram will illustrate the frame and related parts, including the steering column, handlebars, and footrests.

Electrical System

• The electrical system of a Polaris ATV includes various components, such as the battery, starter motor, ignition switch, and wiring harness. These parts can be easily identified and located in the parts diagram.
• The diagram may also highlight additional electrical components, such as lights, switches, and fuses.

Drivetrain Components

• The drivetrain is responsible for transferring power from the engine to the wheels. In the parts diagram, you will find components like the transmission, drive belt, drive shafts, and differential.
• If your ATV has four-wheel drive capabilities, the diagram may also indicate parts related to the front differential.

Overall, exploring a Polaris ATV parts diagram can be a valuable tool in understanding the various components of your vehicle. It can help you in identifying and locating specific parts, allowing you to effectively maintain and repair your ATV. Whether you’re a DIY enthusiast or a professional mechanic, a parts diagram is a useful resource to have at your disposal.

Polaris Snowmobile Parts Diagram: An In-Depth Look

If you are a proud owner of a Polaris snowmobile, it is essential to have a thorough understanding of its parts and components. A Polaris snowmobile parts diagram serves as a helpful visual aid that allows you to identify and locate different parts of your machine easily. In this article, we will take an in-depth look at the various components and their functions to help you gain a better understanding of your Polaris snowmobile.

1. Engine Components: The heart of any snowmobile, the engine components are responsible for generating power and driving the machine forward. The Polaris snowmobile engine consists of essential parts such as the cylinders, piston, crankshaft, and carburetor. Understanding these components can help you troubleshoot any engine-related issues and perform routine maintenance tasks.

2. Drive System: The drive system of a Polaris snowmobile is responsible for transferring power from the engine to the track. It consists of components such as the drive belt, clutch, and chaincase. The drive system ensures smooth acceleration and efficient power transfer, making it a crucial part of your snowmobile.

3. Suspension System: The suspension system of a Polaris snowmobile plays a vital role in providing a comfortable and smooth ride. It consists of components such as the front and rear shocks, slide rails, and skid frame. Understanding how these components work together can help you adjust and fine-tune your suspension for optimal performance on various terrains.

4. Electrical System: The electrical system in a Polaris snowmobile includes components such as the ignition system, lights, and wiring harness. These components ensure proper functioning of the snowmobile’s electrical systems and are crucial for starting the machine and providing illumination during night rides.

5. Chassis and Body: The chassis and body of a Polaris snowmobile provide structural support and house various components. It includes parts such as the tunnel, hood, seat, and handlebars. Understanding the layout and design of the chassis and body can help you identify the location of different parts and perform maintenance or repairs effectively.

Having a comprehensive understanding of your Polaris snowmobile parts diagram can greatly enhance your ownership experience. It allows you to troubleshoot issues, perform routine maintenance tasks, and make informed decisions while upgrading or customizing your machine. So, take some time to familiarize yourself with the parts and components of your Polaris snowmobile to maximize its performance and longevity.

When it comes to snow blowers, the Toro 724 is a popular choice among homeowners and professionals for its reliability and efficiency. However, like any mechanical equipment, it may require maintenance or replacement of certain parts over time. Understanding the Toro 724 snowblower parts diagram is essential for any owner or technician to identify and locate the necessary components.

The Toro 724 snowblower parts diagram displays a detailed illustration of the different parts that make up this machine. It includes components such as the engine, drive system, auger, chute, and more. Each part is labeled and numbered for easy identification, allowing users to precisely identify the specific part they need to replace or repair.

One of the key advantages of the Toro 724 snowblower parts diagram is that it provides a visual representation of the machine, making it easier to understand how all the parts work together. This knowledge can be invaluable when troubleshooting issues or performing repairs, as it allows users to pinpoint the exact area of concern and take appropriate action.

Whether you are a DIY enthusiast or a professional technician, having access to the Toro 724 snowblower parts diagram is essential for maintaining and repairing this snow blower effectively. By familiarizing yourself with the different components and their functions, you can ensure that your Toro 724 operates at its best and continues to clear snow with ease for years to come.

Toro 724 Snowblower Parts Diagram: A Comprehensive Guide

When it comes to repairing or replacing parts on your Toro 724 Snowblower, having a comprehensive parts diagram can be extremely helpful. Understanding the layout of the machine and knowing where each component is located can make the task much easier.

The Toro 724 Snowblower Parts Diagram provides a detailed breakdown of all the major parts and components of the machine. This includes the engine, handles, chute, and various other parts that make up the snowblower. With the diagram, you can easily identify the part you need and find its corresponding part number.

One of the key benefits of using the Toro 724 Snowblower Parts Diagram is that it allows you to order the exact part you need. By referencing the diagram and part number, you can ensure that you are purchasing the correct replacement part. This can save you time and frustration, as you won’t have to deal with returning incorrect parts or making multiple trips to the store.

Another advantage of having the parts diagram is that it helps with the assembly and disassembly of the snowblower. When taking apart the machine for repairs or maintenance, it can be helpful to have a visual reference to ensure that you are removing and reinstalling the parts correctly.

The Toro 724 Snowblower Parts Diagram is a valuable resource for anyone who owns or works on this particular model. Whether you are a homeowner looking to fix a minor issue or a professional technician performing a major repair, having access to the parts diagram can make the process much smoother.

To conclude, the Toro 724 Snowblower Parts Diagram is an essential tool for anyone working on this snowblower model. It provides a clear visual representation of all the parts and their locations, making it easier to order the right part and perform repairs or maintenance correctly.

Understanding the Importance of the Parts Diagram

When it comes to maintaining and repairing equipment like a Toro 724 snowblower, having a clear understanding of the parts diagram is crucial. The parts diagram provides a detailed visual representation of the different components that make up the snowblower, allowing users to identify and locate specific parts with ease. This can save a lot of time and frustration when it comes to troubleshooting issues or purchasing replacement parts.

Identification and Ordering: The parts diagram serves as a valuable resource for identifying individual parts and understanding their location within the snowblower. By referencing the diagram, users can quickly determine which part needs to be replaced or repaired. Additionally, the diagram often includes part numbers, allowing users to order the correct component directly from the manufacturer or a trusted supplier.

Assembling and Disassembling: Whether it’s for routine maintenance or a more complex repair, having a parts diagram is immensely helpful when it comes to assembling or disassembling the snowblower. By referring to the diagram, users can ensure that they are putting the different parts together correctly and in the right order. This eliminates the guesswork and minimizes the risk of damaging the equipment.

Troubleshooting and Repairs: The parts diagram can also assist in troubleshooting common issues that may arise with the snowblower. By visually following the diagram, users can identify potential problem areas and check if any parts are worn, damaged, or missing. This can help pinpoint the cause of a malfunction and guide users in carrying out the necessary repairs to get the snowblower back in working order.

Overall Efficiency: Understanding the parts diagram increases overall efficiency when it comes to maintaining and repairing the Toro 724 snowblower. With the ability to quickly identify, order, assemble, and troubleshoot parts, users can avoid unnecessary downtime and costly mistakes. The parts diagram serves as a valuable tool that empowers users to confidently take care of their snowblower and ensure it operates at its best.

Exploring the Engine Components

When it comes to the Toro 724 snowblower, understanding its engine components is essential for proper maintenance and troubleshooting. The engine is the heart of the snowblower, responsible for the machine’s power and performance. Let’s take a closer look at some of the key components of the Toro 724 snowblower engine.

1. Carburetor:

The carburetor is a vital component of the engine that mixes air and fuel to create a combustible mixture for the combustion process. It controls the flow of fuel into the engine based on the throttle position, ensuring optimal performance.

2. Spark Plug:

The spark plug is responsible for igniting the air-fuel mixture in the combustion chamber. Its role is crucial in starting the engine and maintaining its smooth operation. Regular inspection and replacement of the spark plug is necessary to ensure proper ignition and prevent misfires.

3. Fuel Filter:

The fuel filter is designed to remove impurities and debris from the fuel before it reaches the carburetor. It helps prevent clogging and promotes the longevity of the engine. Cleaning or replacing the fuel filter regularly is recommended for optimal fuel flow and engine performance.

4. Oil Fill Cap:

The oil fill cap is located on the top of the engine and provides access for adding or checking the engine oil level. It is essential to maintain the proper oil level to keep the engine lubricated and running smoothly.

5. Recoil Starter:

The recoil starter is a mechanism that allows manual starting of the engine. It consists of a rope and a pulley system that, when pulled, initiates the engine’s ignition process. The recoil starter should be inspected regularly for any signs of wear or damage.

Understanding and familiarizing yourself with these engine components of the Toro 724 snowblower will help ensure proper maintenance and troubleshooting when necessary. Regular inspection, cleaning, and replacement of these components will enhance the longevity and performance of your snowblower.

Navigating the Power Transmission System for your Toro 724 Snowblower

If you are experiencing issues with your Toro 724 snowblower, it may be helpful to understand the power transmission system. The power transmission system is responsible for transferring power from the engine to the wheels and auger, allowing the snowblower to effectively move and clear snow. Understanding the components and how they work together can help you troubleshoot and identify any potential problems.

Components of the Power Transmission System

The power transmission system of the Toro 724 snowblower consists of several important components:

• Engine: The engine is the power source for the snowblower. It generates the power needed to drive the wheels and activate the auger.
• Drive Belt: The drive belt connects the engine to the wheels, transferring power from the engine to make the snowblower move forward or backward.
• Auger Belt: The auger belt connects the engine to the auger, allowing it to spin and break up the snow.
• Auger Clutch Cable: The auger clutch cable engages and disengages the auger. When engaged, the auger rotates and moves snow. When disengaged, the auger stops rotating.

Troubleshooting Power Transmission Issues

If you’re experiencing problems with the power transmission system of your Toro 724 snowblower, there are a few common issues to check for:

1. Slipping Drive Belt: If the snowblower struggles to move forward or backward, the drive belt may be slipping. Inspect the drive belt for signs of wear or damage and replace it if necessary.
2. Broken Auger Belt: A broken auger belt will prevent the auger from spinning. Check the auger belt for any signs of damage and replace it if needed.
3. Malfunctioning Auger Clutch Cable: If the auger does not engage or disengage properly, the auger clutch cable may be malfunctioning. Ensure the cable is properly adjusted and replace it if necessary.

By understanding the power transmission system and being able to identify potential issues, you can effectively troubleshoot and maintain your Toro 724 snowblower for optimal performance during snowy conditions.

Examining the Auger and Impeller Assembly

When it comes to the Toro 724 snowblower, one of the most crucial parts of its operation is the auger and impeller assembly. This assembly is responsible for removing the snow from the surface and shooting it out of the chute. Understanding how this important component works can help in troubleshooting and maintaining your snowblower.

The auger, made up of several metal blades, is located at the front of the snowblower and is responsible for breaking up the snow and ice. As the auger rotates, it collects the snow and pushes it towards the center of the machine. The impeller, located behind the auger, is a fan-like device that further accelerates the snow and pushes it out through the chute. This powerful combination of the auger and impeller allows the snowblower to effectively clear a path through the snow.

Examining the auger and impeller assembly is crucial in maintaining the overall performance of your Toro 724 snowblower. Regularly inspecting the condition of the blades and ensuring they are sharp and free from damage is important for efficient snow removal. If any blades are worn or damaged, they should be replaced to avoid further issues and maintain optimum performance. Lubricating the moving parts of the auger and impeller assembly is also essential to prevent rust and ensure smooth operation.

Overall, understanding the auger and impeller assembly of your Toro 724 snowblower can help in troubleshooting and maintaining the machine. Regular inspections and necessary repairs or replacements will ensure that your snowblower continues to effectively clear snow and ice, providing you with a safe and clear pathway during the winter months.

Toro 724 Snowblower Parts Diagram: Analyzing the Control Panel and Handle Assembly

When it comes to the Toro 724 snowblower parts diagram, one of the key components to pay attention to is the control panel and handle assembly. This section of the snowblower is where the operator interacts with the machine and controls its various functions. It is important to understand the different parts and how they work together to ensure the snowblower operates smoothly and efficiently.

The control panel typically includes several key features, such as the ignition switch, choke control, throttle control, and primer bulb. Each of these elements plays a crucial role in starting and operating the snowblower. The ignition switch, for example, allows the operator to start the engine, while the choke control helps with cold starts by adjusting the air and fuel mixture. The throttle control, on the other hand, regulates the engine speed, and the primer bulb helps prime the engine for easy starting.

The handle assembly is another important component, as it allows the operator to maneuver and control the snowblower. It typically consists of a handle grip, throttle lever, and engagement lever. The handle grip provides a comfortable and secure hold for the operator, while the throttle lever allows for easy adjustment of the engine speed. The engagement lever, also known as the auger control lever, is used to engage or disengage the snowblower’s auger and impeller.

Overall, understanding the control panel and handle assembly is crucial for effectively operating and maintaining the Toro 724 snowblower. It is important to refer to the appropriate parts diagram and consult the owner’s manual for detailed instructions on assembly, maintenance, and troubleshooting. By familiarizing yourself with these key components, you can ensure the snowblower operates safely and efficiently, making your winter snow removal tasks much easier.

Investigating the Chute and Deflector Mechanism

The chute and deflector mechanism is a key component of the Toro 724 snowblower that allows for precise control of the direction and distance of snow discharge. By understanding how this mechanism works, users can optimize the performance of their snowblower and ensure efficient snow removal.

The chute is responsible for directing the snow to a specific location, while the deflector controls the height at which the snow is discharged. The Toro 724’s chute and deflector mechanism features a rotating chute that can be adjusted using a crank or lever. This allows the user to change the direction in which the snow is thrown, whether it be to the left, right, or straight ahead.

To investigate the chute and deflector mechanism, it is essential to refer to the Toro 724 snowblower parts diagram. This diagram provides a visual representation of the different components involved, including the chute, deflector, and associated hardware. It also highlights the points of adjustment and any potential areas of concern.

When inspecting the chute and deflector mechanism, it is important to check for any signs of wear or damage. This could include bent or broken parts, loose connections, or excessive rust. If any issues are identified, it is recommended to consult the Toro 724 snowblower parts diagram to locate the specific part that needs replacement.

Regular maintenance of the chute and deflector mechanism is also crucial to ensure optimal performance. This includes lubricating moving parts, tightening loose connections, and clearing any debris that may impede the mechanism’s operation. By following the manufacturer’s guidelines and referring to the parts diagram, users can keep their Toro 724 snowblower in excellent working condition.

In conclusion, investigating the chute and deflector mechanism of the Toro 724 snowblower is essential for understanding how it works and identifying any potential issues. By studying the parts diagram and conducting regular maintenance, users can optimize the performance and longevity of their snowblower, ensuring efficient and effective snow removal.

Q&A:

What is the chute and deflector mechanism?

The chute and deflector mechanism is a component of various machines and equipment that is used to control the direction and flow of materials or objects being discharged from a machine.

How does the chute and deflector mechanism work?

The chute and deflector mechanism typically consists of a chute, which is a sloping channel or passage, and a deflector, which is a movable plate or flap. The material or object being discharged slides down the chute and is redirected or deflected by the deflector to the desired direction or location.

What is the purpose of the chute and deflector mechanism?

The purpose of the chute and deflector mechanism is to ensure that materials or objects are discharged in a controlled manner and directed to the intended destination. It helps prevent spillage, provides accurate distribution, and allows for efficient operation of the machine or equipment.

Where are chute and deflector mechanisms used?

Chute and deflector mechanisms can be found in various industries and applications. They are commonly used in agriculture for grain handling and seed distribution, in construction for concrete pouring and material conveying, in mining for ore or coal transportation, and in manufacturing for product sorting and packaging.

What are the advantages of using a chute and deflector mechanism?

Using a chute and deflector mechanism offers several advantages. It helps prevent accidents and injuries by controlling the flow of materials. It improves operational efficiency by ensuring accurate and precise discharge. It also reduces material waste, improves product quality, and enhances overall productivity.

The molecular orbital diagram of NO2 illustrates the arrangement of the atomic orbitals and their energies in the formation of the NO2 molecule. NO2, or nitrogen dioxide, is a chemical compound consisting of one nitrogen atom and two oxygen atoms. It is an important pollutant in the atmosphere and plays a role in the formation of smog.

The molecular orbital diagram of NO2 shows the bonding and antibonding orbitals formed from the combination of the atomic orbitals of nitrogen and oxygen. The bonding orbitals, which have lower energy, allow for the stable formation of chemical bonds between the atoms. The antibonding orbitals, on the other hand, have higher energy and destabilize the molecule.

In the molecular orbital diagram of NO2, the nitrogen atom contributes three atomic orbitals: one 2s orbital and two 2p orbitals. The oxygen atoms each contribute two atomic orbitals: one 2s orbital and one 2p orbital. These atomic orbitals combine to form a set of molecular orbitals.

In the molecular orbital diagram of NO2, the highest occupied molecular orbital (HOMO) is the π orbital, which consists of a combination of the p orbitals of nitrogen and oxygen. This π orbital is responsible for the double bond formed between the nitrogen and one of the oxygen atoms. The other oxygen atom is bonded to nitrogen through a single bond and contributes to a σ bond.

The Molecular Orbital Diagram of NO2

In order to understand the molecular orbital diagram of NO2, it is important to first have a basic understanding of molecular orbitals. Molecular orbitals are formed when atomic orbitals of different atoms combine to form new orbitals that can accommodate the electrons of the molecule as a whole.

NO2, or nitrogen dioxide, is a molecule composed of one nitrogen atom and two oxygen atoms. In its molecular orbital diagram, there are a total of 12 electrons that need to be accommodated. The atomic orbitals of the nitrogen and oxygen atoms combine to form a series of molecular orbitals, each with different energy levels.

The molecular orbital diagram of NO2 can be represented by a table, where the atomic orbitals of nitrogen and oxygen are listed vertically and the resulting molecular orbitals are listed horizontally. Each molecular orbital is labeled according to its energy level, with the lower energy levels being closer to the nucleus.

The filling of the molecular orbitals in NO2 follows the Aufbau principle, which states that electrons fill the lowest energy orbitals first. The 12 electrons of NO2 are distributed according to their spin and energy in the molecular orbital diagram.

By analyzing the molecular orbital diagram of NO2, it is possible to determine its bond order, which indicates the stability of the molecule. In the case of NO2, the bond order is 2, indicating that it is a stable molecule. Additionally, the molecular orbital diagram can provide insights into the reactivity and properties of NO2.

In conclusion, the molecular orbital diagram of NO2 provides valuable information about the arrangement of electrons and the stability of the molecule. Understanding this diagram can help in predicting the reactivity and properties of NO2.

Understanding Molecular Orbital Theory

Molecular Orbital (MO) theory is a key concept in understanding the electronic structure and properties of molecules. It provides a framework for describing and predicting the behavior of molecules based on the interactions between their constituent atoms and the resulting molecular orbitals.

At its core, MO theory involves the combination of atomic orbitals to form molecular orbitals. These molecular orbitals can be either bonding or antibonding in nature. Bonding orbitals lower the energy of the molecule and contribute to its stability, while antibonding orbitals raise the energy and make the molecule less stable.

The formation of molecular orbitals is described by the linear combination of atomic orbitals (LCAO) method. This method involves combining the wavefunctions of atomic orbitals to form linear combinations, which in turn give rise to molecular orbitals. The number of molecular orbitals formed is equal to the number of atomic orbitals combined.

The molecular orbital diagram of NO2 can be understood using MO theory. In this diagram, the atomic orbitals of nitrogen and oxygen are combined to form bonding and antibonding molecular orbitals. The occupied orbitals depict the electrons present in the molecule, while the unoccupied orbitals represent the empty states available for electron occupation.

Molecular Orbital theory is a powerful tool for understanding and predicting the properties and behavior of molecules. It allows for a molecular-level understanding of chemical reactions, bonding, and spectroscopic phenomena. By analyzing the molecular orbital diagrams of different molecules, scientists can gain insights into their stability, reactivity, and electronic properties.

Structure of NO2

The structure of NO2 (nitrogen dioxide) can be described as a linear molecule composed of two oxygen atoms bonded to a central nitrogen atom. This molecule consists of a bent shape due to the presence of a lone pair of electrons on the nitrogen atom. The molecular formula for NO2 is often represented as O=N=O, indicating the two double bonds between the nitrogen and oxygen atoms.

The nitrogen atom in NO2 has a sp2 hybridization, which means it forms three sigma bonds with three electron pairs and one pi bond. The two oxygen atoms each form a sigma bond with the nitrogen atom, one by donating a lone pair of electrons and the other by sharing a pair of electrons from the oxygen atom. The remaining unpaired electron on the nitrogen atom forms a pi bond with one of the oxygen atoms, resulting in a delocalized pi system.

The structure of NO2 can further be understood by examining its Lewis dot structure, which reveals the distribution of valence electrons. In the Lewis dot structure, the nitrogen atom is surrounded by two double bonds and one lone pair of electrons. The oxygen atoms each have two lone pairs of electrons. This arrangement of valence electrons helps to explain the bent shape of NO2 and the overall stability of the molecule.

In conclusion, the structure of NO2 consists of a linear molecule with a bent shape due to the presence of a lone pair of electrons on the nitrogen atom. The molecule is composed of two oxygen atoms bonded to a central nitrogen atom, forming two double bonds and one pi bond. Understanding the structure of NO2 is crucial for studying its chemical properties and reactivity.

Bonding in NO2

The bonding in the NO2 molecule can be understood through its molecular orbital diagram. Nitrogen dioxide (NO2) consists of one nitrogen atom and two oxygen atoms. The nitrogen atom contributes five valence electrons, while each oxygen atom contributes six valence electrons. This gives a total of 16 valence electrons in the molecule.

In the molecular orbital diagram of NO2, the nitrogen atom’s 2s and 2p orbitals combine with the oxygen atom’s 2p orbitals to form molecular orbitals. These molecular orbitals can be divided into bonding and antibonding orbitals. The bonding orbitals result from the constructive interference of the atomic orbitals, while the antibonding orbitals result from the destructive interference.

The molecular orbital diagram of NO2 shows that there are three bonding molecular orbitals and two antibonding molecular orbitals. The bonding orbitals are filled with a total of 16 electrons, following the Aufbau principle and the Pauli exclusion principle. The two antibonding orbitals remain unoccupied.

The presence of the antibonding orbitals in NO2 destabilizes the molecule and weakens the bond between the nitrogen and oxygen atoms. This makes NO2 a highly reactive compound. The molecular orbital diagram also indicates that NO2 has a net bond order of 2, which suggests that it has a double bond character.

Molecular Orbital Diagram of NO2

The molecular orbital diagram of NO2 (nitrogen dioxide) is a representation of the arrangement of the molecular orbitals in the molecule. It provides information about the bonding and antibonding orbitals, as well as the electron configuration and stability of the molecule.

In the molecular orbital diagram of NO2, the two nitrogen atoms are connected by a double bond, with one sigma bond and one pi bond. The molecular orbitals are arranged in energy levels, with the lowest energy level being the bonding orbital, followed by the antibonding orbital. The bonding orbital is filled with electrons, while the antibonding orbital remains empty.

The molecular orbital diagram of NO2 can be represented as follows:

• The sigma bonding orbital is lower in energy and is filled with two electrons.
• The sigma star antibonding orbital is higher in energy and remains empty.
• There are two pi bonding orbitals, which are filled with four electrons.
• The pi star antibonding orbital is higher in energy and remains empty.

This arrangement of orbitals in the molecular orbital diagram of NO2 indicates that the molecule is stable, as the bonding orbitals are filled and the antibonding orbitals remain empty. The filled bonding orbitals result in a strong bond between the nitrogen atoms, while the empty antibonding orbitals contribute to the overall stability of the molecule.

In conclusion, the molecular orbital diagram of NO2 provides a visual representation of the arrangement of molecular orbitals in the molecule, indicating the bonding and antibonding orbitals, electron configuration, and stability of the molecule.

Interpretation of the Molecular Orbital Diagram

The molecular orbital diagram of NO2 provides insights into its electronic structure and bonding properties. The diagram shows the relative energy and occupancy of the molecular orbitals formed by the combination of atomic orbitals of nitrogen and oxygen atoms.

The molecular orbitals are labeled according to their energy level, with the lower energy levels filled first. The diagram illustrates the bonding and antibonding interactions between the atomic orbitals. The bonding orbitals are lower in energy and promote electron density between the nuclei, strengthening the chemical bond. In contrast, the antibonding orbitals are higher in energy and promote electron density away from the nuclei, weakening the bond.

The molecular orbital diagram of NO2 reveals that it has unpaired electrons in its molecular orbitals. This indicates that NO2 is a paramagnetic molecule, meaning it is attracted to an external magnetic field. The presence of unpaired electrons in the molecular orbitals also suggests that NO2 is highly reactive and can participate in various chemical reactions.

The molecular orbital diagram further illustrates the delocalization of electrons in NO2. Delocalization occurs when electrons are not localized on a single atom but rather spread out over multiple atoms. In NO2, delocalization is observed in the pi bonding orbitals, which extend over the nitrogen and oxygen atoms, facilitating the resonance stabilization of the molecule.

In summary, the molecular orbital diagram of NO2 provides a visual representation of its electronic structure, bonding interactions, magnetic properties, reactivity, and delocalization of electrons. This diagram serves as a valuable tool for understanding the behavior and properties of NO2 in chemical reactions and its role in various biological and environmental processes.

Properties of NO2

Nitrogen dioxide, or NO2, is a reddish-brown gas that is an important air pollutant. It is formed through the oxidation of nitrogen monoxide (NO) in the presence of oxygen. NO2 is a highly reactive compound and plays a significant role in the formation of smog and acid rain. Here are some of the properties of NO2:

• Color and odor: NO2 has a characteristic reddish-brown color and a pungent, choking odor.
• Solubility: NO2 is soluble in water and forms nitric acid when dissolved.
• Density: NO2 is heavier than air, with a density of 1.88 g/L.
• Boiling and melting points: NO2 boils at -21.15 °C (-5.07 °F) and melts at -11.2 °C (11.84 °F).
• Reactivity: NO2 is a highly reactive compound and readily undergoes reactions with other substances. It acts as an oxidizing agent in many chemical reactions.
• Toxicity: NO2 is toxic and can cause respiratory problems and lung damage when inhaled at high concentrations. Prolonged exposure to NO2 can lead to chronic health effects.

Overall, NO2 is a hazardous gas with detrimental effects on both human health and the environment. It is important to monitor and control the levels of NO2 in the atmosphere to reduce its negative impacts.

Applications of NO2

NO2, or nitrogen dioxide, is a highly reactive gas that finds various applications in different industries and processes. Its versatile properties and potential for chemical reactions make it useful in a wide range of applications.

1. Nitric Acid Production: One of the primary applications of NO2 is in the production of nitric acid. NO2 can be oxidized to nitric acid, which is an essential compound in the manufacturing of fertilizers, explosives, and various organic compounds.

2. Air Pollution Monitoring: NO2 is a significant air pollutant and is used as an indicator of air quality. Monitoring levels of NO2 in the atmosphere provides valuable information about the levels of pollution and helps in assessing the effectiveness of pollution control measures. Instruments like NO2 analyzers measure the concentration of NO2 in ambient air for environmental monitoring purposes.

3. Rocket Propulsion: NO2 is utilized as an oxidizer in rocket propellants, mainly in combination with fuels like hydrazine. The high reactivity and combustion properties of NO2 make it suitable for this application.

4. Organic Synthesis: NO2 is used as a reactant in various organic synthesis processes to introduce nitro groups into compounds. Nitro compounds find applications in the pharmaceutical, dye, and chemical industries.

5. Metal Corrosion Inhibition: In industries where metals are exposed to corrosive environments, NO2 can be used as a corrosion inhibitor. It forms a protective layer on the metal surface, preventing further corrosion.

• 6. Polymerization reactions: NO2 is employed as a free-radical initiator in polymerization reactions. It helps initiate the reaction and promote the formation of polymers.
• 7. Sterilization: NO2 is used as a sterilizing agent in some medical and laboratory settings. It has antimicrobial properties that can kill or inhibit the growth of microorganisms on surfaces.

Overall, NO2 has various applications across different industries, ranging from chemical production to environmental monitoring and rocket propulsion. Its reactivity and unique properties make it valuable for a wide range of processes.

If you are a proud owner of a 2014 Mustang and looking to upgrade your car’s audio system, then you’ve come to the right place. Having a proper understanding of the wiring diagram is crucial when it comes to installing a new radio or stereo system. This comprehensive guide will provide you with all the necessary information to make the process smooth and hassle-free.

Whether you are a DIY enthusiast or someone who prefers professional installation, having a clear understanding of the wiring diagram is essential. It allows you to know which wire connects to which component, ensuring that everything is connected correctly. This guide will walk you through the necessary steps and provide you with the knowledge needed to install your new radio system confidently.

The 2014 Mustang radio wiring diagram provides detailed information about the car’s audio system, including the location of each wire and its function. It covers everything from the power supply to the speakers, ensuring that you have a complete understanding of the system. By following the wiring diagram, you can avoid any potential mistakes and ensure a seamless installation process.

Whether you are looking to upgrade to a high-performance stereo system or simply replace a faulty component, having access to the 2014 Mustang radio wiring diagram is essential. It allows you to make informed decisions and ensures that you get the most out of your car’s audio system. With this guide, you’ll have all the information you need to enjoy a superior listening experience in your 2014 Mustang.

4 Mustang Radio Wiring Diagram

If you are looking for the radio wiring diagram for a 2014 Mustang, you have come to the right place. Below, you will find a detailed diagram that outlines the wire colors and their functions. This diagram can be useful if you are planning to install an aftermarket radio or if you need to troubleshoot any audio-related issues.

Wire Colors and Functions:

• Yellow: Constant 12V+
• Red: Accessory 12V+
• Blue: Remote
• Orange: Illumination
• Black: Ground
• White: Left Front Speaker Positive
• White/Black: Left Front Speaker Negative
• Gray: Right Front Speaker Positive
• Gray/Black: Right Front Speaker Negative
• Green: Left Rear Speaker Positive
• Green/Black: Left Rear Speaker Negative
• Purple: Right Rear Speaker Positive
• Purple/Black: Right Rear Speaker Negative

Remember to check the specific wiring diagram for your Mustang model and year, as the color codes may vary. It’s also important to use a wiring harness adapter to connect the aftermarket radio to the factory wiring harness. This will ensure a proper connection and prevent any damage to the vehicle’s electrical system.

With this wiring diagram and the right tools, you’ll be able to successfully install or troubleshoot the radio in your 2014 Mustang. Enjoy your favorite tunes while cruising down the road!

Overview of the 2014 Mustang Radio Wiring System

The 2014 Mustang is equipped with a sophisticated radio wiring system that allows for seamless integration with various audio components and accessories. This system is designed to provide high-quality audio output and support different functionalities, such as AM/FM radio, CD player, auxiliary input, Bluetooth connectivity, and more.

The radio wiring system in the 2014 Mustang consists of several components, including the head unit, speakers, antenna, amplifier, and wiring harnesses. Each component plays a vital role in delivering an optimal audio experience while ensuring compatibility with the vehicle’s electrical system.

Head Unit:

The head unit, also known as the radio or stereo, serves as the control center for the audio system. It features a display screen, buttons, and knobs that allow the driver to access different audio sources, adjust volume, and control various settings. The head unit is connected to the speakers, amplifier, and other audio components through the wiring harness.

Speakers:

The 2014 Mustang is typically equipped with multiple speakers strategically placed throughout the vehicle to deliver a surround sound experience. These speakers receive audio signals from the head unit and convert them into sound waves. The Mustang’s speakers are connected to the head unit and amplifier through the wiring harness to ensure proper signal transmission and audio quality.

Antenna:

The antenna is responsible for receiving AM/FM radio signals and transferring them to the head unit for playback. The 2014 Mustang may have a roof-mounted or windshield-mounted antenna, depending on the trim level and options selected. The antenna is connected to the head unit through the wiring harness.

Amplifier:

An amplifier is often included in the 2014 Mustang’s radio wiring system to enhance the audio signal and provide more power to the speakers. The amplifier receives the audio signal from the head unit and amplifies it before sending it to the speakers. It ensures that the audio output is loud, clear, and free from distortion. The amplifier is connected to the head unit, speakers, and wiring harness.

In summary, the 2014 Mustang’s radio wiring system is a complex network of components that work together to deliver high-quality audio output and support various functionalities. The head unit serves as the control center, while the speakers, antenna, and amplifier ensure optimal sound reproduction. With its advanced technology, the 2014 Mustang’s radio wiring system provides an immersive audio experience for both driver and passengers.

Understanding the Wire Colors and Their Functions

The wire colors in a 2014 Mustang radio wiring diagram serve different functions and understanding these colors is crucial for proper installation and troubleshooting. Here are some of the common wire colors and their functions:

• Yellow: The yellow wire is typically the constant power wire, also known as the battery wire. It provides power to the radio even when the ignition is turned off, allowing the radio to retain settings and presets.
• Red: The red wire is the accessory wire, also known as the switched power wire. It receives power when the ignition is turned on, activating the radio.
• Black: The black wire is the ground wire. It provides the necessary electrical connection to the vehicle’s chassis, completing the circuit and ensuring proper functioning of the radio.
• Blue: The blue wire is typically used as the remote turn-on wire. It is used to activate external amplifiers or other accessories that require remote activation.
• Orange: The orange wire is often the illumination wire. It controls the illumination of the radio’s display and buttons, and is typically connected to the vehicle’s dimmer switch.
• White, gray, purple, and green: These wires are typically the speaker wires. They connect the radio to the speakers and carry the audio signals.

It is important to note that wire colors can vary between different vehicle models and manufacturers, so always refer to the specific wiring diagram for accurate information. Additionally, it is recommended to use a wiring harness adapter for easier installation and to avoid cutting into the factory wiring harness, which can potentially cause damage or wiring issues.

Identifying the power and ground wires

When working with the wiring of a 2014 Mustang radio, it is important to properly identify the power and ground wires. These wires play a crucial role in ensuring the radio functions properly and receives the necessary electrical supply.

Power wires: The power wires are responsible for providing the necessary electrical current to the radio. These wires are typically colored red or yellow, and they need to be connected to a power source that is capable of supplying the required voltage. In the case of the 2014 Mustang, the power wires can be connected to the vehicle’s battery or a designated power supply point in the fuse box.

Ground wires: The ground wires serve to complete the electrical circuit and provide a path for the current to flow back to the source. These wires are typically colored black or brown and need to be connected to a reliable ground point on the vehicle’s chassis. It is important to ensure that the ground connection is secure and free from corrosion to avoid any electrical issues.

When identifying the power and ground wires in the 2014 Mustang radio wiring diagram, it is essential to refer to the specific diagram for the exact wire colors and locations. Additionally, it is recommended to use a multimeter to confirm the power and ground connections during the installation process.

By correctly identifying and connecting the power and ground wires, you can ensure that your 2014 Mustang radio functions properly and delivers high-quality audio for an enjoyable driving experience.

Connecting the radio harness to the factory wiring

When installing a new radio in a 2014 Mustang, it is important to connect the radio harness to the factory wiring properly. This will ensure that the radio functions correctly and that all necessary connections are made.

The first step in connecting the radio harness to the factory wiring is to identify the wires in the factory harness that correspond to the different functions of the radio. This can usually be done by referring to a wiring diagram specific to the make and model of the Mustang.

Once the wires have been identified, the next step is to match them with the corresponding wires on the radio harness. This can be done by using wire connectors or soldering the wires together. It is important to make sure that the connections are secure and insulated to prevent any electrical shorts or damage.

After the wires have been connected, it is a good idea to use electrical tape or wire loom to bundle and secure the wires. This will help to prevent them from becoming tangled or damaged during installation.

Finally, before installing the radio, it is important to test the connections to ensure that everything is working properly. This can be done by turning on the radio and checking that all functions, such as sound and display, are functioning correctly.

Overall, connecting the radio harness to the factory wiring is an important step in installing a new radio in a 2014 Mustang. It is recommended to refer to a wiring diagram specific to the make and model of the vehicle to ensure that the connections are made correctly and securely.

Wiring the Speaker Connections:

The speaker connections in a 2014 Mustang radio follow a standard wiring diagram. It is important to understand this diagram in order to correctly connect the speakers and ensure optimal sound quality. The diagram typically includes information about the positive and negative terminals of the speakers, as well as the corresponding wires that need to be connected.

To wire the speaker connections, start by identifying the positive and negative terminals on each speaker. This information is usually indicated by a + and – sign or a color-coded system. It is important to connect the positive terminal of the speaker to the corresponding positive wire and the negative terminal to the corresponding negative wire.

When connecting the speaker wires, make sure to secure them properly to avoid any loose connections that could affect sound quality. This can be done by stripping the insulation off the wire, twisting the exposed strands together, and using electrical tape or wire connectors to secure the connection.

It is also important to ensure that the speaker connections are properly insulated to prevent any short circuits or electrical interference. This can be achieved by using heat shrink tubing or electrical tape to cover the exposed wire connections.

Overall, wiring the speaker connections in a 2014 Mustang radio involves following a standard wiring diagram, identifying the positive and negative terminals on each speaker, connecting the corresponding wires, securing the connections properly, and insulating them to ensure optimal sound quality and avoid any electrical issues.

Adding an amplifier to the system

When it comes to enhancing the audio system in a 2014 Mustang, adding an amplifier can make a significant difference in sound quality and overall performance. An amplifier is designed to increase the power of the audio signal, allowing for louder volumes and clearer sound reproduction.

The first step in adding an amplifier to the system is to locate a suitable mounting location. It is important to choose a location that is easily accessible and provides sufficient ventilation to prevent overheating. Once a location is selected, the next step is to connect the amplifier to the existing audio system.

To connect the amplifier, start by disconnecting the negative terminal of the car battery to ensure safety. Next, locate the factory radio unit in the dashboard and identify the speaker wire connections. It is crucial to find the wire harness diagram for the specific car model to correctly identify the speaker wires. Follow the diagram to connect the amplifier’s input wires to the appropriate speaker wire connections.

After connecting the input wires, it is time to connect the output wires of the amplifier to the speakers. This can be done by running wires from the amplifier to each speaker location. It is essential to ensure that the wires are properly insulated and routed to prevent any interference or electrical issues.

Summary:

• Adding an amplifier to a 2014 Mustang can greatly enhance the audio system’s sound quality and performance.
• Select a suitable mounting location for the amplifier.
• Disconnect the car battery before making any connections.
• Follow the wire harness diagram to connect the amplifier’s input wires to the correct speaker wire connections.
• Run wires from the amplifier to each speaker location to connect the output wires.

Troubleshooting common wiring issues

When it comes to installing or troubleshooting a car’s radio wiring, it is important to know how to identify and solve common wiring issues. These issues can range from the radio not turning on at all, to poor sound quality, or even wiring that has been damaged or disconnected. By understanding the common problems and their solutions, you can save time and money on repairs.

1. Power issues: One of the most common problems with car radio wiring is power issues. If your radio is not turning on at all, check the power connections to ensure that they are properly connected and receiving power. This includes checking the fuse, battery connection, and any wiring that may have come loose or been damaged.

2. Sound-quality issues: Another common problem is poor sound quality from the radio. If you are experiencing static, distortion, or low volume, it could be due to a variety of factors, such as faulty wiring connections, damaged speakers, or a defective radio unit. Check all connections and test the speakers to troubleshoot and identify the source of the issue.

3. Wiring damage: Over time, wiring can become damaged due to wear and tear, accidents, or improper installation. If you suspect that the wiring is damaged, visually inspect the wires for any signs of fraying, burning, or corrosion. If any damage is found, it is important to repair or replace the damaged wiring to ensure proper functionality.

4. Improper connections: When installing a new radio or making any changes to the wiring, it is crucial to make sure all connections are properly made. Loose or incorrect connections can result in issues such as a radio that doesn’t turn on or poor sound quality. Double-check all connections and consult the wiring diagram to ensure that everything is connected correctly.

5. Grounding issues: Grounding is an important aspect of car radio wiring, as it ensures that the electrical components are properly grounded to prevent electrical interference and improve sound quality. If you are experiencing buzzing or humming sounds, it could be due to a grounding issue. Check the grounding connections and make sure they are securely connected to a suitable ground point.

By understanding and troubleshooting these common wiring issues, you can ensure that your car’s radio system is functioning properly and enjoy a high-quality audio experience while driving.

When it comes to maintaining and repairing your Farmall 706 tractor, having a clear understanding of its parts is essential. A Farmall 706 parts diagram can serve as an invaluable resource, providing a comprehensive overview of all the components that make up this iconic tractor. Whether you’re a seasoned mechanic or a passionate enthusiast, this guide will provide you with all the information you need to navigate through the various parts of the Farmall 706.

The Farmall 706 parts diagram is a visual representation of the tractor’s components, allowing you to easily identify and locate specific parts. It includes detailed illustrations and labels for each part, making it easier to troubleshoot issues, order replacement parts, or simply familiarize yourself with the inner workings of the tractor. With this diagram in hand, you’ll be able to efficiently carry out maintenance tasks or undertake more complex repairs, ensuring that your Farmall 706 remains in optimal working condition.

From the engine to the transmission, from the steering mechanism to the electrical system, the Farmall 706 parts diagram covers every aspect of the tractor. Each part is numbered and labeled, allowing you to quickly find the information you need. Whether you’re searching for a specific part or trying to understand how different components interact with each other, this diagram will serve as your go-to resource.

Whether you’re a Farmall 706 owner or simply interested in learning more about this classic tractor, having access to a detailed parts diagram is invaluable. With its wealth of information and easy-to-understand visuals, the Farmall 706 parts diagram is an essential tool that will enable you to maintain, repair, and appreciate this iconic piece of farming history.

Farmall 706 Parts Diagram: An In-Depth Look at Key Components

The Farmall 706 is a popular tractor model that was manufactured by International Harvester in the 1960s. This versatile tractor was designed for a variety of agricultural tasks and featured a range of key components that made it a reliable workhorse on the farm. In this article, we will take an in-depth look at the parts diagram of the Farmall 706 and explore its crucial components.

Engine Components:

The Farmall 706 is equipped with a powerful engine that drives its performance and productivity. The engine components of this tractor include the cylinder block, crankshaft, pistons, connecting rods, and camshaft. These components work together to convert fuel into mechanical energy, ensuring smooth operation and efficient power delivery.

• The cylinder block houses the pistons, connecting rods, and camshaft, providing structural support to the engine.
• The crankshaft converts the reciprocating motion of the pistons into rotational motion, transmitting power to the transmission.
• The pistons move up and down in the cylinder block, compressing fuel-air mixture and generating power.
• The connecting rods connect the pistons and the crankshaft, transferring the force generated by the pistons to the crankshaft.
• The camshaft controls the opening and closing of the engine valves, ensuring proper timing in the combustion process.

Transmission Components:

The Farmall 706 features a transmission system that enables the tractor to change gears smoothly and efficiently. The transmission components of this tractor include the clutch, gearbox, and differential. These components work together to transfer power from the engine to the wheels, allowing the tractor to move forward or backward at different speeds.

• The clutch engages and disengages the power from the engine to the transmission, allowing the operator to change gears or stop the tractor.
• The gearbox houses the gears and synchronizers, enabling smooth gear shifting and efficient power transmission.
• The differential distributes power from the transmission to the rear wheels, allowing the wheels to rotate at different speeds during turns.

Hydraulic Components:

The Farmall 706 is equipped with a hydraulic system that powers various implements and attachments. The hydraulic components of this tractor include the hydraulic pump, control valve, and hydraulic cylinders. These components work together to provide hydraulic power for lifting, lowering, and controlling implements such as loaders, plows, and mowers.

• The hydraulic pump pressurizes the hydraulic fluid, converting mechanical power from the engine into hydraulic power.
• The control valve regulates the flow and direction of the hydraulic fluid, allowing the operator to control the movement of the hydraulic cylinders.
• The hydraulic cylinders convert hydraulic power into mechanical force, enabling the lifting and lowering of implements.

In conclusion, the Farmall 706 parts diagram provides a comprehensive understanding of the key components that make up this reliable and versatile tractor. From the engine components to the transmission and hydraulic components, each part plays a crucial role in the tractor’s performance and functionality. By understanding these components, farmers and operators can effectively maintain and repair their Farmall 706 tractors, ensuring their longevity and efficient operation on the farm.

Farmall 706 Engine Components

The engine of the Farmall 706 tractor is a vital component that powers the vehicle and provides the necessary torque and power to perform various tasks on the farm. This section will discuss some of the important engine components that make up the Farmall 706 engine.

Pistons and Rings

The pistons and rings play a crucial role in the combustion process of the engine. The pistons move up and down in the cylinders, compressing the air-fuel mixture and transferring the force to the crankshaft. The rings provide a tight seal between the piston and the cylinder wall, preventing leakage of combustion gases and maintaining proper compression.

Crankshaft and Connecting Rods

The crankshaft is responsible for converting the linear motion of the pistons into rotational motion, which drives the tractor. It consists of several offset throws that connect to the connecting rods. The connecting rods link the pistons to the crankshaft, transmitting the force generated by the combustion process.

Cylinder Head and Valves

The cylinder head is located on top of the engine block and houses the intake and exhaust valves. These valves open and close at specific intervals to allow the air-fuel mixture to enter the combustion chamber and the exhaust gases to exit. The cylinder head also contains the spark plug, which ignites the air-fuel mixture to initiate combustion.

Engine Block and Crankcase

The engine block is the main structural component of the engine. It houses the cylinders, pistons, and crankshaft. The engine block also contains the water jackets, which circulate coolant to prevent overheating. The crankcase, on the other hand, holds the crankshaft and provides lubrication to the moving parts through oil passages.

Fuel System

The fuel system of the Farmall 706 engine includes components such as the fuel tank, fuel pump, fuel injectors, and carburetor (depending on the specific model). These components work together to deliver the right amount of fuel to the combustion chambers for efficient combustion.

Overall, the engine components of the Farmall 706 tractor work in harmony to generate power and ensure smooth operation. Regular maintenance and timely replacement of worn-out parts are crucial for optimal performance and longevity of the engine.

Transmission and Clutch Assembly

The transmission and clutch assembly is a crucial component of the Farmall 706 tractor. It is responsible for transmitting power from the engine to the wheels, allowing the tractor to move forward or backward. The assembly consists of several parts, including the clutch, transmission, and various gears.

The clutch is located between the engine and the transmission and is engaged or disengaged to control the power flow. It allows for smooth gear changes and helps protect the transmission from excessive wear. The clutch assembly includes the clutch disc, pressure plate, and release bearing.

The transmission is responsible for changing gears and adjusting the speed of the tractor. It consists of a series of gears that are engaged or disengaged to provide different gear ratios. The transmission assembly includes the main shaft, countershaft, and various gears and synchronizers.

The gears within the transmission assembly are carefully designed to ensure smooth gear changes and efficient power transfer. Synchronizers are used to match the rotational speed of the gears before engaging them, reducing wear and tear on the transmission. The transmission also includes a range and shift lever to select the desired gear or speed.

Overall, the transmission and clutch assembly plays a vital role in the operation of the Farmall 706 tractor. It allows for precise control of speed and power, ensuring smooth and efficient operation in various farming applications. Regular maintenance and proper lubrication are essential to prolong the life of the assembly and ensure optimal performance.

Hydraulic System Components

The hydraulic system of the Farmall 706 tractor is made up of several components that work together to provide power and control to various parts of the machine. These components include:

• Hydraulic pump: The hydraulic pump is responsible for generating the hydraulic pressure needed to operate the system. It is usually driven by the engine and pumps hydraulic fluid throughout the system.
• Hydraulic reservoir: The hydraulic reservoir stores the hydraulic fluid, which is used by the system to create pressure and provide lubrication. It is usually located near the pump.
• Control valves: Control valves regulate the flow of hydraulic fluid to different parts of the system. They can be manually operated or electronically controlled, depending on the specific model of the tractor.
• Cylinders: Cylinders are responsible for converting hydraulic pressure into linear motion. They consist of a piston and a cylinder body and are used to raise and lower implements, such as a front loader or a three-point hitch.
• Hydraulic lines and fittings: Hydraulic lines and fittings connect the different components of the hydraulic system together. They carry the hydraulic fluid from the pump to the control valves and cylinders.
• Filters and strainers: Filters and strainers are used to remove contaminants and impurities from the hydraulic fluid. They help to keep the system clean and prevent damage to the components.
• Reservoir breather: The reservoir breather allows for the exchange of air in the hydraulic system. It helps to maintain the proper pressure and prevents the formation of a vacuum.

These are just some of the main components of the hydraulic system in a Farmall 706 tractor. Understanding how these components work together is essential for proper maintenance and troubleshooting of the system.

Electrical System Parts

The Farmall 706 tractor is equipped with a robust electrical system that powers various components such as the lights, ignition system, and charging system. Understanding the different electrical system parts can be helpful for troubleshooting and maintenance purposes.

1. Battery: The battery is the heart of the electrical system and provides the initial power to start the tractor. It also stores energy for use when the engine is not running. The Farmall 706 typically uses a 12-volt battery.

2. Starter motor: The starter motor is responsible for turning over the engine when the ignition switch is turned. It uses electrical power from the battery to engage the flywheel and start the engine.

3. Alternator: The alternator is responsible for generating electricity and charging the battery while the engine is running. It converts mechanical energy from the engine into electrical energy to power the electrical system and recharge the battery.

4. Ignition switch: The ignition switch is used to start and stop the engine. It controls the flow of electrical current to the starter motor and ignition coil. The switch may include positions for off, run, and start.

5. Ignition coil: The ignition coil is an electromagnetic device that converts low-voltage electricity from the battery into high-voltage electricity needed to create a spark at the spark plugs. This spark ignites the air-fuel mixture in the engine’s cylinders.

6. Spark plugs: The spark plugs are essential components in the ignition system. They produce sparks that ignite the air-fuel mixture in the combustion chamber, resulting in engine combustion and power generation.

7. Lights: The lighting system includes various lights such as headlights, taillights, and work lights. These lights enable visibility during nighttime operations and improve safety when operating the tractor in dark conditions.

These are just a few examples of the electrical system parts found in a Farmall 706 tractor. Having knowledge of these parts and their functions can aid in troubleshooting electrical issues and performing regular maintenance to ensure optimal performance.

Steering and Brake Components

When it comes to the steering and brake components of a Farmall 706 tractor, it is important to ensure that they are in good working condition to maintain the safety and efficiency of the vehicle. These components play a crucial role in controlling the tractor’s movement and stopping power.

One of the key steering components is the steering wheel, which allows the operator to control the direction of the tractor. It is connected to the steering gearbox, which transmits the rotational movement of the steering wheel to the front wheels. Other steering components include the tie rods, drag link, and steering cylinder, which work together to ensure smooth and responsive steering.

When it comes to the brake system, the brake pedals are connected to the master cylinder, which controls the flow of hydraulic fluid to the brake calipers or drum brake assemblies. These components apply pressure to the brake pads or shoes, creating friction and stopping the tractor. It is important to regularly inspect and maintain these components to ensure optimal braking performance.

In addition to the steering wheel and brake pedals, other important steering and brake components include the steering column, steering shaft, brake lines, brake hoses, and brake calipers. These parts work together to ensure precise steering control and reliable braking power, especially during heavy-duty operations or in challenging terrain.

Regular maintenance and periodic inspections are crucial for the steering and brake components of a Farmall 706 tractor. This includes checking for any signs of wear or damage, such as loose steering, excessive play, or brake fade. It is also important to follow the manufacturer’s recommended maintenance schedule and replace any worn-out or faulty components promptly to avoid potential accidents and costly repairs.

If you’re a drummer who loves playing the double bass pedal, having a good understanding of its parts is essential. The double bass pedal provides drummers with the ability to create powerful and intricate beats by using both feet. To help you navigate the intricacies of this important drumming tool, we’ve put together a comprehensive parts diagram.

Slave Pedal: The slave pedal is the foundation of the double bass pedal. It is connected to the main pedal via a rod and is responsible for mirroring the actions of the main pedal. When the drummer presses down on the main pedal, the slave pedal moves in the same manner, seamlessly producing a double bass effect.

Beater Assembly: At the end of the slave pedal, you’ll find the beater assembly. This is the component that strikes the bass drum, producing the sound. The beater assembly usually consists of a metal rod connected to a beater head, which is covered in a protective material, such as felt or rubber. Drummers often experiment with different beater heads to achieve their desired sound.

Main Pedal: The main pedal is what the drummer uses to control the double bass pedal. When the drummer pushes down on the main pedal, it initiates a chain of mechanical actions that ultimately result in the slave pedal moving in synchronization. The main pedal is often adjustable, allowing drummers to customize the tension and sensitivity according to their playing style.

Chain or Belt: The chain or belt is an important part of the double bass pedal as it transfers the motion from the main pedal to the slave pedal. Some drummers prefer a chain for its durability and robustness, while others opt for a belt for its smooth and quiet operation. Understanding the different options available can help drummers choose the right one for their needs.

By familiarizing yourself with the various parts that make up a double bass pedal, you’ll be better equipped to make adjustments, troubleshoot issues, and maximize your playing potential. Whether you’re a beginner or an experienced drummer, having a solid understanding of the double bass pedal and its parts is crucial for unleashing your creativity on the drum kit.

Overview of a Double Bass Pedal

A double bass pedal is a type of pedal that is used with a bass drum in drumming. It allows the drummer to play fast and intricate patterns with both feet, providing more versatility and power in their playing.

The main parts of a double bass pedal include:

• Pedalboard: The bottom part of the pedal that the drummer’s foot rests on.
• Pedal chain: The chain that connects the pedalboard to the beater.
• Pedal spring: The spring that provides resistance and controls the rebound of the pedal.
• Beater: The part of the pedal that strikes the bass drum. It is attached to the pedal chain and can be adjusted for different playing styles and preferences.
• Footboard: The top part of the pedal that the drummer’s foot presses down on to activate the pedal.
• Pedal cam: The part of the pedal that converts the linear motion of the footboard into a rotating motion to drive the beater.
• Adjustment screws: Various screws on the pedal that allow the drummer to adjust the tension, height, and angle of different parts of the pedal to suit their playing style.

Double bass pedals are commonly used in various music genres, including rock, metal, and jazz. They provide drummers with greater speed, control, and flexibility in their playing, allowing for more complex and dynamic drumming performances.

What is a double bass pedal?

A double bass pedal, also known as a double pedal, is a type of drum pedal that allows a drummer to play two bass drums or a single bass drum with both feet simultaneously. It is a popular piece of equipment in the world of drumming, providing drummers with increased speed, control, and versatility.

The double bass pedal consists of several key parts, including the base plate, drive shaft, footboard, and beaters. The base plate is the foundation of the pedal, providing stability and support. The drive shaft connects the footboard to the beaters, allowing the drummer to transfer their foot movements into drum hits. The footboard is where the drummer places their feet and applies pressure to control the pedals. The beaters are the parts that strike the bass drum, producing sound.

A double bass pedal is typically used in genres such as rock, metal, and jazz, where fast and powerful bass drumming is desired. It enables drummers to create intricate bass drum patterns, execute quick double strokes, and play complex rhythms with both feet. The use of a double bass pedal requires coordination, strength, and technique, as drummers must be able to control both pedals independently to achieve the desired sound and performance.

Why use a double bass pedal?

A double bass pedal is a crucial component of a drum kit that allows drummers to play two bass drums or two bass drum sounds with a single pedal. It consists of two pedals connected by a linkage that allows the drummer to operate both pedals simultaneously or independently.

Increased Speed and Technique: One of the main reasons to use a double bass pedal is to increase speed and technique on the bass drum. By using both feet, drummers can achieve faster and more intricate patterns, creating a more dynamic and impressive sound. It allows for rapid-fire single strokes, double strokes, and complex rhythms that may not be possible with a single bass drum pedal.

Versatility: The use of a double bass pedal opens up a whole new world of musical possibilities. Drummers can create intricate and syncopated bass drum patterns that add depth and complexity to their playing. It allows for a wider range of musical styles, from heavy metal and rock to jazz and fusion, where fast and intricate bass drum work is often required.

Efficiency: With a double bass pedal, drummers can achieve more with less effort. By distributing the workload between both feet, drummers can conserve energy and play for longer periods without getting fatigued. It also allows for better balance and coordination, as both feet are engaged in the pedal work.

In conclusion, using a double bass pedal provides drummers with increased speed, technique, versatility, and efficiency. It allows for more dynamic playing, intricate patterns, and a wider range of musical styles. Whether you’re a beginner or an advanced drummer, a double bass pedal can take your drumming to the next level.

The Basic Parts of a Double Bass Pedal

The double bass pedal is an essential component of a drummer’s kit that allows them to play the bass drum with both feet simultaneously. It consists of several important parts that work together to create a smooth and efficient drumming experience.

Pedal board

The pedal board is the main platform where the drummer places their feet. It is typically made of sturdy metal and has a textured surface to provide grip. The pedal board is connected to the rest of the pedal mechanism and allows the drummer to control the movement of the beaters.

Beaters

The beaters are the parts of the double bass pedal that strike the bass drum to produce sound. They are attached to the pedal board and are usually made of felt or rubber. The drummers can adjust the angle and distance of the beaters to achieve the desired sound and volume.

Chain or Belt Drive

The chain or belt drive is responsible for transferring the motion of the pedal board to the beaters. It consists of a chain or belt that connects the pedal board to the axle, which is connected to the beaters. Drummers can choose between a chain drive, which provides more power and stability, or a belt drive, which offers a smoother and quieter operation.

Spring

The spring is an essential part of the double bass pedal that provides resistance and helps the pedal to return to its original position after each stroke. It is usually located underneath the pedal board and can be adjusted to increase or decrease the tension according to the drummer’s preference.

Footboard

The footboard is the part of the pedal board that is directly under the drummer’s feet. It is usually textured or have grip pads to prevent the drummer’s feet from slipping during playing. The footboard can also be adjustable in terms of height and angle to accommodate different playing styles and preferences.

Baseplate

The baseplate is the bottom part of the double bass pedal that provides stability and support to the entire pedal assembly. It is usually made of heavy-duty metal and has rubber feet to prevent sliding and protect the drum kit’s surface from scratches.

Overall, understanding the basic parts of a double bass pedal is crucial for drummers to optimize their playing technique and achieve the desired sound and performance. Each component plays a significant role in creating a comfortable and efficient drumming experience.

Pedalboard

The pedalboard is an essential component of a double bass drum pedal. It is the flat surface where the drummer places their foot to control the movement of the beater. The pedalboard is typically made of sturdy metal and is designed to withstand the force applied by the drummer’s foot.

The pedalboard is an important part of the double bass pedal because it provides the drummer with a solid base and stability while playing. It is usually attached to the main frame of the pedal and is adjustable to suit the drummer’s playing style and preference. The size and shape of the pedalboard may vary depending on the brand and model of the double bass pedal.

Some pedalboards feature grip-enhancing patterns or textures to prevent the drummer’s foot from slipping during intense playing. This is particularly useful when playing fast and intricate double bass drum patterns. Additionally, some advanced pedalboards may have additional features such as adjustable footboards or built-in footrests to provide even more comfort and control for the drummer.

In conclusion, the pedalboard is an integral part of a double bass drum pedal, providing the drummer with stability, control, and comfort while playing. It is designed to withstand the force applied by the drummer’s foot and may feature grip-enhancing patterns or additional adjustable features for enhanced performance.

Beater

The beater is a key component of a double bass pedal. It is the part that strikes the bass drum to produce the sound. The beater is attached to a rod, which is connected to the pedal by a chain or a direct linkage. When the drummer presses the pedal, it activates a mechanism that propels the beater towards the bass drum.

Beaters come in various shapes and materials, each producing a different sound and feel. Commonly used shapes include round, cylindrical, and square. Round beaters tend to produce a punchier sound, while cylindrical beaters offer a balanced tone. Square beaters are favored by some drummers for their ability to deliver a sharper attack. The choice of material, such as felt, rubber, or wood, further influences the tone and projection of the bass drum.

Different drumming styles and musical genres may require specific types of beaters. For example, rock drummers often use heavier and harder beaters to achieve a loud and aggressive sound. Jazz drummers, on the other hand, may prefer softer beaters for a more subtle and nuanced tone. Additionally, some drummers experiment with using different beaters on each pedal to create unique textures and dynamics.

Drive Shaft

The drive shaft is an essential component of a double bass pedal. It connects the footboard to the beater mechanism and transfers the motion and power generated by the player’s foot to the beater, which strikes the bass drum. The drive shaft is responsible for transmitting the force and rhythm generated by the foot to create a clear and powerful sound.

Typically made of metal, the drive shaft is a long, cylindrical rod that extends from the footboard to the beater mechanism. It is often adjustable in length to accommodate different playing styles and preferences. The drive shaft is connected to the footboard through a hinge or pivot point, allowing for smooth and controlled motion when the player presses down on the pedal.

The drive shaft usually consists of several interconnected parts, including the main rod, chain or strap, and linkage. The main rod is the primary component that connects the footboard to the beater mechanism. It is usually threaded or has a slot at one end to attach the beater assembly securely. The chain or strap, commonly referred to as the drive mechanism, transfers the motion from the footboard to the beater assembly.

The linkage is the part of the drive shaft that connects the footboard to the drive mechanism. It can be either a chain or a strap, and its length and tension can be adjusted to suit the player’s preferences. The linkage is responsible for transmitting the force and rhythm generated by the foot to the drive mechanism, allowing for precise control and dynamic playing.

In summary, the drive shaft is a crucial part of a double bass pedal, responsible for transmitting the player’s motion and power to the beater. It consists of a main rod, chain or strap, and linkage, all working together to provide a controlled and powerful strike on the bass drum.

Slave Pedal

The slave pedal is an essential component of a double bass pedal setup. It is connected to the main pedal via a connecting rod or chain, allowing the drummer to control both pedals with one foot. The slave pedal is typically positioned next to the main pedal and functions as the secondary pedal in a double bass drum setup.

Components:

• Pedal Surface: The pedal surface is where the drummer’s foot rests while playing. It is usually made of a non-slip material to ensure stability and control.
• Spring Mechanism: The spring mechanism is responsible for returning the pedal to its original position after it is pressed down. It provides the resistance needed for the drummer to control the speed and power of the pedal.
• Beater: The beater is the part of the pedal that strikes the bass drum head. It is usually made of a hard material, such as felt or plastic, and may be adjustable in terms of angle and distance from the drum head.
• Adjustment Features: The slave pedal may have various adjustment features, such as spring tension adjustment, beater angle adjustment, and beater distance adjustment. These features allow the drummer to customize the feel and response of the pedal to suit their playing style.

When using a double bass pedal setup, the slave pedal is synchronized with the main pedal to achieve simultaneous strokes on both bass drums. This allows drummers to create intricate and powerful rhythms that would not be possible with a single pedal. The slave pedal requires practice and coordination to master, as it involves the use of both feet in a coordinated manner.

Overall, the slave pedal is an integral part of a double bass pedal setup, providing drummers with the versatility and speed required for various music genres, such as metal, rock, and jazz. With its adjustable features and synchronization with the main pedal, the slave pedal offers drummers a wide range of possibilities to explore and enhance their drumming skills.

Mathematics is a subject that deals with logic and sets. Venn diagrams are a powerful tool used by mathematicians to visualize and analyze sets. They provide a clear and concise way to represent the relationship between different sets. In the digital age, we have access to various online tools that can help us create Venn diagrams quickly and accurately.

A Math Venn Diagram Maker is a valuable tool that allows students and educators to create customized Venn diagrams with ease. This tool provides a user-friendly interface where users can input their data and generate a Venn diagram instantly. It eliminates the need for manual drawing, saving time and effort.

With a Math Venn Diagram Maker, users can easily compare and contrast different sets, identify common elements, and analyze the relationships between them. The generated Venn diagram can be customized with different colors, labels, and sizes, making it visually appealing and easy to understand. Users can also save and share their diagrams, allowing for collaboration and discussion among students and teachers.

Whether you are a student studying math or a teacher looking for an interactive teaching tool, a Math Venn Diagram Maker is an essential resource. It enhances the learning experience by providing a visual representation of complex concepts and encourages critical thinking and problem-solving skills. Give it a try and explore the possibilities of using a Math Venn Diagram Maker in your math education!

Understanding Venn Diagrams in Math

Venn diagrams are a useful tool in mathematics for visualizing relationships and sets. They were introduced by John Venn in the late 19th century, and have since become a standard way to represent data and logic in various fields, including mathematics, statistics, computer science, and even business.

A Venn diagram consists of one or more circles (known as sets) that overlap or intersect with each other. Each circle represents a set, and the overlapping areas represent the elements that belong to multiple sets. The non-overlapping areas within each circle represent the elements that only belong to that particular set.

There are several key terms used in Venn diagrams. These include the universal set, which is the set that contains all the elements under consideration; the intersection, which represents the elements that are in both sets being compared; the union, which represents all the elements in either set being compared; and the complement, which represents the elements that do not belong to a particular set.

To create a Venn diagram, you can start by drawing one or more circles that represent the sets you want to compare. You then label each circle with the name of the corresponding set. If there are elements that belong to both sets, you draw an overlapping area between the circles. If there are elements that only belong to one set, but not the other, you draw them in the non-overlapping area of the respective circle.

Venn diagrams are useful in math for solving problems involving sets, such as finding the intersection or union of two or more sets, determining if two sets are equal or disjoint, and identifying elements that belong to a certain set but not another. They provide a visual way to analyze and understand the relationships between different sets of data, making them an essential tool in many areas of mathematics.

What are Venn diagrams?

Venn diagrams are graphical representations of sets, used to visually illustrate the relationships between different groups or categories. They were first introduced by the British logician and philosopher John Venn in the late 19th century.

In a Venn diagram, sets are represented by circles or other shapes, and the overlapping regions of these circles show the elements that are common to the sets being compared. The non-overlapping areas represent the elements that are unique to each set.

These diagrams are commonly used in mathematics, logic, statistics, and other fields to analyze and compare sets. They are particularly useful for visualizing concepts such as set intersections, unions, complements, and subsets.

Venn diagrams can also be used to solve problems and make deductions by shading or labeling specific regions of the diagram to represent certain conditions or relationships. They provide a clear and concise way to organize and present complex information.

Overall, Venn diagrams are a powerful tool for understanding and analyzing relationships between sets and are widely used across various disciplines for different purposes.

How are Venn diagrams used in math?

Venn diagrams are a valuable tool used in mathematics to organize and visualize information. They are commonly used to represent relationships between sets and to solve various types of problems.

One way Venn diagrams are used in math is to illustrate the concept of sets and their elements. In a Venn diagram, sets are represented by circles or oval shapes, and the elements of each set are placed inside the corresponding shape. The overlapping regions between sets represent elements that belong to both sets. This visual representation helps students understand the relationship between different sets and how they overlap or intersect.

Venn diagrams are also used to solve problems related to set operations, such as union, intersection, and complement. For example, by using a Venn diagram, we can easily determine the union of two sets by combining the elements in the circles. Similarly, the intersection of two sets can be found by identifying the overlapping region. Additionally, the complement of a set can be determined by shading the region outside of the set’s circle.

Venn diagrams can also be used to solve problems involving conditional probability and logical statements. By labeling different regions in the diagram and using the principles of set theory, we can analyze and calculate probabilities and evaluate logical statements. This helps develop critical thinking skills and problem-solving abilities in mathematics.

In conclusion, Venn diagrams are a versatile tool in mathematics that help organize and visualize information related to sets, set operations, probability, and logic. They provide a visual representation that aids in understanding and solving various mathematical problems. Mastering the use of Venn diagrams can enhance students’ understanding of mathematical concepts and improve their problem-solving skills.

The Importance of Venn Diagrams in Math Education

Venn diagrams play a crucial role in math education as they provide a visual representation of mathematical concepts and relationships. They are commonly used to illustrate set theory, logic, and probability, allowing students to better understand complex mathematical ideas.

One of the key benefits of Venn diagrams is that they help students organize and categorize information. By using overlapping circles or other shapes, Venn diagrams allow students to compare and contrast different sets of data or elements, enabling them to identify similarities and differences. This visual representation helps students analyze and solve mathematical problems more effectively.

Another advantage of Venn diagrams is their ability to foster critical thinking and problem-solving skills. By working with Venn diagrams, students are encouraged to think logically and make connections between different concepts. They are challenged to identify patterns, make predictions, and draw conclusions based on the information presented in the diagram.

Venn diagrams also promote active engagement and participation in the learning process. Students can actively interact with the diagram by adding or removing elements, recategorizing data, or making modifications. This hands-on approach enhances comprehension and retention of mathematical concepts, as students are actively involved in constructing and manipulating the diagram.

In addition, Venn diagrams provide a visual representation of complex mathematical relationships, making them a valuable tool for both teachers and students. Teachers can use Venn diagrams to present abstract concepts in a more concrete and accessible way, making the learning experience more engaging and meaningful. Students, on the other hand, can use Venn diagrams as a reference tool to review and reinforce their understanding of mathematical concepts.

In conclusion, Venn diagrams are an essential tool in math education, enabling students to visualize and comprehend complex mathematical concepts, develop critical thinking skills, and actively participate in the learning process. By integrating Venn diagrams into math lessons, teachers can enhance students’ understanding and appreciation of mathematics.

Why are Venn diagrams important for students?

Venn diagrams are an important tool for students because they allow them to visually organize and analyze groups of data. By using circles and overlapping areas, Venn diagrams make it easier to identify similarities, differences, and relationships between different sets of data.

One of the key benefits of using Venn diagrams in mathematics is that they help students understand and solve logical problems. By representing different sets of numbers or objects, students can analyze the relationships between these sets and find common elements or unique characteristics. This not only helps develop critical thinking skills, but also enhances problem-solving abilities.

Venn diagrams are particularly useful in probability and statistics. They can be used to visually represent the outcomes of different events and calculate probabilities. By shading different areas of the diagram, students can easily determine the likelihood of certain events occurring and make informed decisions based on the data.

Furthermore, Venn diagrams are also commonly used in subjects such as biology, where students need to categorize and analyze different species or organisms. By using Venn diagrams, students can compare and contrast various characteristics and identify patterns or similarities between different groups.

In summary, Venn diagrams play a crucial role in facilitating students’ understanding of complex data, logical reasoning, and problem-solving skills. By visually representing sets of data and analyzing relationships, Venn diagrams provide a powerful tool for students to organize and make sense of information across a variety of subjects.

How do Venn diagrams help students visualize mathematical concepts?

Venn diagrams are a valuable tool in mathematics education as they provide a visual representation of the relationships between different sets or groups of objects. By using overlapping circles or other shapes, Venn diagrams allow students to compare and contrast elements, uncover patterns, and understand the concepts of union, intersection, and complement.

Visualization and Comparison: One of the main advantages of Venn diagrams is their ability to visually represent the similarities and differences between sets. By shading or labeling various regions within the diagram, students can quickly identify which elements belong to one set, another set, or both sets. This visual representation helps students make connections and draw conclusions about the relationship between the sets.

Logical Reasoning: Venn diagrams also encourage students to engage in logical reasoning. By observing the diagram, they can determine whether certain statements are true or false based on the information represented. For example, students can use Venn diagrams to test the validity of statements using the inclusive “or” and exclusive “or” operators, allowing them to practice deductive reasoning and critical thinking.

Problem Solving: Venn diagrams can be valuable tools in problem-solving activities. They help students organize information and identify commonalities or differences between different sets of data. By analyzing the overlapping regions, students can identify the shared elements between sets and apply this knowledge to solve mathematical problems more efficiently.

Set Operations: Venn diagrams are particularly useful in illustrating set operations, such as union, intersection, and complement. Students can observe how the overlapping areas represent the intersection of two sets, while the areas outside the circles represent the complement of the sets. This visual representation helps students grasp these abstract concepts more easily and apply them in various mathematical problem-solving scenarios.

Overall, Venn diagrams enhance students’ understanding of mathematical concepts by providing a visual representation of relationships between sets. They facilitate visualization, comparison, logical reasoning, problem-solving, and the understanding of set operations. By incorporating Venn diagrams into their learning process, students can develop a deeper understanding of mathematics and improve their analytical skills.

Overview of Math Venn Diagram Makers

A Venn diagram is a useful tool in mathematics for visualizing the relationships between different sets. It consists of overlapping circles or ellipses, each representing a set, and the overlapping area represents the intersection of those sets. Venn diagrams can be used to solve problems involving sets, logic, and probability.

To create Venn diagrams efficiently, math Venn diagram makers are available online. These tools allow users to easily generate Venn diagrams by inputting the sets and their elements. They provide a user-friendly interface and various customization options, enabling users to create diagrams that meet their specific requirements.

Key Features of Math Venn Diagram Makers:

• Set Input: Math Venn diagram makers allow users to input the sets and their elements either manually or by importing data from external sources. This flexibility makes it convenient to work with pre-existing datasets or create new ones.
• Drag-and-Drop Functionality: These tools often have a drag-and-drop interface, allowing users to easily arrange the sets and their elements within the diagram. This feature helps in creating visually appealing and organized diagrams.
• Customization Options: Users can customize the appearance of the Venn diagram by adjusting the colors, labels, font styles, and sizes. This allows for greater personalization and clarity in conveying information.
• Intersection Calculation: Math Venn diagram makers can automatically calculate the intersection of sets, making it easier for users to determine the elements that belong to multiple sets.
• Export and Sharing: Once the Venn diagram is created, users can export it in different formats like PNG or PDF for further use or sharing with others.

In conclusion, math Venn diagram makers provide a convenient and efficient way to create visually appealing and informative Venn diagrams. With their user-friendly interface and customizable options, these tools are valuable resources for students, teachers, and anyone working with sets and logic in mathematics.
