Detailed Yamaha Waverunner Parts Diagram with Labels for Key Components

Start by identifying the intake manifold, cylinder head, and crankcase locations. These elements are commonly mounted centrally, with clear access via the top deck once the seat is removed. For reference, the intake usually aligns directly above the throttle body, while the crankcase sits lower and connects to the drive shaft assembly.

Inspect the cooling system routing. The heat exchanger is typically mounted near the rear exhaust outlet, connected via molded hoses to the thermostat housing and water pump. Examine the path of these hoses to locate any blockages or wear points. Secure clamps and verify all gaskets for signs of leaks.

The propulsion unit, including the impeller housing and wear ring, is bolted externally at the rear hull section. Access requires removal of the reverse gate and nozzle assembly. Check the stator vanes and drive shaft coupler alignment to ensure proper thrust delivery.

Electrical modules, such as the ECU and rectifier, are fixed inside the hull near the battery tray. Follow the wiring harness from the ignition coil to each sensor, noting any corrosion or frayed connectors. Fuse boxes are typically sealed within waterproof cases mounted on vibration-damped brackets.

Finally, the steering linkage and trim actuator are connected beneath the top handle housing. Remove the upper panel to reveal the cable routing and sensor mountings. Grease pivot points and tighten fasteners to maintain precise control response.

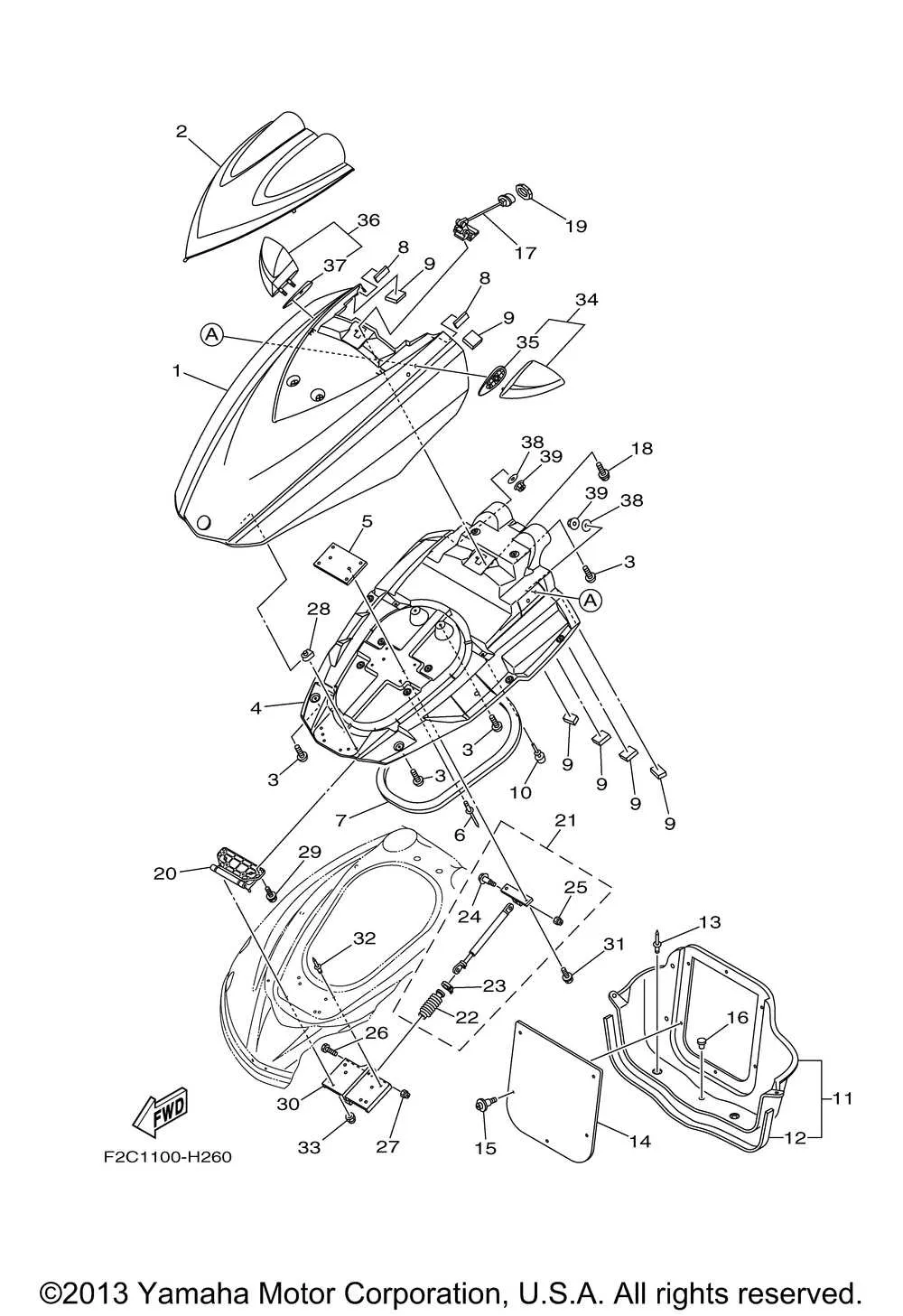

Yamaha Waverunner Parts Diagram

Start with the intake assembly. Focus on the impeller housing, wear ring, and shaft bearings. Inspect the impeller blade clearance: the gap should not exceed 0.012 inches. If wear is visible, replace the ring before cavitation reduces thrust efficiency.

Move to the fuel delivery section. Check the throttle body sensor alignment and inspect injector O-rings for brittleness or leaks. Torque the fuel rail bolts to 7.2 ft-lbs using a calibrated wrench.

In the electrical area, prioritize the ECU harness. Confirm pin continuity using a multimeter. Corrosion on terminal 14 often causes misfire at mid-throttle. Replace any compromised connectors with OEM-spec crimp terminals.

For the cooling loop, verify that the thermostat opens at 140°F. Flush the exchanger if salt deposits are visible. Inspect all silicone couplers between the cylinder head and outlet for bulges or cracks.

Check the jet nozzle assembly for alignment. Misalignment of more than 2° causes steering lag. Adjust the reverse gate pivot torque to exactly 16 ft-lbs and confirm free movement through full travel.

Finally, review the hull mount fasteners. Use threadlocker on motor mount bolts and tighten to 33 ft-lbs. A loose mount causes driveline vibration, especially at 4000–5500 RPM under load.

How to Identify OEM Part Numbers on Exploded View Schematics

Start by locating the reference number assigned to each component in the exploded layout. This number typically appears as a small digit near the illustration of the item.

Cross-reference the digit with the corresponding label in the parts list table. The OEM identifier is usually a 10- to 12-digit alphanumeric string, formatted similarly to “6B6-44552-00-00”.

Focus on matching this code rather than relying on item names, as nomenclature can vary between models and regions.

Use the following structure to verify original equipment numbers:

Ensure the number matches the schematic for the exact model and production year. Different revisions may carry identical labels but distinct codes. Refer to the unit’s serial prefix to avoid cross-year mismatches.

Do not confuse the exploded illustration number with casting or mold markings on the physical component, as only the listed identifier in the lookup table is valid for ordering replacements.

Locating Wear and Tear Components in Engine and Pump Assemblies

Start by inspecting the impeller housing and wear ring. Scoring or uneven gaps between the ring and blades often indicates cavitation damage or prolonged debris exposure.

• Impeller Blades: Look for nicks, warping, or excessive clearance–anything above 0.35 mm typically requires replacement.
• Wear Ring: If the clearance exceeds factory tolerance (check service manual for model-specific specs), replace it. Common sign: excessive vibration or drop in thrust.
• Drive Shaft Splines: Examine for rust or wear at both coupler and impeller ends. A loose fit or visual scoring signals replacement need.
• Carbon Seal Assembly: Check for leakage trails, heat marks, or spring tension loss. These signs point to imminent failure.

Within the power unit, prioritize checking piston rings, rod bearings, and crank seals:

1. Piston Rings: Perform a compression test–values below the service limit (typically under 90 psi) suggest ring or cylinder wall wear.
2. Connecting Rod Bearings: Listen for knocking sounds at idle. Disassemble if suspected–any discoloration or looseness indicates excessive friction.
3. Crankshaft Seals: Use UV dye to identify oil leaks around crank ends. Seal deterioration may cause lean conditions or oil starvation.

Finally, review the cooling system. Inspect the thermostat, bypass valve, and inlet filters for buildup. Salt or sand accumulation often clogs internal passages, leading to overheating.

Using Parts Diagrams to Compare Compatibility Between Waverunner Models

Start by locating the exploded views for both models you want to evaluate. Focus on matching part numbers listed next to each component. If a specific assembly–such as the intake manifold or jet pump housing–shares an identical reference code across models, it’s interchangeable.

Check revision letters in the identifier. For example, a code like 6S5-12110-00-00 versus 6S5-12110-01-00 signals a design update; although similar, they might not function the same. Prioritize codes that match completely.

Use model year filters provided on official microfiche platforms. Cross-check the year, engine displacement, and platform generation. Units built on the same hull or with identical engine families (e.g., MR-1 or TR-1) tend to share more interchangeable components.

Watch for annotations such as “superseded by” or “replaces.” These indicate updated replacements, which may expand compatibility even if the original reference doesn’t align exactly. Always verify fitment using official service documentation before ordering.
