Start by identifying the compressor unit, typically engine-driven and located near the vehicle’s power source. This unit initiates pressure generation, directing flow toward the reservoir tanks. Ensure connections to the supply lines are free from leaks and corrosion, as pressure loss at this stage compromises overall function.
Locate the dual-chamber valve, which regulates delivery pressure to front and rear circuits. It’s essential to verify the integrity of internal seals and the proper actuation of its control ports. Malfunctions here can lead to imbalanced force distribution, increasing wear on linings and reducing safety margins.
Trace the governor connection between the compressor and control module. This element manages cut-in and cut-out thresholds, generally between 100 and 125 PSI. Adjust the settings according to manufacturer tolerances using a calibrated gauge to maintain optimal efficiency.
Examine the relay actuator assembly near the rear axle. Its function is to expedite pressure transmission during high-demand scenarios. Delayed response or audible hissing indicates possible diaphragm fatigue or contamination in the delivery channels.
Inspect the moisture ejector, located near the primary tank. Regular purging is critical, especially in climates prone to condensation. Excess accumulation can damage valves and restrict flow to downstream components, leading to unpredictable engagement behavior.

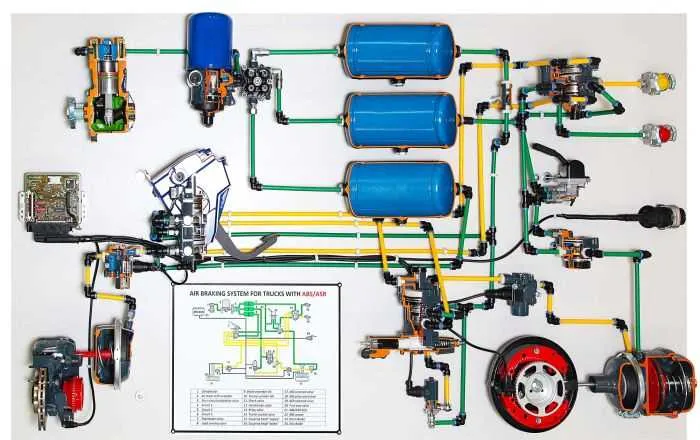

Detailed Layout of Pneumatic Control Architecture
Always verify the routing from the compressor output to the primary reservoir before diagnosing pressure inconsistencies. The compressor line should feed directly into the supply tank via a check valve, preventing reverse flow during pressure drops.
Governor connection must interface with the unloader port, typically positioned between the compressor head and delivery pipe. Misrouting here causes erratic cut-in/cut-out cycles and can lead to over-pressurization.
Service pedal valve should branch into both primary and secondary chambers, ensuring synchronized activation of drive and trailer modules. Confirm that relay valves receive signals through dedicated lines from the foot valve’s delivery port.
Spring chamber assemblies in rear modules require dual-circuit feed: one from the service circuit, another from the parking release circuit. A quick-release mechanism near the actuator optimizes disengagement time post-pedal release.
For trailer linkage, ensure the control line connects to the tractor protection valve. This prevents pressure loss in the towing vehicle during disconnection or failure of the extension unit.
Safety valve location is critical–place it atop the supply chamber and set relief pressure just above maximum system capacity (typically 150 psi). Never bypass this component; it’s essential for protecting other modules.

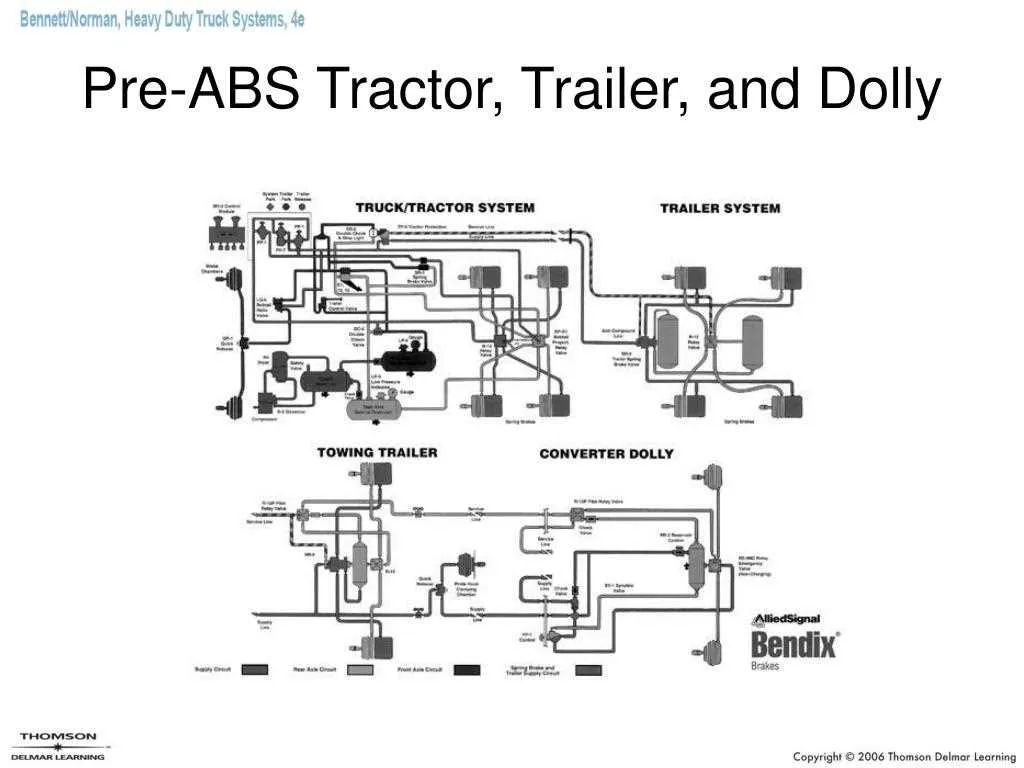

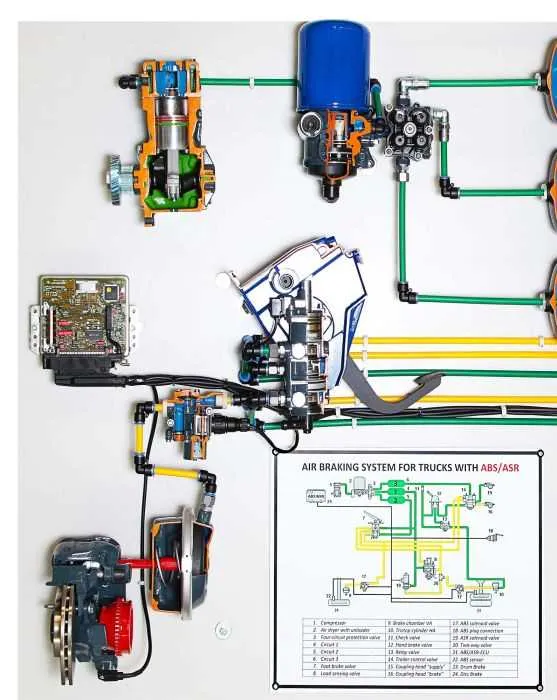

How to Identify Components in a Bendix Air Brake Schematic
Start by locating the supply module–often illustrated as a reservoir or tank symbol. It typically connects directly to the compressor line and includes a check valve icon, ensuring unidirectional flow.
Next, trace the control module, often displayed with relay valve icons. These symbols usually have multiple input and output ports and are central to routing commands from the pedal mechanism. Foot valve components are generally shown with dual-chamber symbols, indicating primary and secondary channels.
Look for treatment units–dryers or filters are typically shown as canister-like shapes with inlet and outlet arrows. These are usually positioned downstream of the compressor and upstream of reservoirs.
Wheel-end actuators are often depicted as spring brake chambers. These are marked with dual sections: one for service and one for parking functionality. Pay attention to spring symbols inside the chamber icon, which indicate emergency locking features.
| Symbol | Function | Identification Tip |
|---|---|---|
| Circle with Arrow | Compressor Output | Always upstream of the tank |
| Box with “X” | Check Valve | Allows one-way pressure flow |
| Stacked Rectangles | Relay Valve | Controls pressure to axles |
| Split Circle | Dual Chamber | Service and emergency application |
| Spring Symbol | Parking Mechanism | Located in brake actuators |
Use line styles to differentiate: solid lines usually denote pressure flow, dashed lines indicate control signals. Color coding (when available) may highlight primary and secondary circuits for faster orientation.
Understanding the Role of the QR-1 Valve in the Schematic
Use the QR-1 valve to accelerate pressure release from service chambers when the control signal is removed. It prevents delayed exhaust during deceleration, improving overall responsiveness.
- Mounting Location: Positioned close to service chambers to minimize line volume and shorten response time.
- Functionality: Acts as a relay exhaust valve, venting delivery ports directly when supply pressure is cut.
- Port Configuration: Commonly includes supply, control, and delivery ports; confirm compatibility with reservoir routing.
- Service Conditions: Designed for applications requiring rapid pressure dissipation under load changes.
- Maintenance Tip: Regularly inspect diaphragm integrity and check for internal contamination to prevent sluggish release.
Integrate this valve only in control lines where auxiliary reservoirs are downstream; improper placement may cause unintended exhaust behavior.
Troubleshooting Air Flow Issues Using the System Layout
Start by isolating leaks at the compressor discharge and reservoir connections. Use a soapy water solution to identify escaping bubbles indicating compromised seals or cracked fittings. Verify that the check valve between the compressor and storage tanks functions correctly to prevent backflow and pressure loss.
Inspect the governor valve operation to ensure it cycles properly, maintaining adequate pressure without causing excessive compressor loading. Failure here often results in abnormal pressure fluctuations and delayed buildup.
Trace the pneumatic lines from reservoirs to the treadle valve for any blockages or kinks restricting flow. Replace any brittle or crushed tubing to restore unrestricted passage.
Check the pressure protection valves; stuck or malfunctioning units may cause insufficient reservoir pressurization, leading to delayed actuator response.
Evaluate the relay valve by applying manual pressure to its control port and observing the response. Sluggish or no movement suggests diaphragm damage or internal contamination requiring service or replacement.
Confirm that the quick-release valve is not obstructed, as this component speeds release times; clogging here increases residual pressure, resulting in sluggish component return.
Finally, assess the condition and function of the service chambers by applying direct supply pressure and measuring actuator travel. Limited motion often indicates worn diaphragms or seals within the unit.
