Wiring Diagram for 20 Amp Plug Installation and Connection Guide

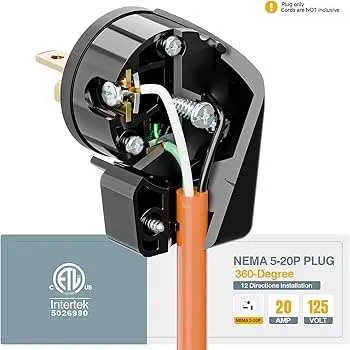

20 amp plug wiring diagram

Ensure your setup follows the correct guidelines when connecting electrical systems rated for 20 amps. The first step is to choose the appropriate components, such as a 20-amp breaker and receptacle, to handle the power load effectively. The connection points must be secured properly, ensuring that all wires are stripped and inserted tightly into their respective terminals.

Key Considerations: For safety, always match wire sizes with the current capacity. Typically, a 12 AWG wire is sufficient for this power rating, but always verify the manufacturer’s recommendations. Additionally, be aware of the polarity when connecting wires–neutral and hot wires should never be reversed to avoid circuit malfunctions or electrical hazards.

Important Tip: When working with high-current circuits, it’s crucial to use properly rated connectors to minimize the risk of overheating or short circuits. Double-check all connections before turning on the power to ensure no loose ends that could lead to faults.

Wiring a 20-Amp Electrical Outlet

To safely connect a 20-volt receptacle, ensure the power supply matches the amperage requirement. Begin by using a suitable gauge wire, typically 12 AWG, for the circuit. For grounding, connect the green or bare wire to the grounding screw of the socket. The neutral wire (usually white) should go to the larger prong terminal, while the hot wire (typically black or red) attaches to the smaller prong terminal. Tighten each screw securely to avoid loose connections.

When securing the wires, verify that there are no exposed conductors outside the terminal connections to prevent shorts. Check the alignment of the conductors to ensure they don’t cross each other inside the junction box. After installation, perform a voltage test to ensure everything is functioning correctly before use.

For safety, always use a circuit breaker rated for 20 amps, and avoid overloading the circuit. Regular inspection of the receptacle will help detect wear or any loose connections that might cause overheating or failure.

Understanding the Wiring of a 20 Amp Plug: Key Components and Connections

When connecting a 20-amp circuit, ensure that the components are correctly rated for the intended load. Begin by identifying the two main conductors: the hot (live) wire, typically black or red, and the neutral wire, which is often white. The third component is the ground wire, usually green or bare copper. This is critical for safety and prevents potential electrical hazards.

The hot wire connects to the brass terminal, which is often marked with a “L” or “live” symbol. The neutral wire attaches to the silver terminal, typically labeled with an “N.” Ensure the ground wire is securely connected to the green terminal or grounding screw on the device, which provides a safe path for any stray current.

Check the device rating before use. The conductor’s gauge must be sufficient to handle the current without excessive heating or voltage drop. Common gauges for this type of connection are 12 AWG or 10 AWG, depending on the distance and current requirements. A properly installed connector ensures that the circuit functions without overload or short circuits.

Always test the connection with a voltage tester or continuity meter to ensure proper operation. If uncertain, consult with a licensed electrician for installation and inspection. Proper grounding and secure terminations are essential to prevent electrical shock or fire risk.

Step-by-Step Guide to Installing a 20-Amp Electrical Connection for Household Use

Begin by selecting a suitable connector rated for 20 amperes. Ensure it is compatible with the intended appliance or device.

First, strip about 1 inch of insulation from each wire using a wire stripper. This will expose the bare copper ends for secure attachment. Avoid damaging the copper strands.

Connect the black (hot) wire to the brass terminal. Tighten the screw firmly to ensure the wire is securely fastened. Ensure no bare wire is exposed outside the terminal.

Next, attach the white (neutral) wire to the silver terminal in the same manner. Ensure the connection is solid and free from any loose strands.

Finally, connect the green or bare wire (ground) to the green screw or ground terminal. This is crucial for safety, ensuring the current has a clear path to the ground in case of a fault.

Once all wires are connected, carefully tighten the screws to ensure the connections are secure. Check for any exposed wire that could cause short circuits.

Reattach the cover or casing of the device. Verify the installation is complete and the wiring is neatly arranged before use.

Test the connection with a multimeter to confirm the correct flow of electricity and ensure the device operates safely. Never use the outlet until confirming proper functionality.

Troubleshooting Common Issues in 20 Amp Electrical Connections and How to Fix Them

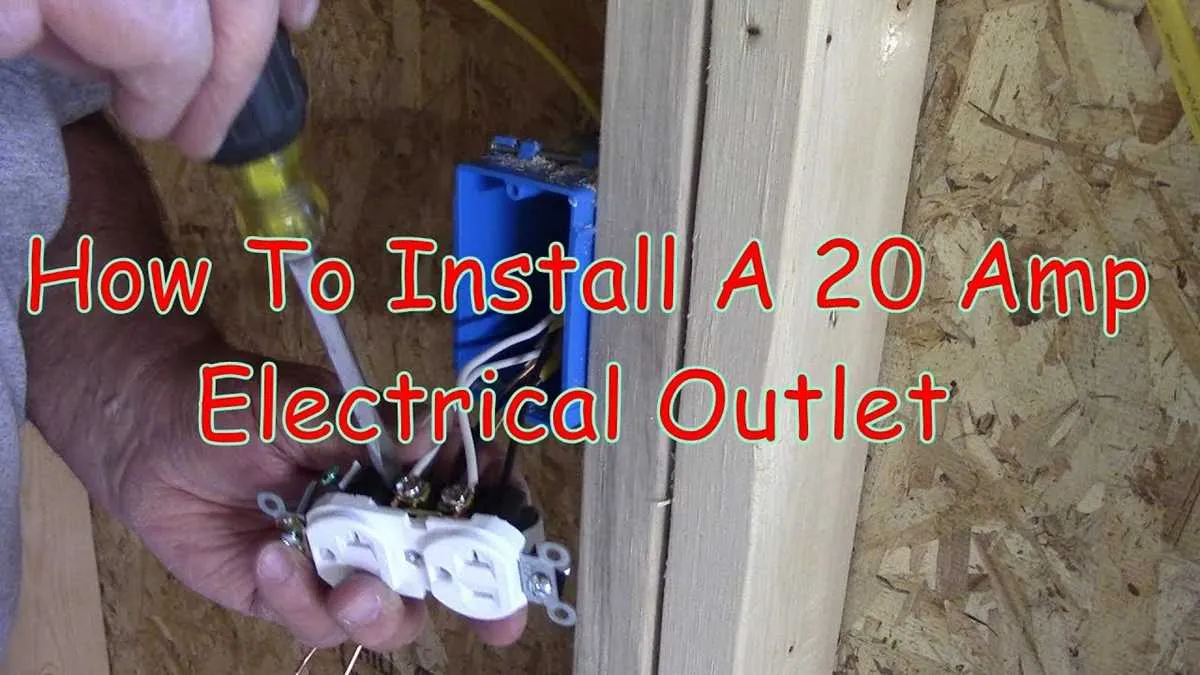

20 amp plug wiring diagram

Start by verifying if the circuit is properly connected and not overloaded. Inspect the wire gauges and connectors to ensure compatibility with the intended current load. A loose connection can lead to overheating, which should be immediately addressed to prevent potential hazards.

Common issues include:

  • Overheating: Caused by incorrect wire size, poor connections, or excessive load. To fix, replace undersized wires and tighten any loose connections.
  • Frequent Tripping: Indicates an overloaded circuit or a short. Disconnect appliances and check for faults in devices connected to the system. Use a multimeter to check for shorts.
  • Loose Connections: Can cause arcing and reduce the lifespan of the system. Tighten all screws and connections. If necessary, strip the insulation again and reconnect properly.
  • Faulty Grounding: Insufficient grounding can lead to electrical shocks or fires. Ensure all components are grounded and check the ground wire for any damage.
  • Corrosion: Corrosion on terminals can increase resistance and cause power loss. Clean the terminals with an abrasive pad and apply a small amount of dielectric grease to prevent future buildup.

For troubleshooting, use the following steps:

  1. Turn off power to the circuit at the main breaker.
  2. Inspect all connections for signs of wear, burn marks, or loose terminals.
  3. Check voltage at the outlet with a voltage tester to confirm whether the power is reaching the desired point.
  4. If power is insufficient, replace the damaged components and ensure wire gauges are correct for the application.
  5. Re-test the system to confirm the issue is resolved.

Regular inspection and proper maintenance are essential for keeping the system running efficiently and safely. If the problem persists after these steps, consult a licensed electrician for further assistance.
