To ensure safe and efficient operation, begin by identifying the type of device and the purpose it serves in your setup. It’s crucial to understand how the current flow will be managed and where each terminal should be placed. Always follow manufacturer guidelines for any component, as incorrect connections can lead to malfunction or hazards.
First, ensure proper grounding for the system. The ground wire must be securely connected to a designated terminal to avoid the risk of electrical shock. Neglecting this can compromise both safety and performance.
When dealing with multiple control points for the same circuit, consider a parallel setup for simplicity. In this arrangement, each device is connected in parallel, allowing for independent operation. However, be cautious of potential overloads by carefully calculating the load each control point will handle.
If you’re working with devices that require different voltages, use a transformer to step down or step up the voltage as necessary. This is especially important when mixing 120V and 240V systems. Proper voltage conversion ensures the devices receive the correct amount of power without being damaged.
Understanding Control Circuit Layouts
To ensure safe and effective operation of control circuits, always use the correct polarity and follow the manufacturer’s instructions. For basic setups, start by connecting the line wire to the common terminal, ensuring a secure connection. The load wire should then be attached to the second terminal, with attention to the direction of flow.
For multi-way control: It’s essential to understand the principle of traveler connections. Use the correct color code for each traveler wire and avoid any short circuits by ensuring clear separation between terminals. Connecting the traveler wires in an alternating pattern will allow for remote control from multiple locations.
For dimmer installations: Connect the output terminal to the load and ensure the ground is properly connected. Always verify the wattage compatibility to prevent overload and potential hazards. Adjust the dimmer’s resistance settings based on the connected light source for optimal brightness control.
In more complex systems: a proper ground connection is mandatory to prevent electrical shock hazards. Use high-quality connectors and secure all wiring to avoid any potential for loose connections that could result in malfunction or fire risk. Always double-check your connections and ensure the power is off before starting any installation work.
Understanding Single-Pole Switch Wiring
For a simple on/off control system, the single-pole switch is the most common solution. To install it correctly, ensure you connect the hot wire from the power source to the terminal on the switch. The other terminal should be connected to the wire that leads to the load, such as a light fixture. The neutral wire should never be connected to the switch; it must go directly to the fixture.
When working with this setup, always turn off the power at the breaker box before starting the installation. Use a voltage tester to double-check that no current is running through the circuit. The grounding wire should be attached to the switch’s ground screw, ensuring safety in case of a fault.
For improved control, you can also integrate a three-way switch system if you need to control a light from multiple locations. However, for standard applications, the single-pole system provides straightforward and reliable operation.

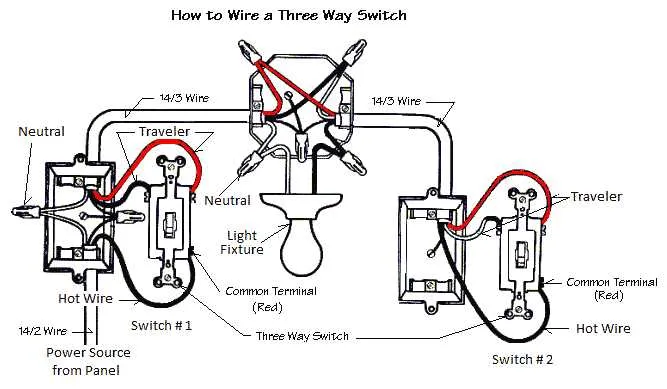

How to Connect a Three-Way Control
To correctly set up a three-way control system, follow these steps carefully:
- Start by ensuring the power supply is turned off at the main breaker.
- Identify the two terminals for the traveler wires on each of the devices. These are typically marked with a brass color.
- Connect the first traveler wire to one of the terminals on the first device and the second traveler wire to the corresponding terminal on the second device.
- Attach the common wire (usually black) to the common terminal of the first device. This wire will carry the current to the light fixture.
- On the second device, connect the common terminal to the wire leading to the light fixture. This ensures the circuit is complete from both ends.
- For the ground connection, attach the grounding wire to the ground terminal on both devices to prevent any risk of electrical shock.
- Double-check all connections before reattaching the cover plates and restoring the power.
- Test the functionality by flipping the controls to ensure proper operation of the connected light.
By following these precise instructions, you can effectively control the light from two separate locations with ease and safety.
Connecting a Dimmer to Standard Circuitry
To properly integrate a dimmer into an existing setup, begin by turning off the power at the breaker panel. Ensure the dimmer model you are using is compatible with the type of load (incandescent, LED, etc.) in your system.
For a standard connection, identify the incoming live wire (usually black), which should be attached to the dimmer’s input terminal. The output terminal of the dimmer connects to the load wire leading to the light fixture. If your system has a neutral wire, it should be connected to the neutral terminal of the dimmer, though some dimmers may not require this.
Verify the ground wire is correctly secured to the dimmer’s grounding screw if present, ensuring a secure connection to the metal box. After completing the connections, carefully reassemble the dimmer into the box, ensuring no exposed wires are touching. Finally, restore power and test the operation of the dimmer. Adjust the settings according to the desired light intensity.
