Ensure correct functioning by properly connecting each wire to the corresponding terminal on your 5-contact connector. The first step is identifying the right wiring sequence, which is crucial for the safe operation of lights and other components. The color-coding typically follows a standard, making it easier to ensure everything is in place.
Red usually connects to the brake light system, powering the stop signals. Yellow is typically used for the left turn signal, while Green handles the right turn signal. Brown is responsible for the rear lights, including tail lights and running lights. Finally, the White wire serves as the ground connection, completing the circuit and ensuring proper function.
Double-check that each wire is securely attached to the designated terminal. Incorrect placement can cause electrical issues, including malfunctioning lights or failure to operate turn signals. A high-quality connector with well-insulated wiring ensures longevity and reduces the risk of short circuits or disconnections during use.
Wiring Instructions for a 5-Terminal Connector
To correctly set up a 5-terminal connector, begin by ensuring the following connections:
1. The first terminal (usually the left indicator) should be connected to the yellow wire, which controls the left turn signal.
2. The second terminal (for the right indicator) connects to the green wire, responsible for the right turn signal.
3. The third terminal is typically reserved for the tail light function, linked to the brown wire. This is used for both the running and brake lights.
4. The fourth terminal is often the ground terminal, and it is connected to the white wire to ensure the proper functioning of the system.
5. The fifth terminal can be utilized for reverse lights and is commonly linked to the purple or blue wire, depending on your specific configuration.
Make sure to double-check the wire connections before final installation to ensure functionality and safety. Proper grounding is critical to avoid electrical malfunctions.

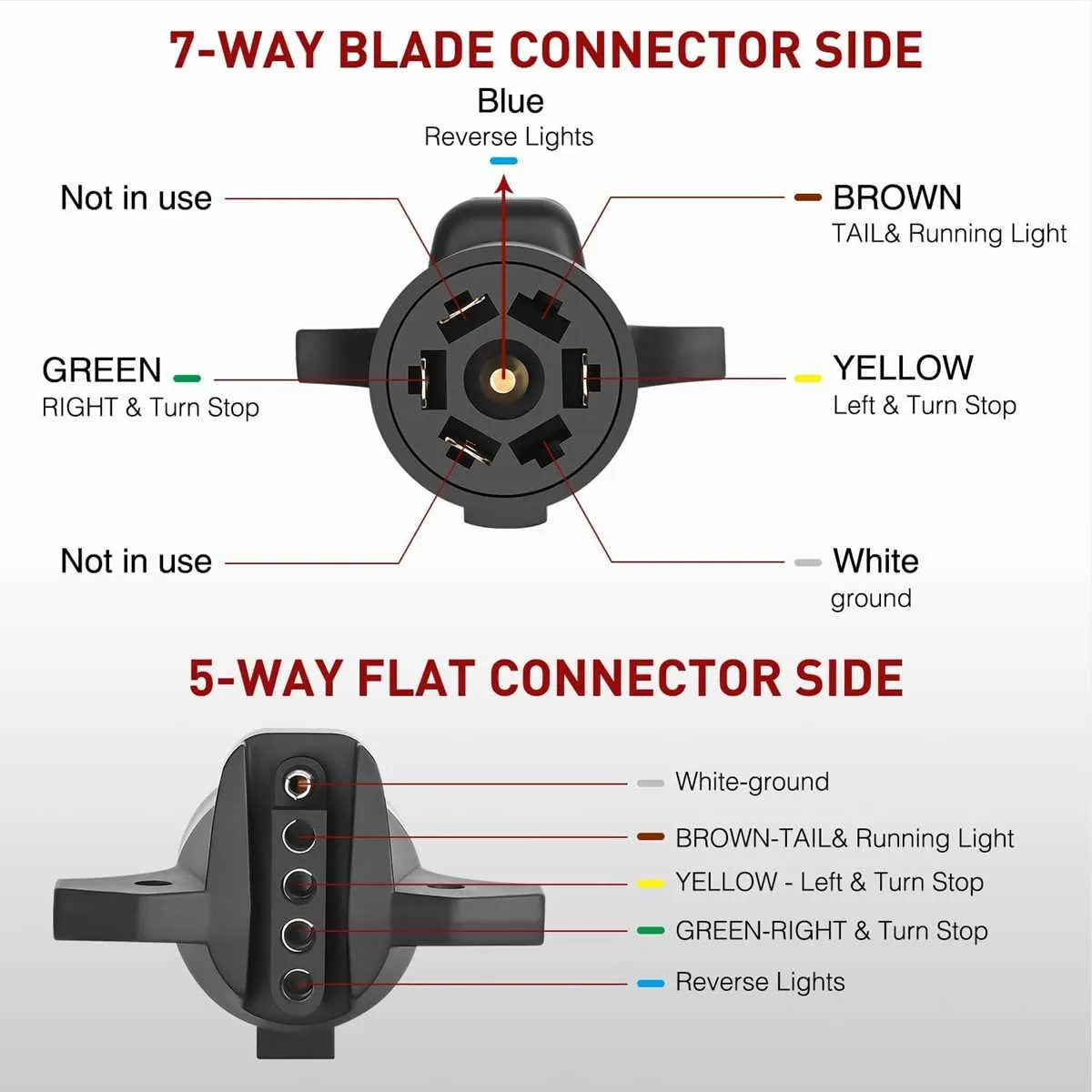

How to Identify Pin Functions on a 5 Pin Trailer Plug
Begin by confirming the standard color code for each terminal. The first terminal on the left is typically for the ground, often marked with a black or green wire. The second is designated for the left turn signal or brake light, usually a yellow wire. The third is allocated to the right turn signal or brake light, marked with a green wire. The fourth pin handles the tail or running lights, typically indicated by a brown wire. Finally, the fifth terminal is commonly used for the reverse light or auxiliary power, linked to a blue or white wire.
Test each connection with a multimeter to verify the correct functionality of each wire. When power is supplied to the system, measure the voltage across each terminal to confirm that they align with their intended functions. Be sure to check that the wiring matches the specification of your vehicle or accessory to avoid electrical issues.
Using this process, you can easily identify and verify the function of each terminal on a 5-pin connector, ensuring a safe and efficient connection for your setup.

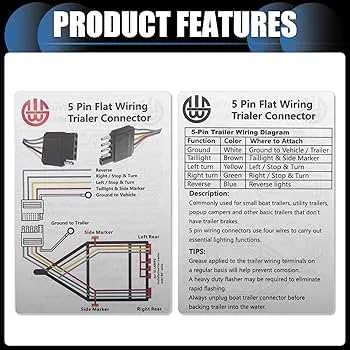

Step-by-Step Guide for Connecting Wires to a 5 Pin Trailer Plug
Start by preparing all necessary components: a connector, appropriate wire, and tools like wire strippers, a screwdriver, and pliers. Ensure you have a reliable power source and grounding points for proper functioning.
- Identify the terminals: Each terminal corresponds to a specific function. The standard layout typically follows this order:
- Terminal 1: Left turn signal and brake light
- Terminal 2: Right turn signal and brake light
- Terminal 3: Tail lights
- Terminal 4: Ground
- Terminal 5: Reverse light
- Prepare the wires: Cut and strip the wires to the correct length. Ensure no bare wire is exposed beyond the terminal connection point.
- Connect each wire to its corresponding terminal:
- Start with the ground connection, ensuring a solid and clean contact to avoid electrical issues.
- Attach the wires for tail lights, brake lights, turn signals, and reverse light in the corresponding order.
- Secure the wires: Tighten screws on each terminal carefully, ensuring the wires are held firmly in place. Double-check that no wires are loose or exposed.
- Test the connections: Before finalizing everything, check the functionality of all lights and signals by connecting to the vehicle and testing each circuit.
- Seal and protect: Use electrical tape or a similar waterproof sealant to protect the terminals and wires from moisture and corrosion.
Troubleshooting Common Electrical Issues in 5-Pin Connections
If your 5-pin connection isn’t working, start by inspecting the ground wire. A loose or corroded ground can prevent proper functioning of lights and signals. Ensure it’s securely attached to a clean, rust-free metal surface.
Check the individual terminals for signs of wear or corrosion. If any pins are bent or damaged, they may not make proper contact. Replacing the faulty connector may be necessary to restore full functionality.
If the indicators or brake lights aren’t working, inspect the wiring leading to the respective functions. Sometimes, a short circuit or broken wire can be the culprit. Use a multimeter to identify any interruptions in the signal flow.
Ensure that each wire is connected to its designated terminal as per your system’s color coding. Incorrect connections will lead to malfunction or a complete failure of specific features like reverse lights or brake lights.
For poor lighting performance, verify that there are no loose connections or corrosion at the connectors. Even a slight gap can cause a significant drop in power, affecting both visibility and safety.
Test the setup with a voltage tester to confirm that power is being transmitted correctly across all lines. If there’s no voltage at the designated terminals, the issue may lie in the power source, rather than the connector itself.
Finally, ensure that all components are tightly secured. A loose connector can cause intermittent failures, making troubleshooting more difficult. Regular inspection and maintenance can help prevent most common issues from arising.
