To properly route the serpentine system on your vehicle, it’s crucial to follow the correct path to ensure smooth operation. Start by identifying the components that need to be connected, including the alternator, power steering pump, and air conditioning compressor. Verify that each part is properly aligned before making any adjustments to the configuration.
Double-check the direction of rotation for each pulley and ensure the proper tensioning mechanism is used. Over-tightening or under-tightening the system can lead to significant wear or even failure of the components. A new system should have a tensioner installed to ensure it remains at the correct tension during operation.
For precise installation, always refer to the specific component numbers and their arrangement as provided by the manufacturer. Avoid making assumptions based on the general look of the system. Misrouting the serpentine could result in increased friction, damage to components, or a failure to start the vehicle.
2004 Vehicle Drive System Routing and Installation Guide

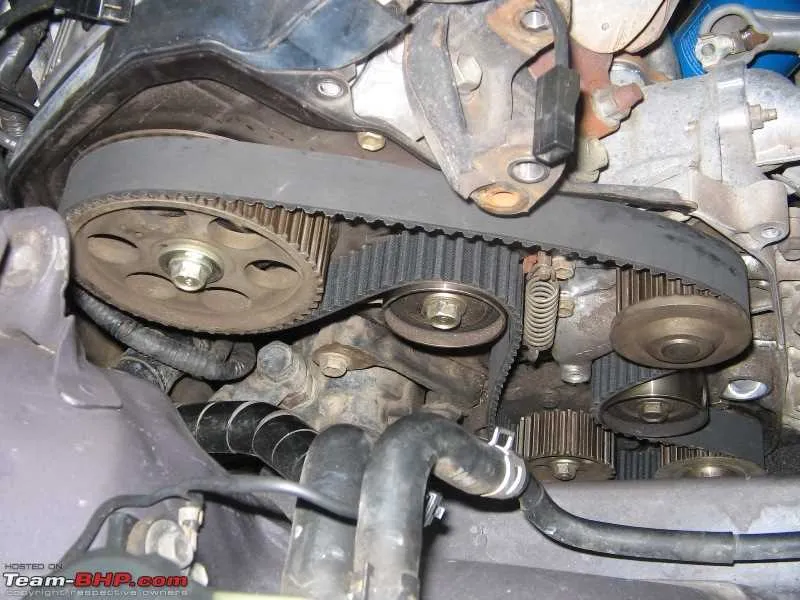

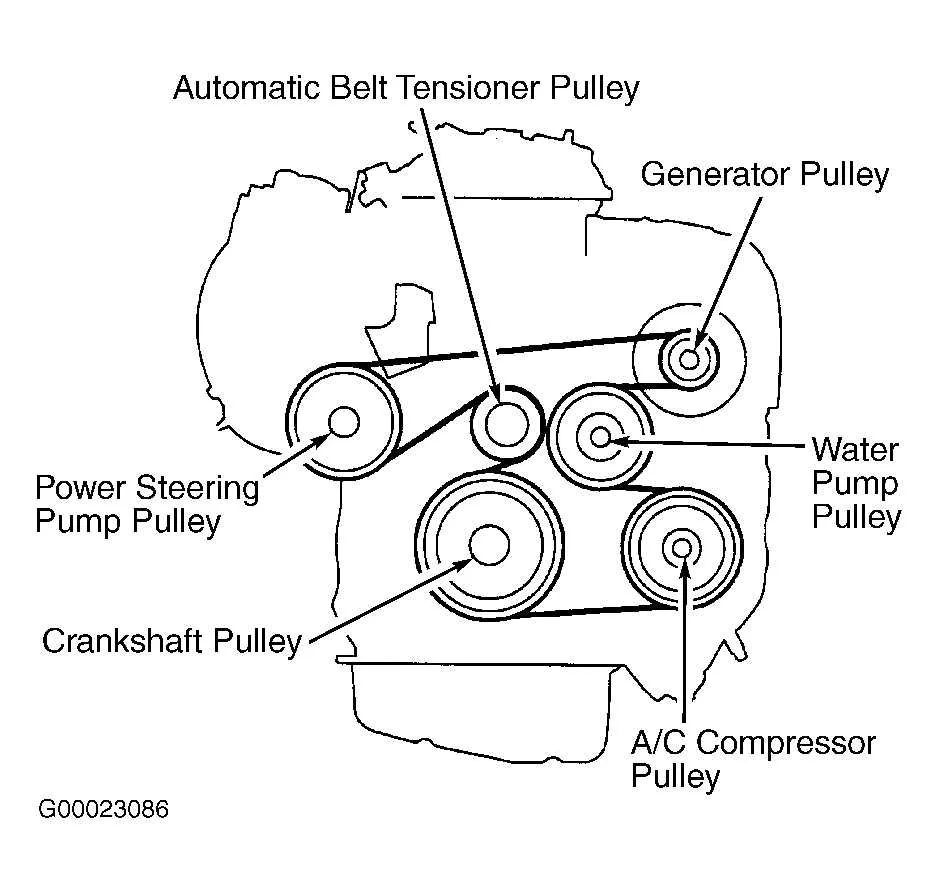

To install the serpentine system properly, begin by identifying the various pulleys and components involved, such as the alternator, power steering pump, air conditioning compressor, and the crankshaft pulley. The routing order is critical, and each part should follow the specified path for optimal function. The system must be aligned with the tensioner to ensure proper operation.
Check the alignment of the pulleys and ensure the routing follows the correct sequence as recommended by the manufacturer. The tensioner must be engaged to maintain the correct tightness, ensuring that the drive system runs smoothly without slippage or excessive wear.
Install the serpentine correctly by first placing it around the crankshaft and then looping it through the other pulleys. Make sure the belt rests in the grooves of each pulley, avoiding any misalignment. Once the belt is in place, use the tensioner tool to adjust the tightness to the recommended specification.
Final checks should include turning the crankshaft manually to ensure the system operates freely and no parts are obstructed. After installation, start the engine and observe the belt’s movement. If you notice any abnormal noises or vibrations, recheck the routing and tension for any mistakes.
Step-by-Step Drive System Routing for the 2004 Vehicle
Start by positioning the new drive loop around the lower crankshaft pulley. Ensure the belt runs smoothly through the lower section before moving to the upper components. Align the loop along the various pulleys, starting with the water pump, then proceed to the power steering pulley.
Route the loop through the air conditioning compressor, making sure it runs in a smooth arc without twisting. After this, direct the loop around the alternator pulley. Keep the belt snug but not too tight at this point to avoid unnecessary tension.
Next, loop the drive system around the idler pulley before connecting it to the tensioner pulley. Adjust the tensioner using the appropriate tool to ensure the belt maintains correct tension without excess slack.
Final verification includes checking that all pulleys are correctly aligned, with the loop seated properly in each groove. Turn the engine manually to ensure smooth rotation without the belt slipping off. After confirming everything is properly routed, start the engine and observe the operation of the system to ensure there are no issues.
Common Issues with Drive System Installation and How to Fix Them
Improper installation of the drive system can lead to several issues. Below are common problems and solutions to address them:
- Loose or Slipping Belt: This issue occurs if the tension is not correctly set. Recheck the tensioner and adjust it to the manufacturer’s specifications. If the drive loop is worn out or stretched, replace it.
- Pulley Misalignment: If the loop is misaligned, it can cause uneven wear and slippage. Inspect all pulleys for proper alignment. Ensure that the crankshaft and water pump pulleys are aligned with the tensioner and idler pulleys.
- Excessive Tension: Over-tightening the drive loop can cause unnecessary wear on the pulleys and tensioner. Double-check the tension setting using the appropriate tool and loosen if needed. The system should move smoothly without too much force.
- Belt Off-Tracking: If the system fails to keep the drive loop on the pulleys, check for damaged or worn-out pulleys. Replace any faulty components and ensure the drive loop is seated properly in each groove.
- Noise or Vibration: A squealing or vibrating system often results from improper routing or a misaligned pulley. Verify the loop’s path against the recommended routing and ensure all pulleys are in good condition. Replace any damaged components immediately.
By following these steps, you can address common issues and ensure the proper function of the drive system in your vehicle.
Tools and Materials Needed for Replacing the Drive System Components
Before starting the replacement of the drive components, ensure you have the following tools and materials:
- Wrench Set: A set of wrenches is required to loosen and tighten bolts on the pulleys and tensioners. Adjustable wrenches can be helpful for accessing hard-to-reach fasteners.
- Socket Set: A socket set will make it easier to remove the bolts securing the pulleys and other components. A ratchet and extensions are useful for working in confined spaces.
- Torque Wrench: To ensure the fasteners are tightened to the correct specifications, a torque wrench is essential for proper installation.
- Drive Tension Tool: A drive tension tool is necessary to check and adjust the proper tension of the drive loop. Ensure the loop is neither too tight nor too loose.
- Pulley Removal Tool: If the pulleys are difficult to remove by hand, a pulley puller tool will be required to safely remove the components without causing damage.
- Replacement Drive Components: Ensure that you have the correct replacement components, including new loops, pulleys, and tensioners, matching your vehicle’s specifications.
- Thread Locker (Optional): Use thread locker to secure any bolts or screws that may require extra assurance that they stay tight during operation.
- Work Gloves: To protect your hands from sharp edges and for a better grip, work gloves are a useful addition when handling tools and components.
- Lubricant or Cleaning Solution: Use lubricant for components that require it, or a cleaning solution to remove dirt and debris from pulleys and tensioners before reinstallation.
Having these tools and materials on hand will ensure a smooth and efficient replacement process for your vehicle’s drive system components.
