Connecting three 12-volt power cells in series creates a reliable 36-volt supply, ideal for small electric vehicles. Proper arrangement ensures maximum efficiency and safety, preventing voltage drop and electrical faults.
Key recommendations: link the positive terminal of the first unit to the negative terminal of the second, then repeat the process to the third. Confirm all connections are secure and corrosion-free before operation.
Use insulated cables rated for at least 20 amps to handle current without overheating. Regular inspection of contact points improves longevity and maintains optimal performance.

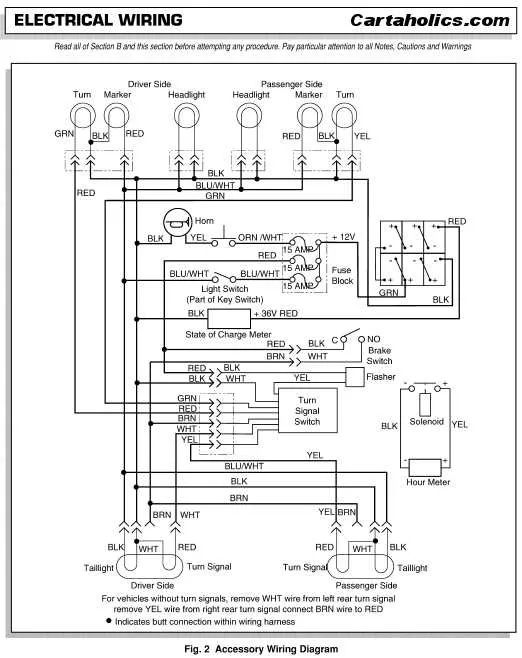

36v Golf Cart Battery Wiring Diagram
Use three 12-volt power cells connected in series to achieve the required voltage level. Connect the positive terminal of the first cell to the negative terminal of the second, then continue the chain by linking the second’s positive to the third’s negative. The remaining free terminals on the first negative and third positive ends serve as the output points.
Ensure all terminals are clean and tight to avoid voltage drops or poor conductivity. Employ quality connectors rated for at least 20 amps to maintain stable current flow during operation.
When assembling the pack, follow polarity carefully to prevent damage to the motor controller or electrical components. Use insulated cables with an appropriate gauge–typically 8 AWG or thicker–to handle the system’s current without overheating.
Integrate a fuse or circuit breaker inline on the positive lead to protect the electrical circuit from shorts or overloads. A 30-amp fuse is commonly recommended for this setup.
Verify voltage output with a multimeter after assembly to confirm correct connections and full charge before installation.
How to Connect Three 12v Cells for a 36-Volt Setup
Link three 12-volt power sources in series by connecting the positive terminal of the first unit to the negative terminal of the second, then the positive of the second to the negative of the third. This arrangement sums the voltages while keeping the current capacity consistent.
Ensure each unit is of identical type and capacity to maintain balanced performance and avoid premature wear. Use quality connectors and tighten terminals securely to prevent voltage drops or sparks.
Verify polarity before finalizing connections: the free negative terminal of the first unit and the free positive terminal of the last unit serve as the system’s negative and positive leads respectively.
After assembly, test total voltage across the free terminals to confirm the expected combined output of approximately 36 volts. Proper insulation and protective covers are necessary to avoid shorts and corrosion.
Identifying Positive and Negative Terminals in a 36-Volt Power Pack Setup
Always start by locating the terminal markings on each cell or module. The positive terminal is usually marked with a plus sign (+) or red coloring, while the negative terminal features a minus sign (−) or black coloring.
- Check for color-coded cables:
- Red leads connect to the positive end.
- Black leads connect to the negative end.
- Inspect the physical terminal design:
- Positive posts are often slightly larger or have a protruding shape.
- Negative posts may be recessed or flat.
- Use a multimeter set to DC voltage:
- Place the red probe on the suspected positive terminal.
- Place the black probe on the suspected negative terminal.
- A correct polarity reading will show a positive voltage value.
- Confirm continuity and polarity with the system schematic or manual when available to avoid incorrect connections.
Never rely solely on cable color without verification, as mismatched or replaced leads may cause confusion. Proper identification prevents damage and ensures safe operation of the power system.
Common Errors to Avoid When Assembling a 36-Volt Power Pack
Never connect cells with mismatched voltages or capacities. Combining units that differ in charge or amp-hour ratings causes imbalance, reducing performance and lifespan. Use identical units from the same batch.
Avoid loose terminals and poor contact points. Ensure all connectors are tightly fastened and corrosion-free to prevent voltage drops and overheating.
Do not skip fuse installation. Incorporate appropriate fuses or circuit breakers in the series chain to protect against short circuits and overcurrent.
Incorrect polarity connections are critical mistakes. Double-check all positive and negative terminals before finalizing connections to avoid damaging the entire setup.
Use cables rated for the expected current load. Undersized conductors cause excessive resistance and heat buildup, increasing risk of failure.
Proper insulation and strain relief must be applied. Prevent exposure of conductive parts and mechanical stress on connections to maintain long-term reliability.
Avoid mixing different chemistries or cell types. This leads to inconsistent charging behavior and potential hazards.
Test individual units before assembly. Identifying weak or faulty components early prevents chain reaction failures after completion.
