When assembling or repairing a household system for heating liquid, it’s essential to comprehend the key parts involved. Start by familiarizing yourself with the main elements like the tank, thermostat, and heating element, as these are crucial for effective performance. Understanding their interaction will help in troubleshooting or improving efficiency.
The tank stores the heated liquid and must be durable to withstand high temperatures. Pay attention to the insulation material around it, which prevents heat loss. The thermostat controls the temperature, so maintaining its calibration ensures that the system doesn’t overheat or waste energy. Finally, the heating element generates the heat, and its capacity needs to match the system’s requirements to function properly.
In addition, understanding how water moves through the system is crucial. The inlet valve and outlet valve regulate the flow of liquid into and out of the tank, while the drain valve allows for maintenance and flushing to remove accumulated minerals.
For optimal operation, regular inspection of these main parts is recommended. Knowing how to spot signs of wear or malfunction early can prevent costly repairs and prolong the lifespan of the unit.

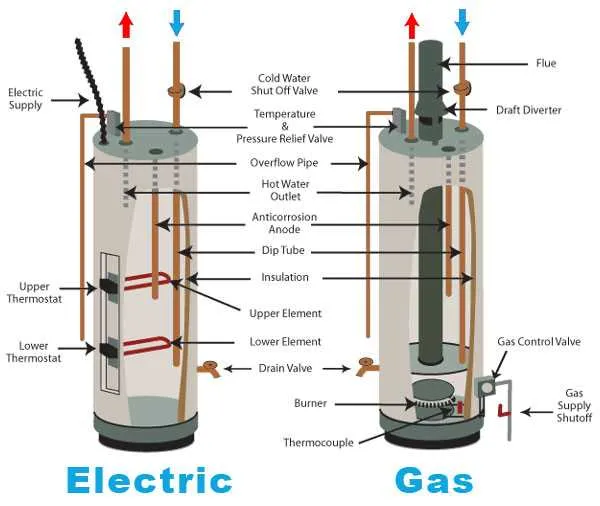

Key Elements in a Thermal System
To properly maintain a thermal system, focus on the core parts: the tank, heating element, thermostat, and valves. These are the most critical elements ensuring efficiency and safety.
The tank holds the heated liquid, typically made of durable materials like steel or fiberglass, ensuring that temperature loss is minimized. Regularly inspect it for corrosion or leaks, as these can reduce its lifespan.
Heating elements are responsible for raising the temperature of the liquid. There are two types: resistive and immersion elements. Keep them clean and check for signs of wear, as faulty elements are a common cause of performance issues.
The thermostat controls the heating cycle. If your unit is not reaching the desired temperature, the thermostat may need recalibration or replacement. Ensure it’s functioning properly to avoid energy waste.
Regularly inspect valves for leaks, wear, or blockage. These regulate the flow of liquids into and out of the system and are essential for maintaining correct pressure and preventing damage.
For long-term reliability, perform scheduled maintenance on these key elements. Periodic flushing of the tank and testing of electrical components will help avoid costly repairs and maintain optimal performance.
Understanding the Heating Element and Its Function
The heating element is responsible for converting electrical energy into heat. Typically made from materials like nickel-chromium alloys, it is designed to withstand high temperatures while efficiently transferring heat. When electricity flows through the element, it resists the current, causing it to heat up and transfer energy to the surrounding liquid or air. This process is essential for achieving the desired temperature in a system.
To ensure optimal performance, it’s crucial to monitor the element for signs of wear such as discoloration or build-up of scale. Regular cleaning and maintenance can extend its lifespan, preventing overheating or malfunction. If the element is not functioning correctly, the system will not reach the desired temperature, and the energy consumption may increase as the element struggles to work efficiently.
When replacing a faulty element, ensure compatibility with the voltage and wattage specifications of the unit. Improper installation or mismatched components can result in poor performance or damage to the entire system. Always consult the manufacturer’s instructions for guidance.
Identifying the Thermostat and Temperature Control Mechanism
Check the control unit for a round dial or digital display, which is typically the thermostat. This device regulates the temperature inside the tank. In most systems, it’s located near the top or side, often behind a removable cover. For accurate temperature settings, inspect the control panel, which allows adjustments either manually or electronically.
- The thermostat typically has a metal probe that detects the internal temperature. It may be located close to the heating element.
- Temperature control settings can range from low to high. Ensure the setting aligns with the desired hotness for your application.
- Some models feature two separate controls for upper and lower temperature regulation, each governing a different heating element.
If the device is digital, you may notice buttons or a touchscreen for fine-tuning. When adjusting, ensure the system powers down properly after changes are made to prevent overheating or energy waste.
- For older models, the thermostat may have a mechanical function with a bimetallic strip that moves in response to temperature changes.
- When examining the device, look for signs of wear, such as discoloration, damage to wires, or signs of corrosion, which can indicate malfunction.
Regular testing with a multimeter can confirm whether the thermostat operates within the correct range. If temperatures deviate significantly, a replacement might be necessary.
Exploring the Role of the Pressure Relief Valve in Safety
Ensure the pressure relief valve is installed correctly to prevent dangerous overpressure conditions. This valve is critical in maintaining safe operating pressure levels, especially when internal temperature rises unexpectedly. If the valve fails or is improperly calibrated, the risk of rupture or explosion increases significantly. Regular maintenance and testing are essential to confirm the valve operates at the right threshold, typically between 75-150 PSI, depending on the system specifications.
Check for signs of wear or corrosion on the valve and its connections. Leaks or rust can compromise functionality and may lead to catastrophic failure. If the valve discharges frequently, it may signal an underlying issue like excess pressure or sediment build-up in the tank. In such cases, inspect the entire system and consider flushing the tank to remove debris.
Use a manual testing method to verify the valve opens under pressure. This ensures the system will relieve excess stress and prevent potential harm. It’s advisable to test the valve every 6-12 months or whenever there are noticeable changes in pressure readings or temperature behavior.
