To fully grasp the workings of a power conversion device used in electrical systems, focus on the primary components and their connection layout. A key aspect is the ability to handle alternating current (AC) at different voltage levels while maintaining efficient energy transfer. The core design principle behind this equipment involves two windings: one for input and one for output, each adapted to a specific voltage requirement.
Understanding the internal connections within this apparatus helps in analyzing how electrical energy is transformed from one voltage to another. The primary coil receives current from the source, and the secondary coil delivers transformed energy to the load. A crucial point in this system is ensuring that the correct ratio of turns between these coils is maintained, as it directly affects the voltage conversion efficiency and stability of the output.
The visual representation of this electrical device highlights key elements like the magnetic core, which supports the flow of energy between the coils, and the connections that allow for precise control over the voltage adjustments. Knowing the layout and components is vital for troubleshooting, maintenance, and proper system integration in various applications, from household appliances to industrial machinery.
To optimize performance, it is recommended to analyze the design at both the micro and macro levels–starting with individual coil characteristics and extending to the broader system context. The efficiency of the energy transfer largely depends on factors such as the core material, winding configuration, and the load’s requirements.
Understanding the Basic Circuit Representation
To create an efficient electrical system, it’s crucial to understand how alternating current devices function. The simplest version of this setup involves a basic alternating current device that steps up or steps down voltage based on input characteristics. In such a system, the main elements are the input and output coils, the core, and the electrical connections that allow for energy conversion.
Core and Coil Connections: The core acts as a conduit for the magnetic flux created by the electric current in the coils. The primary winding, typically connected to the input power, generates a magnetic field which induces current in the secondary winding. The core design directly impacts the efficiency of energy conversion. Proper alignment of both coils is essential to ensure minimal energy loss.
Input and Output Voltage Relationship: The voltage difference across both coils is determined by the turns ratio. A higher number of turns on the secondary coil compared to the primary results in a higher output voltage, while fewer turns on the secondary coil reduces the output voltage.
Practical Tip: If designing or troubleshooting such systems, always ensure that the coils are appropriately rated for their intended voltage and current levels. For efficient operation, the core material should have low hysteresis loss to prevent overheating and inefficiency.
Magnetic Field Behavior: The magnetic field in the core follows the pattern of the alternating current, reversing its direction as the current fluctuates. This reversal of polarity is essential for inducing the desired current in the secondary winding. Understanding this principle can guide troubleshooting when performance issues arise, such as voltage instability or overheating.
Understanding the Core Components of a Transformer
The primary elements of a voltage conversion device are the primary winding, secondary winding, and magnetic core. The primary winding receives the input voltage, while the secondary winding delivers the output voltage. These windings are made of copper or aluminum, and their turns determine the voltage ratio between input and output. The efficiency and performance of the system heavily depend on the number of coils and their arrangement.
The magnetic core, often made from laminated silicon steel, facilitates the transfer of energy between the two windings through electromagnetic induction. The core reduces energy losses by guiding the magnetic flux generated by the current in the windings. The material’s properties directly influence the device’s efficiency, with high-quality cores minimizing eddy current losses.
The insulation material between the windings ensures that no short circuits occur, and it helps in preventing energy loss through unwanted leakage currents. Proper insulation is crucial for high-voltage applications, as it maintains safety and reliability in operation. Common insulation materials include paper, oil, or synthetic polymers.
Lastly, the outer casing or housing protects the internal components and provides cooling through natural or forced convection, depending on the design. This casing can also serve to shield the environment from electromagnetic interference generated during operation.

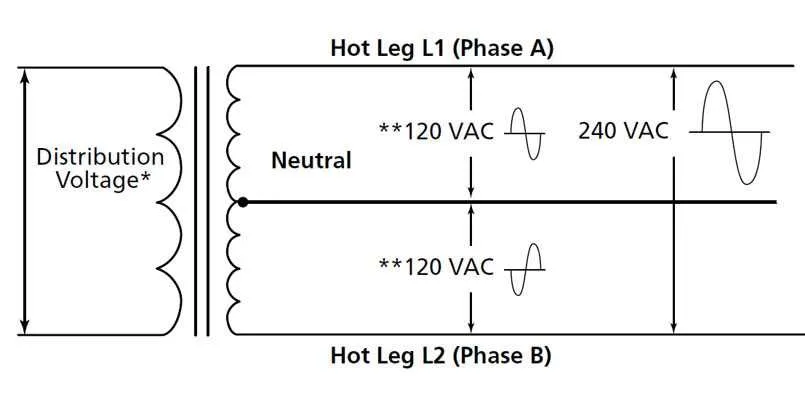

How to Interpret the Wiring Connections in a 1-Phase Electrical Converter
Begin by identifying the primary and secondary windings in the schematic. The primary side typically connects to the input voltage source, while the secondary side connects to the output load. Markings such as “H1”, “H2”, “X1”, and “X2” represent these points, with “H” denoting high voltage and “X” low voltage.
Check the direction of current flow. If the windings are shown with dots, this indicates the polarity of the connections. Matching dots on both the primary and secondary indicate that the voltages are in-phase, while opposite dots mean the voltages are out of phase.
Verify whether the windings are connected in series or parallel. Series connections increase the voltage, while parallel connections add the current capacity. In schematics, lines representing these connections are often drawn with crossovers or indicate junctions where wires merge.
If a center tap is present, such as “X0”, it typically splits the secondary into two equal voltage halves, often used for 240V or 120V output systems. Ensure proper grounding of this tap to maintain system safety and stability.
Observe any additional components like fuses or switches. These devices protect against overcurrent or provide means for disconnecting parts of the circuit. Ensure that fuses are placed on the input side to protect the primary windings from damage.
Common Faults and Troubleshooting in AC Voltage Conversion Circuits
When facing issues in AC voltage conversion systems, immediate identification and resolution are crucial. Here’s how to troubleshoot efficiently.
- Open Circuit – Check for disconnected wires, especially the primary or secondary windings. A visual inspection or continuity test with a multimeter can help determine if there is a break in the circuit.
- Overheating – Ensure proper ventilation around the system. If overheating persists, measure the load to confirm it is not exceeding design specifications. Excessive current draw may also be a cause.
- Low Output Voltage – Examine the input supply to ensure it’s within the correct voltage range. Also, inspect the windings for wear or physical damage that could cause a drop in voltage.
- Excessive Noise or Vibration – This could indicate mechanical failure in the core or loose windings. Tap the system lightly and listen for abnormal sounds. Tighten any loose components and inspect the core for cracks.
- Short Circuit – Conduct a resistance test between primary and secondary windings. A zero or very low reading indicates an internal short. Power down immediately to avoid damage to the components.
- Overvoltage Protection Failure – If the overvoltage protection is tripping without reason, it may be due to a malfunctioning relay or sensor. Test the protection mechanism and check for faulty components like capacitors or resistors.
- Leakage Current – High leakage current can result from degraded insulation. Use an insulation resistance tester to check for any degradation in the insulating materials. Replacing the insulation may be necessary.
Each fault requires immediate attention to avoid long-term damage to the system. Regular maintenance and component testing can prevent most issues.
