Ensure the correct setup by following the pinout arrangement when connecting your vehicle to a trailer. It is crucial to understand the function of each terminal in order to avoid any issues with lighting or electrical systems during travel.
Start by identifying the correct order of the terminals. Each wire serves a specific purpose: one for brake lights, one for reverse lights, and others for turn signals, ground, and power supply. Using the proper color codes can simplify the process significantly.
Double-check the connection polarity to avoid short circuits. Misplaced connections can lead to faulty signals or complete system failure. In many cases, a reversed connection will not damage the system, but it can cause a malfunction in the lights or other accessories.
To verify the accuracy of your installation, consider testing each terminal individually. Using a multimeter or testing light ensures that power is correctly delivered to each component, reducing the risk of issues on the road.
Electrical Connections for Towing System

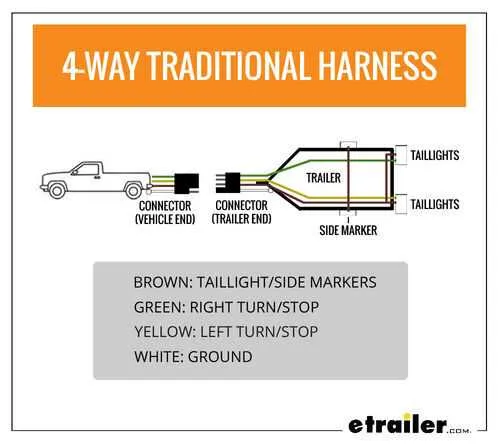

Ensure that the connector’s terminals are properly matched with the vehicle’s electrical system for accurate signaling. Start by connecting the ground wire to a solid metal surface to prevent voltage drops. The brown wire should be connected to the tail light, while the yellow wire goes to the left turn signal, and the green wire to the right turn signal. For brake lights, use the red wire and connect it to the appropriate circuit. Additionally, verify that the auxiliary power wire is linked to the battery or a suitable power source, depending on your setup.
Inspect the system periodically for wear or corrosion, especially around the terminal points. Apply dielectric grease to prevent moisture damage and ensure a reliable connection. It’s essential to follow the correct color-coding system for a consistent and safe setup. In case of malfunction, refer to the vehicle’s manual for troubleshooting the electrical components.
Identifying Pinout Configuration for Vehicle Connector
To correctly identify the pinout for connecting a vehicle to a cargo trailer, follow these steps:
- Locate the connector on the vehicle. It’s usually found near the rear bumper or beneath the truck bed.
- Check for a standard 7-pin or 4-pin socket configuration. The number of pins correlates with the type of connection.
- Identify the purpose of each pin. Typically, the first few pins are used for:
- Ground (usually the top or center pin)
- Left turn signal
- Right turn signal
- Brake lights
- Tail lights
- Auxiliary power or reverse light
- For a 7-pin connector, the additional pins typically handle specific trailer functions, such as electric brakes or a charging circuit.
- Cross-check the wiring by using a multimeter to test each pin’s functionality. This ensures the correct operation of each circuit.
It’s essential to ensure the connector is free from corrosion or damage for a secure and reliable connection. Regular maintenance checks will help maintain the integrity of the wiring system.
Step-by-Step Guide for Connecting the Vehicle Connector
Begin by ensuring the vehicle’s power system is off. Locate the appropriate terminals on your vehicle’s electrical connector. The first step is identifying the ground terminal; this is essential for the proper functioning of the entire system. Use a multimeter to verify the ground connection.
Next, connect the brake signal wire to the terminal marked for brake lights. This wire must be properly insulated and securely attached to avoid short circuits. Double-check the polarity before securing the wire with a crimp connector or screw terminal.
The next step involves connecting the tail light wire, which controls the vehicle’s rear lights. This is a critical step, as incorrect connections here may result in malfunctioning lights. Again, ensure the wire is insulated, and use a high-quality terminal for the connection.
Afterward, connect the auxiliary power supply wire. This wire is crucial for charging devices or powering additional systems when the vehicle is in use. It is advisable to use a fuse for this wire to protect against electrical surges or faults.
Finally, verify all connections using a voltage tester to ensure each wire is connected properly and delivers the correct voltage. Test the system by activating the vehicle’s relevant lights and functions, checking for correct operation. Once confirmed, secure the connector in place, ensuring no wires are loose or exposed.
Common Electrical Issues and Troubleshooting Tips
Start by checking the connection points for corrosion or dirt. A build-up can cause poor contact, leading to malfunction. Clean the connectors with electrical contact cleaner and ensure a firm connection.
If you’re facing intermittent power loss, inspect the fuse and relay for the circuit. A blown fuse can disrupt the flow of current, and replacing it could solve the issue. Verify the relay function as well–if it’s malfunctioning, it may need to be replaced.
Faulty grounding is another common issue. Ensure the grounding wire is securely connected to a clean, rust-free metal surface. Poor grounding can cause flickering lights or no power at all, as it disrupts the flow of electricity.
If you experience dim lights or flickering, check the voltage. Use a multimeter to confirm that the electrical current is consistent and within the proper range. Low voltage can result from a weak battery or insufficient power supply from the source.
Finally, inspect the connectors for damage. Worn or frayed cables can cause short circuits or complete failures. Replace damaged sections to restore full functionality. When in doubt, test each component independently to isolate the issue.
