To ensure proper electrical connections between your towing vehicle and trailer, it is essential to understand the specific wiring configuration of the 7-terminal interface commonly used in recreational vehicles. Each terminal has a designated function, such as brake control, turn signals, or auxiliary power, and must be connected according to its assigned role to avoid malfunctions or safety hazards.
Pin assignments follow a standardized color coding and position system. For example, the yellow terminal controls the left turn and brake lights, while green corresponds to the right turn and brake lights. The white terminal serves as the grounding point, critical for maintaining stable and secure electrical flow.
When assembling or inspecting this connector, verify the continuity and polarity of each circuit with a multimeter. This approach helps detect any wiring errors or corrosion that could impair the connection. Proper seating and secure attachment of each wire to its corresponding terminal enhance durability and performance during towing.
Following these guidelines guarantees that power and signal transmission are reliable, minimizing the risk of electrical failure and ensuring safe operation on the road.
RV 7 Connector Layout
For correct wiring of the RV 7-terminal connector, adhere to the following pin assignments to ensure proper function and safety:
- Pin 1 (Ground): Connect to the vehicle’s chassis ground to maintain a reliable return path for the electrical system.
- Pin 2 (Tail Lights): Controls the rear position lamps; ensure connection to the trailer’s tail lighting circuit.
- Pin 3 (Left Turn Signal & Brake Light): Supplies current for the left indicator and brake; verify signal integrity for proper blinking.
- Pin 4 (Right Turn Signal & Brake Light): Powers the right indicator and brake; confirm connection to avoid signaling failures.
- Pin 5 (Electric Brakes): Provides power for the trailer’s braking system; crucial for safety during towing.
- Pin 6 (12V Battery Charge): Delivers continuous power for charging or running accessories; connect to a fused 12V source.
- Pin 7 (Reverse Lights): Activates trailer reverse lights; wire to the vehicle’s reverse circuit to improve visibility.
Use high-quality connectors and ensure tight, corrosion-resistant contacts. Always test each circuit with a multimeter or trailer tester before final assembly to avoid malfunction.
Identifying Each Pin Function in the 7-Terminal Connector
Pin 1 is designated for the left turn signal and brake lights, providing combined signaling on one circuit.
Pin 2 manages the reverse lights, activating the backup lamps when the vehicle is in reverse gear.
Pin 3 controls the tail and marker lights, ensuring visibility during low light conditions.
Pin 4 serves as the electric brake controller output, delivering power to trailer brakes for safe stopping.
Pin 5 is assigned to the auxiliary 12V power supply, often used for charging or powering small devices.
Pin 6 handles the right turn signal and brake lights, mirroring the left side for symmetrical signaling.
Pin 7 provides the ground connection, completing the electrical circuit and ensuring stable operation.
Careful identification of these contacts is crucial for proper trailer wiring and safety compliance.
Step-by-Step Guide to Wiring a 7 Pin Connector for Your RV
Start by gathering the necessary materials: a 7-pin connector, wire cutters, wire stripper, a crimping tool, electrical tape, and your wire harness. Ensure the wires are the correct gauge for your setup to prevent overheating and ensure safety.

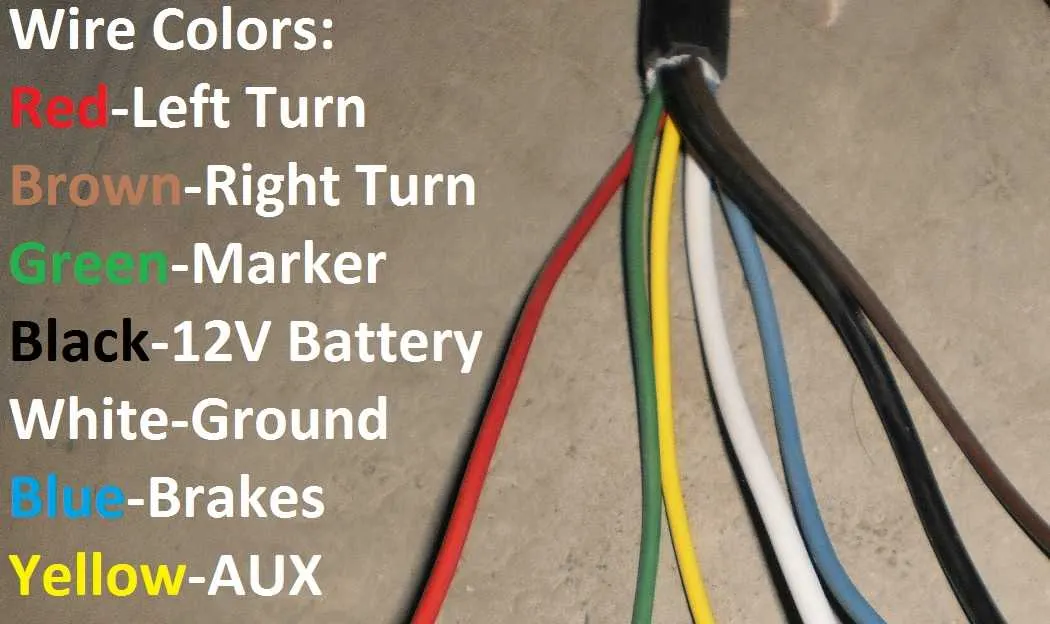

Begin by stripping the ends of the wires, leaving about 3/4 inch of bare copper for a secure connection. Each wire corresponds to a specific function, so be sure to follow the standard color-coding: typically, white is for the ground, blue for brake lights, brown for tail lights, yellow for left turn signal, green for right turn signal, black for 12V power, and purple for reverse lights.
Crimp the wires to the appropriate terminals inside the connector. Ensure the crimp is tight and secure, avoiding any loose connections. If the connector is molded, insert the wires into their corresponding slots. Once all the wires are connected, double-check for any exposed copper that could cause a short circuit.
Once the connections are made, use electrical tape to wrap each individual wire connection. This helps insulate the connections and prevents them from coming into contact with each other, ensuring a safe and reliable setup.
Finally, secure the connector to the RV’s hitch. If necessary, use a strain relief clamp to avoid putting any stress on the connections, as this can cause damage over time. Test all functions, including the lights and brakes, to confirm that the installation is correct.
Troubleshooting Common Connection Issues with 7 Pin Connectors
Start by inspecting the wiring for any visible damage or fraying. Ensure each pin is firmly connected and not corroded. If any of the connectors appear rusty or dirty, clean them using a wire brush or contact cleaner before reassembling.
If the lights on the trailer are flickering or not functioning, check for a poor ground connection. A loose or rusted ground wire can cause intermittent electrical issues. Re-secure the ground wire to a clean metal surface to ensure proper grounding.
If you’re experiencing issues with certain functions, such as brake lights or turn signals, verify that the corresponding pin on the vehicle’s side is providing the correct voltage. Use a multimeter to check each pin’s output, confirming that power is being delivered correctly.
A common problem with electrical connectors is bent or misaligned pins. Ensure each pin is straight and properly seated in the connector housing. If pins are misaligned, carefully adjust them using pliers to avoid further damage.
If you’re still facing connectivity problems, consider using a continuity tester to confirm that electrical signals are passing through each wire without interruption. This will help you identify any internal wire breaks that may not be visible.
Lastly, ensure that the connectors are securely fastened to the vehicle and trailer. Vibration and movement can cause loose connections over time. Regularly inspect and tighten all fasteners to maintain a stable connection.
