Use a double-pole configuration to control a single light fixture from two different locations. Start by connecting a hot line to the common terminal of the first toggle unit. Route travelers to the corresponding terminals of the second switch, maintaining consistent color coding to prevent miswiring.
Neutral conductors should bypass both switches entirely and connect directly to the luminaire. The return path from the load must link back to the second control point’s common output. Verify all junctions with a multimeter before energizing the circuit.
Ground lines must be bonded across all metallic enclosures and devices for safety. Secure all connections with UL-listed wire nuts, and neatly organize conductors inside the electrical box to reduce the risk of shorts or overheating.
To upgrade for smart home integration, replace one manual switch with a compatible remote-control unit. Ensure compatibility with three-terminal traveler systems and follow manufacturer wiring instructions precisely.

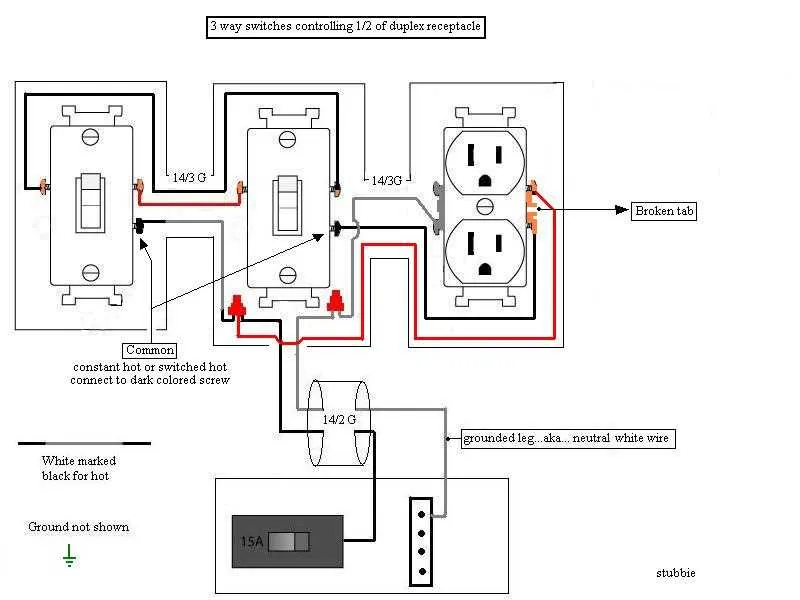

3 Way Wire Diagram
Use 14/3 or 12/3 cable with a ground when connecting dual-location light switches. The setup includes one black (hot), one white (neutral), one red (traveler), and a bare copper (ground) conductor.
- Connect the black conductor from the power source to the common terminal on the first switch.
- Link the red and white conductors between the brass terminals on both switches – these serve as travelers and must be consistent on both ends.
- Mark the white traveler with black tape to indicate it’s hot, not neutral.
- Attach the black conductor from the second switch’s common terminal to the load (typically a ceiling fixture).
- Ensure all ground leads are securely bonded and connected to each device’s green screw.
Verify continuity and switch function with a multimeter before applying power. Label all terminals during installation to avoid confusion during troubleshooting or future upgrades.
How to Wire a 3-Way Switch with Two Light Fixtures
Begin by connecting the power source to the common terminal of the first switch using a black conductor. Use 14/3 or 12/3 cable to run between the switches, ensuring the red and black travelers reach the brass terminals. The ground should be bonded throughout the circuit using the bare copper strand.
From the second switch, run a three-conductor cable to the first light unit. Connect the common screw of the second switch to the black lead going to the fixtures. Splice the white neutral from the supply to the white from the light fixtures directly, bypassing the switches entirely.
For the second light, link it in parallel to the first by joining black to black, white to white, and ground to ground. Secure all connections with twist-on wire connectors and tuck neatly into electrical boxes.
Verify that both switches can independently activate and deactivate both lights. Double-check that no traveler is connected to a neutral terminal and that all junctions are secured per NEC standards.
Identifying Traveler Conductors in an Existing 3-Way Circuit
Start by switching off power at the breaker panel and confirming with a non-contact voltage tester. Remove both switches from their boxes, keeping all connections intact. Locate the two devices controlling the same fixture–each should have three terminals: a common (usually black screw) and two traveler points (typically brass).
Mark the common line at both locations; this is either the incoming phase or the switch leg to the light. Focus on the remaining two brass terminals. These are connected to the same colored insulated paths–often red and black in a standard 14/3 or 12/3 NM cable. These are the traveler paths you’re identifying.
To confirm, use a continuity tester with all conductors disconnected and power still off. Place one probe on a brass terminal at one device and check continuity at the other device’s brass connectors. Repeat to verify both paths. Label them appropriately to avoid confusion during reconnection.
If a multimeter is available, test voltage at the common screw with the switches in various positions. When toggling one switch affects the reading on the other’s brass screws, those leads are confirmed travelers. Document findings before rewiring or replacing components.
Troubleshooting Common 3-Way Switch Wiring Mistakes
Verify that the traveler terminals are not reversed. A common error occurs when the conductors linking both switches are swapped, causing inconsistent behavior. Use a continuity tester to confirm both traveler paths connect correctly between the switches when toggled.
Ensure the hot feed is connected only to the common screw on one of the switches. If it’s mistakenly attached to a traveler terminal, the circuit may appear dead or behave erratically. Identify the hot supply with a voltage tester before making connections.
Double-check the neutral line. It must bypass all switches and go directly to the load. Connecting neutral to any switch terminal creates a short or disables the load entirely.
Inspect the ground path. Each unit should be bonded to the enclosure and grounded independently. Failure to ground properly may lead to unsafe conditions or failed code inspections.
Confirm the load conductor is attached to the common terminal of the second switch. If misrouted to a traveler lug, the circuit may never close properly, rendering the lighting non-functional.
