Identify the key components: hub, spindle, brake caliper, and suspension arm. Proper alignment of these parts ensures smooth rotation and reliable steering control.
Lubrication points must be regularly checked to avoid premature wear of bearings and joints. Use high-quality grease designed for high-load conditions.
Ensure all fasteners are tightened to manufacturer torque specifications to maintain structural integrity and safety under dynamic loads.
Visual inspection for cracks or corrosion on metal links and mounting brackets can prevent failures and costly repairs.
Structure of the Leading Tire Mechanism
Start by identifying the hub, which connects the tire to the suspension system and allows rotation. The spindle, or steering knuckle, holds the hub and provides the pivot point for directional changes.
Check the condition of the bearing inside the hub; it must be properly lubricated and free from play to ensure smooth motion. The brake rotor or drum mounts directly to the hub, critical for stopping force transmission.
Examine the tie rod end linked to the knuckle–it transfers steering inputs and must be secure with no excessive wear. The control arms attach near the knuckle, stabilizing lateral and vertical forces.
Inspect the shock absorber and spring unit connected to the lower control arm, which dampens impacts and maintains road contact. The dust shield behind the rotor prevents debris ingress and protects components.
Ensure all fasteners securing these parts are torqued to manufacturer specifications to avoid loosening or misalignment during operation.

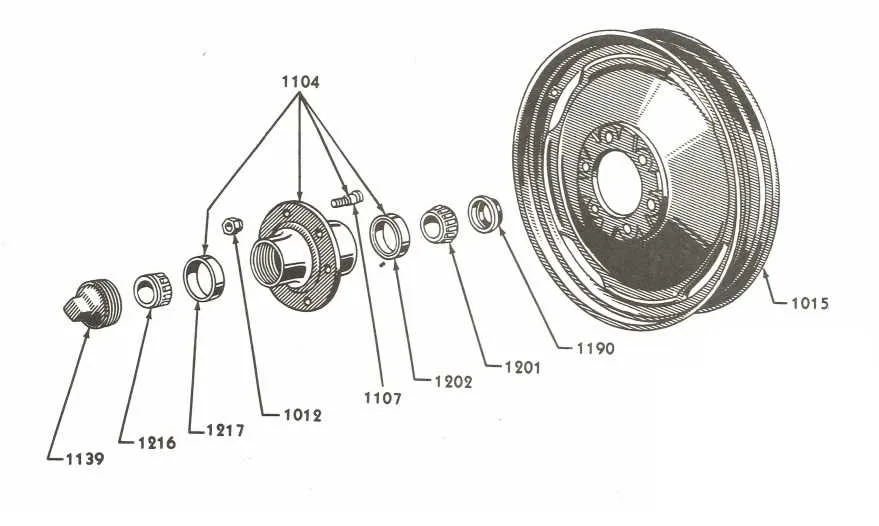

Identifying Key Components in a Steering Hub Illustration
Focus first on the hub unit, which serves as the central mounting point for all other parts. Understanding its location simplifies the recognition of surrounding elements.
- Spindle/Knuckle: The pivot point connecting the suspension and supporting the rotating elements.
- Brake Rotor: Usually a round disc attached to the hub, critical for stopping force.
- Caliper: Mounted adjacent to the rotor, it holds brake pads and applies pressure during braking.
- Tire and Rim: Outermost circular components that provide traction and support.
- Axle Shaft: Extends through the hub, transmitting power from the drive system to the rotating parts.
- Bearings: Located within the hub, allowing smooth rotation and load distribution.
- Suspension Linkages: Control arms and ball joints connecting the hub to the vehicle’s frame for movement control.
Use clear labeling and consistent color coding to differentiate these parts, enhancing the clarity of the schematic. Verify part orientation by cross-checking with manufacturer specifications or technical manuals to avoid misinterpretation.
Step-by-Step Interpretation of Front Wheel Assembly Connections
1. Begin with the hub connection: Identify the hub mounting points to ensure proper alignment with the axle. Verify that the fasteners are securely tightened to prevent any instability during operation.
2. Examine the brake components: Check the brake calipers and associated lines for any signs of wear or damage. Ensure that the brake fluid lines are properly connected to prevent leaks.
3. Inspect the suspension linkages: Make sure the suspension arms are securely attached to both the steering knuckle and the chassis. Any loose connections here can result in misalignment and poor handling.
4. Verify steering mechanism connections: Ensure that the steering rack or box is properly linked to the knuckle. The tie rods should be intact and free of any damage, allowing smooth turning without excessive play.
5. Check the bearing assembly: Look at the wheel bearing’s fit within the hub assembly. The bearing should rotate smoothly without any grinding or excessive play.
6. Confirm tire mounting: Ensure the tire is correctly seated on the rim and the air pressure is at the recommended level for safe driving. Misalignment of the tire can cause uneven wear and handling issues.
7. Inspect suspension bushings: Check the condition of the rubber or polyurethane bushings in the suspension. Worn bushings can cause vibrations and alignment problems.
8. Review the alignment of all components: After checking individual parts, ensure the overall alignment of all components. Misalignment can cause steering problems and increase wear on various parts.
Troubleshooting Common Issues Using Assembly Diagrams
Begin by identifying misalignments between the suspension and the axle components. Check for any wear or damaged parts, focusing on the joints and bearings, as these areas are often prone to issues. If the vehicle pulls to one side, inspect the alignment of the connecting parts. Compare the positions of bolts and ensure that no part is loose or over-tightened, as this can result in uneven stress distribution.
If there is unusual noise during motion, it may indicate that the rotation system or the connecting linkages are not functioning properly. Pay close attention to any discrepancies between the torque values and positioning shown in the reference chart, particularly when tightening key fasteners. A miscalculation here could lead to improper rotation or irregular contact between the critical components.
Examine the suspension springs for any signs of damage or fatigue. A weak or broken spring will cause instability in handling and can lead to an unsafe ride. Double-check that the shock absorbers and mounting brackets are correctly placed according to the reference guidelines. Misplacement here can contribute to vibrations and poor control during turns or over bumps.
