If you’re working on a marine engine with a shifting system, the first step is to ensure proper alignment and installation of the linkage assembly. It’s essential to confirm that the components involved are securely fastened and properly adjusted, preventing unnecessary wear and ensuring smooth operation under load.
Check the connector assembly for any signs of wear or misalignment. The movement should be smooth, with no resistance or slippage when transitioning between gears. Regularly inspect the entire system, including the control cable connections, to prevent issues from arising during operation. Any faulty connections can lead to unresponsive gear shifts, which can damage the transmission or other critical engine parts.
The path the cables follow should be free of sharp bends or friction points, as these can impair functionality over time. Proper routing and the use of suitable materials for the connectors are vital for maintaining durability. Always replace worn or frayed parts immediately to avoid malfunction during use.
To ensure correct function, check for accurate tension in the adjustment system. If the tension is off, it may affect the precision of gear engagement. Following the manufacturer’s guidelines on adjustments will help prevent overcompensating or undercompensating for the cable tension, which can lead to problems down the line.
Understanding the Drive Mechanism Setup
Ensure that the control rod is properly aligned with the actuator arm to prevent miscommunication between the throttle and gearshift system. Inspect the linkage and check for any corrosion or wear that might cause irregular movement. Replace any parts that seem overly worn to guarantee smooth functionality.
Make sure the anchor points for the wire components are securely fastened. Loose fastenings could lead to inaccurate responses from the propeller, risking engine performance. Regularly lubricate moving parts with marine-grade grease to maintain optimal operation.
To properly install the connection, verify that the mounting brackets are positioned according to manufacturer specifications. Misalignment may result in difficulty engaging forward or reverse gears. Double-check that all components are securely mounted and that there is no interference during gear shifting actions.
Tip: Avoid overtightening fasteners, as this may cause undue stress on surrounding components, leading to potential damage. It’s important to maintain a balance between securing parts without compromising their natural movement.
Regular maintenance and inspection of the assembly will ensure the system remains responsive and free of obstacles that could lead to malfunctions or unsafe operation. Keep all components clean and free of debris, as dirt buildup can interfere with smooth transitions during gear changes.

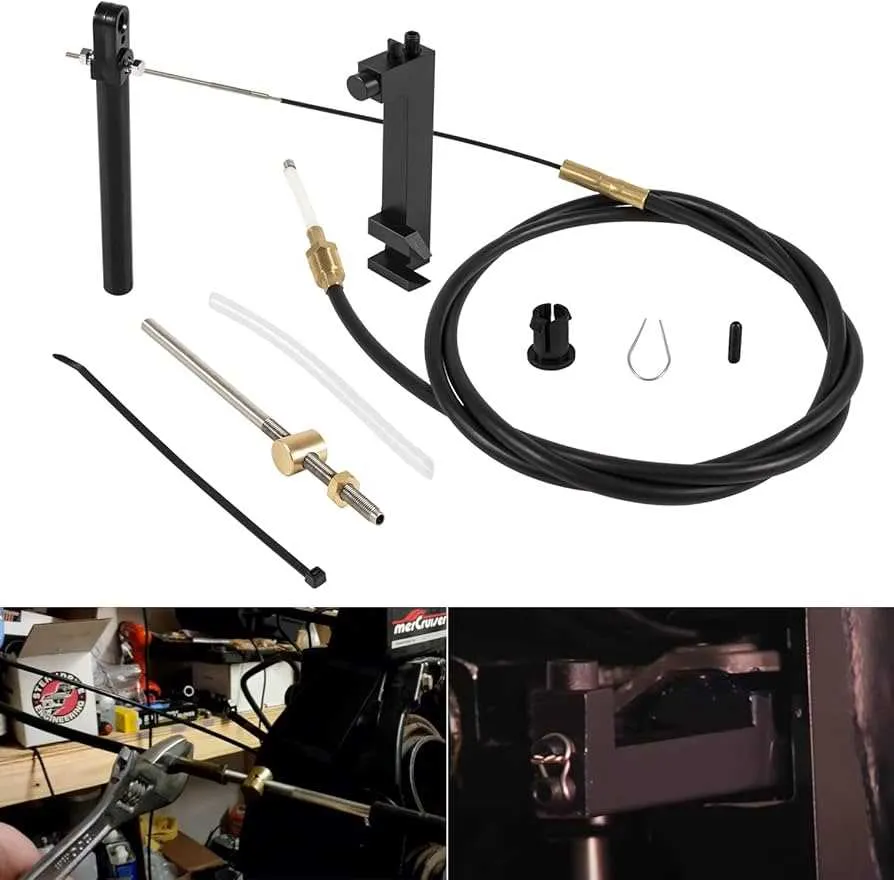

Understanding the Mercruiser Alpha One Shift Cable Components
To ensure smooth operation of your boat’s transmission system, it’s essential to understand the core parts involved in the control mechanism. The system consists of several key elements that work in unison to enable gear shifting smoothly and precisely. Each component plays a crucial role in performance and reliability.
1. Control Lever – Located within the helm, this is the component that the operator uses to initiate gear changes. It is connected to the rest of the assembly through a linkage or rod system. Regular inspection of the lever and its mounting is critical to prevent issues during operation.
2. Actuator Mechanism – Positioned near the engine, this part responds to input from the control lever. It converts manual input into a mechanical action that shifts the transmission. Ensure this mechanism is well-lubricated and free of obstructions to avoid difficulty in gear transitions.
3. Linkage Assembly – This includes the rods and joints that connect the control lever to the actuator. Any misalignment or wear in these parts can result in improper gear engagement. Routine maintenance and checks for rust or damage will prevent failure during use.
4. Internal Cable Housing – This housing protects the cable inside and ensures smooth movement of the components it encases. Inspect the housing for cracks or wear that could cause damage to the cable or actuator. Replacing damaged sections will help maintain system integrity.
5. Bellows and Boots – These components protect the cable from water and dirt, which can cause corrosion and reduce the lifespan of the system. Periodic inspection and replacement are necessary to maintain effective sealing and protection from environmental elements.
6. Locking Nut and Adjuster – These are used to adjust the tension and alignment of the transmission mechanism. Incorrect adjustment can lead to mis-shifting or slipping gears. Regularly check for proper tightness and alignment to ensure optimal performance.
7. Retaining Clips – These small but important components help secure the entire assembly, preventing components from coming loose during operation. Ensure clips are intact and positioned correctly to maintain the stability of the shifting system.
Maintenance Tip: Always ensure all parts are properly lubricated and that any wear and tear is addressed promptly. Replacing worn parts as soon as you notice issues will prevent costly repairs and extend the life of your system.
Step-by-Step Guide to Installing the Transmission Control Line on a Marine Engine
Ensure all necessary tools are ready before starting the installation. You will need a ratchet set, pliers, a screwdriver, and a torque wrench.
- Disconnect the Battery: Disconnect the negative terminal to prevent any electrical hazards while working.
- Access the Transmission Housing: Remove the engine cover to access the area around the drive unit. You may need to detach any surrounding panels or components for better visibility.
- Remove Old Control Linkage: If replacing, carefully disconnect the old control linkage. Loosen any retaining bolts and remove the old unit. Pay attention to the placement of washers or clips.
- Prepare the New Cable: Unbox the new control line. Verify it matches the specifications for your engine model. Check the length, connectors, and fitting options.
- Install the New Line: Insert the new unit into the housing, ensuring that it fits securely into the guide track. Route the line following the existing path, avoiding sharp bends.
- Attach the Cable to the Control Mechanism: Connect the line to the lever or transmission mechanism. Secure the attachment point using the provided screws or clips. Tighten them evenly to prevent movement.
- Adjust Tension: Use the adjustment screw to fine-tune the tension of the line. Ensure there is minimal slack but not too much tension that could cause binding during operation.
- Check Alignment: Double-check that the control line is aligned properly with the transmission lever or mechanism. Ensure smooth movement of the lever when shifting.
- Test the Operation: Reconnect the battery and run the engine in neutral. Shift through all gears while monitoring the response. Make adjustments as needed.
- Final Tightening: Once satisfied with the operation, ensure all bolts and connections are securely tightened to the manufacturer’s recommended torque settings.
Reassemble any removed components and perform a final test run to confirm the successful installation of the new control line.
Troubleshooting Common Issues with Drive Control Linkage Connections
If you’re experiencing trouble with your boat’s drive mechanism, the first step is to inspect the linkage and its connections for any signs of wear or damage. Start by ensuring that the system is properly aligned. Misalignment often leads to shifting problems, causing either difficulty in engaging gears or incomplete gear engagement. You can check this by observing whether the linkage moves freely when the control lever is shifted.
Inspect the linkage for corrosion. This is a common issue, especially if the boat is frequently exposed to saltwater. Corroded parts can cause the connection to stick or operate sluggishly. In this case, disassemble the affected areas and clean them thoroughly with a wire brush. After cleaning, apply a marine-grade lubricant to protect against future corrosion.
Examine the cable for tension. Excessive slack or overly tight cables can result in improper operation. Adjust the tension by loosening or tightening the relevant nuts on the linkage. Keep in mind that too much slack or tension may cause the system to misfire or fail to engage correctly.
Check for worn-out seals or gaskets around the connections. Worn seals allow water to enter, causing rust and further damage. Replace any worn components to maintain smooth operation and protect the internal parts from further deterioration.
Test the linkage play. If the control feels unusually loose or has excessive play, there may be internal damage or wear. Test the movement by shifting and observing the response of the mechanism. If you feel abnormal resistance or the connection is slipping, replacing the worn parts may be necessary.
Ensure proper lubrication. Lack of lubrication on moving parts within the linkage can lead to stiff and uneven shifting. Always apply marine-grade grease to ensure the system moves smoothly without friction buildup.
Verify the mounting position. Sometimes, the root cause of poor shifting is improper positioning of the linkage. Ensure that all mounts are secure, and the assembly is not misaligned, which could create unnecessary stress on the mechanism.
