For accurate maintenance of the vehicle’s multi-ribbed drive loop, refer to the precise routing layout specific to the model year and engine configuration. Correct installation ensures optimal tension and prevents premature wear of the auxiliary power transmission system.
Key components such as the alternator, air conditioning compressor, power steering pump, and water pump must be engaged in the proper sequence around the pulleys. Any deviation from the specified path can lead to operational failures or noise issues.
Visual schematics are essential tools for verifying the correct loop orientation. When replacing or inspecting the flexible drive strip, cross-check the routing against official manufacturer references to avoid costly mistakes.
Engine Accessory Drive Layout for Jeep Wrangler
For proper routing of the engine’s main drive loop, start at the crankshaft pulley located at the bottom center. From there, the path runs upward to the alternator pulley, then loops around the tensioner pulley to maintain optimal tension. Next, it crosses over the idler pulley before reaching the water pump pulley, ensuring coolant circulation remains uninterrupted. Finally, the loop completes back at the crankshaft pulley.

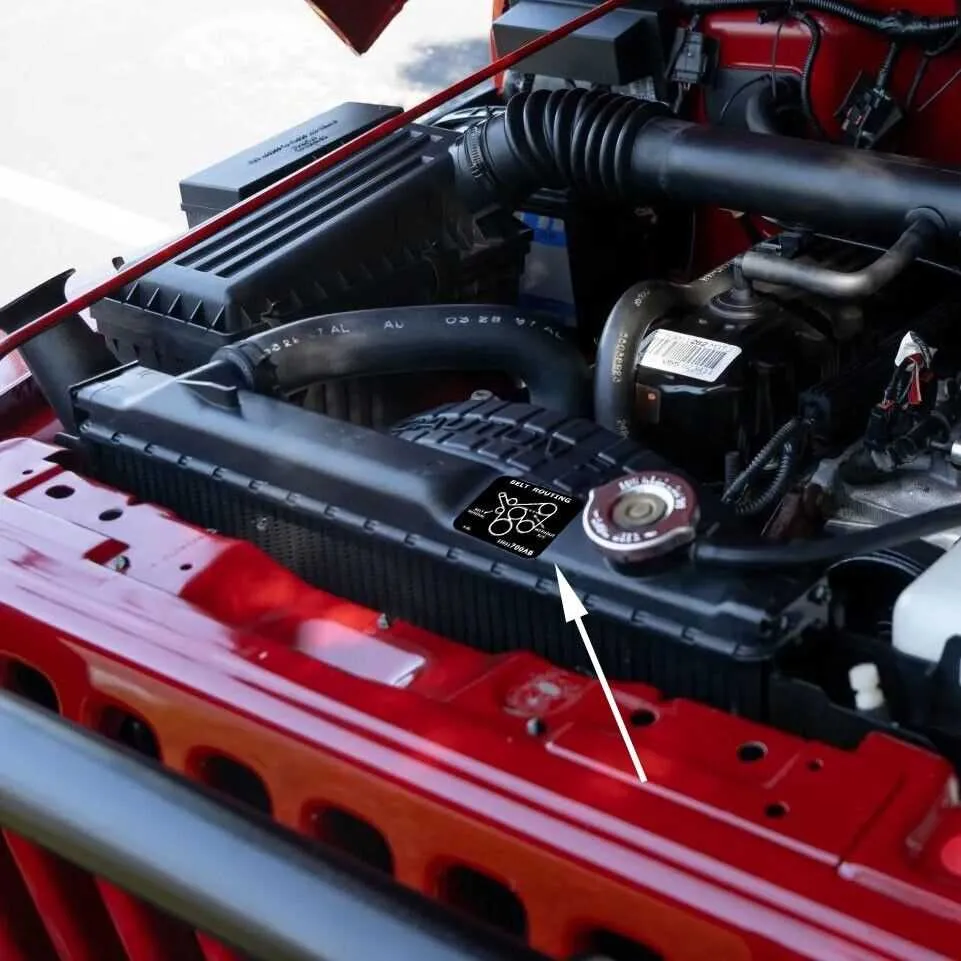

Use a routing guide sticker typically found under the hood or consult a factory service manual for exact pulley positions based on engine displacement and year. Incorrect routing can cause premature wear or failure of the drive loop and connected components.
When replacing the drive loop, verify tensioner arm movement and replace any pulleys exhibiting noise or wobble. Employ a suitable serpentine tool or breaker bar for loosening and tightening the tensioner to avoid damage.
Double-check alignment to prevent slipping or mis-tracking, which can lead to overheating or electrical charging problems. Confirm that the loop sits properly in each pulley groove before engine startup.
Locating and Identifying Drive System Components on 4×4 Engines
Start by positioning yourself at the front of the engine bay, focusing on the accessory pulley system. The main tensioner pulley is typically mounted on a pivot arm near the alternator and compressor units. It maintains proper tension on the continuous loop.
The crankshaft pulley is the largest wheel at the bottom center of the engine, driving all other pulleys. Above it, the water pump pulley and the power steering pump pulley are usually adjacent, with the latter connected to the steering system reservoir.
Locate the idler pulleys, which guide and stabilize the routing of the continuous loop around accessories. These are smaller wheels, often mounted on brackets separate from the main devices.
For 3.6L and 2.0L engine variants, the accessory layout differs slightly: the air conditioning compressor is mounted lower and to the side, with its pulley appearing more compact. The tensioner arm varies in design but always features a spring-loaded mechanism for adjustment.
Use the stamped numbers or directional arrows on the backside of each pulley to confirm component identity. Check for alignment marks near the pulleys to ensure the drive loop runs smoothly without slipping or noise.
Step-by-Step Guide to Reading and Using the Vehicle Accessory Drive Layout
Start by locating the schematic usually found on the engine compartment’s underside of the hood or inside the owner’s manual. This layout details the routing path for the drive loop that powers multiple engine components.
- Identify each pulley: Match symbols and labels on the chart to physical components such as the alternator, water pump, tensioner, idler pulleys, and compressor.
- Trace the loop path: Follow the continuous line representing the belt’s travel direction to understand how it threads through all the pulleys.
- Check for tensioner position: Locate the spring-loaded pulley that maintains appropriate tension; this is crucial for correct installation and adjustment.
- Note accessory order: Pay attention to the sequence of components to avoid misrouting, which can cause operational failures or damage.
- Use the routing to verify replacement: When fitting a new loop, replicate the path exactly as illustrated to ensure proper function and prevent slipping or noise.
- Double-check orientation: Confirm the belt sits properly in pulley grooves, aligned without twists or overlaps.
- Refer to belt width and length info: Some schematics include size specifications–use these to select the correct aftermarket or OEM replacement.
Following this methodical approach ensures accurate interpretation and practical application of the component drive layout, minimizing errors during maintenance or replacement tasks.
Troubleshooting Common Drive Belt Issues Using the Routing Guide
Identify slipping by inspecting the tensioner pulley location on the routing schematic; insufficient tension typically causes squealing sounds during engine start or acceleration. Use the routing layout to locate the tensioner and adjust or replace it accordingly.
For visible cracks or fraying, trace the path in the schematic to check for misalignment caused by worn pulleys or damaged idlers. Replace any defective rollers indicated in the routing to prevent premature wear.
If the belt skips teeth on the alternator or power steering pulleys, verify alignment and pulley condition shown in the routing map. Realign pulleys or replace bent components to ensure smooth engagement.
To diagnose unusual noises, follow the belt’s course in the guide to test each accessory for seized bearings or improper mounting. Lubricate or replace faulty parts as necessary to restore quiet operation.
Use the routing reference to confirm proper installation after maintenance; incorrect routing leads to rapid deterioration and component malfunction. Double-check that the belt follows the exact path indicated for reliable performance.
