To analyze the thermal behavior of steel alloys, it’s essential to study the phase transitions that occur at varying temperature and composition. A key tool for this is a phase chart showing how the metal and its mixtures with other elements change states, offering valuable insights into material properties. For professionals working with steel, mastering this chart is critical for optimizing production and ensuring quality control.
When cooling from a molten state, the metal undergoes several transformations, which are represented as solid, liquid, and mixed phases. Solidification starts when the molten material begins to cool down, and the different crystalline forms that form depend heavily on both temperature and composition. Understanding these phases allows for precise control over the resulting alloy’s hardness, ductility, and other mechanical properties.
One of the most common applications of this information is in alloy design. Whether creating a high-strength tool steel or a more ductile structural alloy, knowing the exact transition temperatures and composition ranges is crucial. For example, an understanding of the eutectoid composition and its respective transformation temperature is fundamental for controlling the final material structure.
By carefully analyzing the behavior of these alloys under varying conditions, engineers can ensure that products meet specific mechanical and chemical requirements. This knowledge is indispensable in industries such as automotive manufacturing, construction, and machinery.
Understanding the Phase Transformations in Steel Alloys

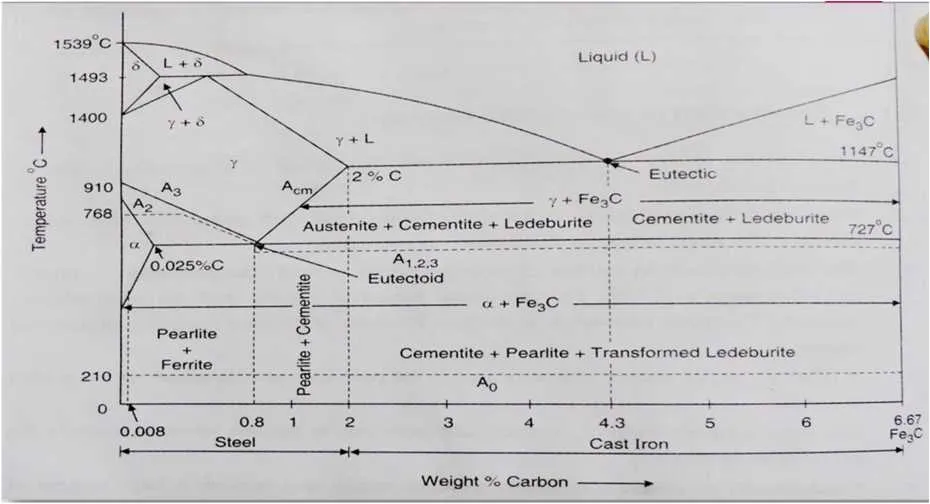

The chart that describes the phase changes in steel alloys serves as a crucial tool for predicting material behavior during heating and cooling. The regions of austenite, ferrite, cementite, and pearlite are key areas to focus on, each corresponding to different temperature and composition ranges.
For optimal control of mechanical properties, it is critical to monitor the solubility limits of elements in solid solution. Above a certain temperature, austenite can absorb a higher amount of dissolved carbon, affecting hardness and strength. Below a specific point, the solid phase transforms, influencing the alloy’s microstructure.
Pay particular attention to the eutectoid composition, where a mixture of austenite and cementite forms a finely lamellar structure called pearlite. This specific transformation is vital for tuning the strength-to-ductility ratio. Cooling rates also play a significant role–slow cooling leads to pearlite formation, while rapid cooling can result in martensite, a much harder but more brittle structure.
The phase boundaries, defined by temperature and composition, are critical for tailoring alloys for different applications. Understanding the exact transformation temperatures can prevent undesirable phases from forming, ensuring the desired mechanical properties are achieved consistently.
Understanding the Phases in the Iron-Carbon System
The phase transformation process in the metal-carbon system is crucial for determining material properties. For efficient manipulation, it is essential to identify key regions: solid solution phases like ferrite and austenite, and phases where cementite forms. In the lower temperature range, the structure predominantly consists of ferrite, a body-centered cubic (BCC) form of the solid. The solubility of the second element is minimal here, making it a soft phase with limited strength but high ductility.
As temperature rises, the phase transitions to austenite, which adopts a face-centered cubic (FCC) structure. Austenite offers a wider solubility for carbon, allowing for better hardenability upon cooling. This makes the region around 900°C and above essential for achieving certain material characteristics. With further cooling, the system can form pearlite, a layered structure consisting of ferrite and cementite, adding to the material’s hardness and wear resistance.
At specific compositions, cementite (Fe₃C) becomes the dominant phase. This phase is extremely hard and brittle, and its presence dictates the strength and brittleness of alloys at high concentrations. It is critical to control the amount of cementite in the material to balance toughness and hardness.
The eutectoid composition at 0.8% solute is pivotal in defining the microstructure. Below this level, a combination of ferrite and pearlite forms, whereas higher concentrations of solute result in a mixture of pearlite and cementite. Understanding these phase transitions is essential for tailoring materials for different applications, from structural steel to high-performance alloys.
Impact of Carbon Content on Steel Properties in the Phase Diagram
The presence of varying amounts of carbon significantly alters the mechanical properties of steel. Here are key effects based on different compositions:
- Low carbon content (less than 0.25%): Primarily results in a soft, ductile material with enhanced weldability and formability. It exhibits low tensile strength but is highly suitable for applications requiring flexibility.
- Medium carbon content (0.25% to 0.60%): Offers a balance between hardness and ductility. This range provides moderate strength and wear resistance while maintaining decent weldability, making it ideal for structural components.
- High carbon content (0.60% to 1.0%): Increases hardness, wear resistance, and strength but reduces ductility. These steels are often used in tools and high-strength applications, though their brittleness limits their practical use.
- Very high carbon content (over 1.0%): Typically used in the production of cutting tools or other high-strength, low-ductility materials. These alloys are tough but prone to cracking under stress.
As carbon content increases, the material undergoes a transition from ferrite to cementite in the microstructure. This change affects not only mechanical properties but also the ability to harden through heat treatment. The critical temperature at which this transition occurs varies, and understanding this phase shift is key to controlling steel behavior during processing.
For optimal performance, it’s crucial to tailor carbon content according to the specific needs of the final product. Lower amounts favor ease of machining and welding, while higher concentrations enhance hardness but reduce workability and toughness.
Applications of the Iron-Carbon Phase Diagram in Heat Treatment
Utilizing the phase transitions of steel during heat treatment allows for precise control over mechanical properties. For instance, quenching from the austenite phase to produce martensite enhances hardness. The cooling rate and temperature control directly influence microstructure, determining the final material characteristics.
Tempering follows to reduce brittleness, where reheating martensite to temperatures below the eutectoid transforms it into tempered martensite, improving toughness. The exact temperature and time depend on the desired hardness and strength balance.
Annealing is another key process, which softens steel by heating it to the austenitic region, followed by slow cooling. This increases ductility and reduces residual stresses, ideal for materials that need shaping or further machining.
The manipulation of specific phases such as pearlite or bainite is essential for optimizing properties like wear resistance or strength. By adjusting the cooling rate and controlling the final temperature, different microstructures are achieved, tailoring materials for specific industrial applications.
