To ensure proper functioning of your heating and cooling system, start by correctly identifying the terminal connections. The most common setup involves four main wires: Red (R) for power, White (W) for heat, Yellow (Y) for cooling, and Green (G) for the fan. Make sure these are properly connected to their corresponding terminals on the control unit.
For systems with additional functions like a heat pump or multi-stage heating, you’ll need extra wires. These could include O/B for reversing valve control, C for the common wire (necessary for continuous power), and Auxiliary (AUX) for multi-stage heating. Refer to your system’s manual for specific wire color codes, as they may vary slightly.
Always double-check for proper insulation on each wire before connecting. Faulty or loose connections can result in malfunctions, such as failure to maintain temperature or power interruptions. If you’re unsure, consult a certified technician to verify your setup and ensure long-term efficiency.
Connecting Your Temperature Control System
Ensure that the power to your heating and cooling unit is completely turned off before starting any work. Verify the system’s voltage to avoid any risk of electrical shock. Use a voltage tester for confirmation.
Begin by identifying the terminal connections on your control unit. Typically, these are labeled: R for power, C for common, Y for cooling, W for heating, and G for the fan. Ensure the corresponding wire colors match: red for R, blue or black for C, yellow for Y, white for W, and green for G. If you have an additional wire for auxiliary heating, it is typically labeled as O or B.
Securely insert each wire into the proper terminal and tighten the screw or clamp to hold it in place. Use wire connectors for any spliced connections to ensure a stable and safe connection.
When you’ve completed the connections, double-check each wire for security. Once the wiring is confirmed, restore power and test the functionality of each setting to verify proper operation.
If you encounter any issues, consider reviewing your unit’s manual for troubleshooting steps, or consult a licensed technician to ensure that the system is properly wired and functioning.

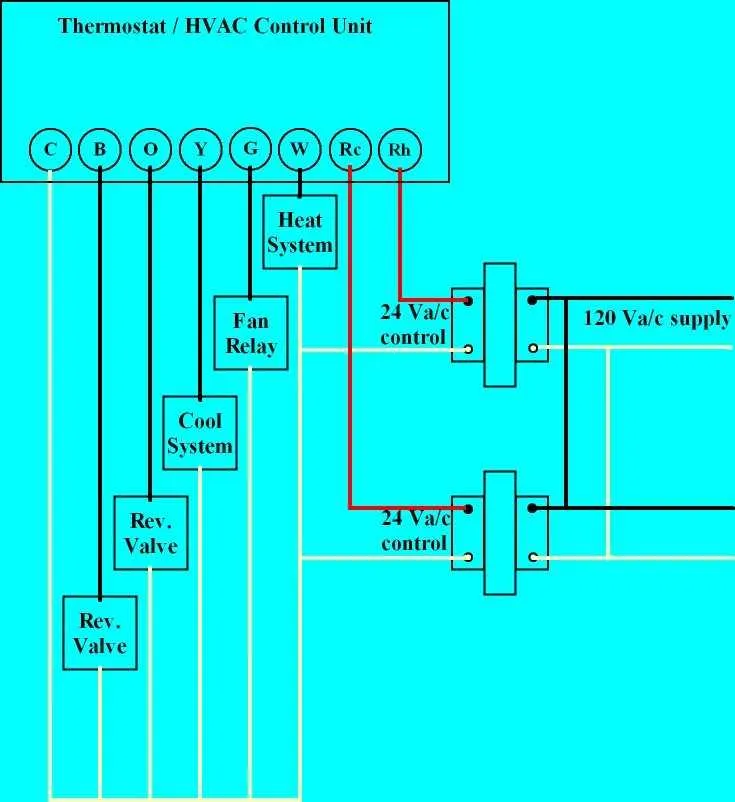

Understanding Common Thermostat Wire Colors
The most common wire color codes used in HVAC systems are standardized, but always verify with the manufacturer’s guidelines before proceeding. Below is a general breakdown of the wire colors and their typical functions:
- Red (R or RC): Powers the system from the transformer. This wire supplies 24V power to the unit.
- White (W): Controls the heating element or the heating mode of the system.
- Yellow (Y): Activates the cooling unit or the air conditioning when required.
- Green (G): Controls the fan for circulation regardless of the heating or cooling state.
- C (Common): Provides the return path for power, completing the circuit. This wire is essential for thermostats with display screens or Wi-Fi capabilities.
- Blue (C or B): In some cases, blue wires are used for the common terminal, though this can vary.
Ensure wires are correctly connected to avoid system malfunction or short circuits. Incorrect wiring can result in poor performance or potential damage to the unit.
Connecting a Control Unit to Heating and Cooling Systems
To establish a proper connection between the control unit and your heating or cooling system, follow these detailed steps:
- Power Off: Ensure the power to the system is turned off before making any connections to avoid electrical hazards.
- Identify Key Wires: Locate the wires for heating (usually labeled ‘W’) and cooling (typically labeled ‘Y’). These must be correctly identified to prevent incorrect configuration.
- Connect Heating Wire: Attach the wire corresponding to the heating function (often red or white) to the designated terminal on the unit.
- Connect Cooling Wire: The wire for cooling, generally yellow or green, should be connected to the appropriate terminal for the cooling function.
- Link Common Wire: The common wire (often labeled ‘C’) ensures a continuous power supply and should be connected to the common terminal.
- Check for Compatibility: Ensure that the control system and HVAC system are compatible in terms of voltage and configuration. Verify with the user manual for any special requirements.
- Test Connections: After securing all wires, turn the power back on. Test both the heating and cooling modes to confirm proper operation.
When working with multiple zones, ensure each zone has a dedicated connection and terminal for accurate system control.
Troubleshooting Electrical Issues in Temperature Control Installation
Check for proper connection of the wires to their respective terminals. Ensure the correct color codes match the designated slots. If any of the connections are loose or not securely fastened, this could cause operational failures.
If the system isn’t turning on, inspect the power source and fuse. An outage or blown fuse may prevent the system from functioning properly. Verify the fuse is intact and that there is power supplied to the unit.
Test the control unit for any internal malfunctions. Sometimes, a malfunctioning relay or a faulty internal circuit can disrupt the signal transmission. Replacing the control module might be necessary if all external connections are intact.
For inconsistent performance, check the sensor’s location. If the device is placed too close to heat sources or air vents, it may give false readings, leading to improper temperature regulation.
Ensure there is no damage to the cables, especially if the installation involved threading through walls or ceilings. Any pinched or cut wire can result in intermittent operation or complete failure of the unit.
