Start by checking the ignition coil connections: the black/yellow lead from the control unit must link directly to the coil input, while the other terminal grounds to the frame. Failure in this section often results in no spark or inconsistent firing under load.
Inspect the charging loop next: the three yellow lines from the stator connect to the rectifier/regulator. The red output from the regulator supplies the battery with DC power, and the green wire must be solidly grounded to prevent voltage drops. Measure voltage across the battery terminals while running; it should range from 13.5V to 14.8V.
The kill switch circuit is often overlooked: a black/white line typically links this switch to the ignition module. If this wire is grounded at any point, the engine will refuse to start. Use a multimeter to test continuity with the switch in both positions.
Pay attention to the starting system: the starter relay connects the battery’s positive terminal (red wire) to the motor via a heavy-gauge black wire. A smaller yellow/red control wire activates the relay when the brake lever is squeezed and the start button is pressed.
Lighting and accessory outputs are powered through the AC loop: the same stator coil feeding the regulator may also route unregulated current to the headlight and instrument backlight. A blue/white wire usually carries this voltage, and its function depends on proper stator output and switch condition.

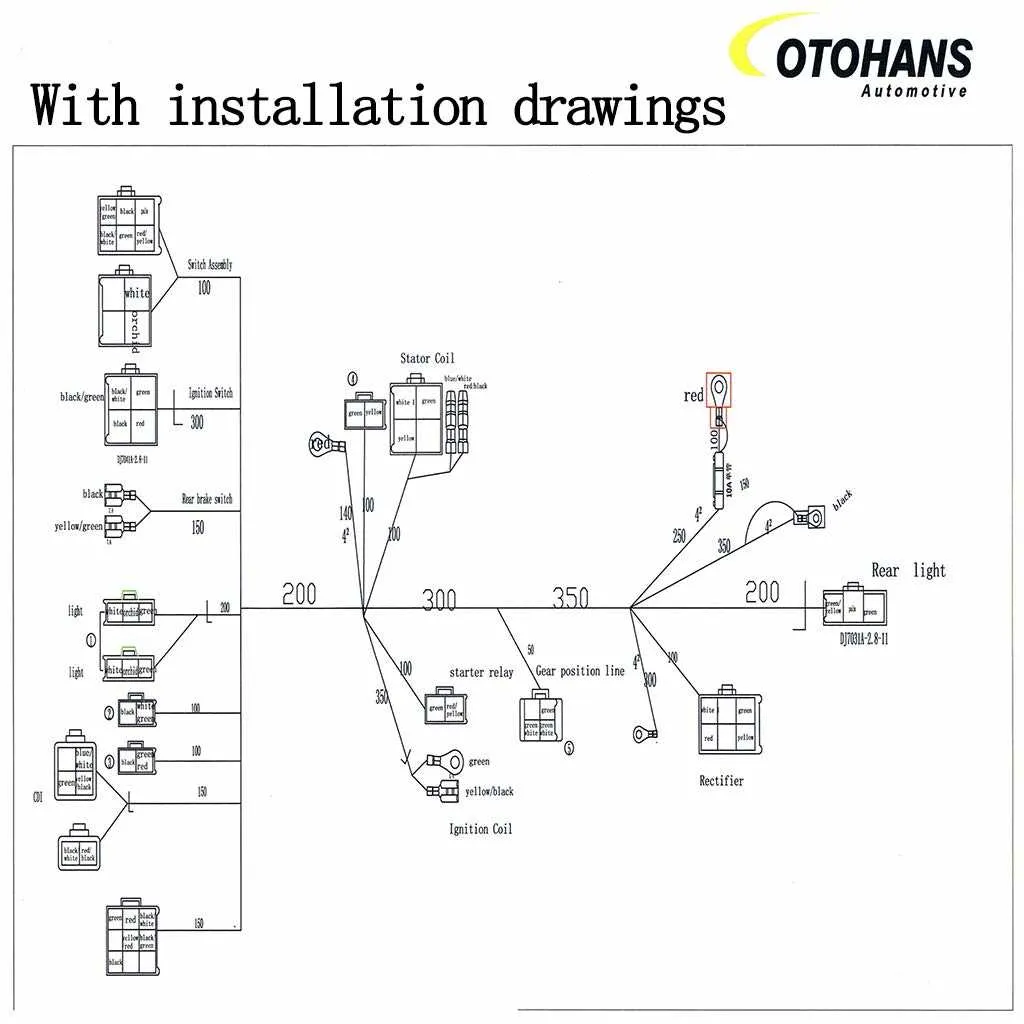

GY6 150cc Wiring Harness Diagram
Start by identifying the stator’s output cables, typically three yellow lines responsible for AC power generation. These connect to the voltage regulator/rectifier, which usually features five terminals: three for the stator, one for battery charge (often red), and a ground (green or black).

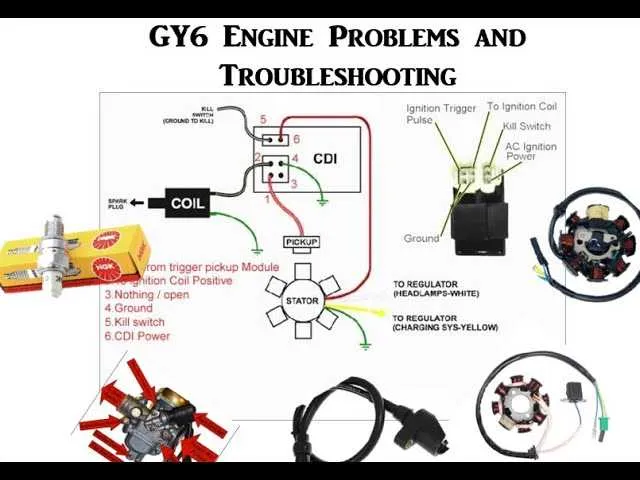

- Ignition system: Locate the CDI unit; it commonly has six pins. The black/yellow wire leads to the ignition coil, blue/white connects to the pickup trigger, and black/red receives power from the stator.
- Starter motor circuit: The starter relay connects the battery’s positive terminal to the motor. A small wire from the start button activates the relay coil, often routed through the brake switch for safety.
- Lights and accessories: Lighting circuits often branch from the regulator’s output. Use a multimeter to confirm voltage presence at the switch terminals before routing to the headlamp, tail lamp, and turn signals.
- Kill switch: This wire (often black/white) grounds the CDI input when activated. Verify continuity to prevent unintentional engine shutdowns.
Use heat-shrink tubing and labeled connectors to simplify assembly and future troubleshooting. Ensure all grounds are securely mounted to the frame for stable operation.
How to Identify and Trace Electrical Connections on a Small Engine
Start by locating the main connector block, usually found near the ignition coil or battery compartment. Use a multimeter set to continuity mode to verify each wire’s function by matching it with the color codes specified in the service manual. Common wire colors include red for power, green for ground, yellow for ignition, and white for lighting circuits.
Follow each lead physically from its origin to the endpoint to ensure there are no breaks or modifications. Check for splices or aftermarket connectors that could cause signal loss or shorts. Label wires with tape and marker as you confirm their roles to avoid confusion during reassembly.
To trace sensor connections such as those for the stator or CDI unit, identify the three-wire bundles–typically one white, one yellow, and one green. Measure resistance across these to determine continuity and detect faults. If a color scheme differs, refer to the engine-specific electrical schematic for accurate identification.
Test all switches, including the kill switch and throttle sensor, by measuring voltage presence when activated. This method confirms wiring integrity and functional connectivity. Secure all connectors firmly and inspect insulation for wear to prevent future electrical issues.
Common Electrical Connector Issues and How to Troubleshoot Them
Start by inspecting all plug connections for corrosion or oxidation. These are the primary causes of intermittent faults and voltage drops in motorbike circuits. Use a multimeter to check continuity through each terminal and clean contacts with electronic cleaner or fine sandpaper if resistance is above 1 ohm.
Check for damaged insulation or exposed wires. Look closely for cracks or abrasions along the cable jacket, especially near bends and entry points. Repair any damaged sections with heat shrink tubing or replace the entire cable to avoid short circuits and electrical failures.
Verify grounding points for tightness and cleanliness. Loose or rusty grounds cause erratic sensor readings and power loss. Remove corrosion with a wire brush, tighten connections securely, and apply dielectric grease to prevent future oxidation.
Test fuses and circuit breakers individually. A blown fuse or tripped breaker often signals an underlying short or overload. Replace faulty components with ones of exact rating, and trace the wiring to identify the cause of overload before reinstallation.
Use a systematic voltage drop test across key segments. Measure voltage at the battery terminal and at critical connectors while the system is under load. A difference greater than 0.5 volts indicates resistance that requires cleaning or part replacement.
Follow these targeted steps to isolate and fix electrical connection faults, ensuring reliable operation and preventing common power issues in small engine systems.
Step-by-Step Guide to Replacing a GY6 150cc Wiring Harness
Start by disconnecting the battery to prevent electrical shorts. Remove the seat and side panels to access the entire electrical assembly. Identify and label each connector to avoid confusion during reinstallation.
Use a multimeter to check continuity on all existing cables, confirming which sections need replacement. Carefully detach the old cable set from mounting points, paying close attention to connectors linked to the ignition coil, stator, and CDI unit.
Route the new cable assembly following the original path, ensuring no wires are pinched or stretched. Secure it with zip ties or clips in all previously fixed positions. Connect the plugs firmly, making sure they fit snugly without forcing.
Test the circuit by reconnecting the battery and turning on the ignition. Verify that the lights, ignition system, and indicators function correctly before reassembling the panels. Finally, perform a short ride to confirm stability and responsiveness of all electrical components.
