Ensure a safe and reliable connection by following the wiring instructions for your car’s multimedia unit. Proper understanding of the pinout layout is crucial for optimal performance and preventing short circuits or system failures.
Start with the power connections: Identify the correct ground and 12V power input terminals. This step is essential to avoid electrical issues and ensure a stable power supply to your unit. Use proper gauge wires for safety and long-term durability.
For speaker connections, confirm each wire’s color coding. Ensuring the right polarity–matching the positive and negative terminals–guarantees sound clarity and prevents distortion. Miswiring can lead to subpar performance or even damage to the components.
Next, carefully attach the accessory and illumination wires. These connections control additional features like backlighting and auto-on functions when the ignition is switched on. Double-checking these connections will prevent functionality issues.
Finally, don’t forget to securely fasten all connections. Proper insulation and clean, tight contacts will reduce the chances of loose wires or electrical shorts. This ensures your system remains fully operational even under the rigors of regular use.
Wiring Guide for 7-inch Car Audio Receiver
For proper connection of a 7-inch multimedia receiver to your vehicle’s electrical system, it’s essential to follow the pinout information to avoid damage to the unit or vehicle. The power leads typically include a constant 12V supply (yellow) and an ignition 12V (red). The ground connection (black) must be securely attached to a clean, unpainted metal surface of the vehicle.
Audio signal connections usually consist of four speaker output channels (front left, front right, rear left, rear right). Ensure proper polarity when connecting the wires to avoid phase issues. Use the green and purple wires for rear speakers, while the gray and white wires serve the front ones. The blue/white wire is used for remote turn-on, sending a signal to the amplifier.
For AUX input or camera connections, use the designated RCA ports and ensure the color coding matches the system’s specifications. The unit also supports Bluetooth functionality, so be sure to correctly wire the microphone input (typically green or yellow) to ensure optimal sound quality for hands-free calls.
If you are integrating with a steering wheel control, the corresponding input wire needs to be hooked up to the interface module, ensuring correct signaling from the buttons on the wheel to the receiver. Check your vehicle’s wiring harness for compatibility and ensure all connections are secure before powering on the system.
How to Connect Power and Ground Wires for Your Car Audio System
Ensure a secure power supply and proper grounding to avoid malfunctioning of your head unit. Here are the steps to follow:
- Power Wire Connection: Locate the 12V constant power cable (usually red). This wire should be connected directly to the car’s battery or fuse box, ensuring it maintains a stable 12V source even when the car is off.
- Ignition Wire: The wire for ignition (typically yellow) should be linked to a switched 12V source. This enables the head unit to turn on or off in sync with the car’s ignition.
- Ground Wire: The ground cable (usually black) should be securely attached to a clean, unpainted metal surface in your vehicle, such as a chassis bolt or a ground terminal. A poor ground connection can lead to electrical issues.
Before making connections, double-check the wire colors and ensure they are correctly matched to the corresponding terminals on the device and power source. Use appropriate connectors and avoid over-tightening screws to ensure secure but not damaging connections.
- For the Power Connection: Use a fuse holder close to the battery or the power source to prevent damage in case of a short circuit.
- For Grounding: Ensure the ground connection is as short as possible to minimize potential interference and noise in the audio system.
After confirming proper connections, test the system by turning on the ignition. If the device powers up and the audio works as expected, the power and ground setup is successful.
Connecting Audio and Video Inputs on Your Device
To ensure optimal sound and image quality, begin by connecting the right cables to the designated input ports. The audio connections typically require RCA cables for both left and right channels, along with a ground wire. For a high-fidelity experience, make sure that the left and right audio leads are securely connected to the corresponding terminals, often labeled in red (right) and white (left). Grounding is essential, so connect the ground wire to the chassis or designated grounding point.
The video inputs can usually be connected via composite video or, for higher definition, HDMI (if supported). Use the yellow RCA cable for composite video, ensuring it’s connected to the correct input terminal. For HDMI, check the available port and ensure it’s correctly linked to your video source. If using an external source like a DVD player or gaming console, make sure the correct signal type is selected in the menu options to enable video display.
Additionally, if you have a backup camera or external media player to connect, make sure you use the appropriate video-in port for cameras (often labeled “Camera”) and check for any additional configuration required to enable the reverse trigger function. When connecting a camera, use the specified video cable and ensure the input settings are adjusted for reverse image display.
Test the setup by playing audio and video from different sources to verify the connections and quality. If issues arise, double-check the signal type settings and confirm all cables are securely fastened to their respective inputs.

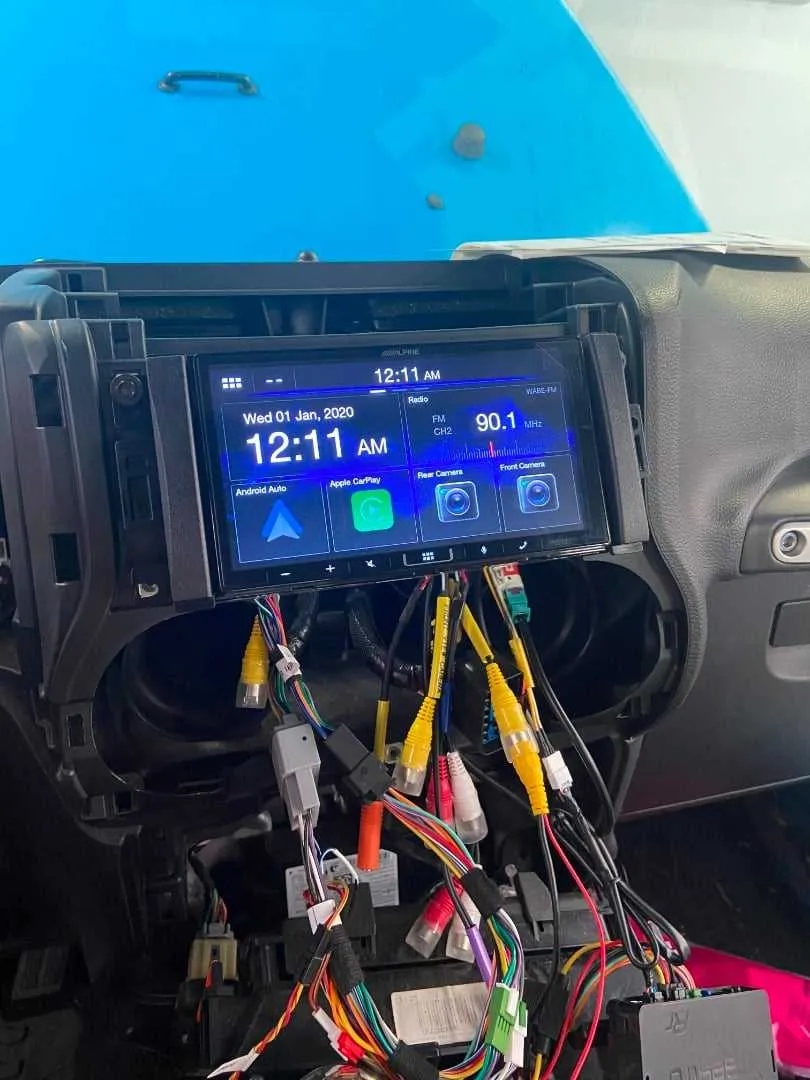

Proper Installation of Speaker and Amplifier Wires in Alpine ILX 407
Connect front and rear speaker leads directly to the vehicle’s harness or aftermarket harness adapter using soldered joints or crimp connectors. Ensure polarity is correct: typically, solid color is positive, and striped is negative. Incorrect phase alignment causes weak or distorted audio output.
Route all speaker paths away from power lines to avoid induced noise. If noise persists, use twisted-pair conductors for each channel or install ferrite cores to suppress interference. Maintain a consistent gauge (minimum 16 AWG) for all speakers to ensure uniform power delivery.
Use the blue/white output lead to activate the external amplifier’s remote turn-on circuit. This signal typically provides 12V when the unit powers on. Connect it to the remote input of the external amplifier; never to the antenna trigger unless it’s solely for radio functions.
Feed the low-level outputs (usually labeled FL, FR, RL, RR) to the amplifier’s RCA inputs. For best results, use shielded RCA cables under 18 feet in length to minimize signal degradation. Match front and rear pairs with their respective amp inputs to preserve proper soundstage orientation.
Ground the amplifier securely to bare metal on the vehicle’s chassis using a short, thick cable (preferably 8 AWG or larger). An unstable ground connection introduces hum or causes shutdowns. Ensure the surface is sanded clean of paint or rust.
Connect the battery terminal of the amplifier using a fused power line rated appropriately for the amplifier’s current draw. Place the fuse within 18 inches of the battery terminal. Avoid tapping into other vehicle circuits to prevent overloading or damage.
Secure all connections mechanically to prevent vibration-related disconnections. Use zip ties and wire looms to manage routing. Loose or exposed terminations risk short circuits or degraded performance over time.
