To effectively troubleshoot or maintain the pneumatic stopping mechanism in heavy-duty vehicles, understanding the flow and control structure is essential. Begin by familiarizing yourself with the core elements, including the compressor, reservoir, and control valves, which form the foundation of this operation. Accurate maintenance of these components ensures optimal performance under varying pressure conditions.
Reservoir capacity plays a crucial role in sustaining the pressure needed for reliable function. Check the tank pressure regularly to avoid loss of efficiency. Any irregularities in pressure readings could indicate leaks or blockages within the conduits, affecting overall vehicle stopping power. Additionally, proper routing of the conduits prevents unnecessary wear or abrasion that can disrupt functionality.
The control valve, often referred to as the central element in regulating pressure flow, ensures precision in response to pedal input. Regular inspection of these valves is critical to avoid failure during operation. Proper calibration allows smooth modulation of the vehicle’s stopping ability, ensuring safety and reducing mechanical stress.

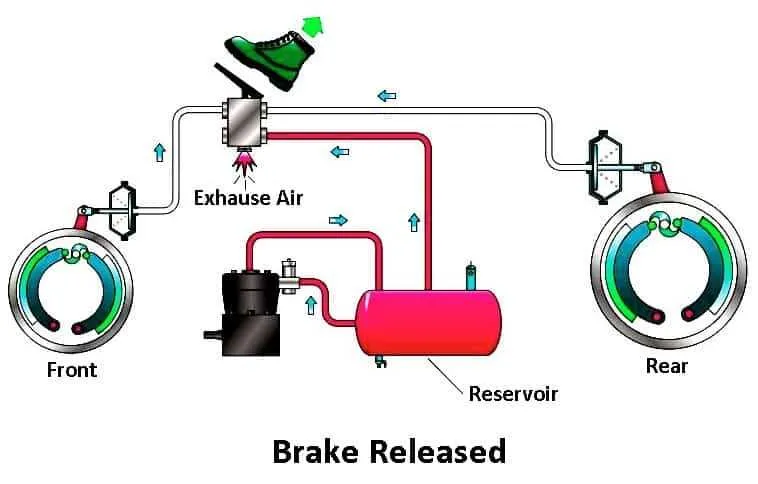

Understanding the Pneumatic Stopping Mechanism Layout
Ensure all components are correctly installed, especially the compressor and reservoir. The compressor should be placed near the engine to facilitate the efficient filling of the storage tank. Connect the tank to the pressure control valve to regulate the pressure within the optimal range for reliable operation.
The control valves must be placed strategically for easy access. These valves manage the flow of compressed gas to various actuator units, controlling the application force on the wheels. Ensure there is a pressure relief valve to prevent over-pressurization of components, which could lead to failures.
Link the release mechanism to the foot pedal, which should be calibrated to deliver appropriate pressure increments. Consistent maintenance of the connections between the compressor, tank, and valves is critical to avoid leaks, which could reduce stopping effectiveness. Regular checks on hoses and seals for wear and tear will help avoid sudden performance drops during operation.
Be mindful of the distribution of gas flow. The setup should ensure that each braking actuator is activated uniformly to maintain stability. If any actuator fails to engage or releases prematurely, recalibrate the system to balance the force distribution evenly across all wheels.
Finally, ensure proper alignment of all components, particularly the lines connecting the valves and actuators. Any misalignment can lead to uneven pressure distribution, compromising the efficiency of the entire mechanism.
Understanding the Role of the Compressor in Brake Operation
The compressor plays a crucial role in maintaining the pressure required for effective braking. It ensures the availability of compressed gas to activate the necessary components of the braking apparatus. A properly functioning compressor prevents issues such as insufficient pressure, which can compromise stopping power and system reliability.
Key functions include generating sufficient pressure to engage the brake chamber and actuate the mechanism for stopping. The compressor should maintain pressure levels between 90 to 120 psi for optimal performance. It is vital to monitor the compressor’s performance regularly through system diagnostics to detect potential failures early.
To prevent overloading and ensure consistent pressure, the piston and valves within the compressor must remain in good condition. Regular maintenance, including filter changes and inspection of moving parts, is necessary to avoid pressure losses or inefficiency.
Recommendation: Ensure the compressor is well-maintained with frequent checks on its sealing integrity and lubrication. Failure to do so can result in gradual performance degradation, leading to longer stopping distances or potential safety risks.
Key Components of an Air Brake System and Their Functions
To ensure proper operation of the braking mechanism, it’s essential to understand the critical elements involved and their roles. Below are the main parts and their functions:
- Compressor: Delivers compressed air to power various components. It maintains the pressure within the system, ensuring reliability during operation.
- Reservoirs: Store compressed air for immediate use, allowing the system to function even when the compressor is not actively running.
- Control Valve: Directs airflow to specific areas, controlling the force applied to the brake mechanism. This ensures smooth and effective deceleration.
- Relay Valve: Acts as an intermediary between the control valve and the brake chambers, enabling faster response times by reducing delay in air flow.
- Brake Chambers: Convert the pressure of the compressed air into mechanical force to engage the braking elements, effectively slowing or stopping the vehicle.
- Foot Valve: Controls the amount of air released into the system when the operator applies pressure. It modulates braking force for smooth operation.
- Parking Brake Valve: Holds the vehicle stationary when not in use by maintaining constant pressure in the brake chambers, preventing unintended movement.
- Slack Adjuster: Ensures that the distance between the brake shoes and drum remains consistent as the system wears down, ensuring proper engagement each time.
- Brake Shoes and Drums: Provide the friction needed to slow the vehicle by pressing against each other when air pressure activates the brake chamber.
Each component plays a specific role in maintaining safety and efficiency. Regular maintenance and inspection are crucial for optimal performance of these parts.
How to Troubleshoot Common Air Control Issues
Start by checking the pressure regulator. If the pressure is low, verify the compressor’s function and ensure there are no leaks in the lines leading to the reservoir. A drop in pressure can result from worn seals or blocked filters.
If the vehicle experiences uneven deceleration or difficulty stopping, inspect the control valve for any signs of corrosion or dirt buildup. Cleaning or replacing the valve may restore proper function. Ensure that all connections are secure, as loose connections can disrupt pressure flow.
In cases of delayed response or failure to release, examine the relay valve and exhaust port. Blockages or sticking components can cause slow reactions. Disassemble the valve, clean, and lubricate as necessary.
For sudden loss of control, check the brake chambers and diaphragms for cracks or wear. A compromised diaphragm leads to insufficient response when pressure is applied. Replacing the damaged components is necessary for safe operation.
Lastly, inspect the lines for any signs of wear, abrasions, or kinks. These can cause pressure loss or inconsistent application. Replace damaged lines promptly to ensure optimal performance.
