When dealing with the electrical system that controls fuel flow in engines, understanding the correct connections is critical. Start by identifying the power source, ensuring a reliable flow from the ignition system to the actuator. This ensures smooth operation of the mechanism that controls fuel intake.
Properly routing the wires to the activation component is essential for the system’s functionality. Make sure to secure the connections firmly to prevent any voltage loss or short circuits. Incorrect connections may lead to malfunctioning or failure to control fuel supply effectively.
Color coding plays a significant role in identifying the right connections. Typically, red wires indicate positive power, while black ones are used for ground. Referencing the wiring map for your specific engine model ensures the highest accuracy in installation.
Once the connections are confirmed, check for continuity with a multimeter to verify each link in the chain. It’s also advisable to test the system under load to ensure the actuator responds appropriately when the engine starts.

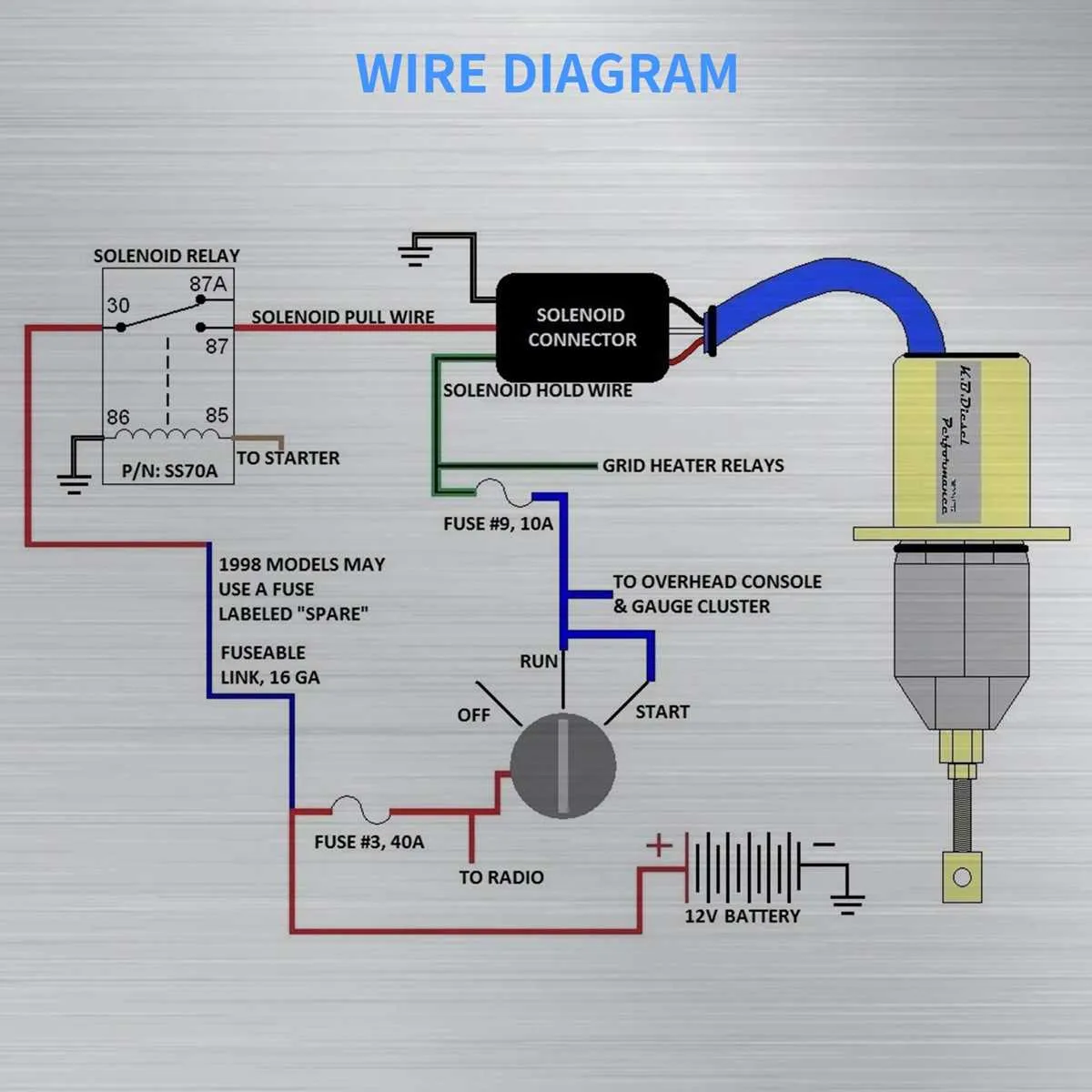

Electrical Circuit Overview for Engine Cutoff Mechanism
The proper connection of the engine’s cutoff mechanism is critical for reliable operation and safety. When wiring the control system, ensure the following steps are followed:
- Verify the polarity of all connections. Typically, the positive wire connects to the actuator’s power terminal, while the negative is grounded to the engine’s chassis or a designated ground point.
- Use high-quality, insulated connectors to avoid corrosion and ensure stable electrical contact over time.
- Integrate a fuse or relay in the circuit to protect against potential overloads, preventing system failure or damage to sensitive components.
- In systems requiring a manual override, ensure the manual switch is placed in line with the control line to allow bypassing the automatic cutoff mechanism when needed.
For systems using multiple actuators, each unit should be properly isolated to avoid cross-signaling between them. Wiring them in parallel can cause interference, reducing efficiency and reliability.
Ensure proper grounding throughout the system. A poor connection can result in erratic behavior or even total failure of the system. Always double-check that the ground points are clean and free from paint or corrosion.
Finally, before powering the system, test the complete setup using a multimeter to check for voltage drop or short circuits in the control lines. This step will save time in troubleshooting later.
Understanding the Role of the Engine Cutoff Valve in Engine Control Systems
In modern engine management, the cutoff valve is a crucial component for controlling the fuel supply to the combustion chamber. This element is integrated into the system to ensure that the engine can be safely turned off and prevents the flow of fuel when necessary. It plays a key role in shutting down the engine smoothly by cutting off the power source, which prevents potential engine damage or unnecessary fuel consumption after the engine is turned off.
The primary function of the cutoff valve is to prevent fuel from reaching the engine during shutdown or in the event of an emergency. When activated, it electronically closes a valve that blocks the fuel path, ensuring that no more fuel is injected into the cylinders. This helps to avoid situations where fuel continues to be delivered while the engine is no longer running, reducing the risk of flooding or starting issues when attempting to restart the engine.
In an engine control system, this component is typically controlled by the ECU (Engine Control Unit) through electronic signals, which means its operation is directly tied to the overall performance of the vehicle. The engine cutoff valve is often coupled with other control mechanisms, such as the ignition system or the throttle, to ensure synchronization and prevent any unintentional activation.
Maintenance of the cutoff valve is vital for ensuring the reliability of the engine. Failure to close the valve properly can lead to problems such as excess fuel consumption, emission issues, or engine misfires. Regular inspection and testing should be part of the routine service schedule, as its failure may go unnoticed without careful diagnosis.
To optimize the efficiency and performance of the engine, ensure the proper calibration of the cutoff valve within the engine management system. Any malfunction or incorrect wiring should be addressed immediately to prevent larger system failures and reduce the risk of costly repairs.
How to Identify and Troubleshoot Common Wiring Issues in Fuel Shut Off Solenoids
Begin troubleshooting by inspecting the connections for corrosion or loose terminals. Ensure that the ground wire is securely connected to a clean, bare metal surface. A poor ground connection is a frequent cause of solenoid malfunctions.
Next, check for continuity in the circuit. Use a multimeter to confirm that the wires are not damaged and that electrical flow is uninterrupted. If the reading shows an open circuit, you may have a break or short in the cables that needs to be replaced or repaired.
If the solenoid fails to engage, verify that the voltage supplied to the component is within the specified range. Low or fluctuating voltage can be due to issues with the control module or relay. Inspect the relay contacts for wear or carbon buildup, as this can prevent proper operation.
Test the switch that activates the solenoid. A faulty or misadjusted switch could prevent proper signal transmission. If the switch seems to be functioning intermittently, consider recalibrating or replacing it.
Ensure that all connections are tight and clean. A loose or dirty connector can cause intermittent operation. Additionally, look for any signs of overheating or damage to the wiring insulation, which could indicate a problem with current load or short circuits.
Finally, inspect the harness for signs of wear, such as fraying or chafing. A damaged harness can lead to sporadic behavior or complete failure, so replace or repair any affected sections immediately to restore functionality.
Step-by-Step Guide to Connecting the Diesel Engine Cutoff Valve
Start by ensuring the ignition is off and the battery is disconnected to prevent accidental shorts. Identify the control terminals for the valve–typically, there will be two main connectors: one for positive and one for negative. Use a multimeter to check the voltage requirements of your specific engine’s valve.
Next, run a suitable gauge wire from the positive terminal of the battery to the corresponding terminal on the valve. It’s crucial to use a wire with adequate insulation to handle the engine’s operating temperature. Use a fuse holder along the positive line, rated slightly higher than the current drawn by the device.
Connect the negative terminal of the valve to the ground of the engine or chassis. Ensure a secure connection to prevent any loose grounding issues, which can lead to erratic performance.
If your system includes a control switch or relay, wire the switch to the signal terminal of the valve, ensuring proper polarity and voltage. When the switch is activated, it should send the signal to the valve to engage or disengage based on the engine’s needs.
Finally, double-check all connections before reconnecting the battery. Perform a test run to verify the functionality of the setup. If the system doesn’t activate correctly, retrace your steps to check for issues like faulty connections or incorrect voltage supply.
