For a smooth engine operation, ensure that the accessory drive components are properly aligned and tensioned. If you experience any unusual noises or slipping, it’s essential to verify the routing of the various pulleys and tensioners. The drive system typically powers essential components such as the alternator, air conditioning compressor, and power steering pump. A clear understanding of the correct routing can prevent unnecessary wear and help maintain optimal performance.
Step 1: Start by identifying the location of the tensioner and idler pulleys, as they play a crucial role in maintaining the right amount of tension across the system. The tensioner pulley is adjustable, ensuring the drive components are tight enough to avoid slippage.
Step 2: Carefully inspect the pulley arrangement. The main components should follow a specific sequence, with each pulley aligned with the engine’s crankshaft and other critical parts. Pay attention to the direction of the pulleys to prevent incorrect installation, which could result in premature wear or failure.
Step 3: If replacing the drive belt, ensure that the new one matches the required length and size for proper fitment. An improperly sized belt can cause excessive friction or inadequate operation of the driven components.
After installation, rotate the engine manually to ensure that everything is moving freely and there are no obstructions. Tighten the tensioner once the components are aligned, and check for smooth operation before starting the engine.

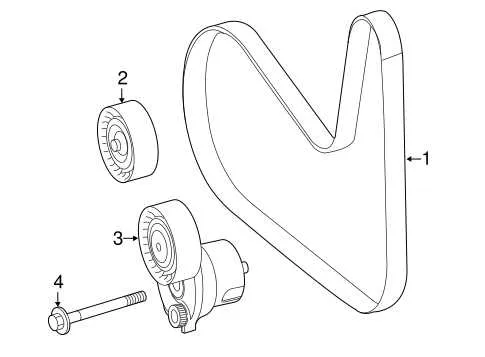

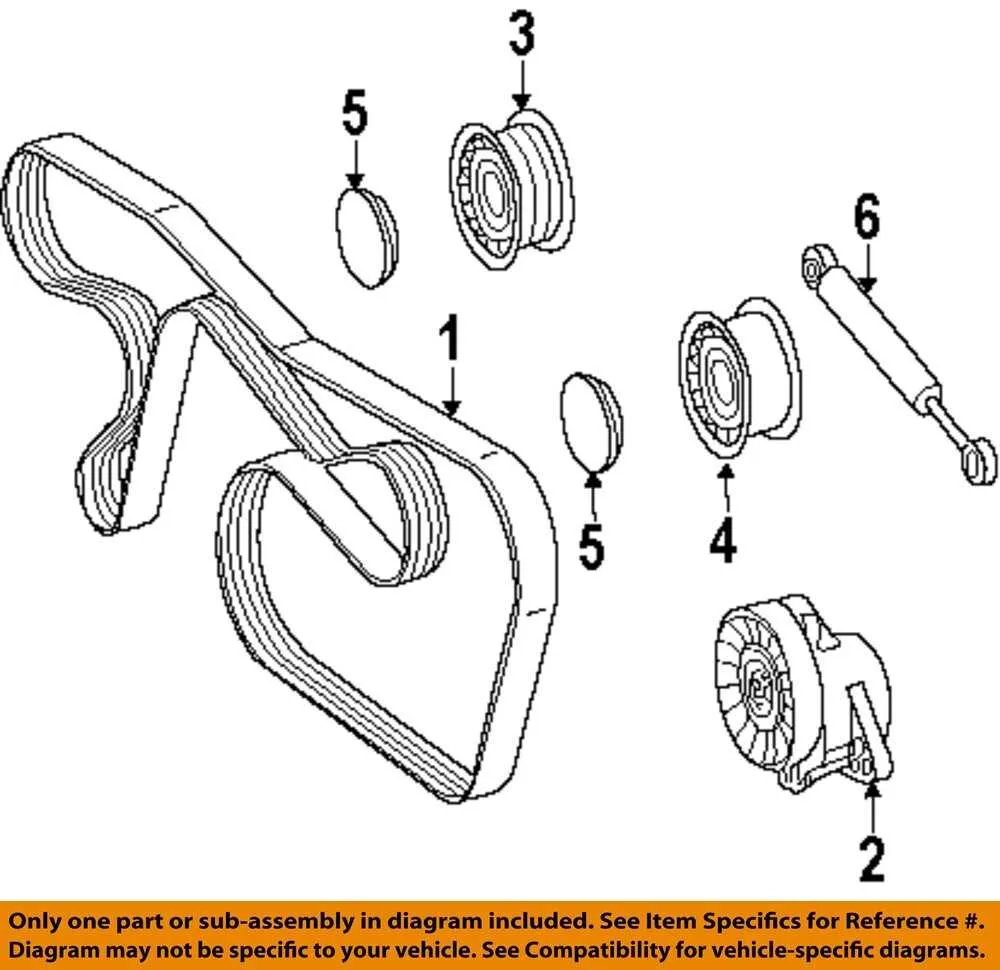

Routing Guide for Auxiliary Drive System
Ensure the proper routing of the drive system components by following this specific path for your vehicle’s engine accessories. The correct configuration is crucial to prevent wear and ensure optimal performance of the alternator, power steering pump, and air conditioning system.
The tensioner pulley should be positioned between the crankshaft pulley and the alternator pulley. This allows proper tension to be applied to the belt, ensuring it remains securely in place. The air conditioning compressor is positioned lower, aligned in a way that does not interfere with the other components.
Pay attention to the precise alignment of each pulley, especially the power steering pump, which must be properly connected to avoid strain on the system. The tensioner should be used to maintain the ideal level of pressure across all moving parts.
Confirm the correct orientation of the components before reassembling. Use a torque wrench to verify the correct tension and check for any misalignment during operation. This will help extend the lifespan of your drive system components and avoid unnecessary repairs.
How to Identify the Correct Drive Path on a 2010 Model
Start by inspecting the tensioner to determine its proper orientation, as it plays a critical role in the routing sequence.
- Check the main pulley location to ensure the loop runs over the crankshaft pulley.
- Route the loop around the alternator pulley to generate the required electrical output.
- Ensure that the loop moves across the water pump pulley to circulate coolant properly.
- The loop must wrap around the power steering pump pulley for fluid movement, ensuring optimal steering performance.
- Ensure the loop crosses the air conditioning compressor pulley to maintain cabin climate control.
- Keep the belt tight but not overly strained, ensuring smooth rotation of all pulleys involved.
If replacing, always consult the manufacturer’s technical specifications to ensure the new part matches the required dimensions and functionality. Pay close attention to the routing layout, as an improper installation can lead to overheating or component failure.
Common Issues with the Drive Belt System
When replacing the drive belt system on this vehicle, pay attention to these key issues: wear and tear, misalignment, and tension problems. A worn or cracked belt may slip, causing loss of power to essential components like the alternator or AC compressor.
Misalignment of the pulleys can lead to uneven wear and premature failure of the system. Inspect the tensioner regularly for proper tension; an under-tensioned belt will slip, while an over-tensioned one can stress the components. If the pulleys are damaged or corroded, they can also cause the belt to wear unevenly or make noise.
When replacing the system, use high-quality components to ensure longevity. Failing to replace worn-out pulleys or tensioners alongside the new belt can result in the same issues reoccurring in a short time.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2010 Mercedes C300
Start by locating the tensioner pulley. Using a socket wrench, rotate it clockwise to release tension. This will allow you to remove the old component with ease. Keep the wrench steady and make sure it moves smoothly to avoid damage to the surrounding parts.
Once the tension is released, remove the worn-out part from the pulley system. Pay attention to the routing, so you can install the new one in the exact same configuration. Refer to the routing guide if needed to ensure accuracy.
Before installing the new part, inspect the pulleys for damage or wear. If you find any issues, replace those parts before continuing with the installation. Clean the surface of the pulleys to prevent dirt from interfering with the new installation.
Now, position the new component around the pulleys. Make sure each part sits correctly in place and that it aligns with the grooves on each pulley. Double-check the tensioner to ensure it is in the correct position for easy re-tensioning.
Once everything is aligned, use the socket wrench to rotate the tensioner pulley once more, allowing the new part to fit tightly in place. Check the positioning again to ensure it’s securely installed and properly aligned.
After installation, rotate the engine by hand to ensure the new part is operating correctly. Listen for any unusual noises, as they may indicate improper installation. If everything seems fine, start the engine to check the function of the system at idle speed.
Once you’ve verified the part is working smoothly, you can close the hood and dispose of the old part. Be sure to perform a test drive to confirm everything is functioning as it should.
