Start by identifying the main harness block behind the dashboard. The 12V constant power line is typically white with a red stripe, while the switched ignition feed often comes in as a solid red wire. Ground is usually black, and the illumination control wire may be orange or orange with a white trace. Always verify with a multimeter before making connections.
For front channel output, expect the left positive lead to be brown, and its negative counterpart to be brown with a red stripe. The right front audio pair commonly includes a light green wire (positive) and a light green with black trace (negative). Rear sound output generally uses blue for left positive and blue with white trace for its return; the right rear is often purple (positive) and purple with a yellow stripe (negative).
Antenna control is sometimes integrated into the same cluster, marked by a thinner pink wire. If an external amplifier is present, look for a dedicated remote turn-on wire, often light blue or dark green, which must be connected to the head unit’s remote output to activate properly.
Double-check the physical plug shape–some models use a two-piece connector, while others consolidate all lines into a single rectangular block. Matching these exactly with your new head unit’s harness or an adapter kit ensures proper operation and avoids short circuits or power issues.
Harness Layout and Connector Pinout
Start by identifying the ISO connectors behind the dashboard. The main plug typically has two blocks: one for power and one for speakers. Confirm that the yellow wire holds constant 12V power, the red one is switched ignition, and the black wire is ground. The orange/white is often for illumination dimming.
- Speaker leads: Gray and gray/black go to front right; white and white/black to front left.
- Rear channels: Green and green/black serve the left rear; purple and purple/black the right rear.
- Ground: Solid black, connected directly to the chassis.
- Memory backup: Yellow line feeds constant battery voltage.
- Switched 12V: Red wire activates with ignition.
Before replacing the head unit, test each lead with a multimeter to verify voltage and continuity. Avoid relying on wire colors alone, as variations exist in aftermarket setups or prior installations.
Identifying Wire Colors and Their Functions in the Factory Harness
Start by locating the yellow/black lead – this typically delivers constant 12V power from the battery, ensuring memory retention for presets and clock.
The red/white conductor usually serves as the switched 12V source, becoming active only with ignition in the accessory or run position.
Ground is generally carried by a black or black/green wire; verify with a multimeter before connecting to ensure proper chassis continuity.
Speaker circuits are color-coded in pairs: for instance, gray/gray-black often corresponds to the front right channel, while white/white-black is assigned to the front left. Rear outputs may be green/green-black and purple/purple-black for left and right channels, respectively.
Orange or orange/white lines are usually linked to illumination or dimmer controls; these adjust display brightness based on dash light settings.
If a blue or blue/white strand is present, it’s commonly reserved for triggering external amplifiers or powered antennas, supplying a low-current 12V signal when the unit is active.
Before final installation, confirm all connections with a test light or digital multimeter to prevent shorts or mismatched outputs.
How to Connect Aftermarket Stereos to the 2001 Dodge Wiring System

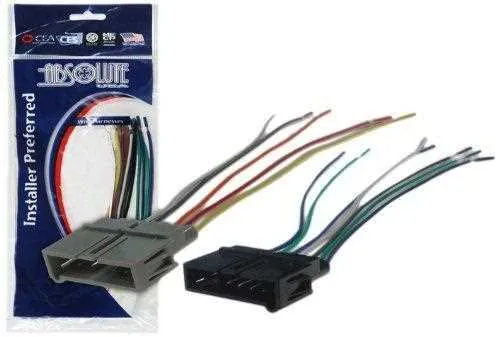

Use a dedicated harness adapter to avoid splicing factory cables. Metra 70-1817 or Scosche CR01B are compatible interfaces that simplify installation.
Identify the constant 12V (typically pink or yellow), switched 12V (red or orange), and ground (black) leads. Confirm with a multimeter–never rely solely on color codes.
Speaker lines are usually grouped in pairs: front left (white/white-black), front right (gray/gray-black), rear left (green/green-black), rear right (purple/purple-black). Match them with the new unit’s outputs.
Bypass any factory amplifier, if present, by rerouting output lines directly to speaker wires at the plug. Use a bypass harness if necessary to prevent signal distortion.
Secure all joints using solder or crimp connectors, then insulate with heat shrink tubing. Avoid twisting wires together without reinforcement, which can lead to signal loss or shorts.
Common Wiring Issues and Troubleshooting Tips for 2001 Dodge Radios
Check for a constant 12V supply at the yellow lead. Use a multimeter to confirm power is present even when the ignition is off. If missing, inspect fuse #11 in the junction block or trace back to the battery circuit.
Verify switched power on the red line. This should only read 12V when the ignition is in ACC or ON. If voltage is absent, examine fuse #3 and check the ignition harness for loose or corroded connections.
Ensure a solid ground connection on the black wire. Test resistance between this line and a known chassis ground. Readings above 1 ohm indicate poor contact–clean the ground point and retighten the bolt.
No audio from speakers? Use a tone generator or continuity test to verify speaker leads. White/white-black, gray/gray-black, green/green-black, and purple/purple-black should show continuity between the harness and speaker terminals. Replace any broken or shorted lines.
Static or intermittent sound can point to frayed insulation or pinched wiring behind the dash. Remove the head unit and visually inspect for exposed copper or melted sheathing, especially near mounting brackets or metal edges.
Aftermarket unit not powering on? Confirm adapter harness matches OEM color codes. Many issues stem from swapped memory and ignition power lines. Use manufacturer schematics to double-check pin assignments.
Blown fuses after installation usually indicate a short to ground. Disconnect the unit and measure resistance from each power lead to ground–anything under 1k ohm requires tracing for damaged insulation or crossed wires.
