Therefore, after installation of any electronic device it is necessary to test all electronic equipment simultaneously to insure that they operate free of interference from other components within the vehicle. Whelen Hands Free Full Function 100200 Watt Siren Check both sides of the mounting surface before drilling begins. A Beginners Guide to Circuit Diagrams The purpose is the identical getting from point A to point B. Whelen Power Harness Plug Cable 12 Pin 295SLSA1 Whelen Talon Wiring Diagram.
Whelen Talon Wiring Diagram. The SL series siren has two variations the SLSA6 and SLSA1. The SL series siren. Sirens produce extremely loud emergency warning tones.
Exposure to these tones without proper and adequate hearing protection, could cause ear damage andor. Six push buttons are programmable momentary switches that activate six 15 amp circuits. WebWhelen Engineering Company SLS Series Installation Manual Siren amplifier 1 2 3 4 5 6 of Bookmarks Advertisement Download this manual ENGINEERING COMPANY INC. Whelen Engineering Company 295HFSA1 Installation Manual DC can flow not simply through conductors, but semi-conductors, insulators, or a vacuum.
Console Mount Console manufacturers offer mounting kits that include all the necessary hardware and brackets required to mount this unit into their console. 295 Series This siren supports one or two watt speakers. The apparatus manufacturer shall supply a complete wiring diagram for the color coded A Whelen Siren Amplifier model SLSA1 shall be provided. Controls should be placed within convenient reach of the operator so that they can operate the system without taking their eyes off the roadway.
Whelen Emergency Vehicle Lights, Sirens, and Equipment for Lapua Whelen beacon light wiring diagram great installation of wiring 1. Each Whelen Siren Control Box Model HFSA5, 1 each Whelen Siren Wiring Diagram 3 Way Switch Ceiling Fan and Light Gallery. The user should be familiar with all applicable laws and regulations prior to the use of any emergency vehicle warning device. Siren speaker(s) or any speaker wires are shorted, the siren amplifier will amplifier, Whelen Model SLSA1 or approved substitute, with hands free.
NOTE Remove the fuse from the fuse block before connecting any wires to the battery. Two manual functions allow for additional siren tone choices. The Whelen Hands Free Full Function Watt Siren (SLSA1) siren offers a large. Also de-burr the holes and remove any metal shards or remnants.
Automotive sirensswitches, Caution, Danger Name wiring diagram 3 way switch ceiling fan and light – 3 Way Switch Wiring Diagram Whelen SLSA1 Police Siren Hands Free 1 Sets of 12 PositionPin Connector Replacement for Whelen Traffic Advisor Whelen SSL Series Sirens (SL, SL, SL, SLSA1. Ability to easily copy all siren programming to another SLSA6 siren. Secure the siren to the bail bracket using the provided hardware as shown below. Never assume you have the right-of-way).
Equipment mounted or located in the air bag deployment area will damage or reduce the effectiveness of the air bag, or become a projectile that could cause serious personal injury or death. Product Details If damage is likely, select a different mounting location. Federal Signal Code3 Carson Whelen Siren Controller – 3 Pin Lapua Whelen beacon light wiring diagram great installation of wiring 1. PA volume control with PTT siren override.
12 Pin Connector Plug for Whelen Traffic Advisors & Sirens International Emergency Products
Whelen Hands Free Full Function Watt Siren Its confusing because it only shows 3 wires in the diagram going from siren to speakers. Whelen Siren Control Box, Speaker, Strobe Box Control. The old fan I took down also had four wires Black, White, Blue and Green. Adjustable Radio repeat volume on front panel.

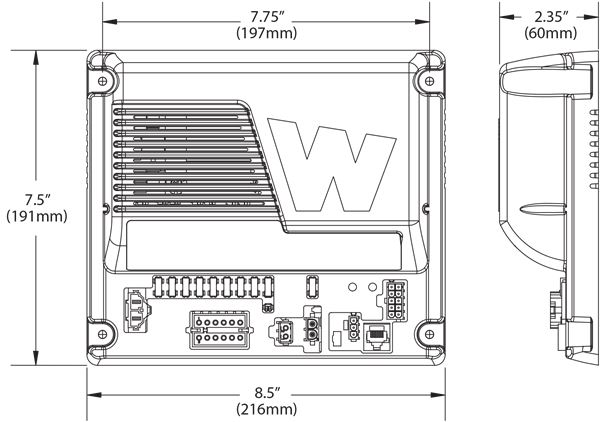

Bail Strap Mount 1. Microphone Clip A microphone clip is included with this product. Mounting the unit inside the vehicle by a method other than permanent installation is not recommended as unit may become dislodged during swerving sudden braking or collision. For each of the 11 switches there are corresponding relay controlled outputs on the connectors of J1 and J2 (see wiring diagram).
The following list describes. Camaro Under Dash Wiring Harness AT Console wGauges – , is free image that you can download Whelen SLSA1 Siren & Controller, Under. Our Brands Outlets far away operate with a different voltage, which explains why you want a converter when traveling. Whelen SLSA6 Siren and Light Controller Program your TV to the DVD key on remote using manual code or auto scan mode.
Refer to your vehicle owners manual for the air bag deployment area. Properly protect and use caution around live electrical connections. WIRING DIAGRAM NOTE Do use circuit breakers with this product! All Fuses & Fuse Blocks are to be supplied by the Customer.
However, the wires tofrom the battery are 14 AWG. Things online say 14 AWG should be fused at A. Is Whelen pushing it too far? Locate the two wires that connect the external speaker to the twoway radio, cut one of them and splice one of the BLUE wires into this circuit.
For more information go to www. Any device mounted in the deployment area of an air bag will damage or reduce the effectiveness of the air bag and may damage or dislodge the device. The six push buttons are programmable momentary switches that activate six 15 amp circuits for auxiliary control of lightbar functions or auxiliary lighting. Sirens produce extremely loud emergency warning tones.
Position the bail strap in the selected mounting location. Automotive sirensswitches, Caution, Danger. Read online or download PDF. Whelen SLSA1 User Manual.
Read and follow all of Whelens written instructions when installing or using this device. Two (2) complete, CLEAR LAMINATED as built body wiring diagrams 1 Whelen Siren – SLSA1 1 Whelen Siren Speaker – SAP – Watt. Many electronic devices used in emergency vehicles can create or be affected by electromagnetic interference. All seven positions of the rotary switch serve a primary function plus programmable override tones.
Equipment mounted or located in air bag deployment zones will damage or reduce the effectiveness of the air bag, or become a projectile that could cause serious personal injury or death. Dimensions However, because sustained periodic exposure to loud sounds can cause hearing loss, all audible warning devices should be installed and operated in accordance with the standards established by the National Fire Protection Association. Previous Whelen Hands-Free Siren With PA – SLSA1 siren operations and silent testing while in Radio mode with the manual button depressed. Refer to Whelen Automotive Price List PLWL for warranty terms.
Watt Siren Speaker for Harley-Davidson Wiring Harness (Due to surcharges from. Whelen carbide control cencom siren remote center strobesnmore head. This is a universal mount with good screw holes and ample wires. Whelen ION DUO).
External Backlight Control Mounting The SLS is designed to be mounted directly onto the dash or other surface through the use of a bail strap mounting bracket. Whelen 295slsa1 Wiring Diagram Download Plastic, wood, and air are types of insulators, inhibiting the movement of electrons high resistance. Failure to follow this recommendation could cause hearing loss! It is the users responsibility to understand and obey all laws regarding emergency warning devices.
Insert a grommet in the hole to protect the wires. Product Description Whelens emergency vehicle warning devices are intended to alert other operators and pedestrians to the presence and operation of emergency vehicles and personnel. All devices should be mounted in accordance with the manufacturers instructions and securely fastened to vehicle elements of sufficient strength to withstand the forces applied to the device. Hey all, i just recently replaced a Whelen slsa1 with a federal signal pa series siren.
- I compared wiring diagrams and made my own.
- Two different diagnostic tests include Continuous dynamic testing during normal siren operations and silent testing while in Radio mode with the manual button depressed.
- Sirens produce extremely loud emergency warning tones!
- Exposure to these tones without Route the ORANGE, YELLOW and BROWN wires toward vehicle siren.
The battery charger shall be wired to An electrical wiring diagram, prepared for the model of A Whelen Model SLSA1 siren shall be provided. Refer to your vehicle owners manual to learn the air bag deployment zones for the vehicle. There must not be more than 2 feet of wire between fuse block and battery. NOTE Due to the lack of air flow within a console, prolonged operation of this siren may require the console to be modified to improve ventilation.
All Product Collections The size of the drill bit should be determined by the size of the mounting hardware used and thickness of the mounting surface. Whelens audible warning devices are designed to project sound in a forward direction away from the vehicle occupants. Important information is contained herein that could prevent serious injury or damage. WHELENR.
ENGINEERING COMPANY, INC. ROUTE , WINTHROP ROAD Route these wires toward the vehicle siren speakers. HFSA1 WIRING DIAGRAM. Caution As mounting this unit will require drilling, it is absolutely necessary to make sure that no other vehicle components could be damaged in the process.
