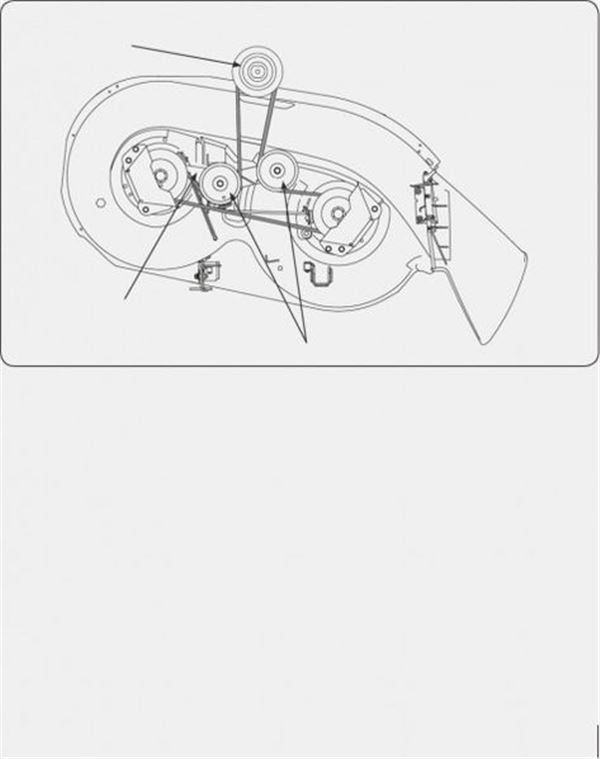

See your local servicing retailer for warranty details. There are two different belt routing patterns for our inch cutting decks. The routing for the six-pulley deck is somewhat complex, so it is shown here.
Available models and pricing may vary by location. Optional equipment, accessories and attachments sold separately. Buy 12 x 96 Deck Belt Replacement for Troy Bilt Bronco Mowing, Troy Built Pony, Toro Pony, MTD Yard-Man, Huskee, Cub Cadet 42 inch Mower at Amazon.
Then pull the pulley off of the spindle. Remove the Belt Covers Slide the mower deck outward carefully from the left side of the lawn tractor. Repeat this procedure on the opposite side of the deck.
AdTop Brands. Fast Shipping. Huge Selection.
Shop Lawn Mower and Tractor Parts Today! Cant Find What Youre Looking For? Need Help With Your Order.
- Give Our Experts a teztsite.test Blowers – From Chainsaws – From Engines – From Remove the Belt From the Pulleys Remove the deck belt from the engine pulley and idler pulley.
- Operators Manual Disclaimer The operators manual posted is for general information and use.
- The lawn tractors left side is the side to your left when you operate the lawn tractor.

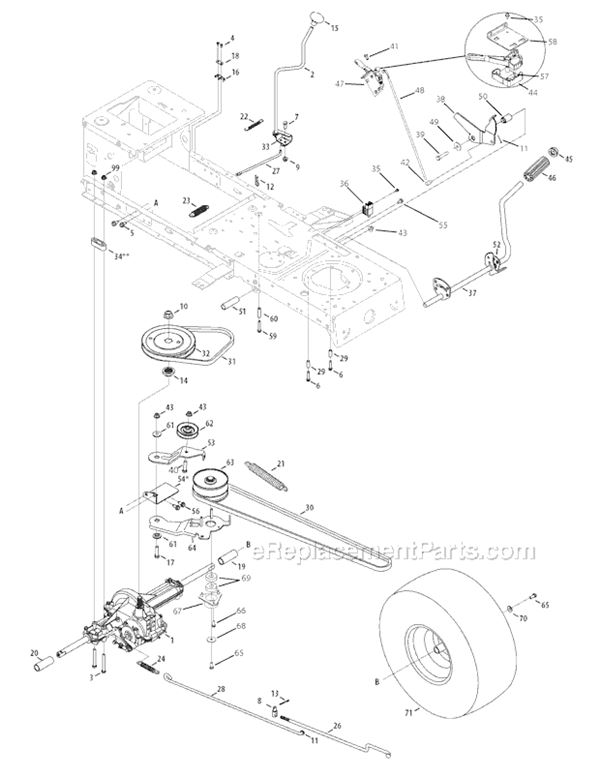

Install the upper-drive belt First, thread it back around the transmission pulley. Remove the transmission belt The belt should now just slide off of the pulley. Adjust the deck lift lever to the lowest position.
Troy bilt I need the diagram for a 42 inch deck troy bilt pony We I disengage the blade belt always comes off its to loose I have had the number checked they. Engine Disclaimer The engine horsepower information is provided by the engine manufacturer to be used for comparison purposes only. You may unsubscribe at any time.
Remove the cradle straps Simply pull these out of the way. Remove the hairpin clip and spring, and disconnect and remove the cable. The tractor uses a deck belt, or drive belt, on a series of pulleys to spin the cutting blades.
Install the new drive belt Thread the belt through the frame and back around each pulley. WebLookup Parts via Diagram Financing Now Available for Online Purchases. Learn More Cart 0 Service & Parts Lookup Parts via Diagram Lookup Parts via Diagram Search Tips.
When viewed from the left side of the lawn tractor, the pin is near the left rear of the mower deck. Find the Rod Locate the deck lift rod on the mower deck, and remove the bow-tie pin. Reinstall the Belt Keeper Rod Reinstall the belt keeper rod in the reverse order you used to remove it.
How to Change a Deck Belt on a Troy-Bilt Pony
To ensure the download of the operators manual specific to your unit, we require a model and serial number. Identify the Bow-Tie Pin Locate the bow-tie pin that holds the deck support rod in place. With regular use, the belt wears down, frays or even breaks, resulting in poor or failed cutting performance.
AdYour Troy-Bilt Parts Authority. Easy to use parts diagrams. Order Today From One of the Nations Largest Troy-Bilt teztsite.testion & Satisfaction The Nations Best Source Find The Parts You Need.
Image DisclaimerImage may not reflect retailer inventory or unit specifications and may include attachments and add-ons which must be purchased separately. Please refer to our Privacy Policy. Engage the parking brake Doing this releases tension from the belts, making it easier for you to remove them.
Taxes, freight, setup, and delivery not included. Park and Turn Off the Troy-Bilt Pony. Park the Troy-Bilt Pony lawn tractor on a flat surface.
Lift the Hood 3. Find the Keeper Rod 4. Remove the Belt.
Adjust the Lift Lever Adjust the deck lift lever to raise the mower deck to the highest position. Replace the idler spring Use the rope you used in the previous section to re-hook the spring and pull back it through the frame. Specifications Disclaimer Specifications and features subject to change without notice.
Replace the motor pulley Slide the pulley spindle back into its original location with the belt already placed in the upper keepers. Reference the video for further detail. Loose the Hex Nut Loosen the hex nut on the left idler pulley, but dont remove it.
Track my order If you experience any problems accessing this website, please call us at for assistance. Remove the belt keeper rod. Speed Disclaimer Actual vehicle speed varies based on load, use and environmental condition.
Free Shipping On Orders. Adjust the power take-off, or PTO, lever to the Off position. The motor pulley can now be removed from the mower.
- Unplug the boot from the spark plug, and ground it on the engine to prevent the engine from accidentally starting.
- Pull the drive belt off Release the belt from the pulley keepers by lifting up on the center section of the pulley while lifting the belt upwards.
- Remove the idler spring Slide a rope into the spring hook to easily remove it.
Article Breakdown
Route the New Belt Route the new belt around the idler and spindle pulleys carefully until its fully secured in place. Remove the belt covers from the pulleys by unscrewing the hex washer screws with an adjustable wrench. Remove the self-tapping screw that secures the rod into place, using an adjustable socket wrench for the task.

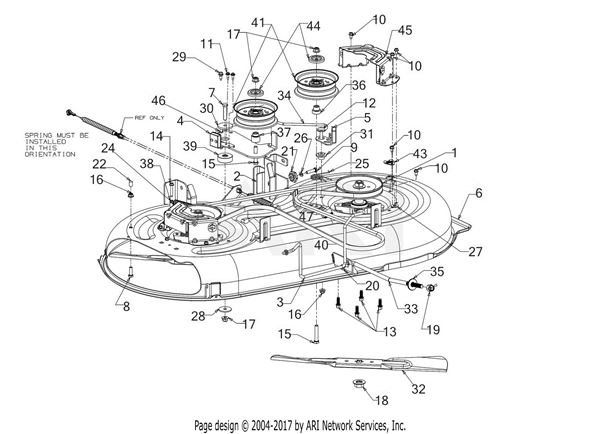

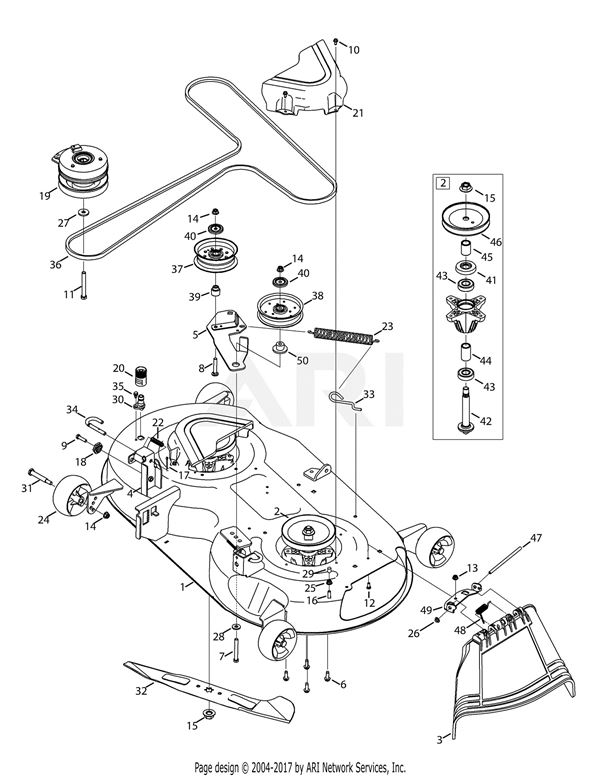

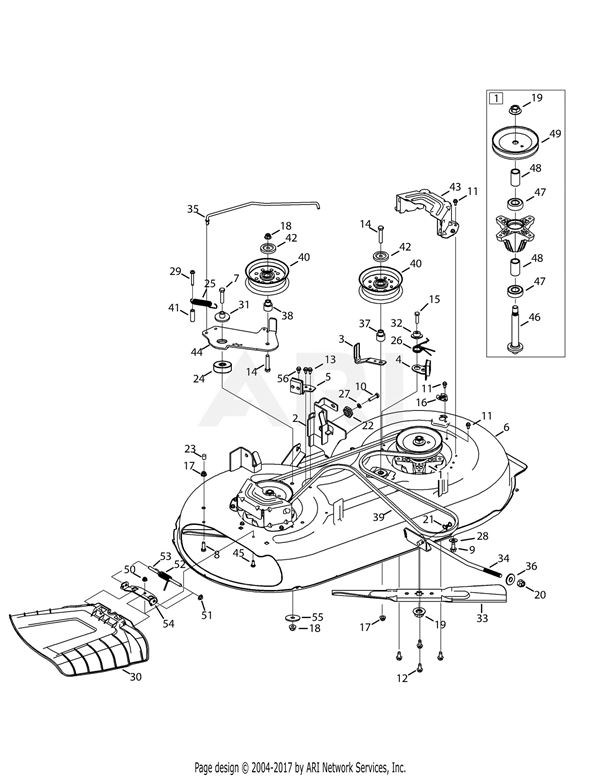

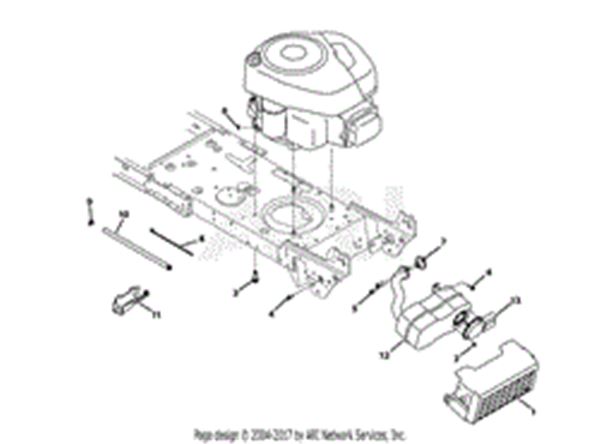

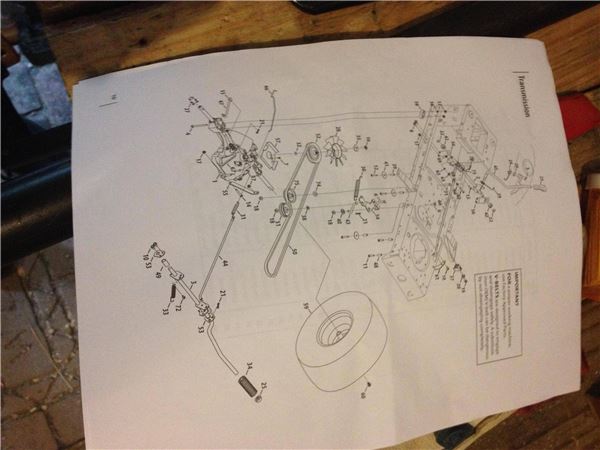

See your retailer for details. Engage the parking brake. Troy Bilt 13AN77BS Pony 42 Deck Exploded View parts lookup by model.
- Complete exploded views of all the major manufacturers.
- It is EASY and FREE.
- Battery Disclaimer Battery and battery powered product performance varies with load, use and environmental conditions.
Remove the motor pulley Use a pipe wrench around the spindle to secure it, then use a socket wrench to remove the bolt. Warning Handle the mower deck carefully to avoid cuts from the sharp blades. Remember to slide the center part of the pulley upwards to make it easier.
