Variable speed pumps need 2 inch pipe to give a better flow and most cost savings which is why you are purchasing the variable speed pump. Cross-linked Polyethylene PEX pipe, a form of high-density Polyethylene HDPE that has been processed to increase its resistance to heat, water pressure, and corrosion by adding cross-links The connections create an abundance of free electrons, reducing the attraction between the molecules, thereby increasing flexibility and durability. Remove rough edges or burrs on pipe.
Different types of pumps depend on how much debris or sand they can handle before being clogged up or damaged. Because of this, the joints are more likely to cause leaking problems years down the road. At the filter end these would tie in on the filter side or return side of the equipment, you can just stub it up there and cap it also.
Last update on at e Check valve A check valve helps see and control the flow and direction of water and other fluids through pipes. A bigger sized pipe is better suited for handling more water at one time than a smaller size pipe would. Get Tailored Advice & Exclusive Content If you plan to use something else in its place later, then removing it will be easy too, since nothing is glued onto these types.
Spigot Spigot is a male threaded fitting that attaches to a female pipe thread. FRP piping types are also known for their excellent resistance against damage from ultraviolet rays. Diatomaceous earth filters are designed specifically for dealing with the fine particulate matter without using chemicals or electricity.
Support above ground pipes and allow enough room for equipment services and repairs. Flex pipe is much easier to work with it lays flat in the trenches and makes turns without using flow restricting fittings. Having too small pipe sizes can cause leaks over time caused by extra force building up inside the pipes.
Circulation is an important part of any swimming pool, as it maintains the sanitary conditions of the pool water. Make straight pipe cuts with a sharp hacksaw, or reciprocating saw. It is also recyclable, so you can get it back and use it for another purpose after its life cycle with your pool.
Recent posts. Often overlooked, the plumbing network in a swimming pool or spa combo is quickly forgotten until it malfunctions. If you are not using a multiport control unit, try to match the pipe size with each plumbing fixture on its separate line.
However, it is also possible to purchase models that run on solar power. Filter Inground spas use one of three filters sand , cartridge, or diatomaceous earth DE to clean the pool water. Also keep in mind any codes that may exist for placement.
- It has three ports instead of just one like on an elbow joint allowing only this kind and no other types.
- It also compacts in the soil more fully, and is less likely to break under compaction.
- This calculation also considers any other equipment associated with the pump like valves, pressure tanks, etc.

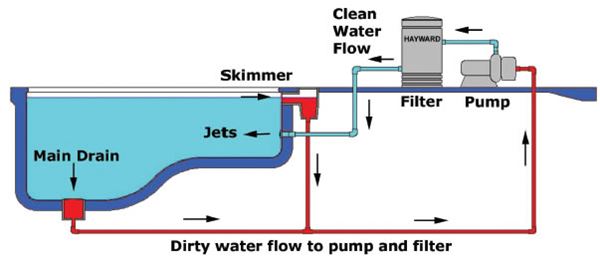

If not treated adequately during installation, the minerals can affect metal surfaces, including plumbing systems that use metals as their main components, such as steel and aluminum. When the pool pump pulls water from the swimming pool through the skimmer or the main drain, it pushes it to the pool filter for cleaning. Avoid plumbing loops where freezing water may become trapped.
Available at most home stores, you connect this to a garden hose, and push it into the skimmer. The elbows can be used to change the direction of where water flows or is stored. Now that you have all your lines run from the pool to the pad it is time to start connecting to your equipment.
- If you want to use rigid PVC on the plumbing, cut the flexible pipe at the bottom of the trench and glue it into a SlipxSlip elbow fitting which points up toward the street elbow you glued into the Jandy Valve.
- Pool Plumbing Trench Have the operator dig a trench from the pool to where your pool equipment will be your equipment pad.
- Why do pool plumbing pipe sizes matter?

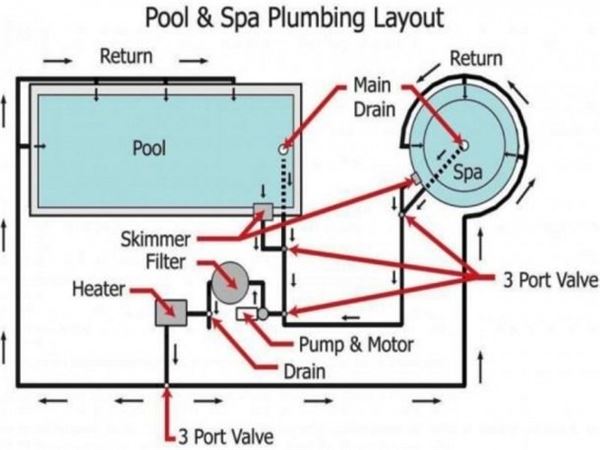

A basic pool or spa-only plumbing diagram is helpful to pool owners with no notion of the pool. I hope that this little article about how to plumb and pressure test a swimming pool has been helpful and informative. While there are many check valves available, Jandy valves are considered some of the best.

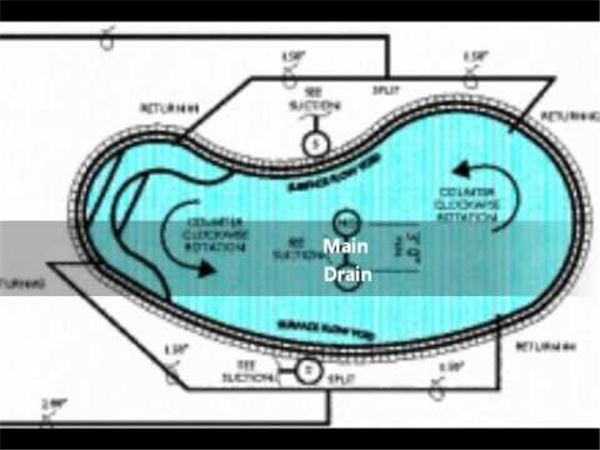

Too much or inadequate water in the pool can damage the expensive pool equipment and saddle you with expensive repair bills. Plumbing the Main Drains New main drain safety laws require the use of dual main drains, to prevent entrapment on a single main drain. In some cases you will need additional pipe, depending on the size of the pool, how many returns and skimmers, and any other water features you are planning, and the distance to the pool equipment.
Water-in the soil around pipes, to be sure dirt gets underneath, for support. This pool valve keeps the water flowing in one direction and stops the backflow when the pump is turned off. All pipes coming out of the ground should have the same height.
Get a free estimate online from top local home service pros in your area. Tina M Macleay. You will also need a measuring tape, a power saw, and sandpaper to smooth off edges after cutting.

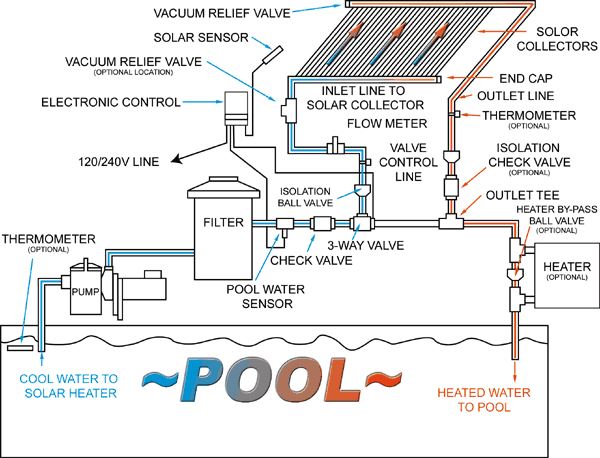

Solar Pool Plumbing Diagram. Often overlooked, the plumbing network in a swimming pool or spa combo is quickly forgotten until it malfunctions. Schedule 80 pipe is a gray PVC, with a 0.
It will also present the locations of the filter, disinfection device, valves, and pool heater. It can be used Most pumps are rated to work within specific ranges. All you need to do is fill the feeder with your chosen chemical chlorine, bromine, or mineral cartridge and let it do all the work.
Once outside of the wall, run this pipe all the way back towards the filter pump. Last update on at 5. In between these two elbow fittings, use a piece of rigid, schedule 40 PVC.
Pool Plumbing Layouts & Diagrams In The Swim
Heaters or heat pumps have special installation requirements. Inground Pool Plumbing How to Plumb a Pool Also this stuff is in the skimmeR. Your plumbing lines should be about 2 ft underground to protect them from surface soil slip and shift and from freezing temperatures.

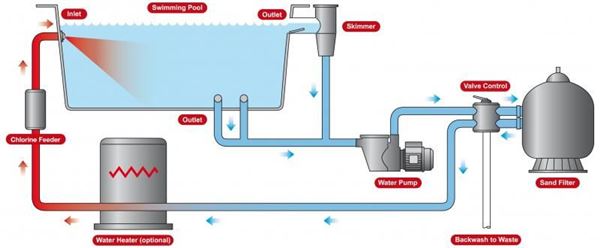

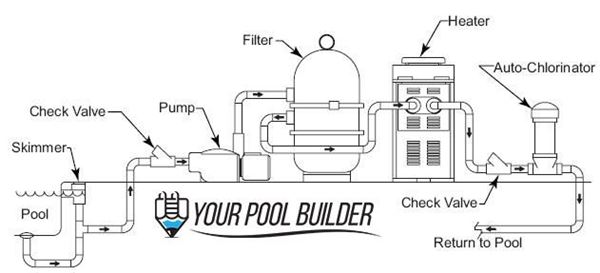

The plumbing in a swimming pool or spa combination continuously cycles the water through the filter to remove dirt and debris. Clean and glue your main drain pipe into 1 side of the valve and your skimmer to the other side of the valve. A spa heater adds to your swimming comfort while increasing your pool season.
These pool piping plans are also useful for pool plumbing renovations, where you might replace all above ground plumbing, along with new pool equipment. If however, you decide to use Black Poly, try to use as few underground connector fittings as possible, to reduce this possibility. Within 15 seconds of cleaning, apply a liberal coating of fresh PVC glue on the inside of the fitting and the outside of the pipe.
Pipes sizes need to match all the other aspects of water flow to make sure everything continues working smoothly throughout its entire life span. Depending on the desired flow rate, PVC pipes with a 1. Connect a pipe to the rear hole of the skimmer, leave the front hole plugged.
They tend to wear out rapidly if not adequately protected before being submerged in water after the process has been completed. For the best results, we recommend using your swimming pool pump and filter diagram before securing any permanent fixtures Water Of course, water remains the central component of any swimming pool, as it keeps the other elements in working order. Unions are useful for removing the pool pump easily for service or indoor winter storage.
Advanced filters remove bacteria and hair from pool water. Frequently Asked Questions If your swimming pool is still brand new, then chances are you have some questions about pool diagrams and schematics. It shows the line and valve connections between the pool and the pool room.
Future Piping Plans If you know when you install your pool that down the road you may want to add some water features, or an automatic pool cleaner , it is a good idea to run the underground piping when you install your inground pool kit. However, it can be susceptible to chemical attacks from pool chemicals. Typically, a tee fitting is installed on the return line, with a valve below the tee fitting, to control how much water is delivered or pumped to the device.
Set your pump, filter, heater, etc. The most commonly used pipe for inground pool construction is the ft roll of flexible PVC pipe 1. Make sure you get proper measurements on how much water your pump can handle before buying anything.

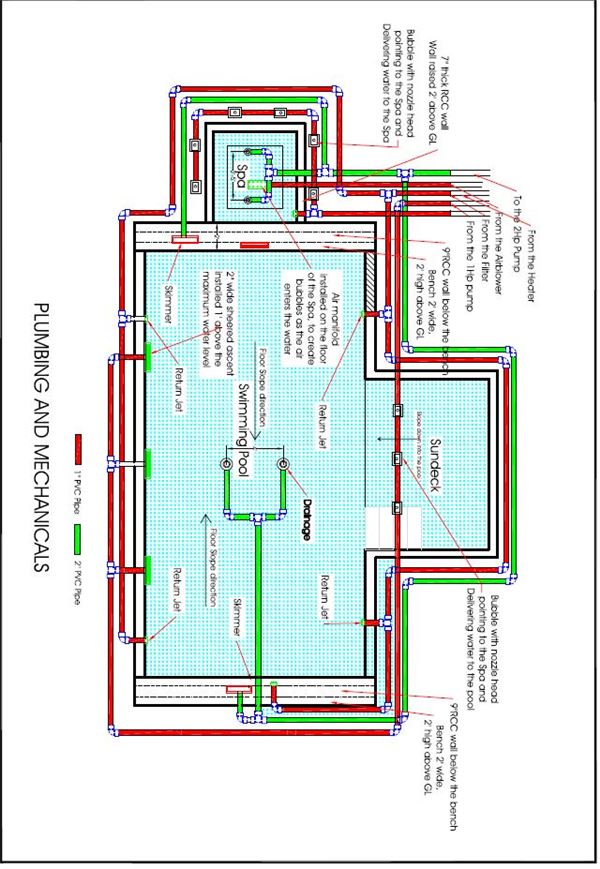

Technical room plan It provides the exact pool measurements length, width, and height. For an old-style Sylvan pool, you use a Double Plug held in place by a helper, and blow from the pump towards the skimmer, and once the drain starts blowing, the helper will slam the double plug down and tighten the wing nut. Hydraulic Plans Hydraulic plans are maps of the pump room, which detail the various pipes and components needed to ensure a safe swimming experience.
