- Put the wires in the order you need.
- The reason for using these standards is that the signals will run in the pairs of wires in a way that takes advantage of the noise-canceling effect of twisted wires.
- So, go on and find out more about the latest top Ethernet cables out there.
- What pins does Ethernet use?
Remember, the higher the resistance, the slower your network connection will be. Cat6 cables are tightly wound plus have thicker sheaths or are shielded very well to protect against near-end crosstalk. This is called MDI-X. On the other hand, wireless signals tend to weaken when going through walls plus often get affected by wireless cameras, microwave, satellite TV receiver, baby monitors, and even cordless telephones.
If you are unsure of which to use, choose B. Straight Throught Cable Color Code Wiring Diagram House Electrical Wiring Diagram Even though the wires are twisted, the signals are still vulnerable to in environments with a lot of electrical interference. Use straight through Ethernet cable for the following cabling Switch to router Switch to PC or server Hub to PC or server Use crossover cables for the following cabling Switch to switch. Web, Here a ethernet RJ45 Straight cable Wiring Diagram witch color code category 5,6,7 a Straight Through Cables are one of the most common type of patch.
They will determine your internet at Maximum speed plus if you will encounter delays and lags. We are making the TB standard for a straight-through, which means that the color order for the wires is going to be the exact same on both sides. Also, some Ethernet cables have information printed on them and this can help you identify the type of cable that you get. Use a gwood wire stripper or knife.
Difference of Straight Through and Crossover Cable Make sure the outer sheath is inside the RJ45 crimp. It is used only for certain applications. The cable is plugged into the network adapter on each device, and the network adapter converts the digital signals into electrical signals that can be transmitted over the wire. The different types of cables category or cat offer increasingly faster transmit and receive speeds.
The cables are designed with 4 twisted pairs of copper wires. It is one of the most common types of network cable. Use this guide if you are making Ethernet cables for personal or professional use. Solid core wires are usually used in a fixed installation.
The RJ45 UTP connector is the simplest one to work with since you do not have to worry about the shield. Disclosure Some of the links in this post are affiliate links and if you go through them to make a purchase I will earn a commission. Straight through cable color code wiring diagram a The first is the TA wiring standard and the second is TB. The first way is called straight-through and is the simplest one.
RJ45 Wiring Straight-through Cable
Wireless data connections are extremely useful because they provide a network signal to computers, mobile devices such as the iPad, Android mobile phones, tablets and other network devices or hardware at the same time. A straight through cable is a type of twisted pair cable that is used in local area networks to connect a computer to a network hub such as a router. While a patch cable links two different devices, a crossover cable links two similar devices. While still holding the cable with the wires in the correct order, cut the length of the wires down to 13 mm.
An ethernet cable is not one of these things. A crossover LAN cable will connect the receive at one end to the transmit at the other. Cat5E This is an improved version of the Cat5 standards. Depending on how the shielding is done in the cable, you can get several types of twisted pair cables with a shield.

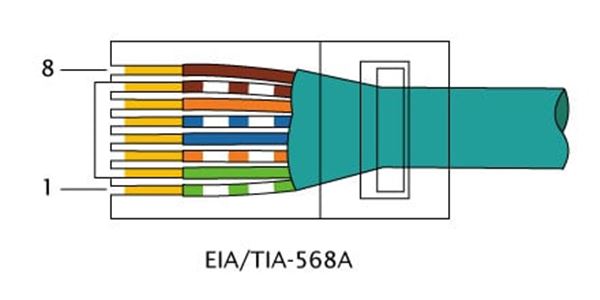

RJ45 Ethernet Cable Pinout However, the Ethernet cable is larger because it has 8 wires while the phone cable has 4 wires. , – straight through cable color code wiring diagram a. Ethernet Wiring, Electrical Wiring, Electrical Diagram, Crossover, Modular Plug. If you have several computers and a printer, you should buy a switch.
If you are going to make longer Ethernet cables you should use twisted-pair cables with the highest AWG number. While crossover cables are mostly used for connecting like devices. Sort them out to the correct color codes for the pinout. Each wire color has its own pin number position.
An Ethernet cable works by transmitting digital signals between devices on a network. One for each wire in a typical Ethernet cable with 4 pairs of wires. The Ethernet standards are used in most computers, both personal computers, and servers. RJ45 is a connector with 8 pins.
You probably know it from your own local area network. The difference from the A standard is that the orange and green pairs are swapped. Two of the most common ways are by following the TA and B standards. Contact Us Cat7 These cables also allow 10Gbps, 40Gbps at 50 meters, and Gbps at 15 meters.
The use of a cable has its own benefits since it provides faster service and a reliable connection. First, some information about the Ethernet cables, connectors and wiring. There are also very long ones with 75 meters able to run the wire over long distances. Similar devices have the send and receive at the same pin numbers.
It is worth noting that if a network cable is too long and of poor quality, it can affect your internet speed. But they are never used in industrial or noisy environments because they are vulnerable to noise. Join 8000 Subscribers Today There are two different pinout standards used worldwide, and depending on your location, you will determine which one you should use. The tool will also apply pressure to the opening of the connector, to secure the cable.
Straight Through Cables vs Crossover Cables
This is done with the RJ45 crimp tool. As I discussed before, there is category 5, category 5e, category 6, category 6e, and category 7 cables. Ethernet cable categories Cat cables RJ45 crimp tool To make the electrical connection we need to insert the wires in the RJ45 connector and press down the pins. You will make a connection between the pins used for sending in the one computer and the pins used for receiving on the other computer.
- When to use Straight Through Cable?
- This means that on top of the connector there is a small you can only connect it in one way.
- After the wires have been spread apart, organize them into the correct color order of the desired cable.
- Ethernet over twisted pair is what we are going to use to make an Ethernet cable.
- When to use Crossover Cable?

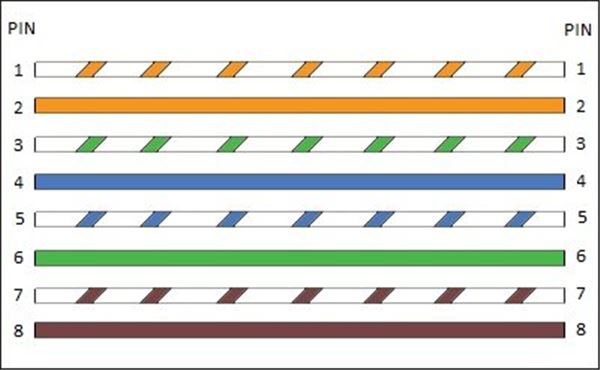

- On a straight through cable, the wired pins match.
- Because, when you connect an Ethernet cable to an RJ45 connector you will be using a crimp tool.
- They are designed to work with Ethernet ports and most devices often get network access via routers, TVs, computers, and PCs all have Ethernet ports.
It is able to handle an internet speed of up to Mbps. But the STP connector has a metal shield or metal housing around the connector. It Connects two computers directly. Ethernet crossover cable The second type of cable you can make is the crossover Ethernet cable.
The crossover cable is connected with the A and B standard in each end. As the cables get longer, so does the resistance. How many pins does Ethernet use in a RJ45 connector? The answer to this question depends on what you want to use your internet connection for.
How To Make An Ethernet Cable (Crossover & Straight-through Method) PLC Academy

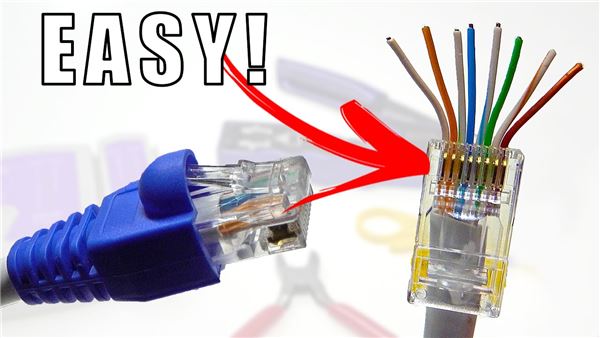

Make sure that you hold the RJ45 connector the right way, so the pin numbers are aligned correctly. But practice makes better, and eventually, you will even start to enjoy making Ethernet cables. Download Step 3 Putting the Wires in the Connectors Next, this will need at least 2 RJ45 wire connectors, one for each side of the cable. Unlike straight through cable, the RJ45 crossover cable uses two different wiring standards one end uses the TA wiring standard, and the other end uses the TB wiring standard.
This category is now outdated since it is slower and old. RJ45 Wiring Straight-through Cable Crossover Cable, which one to choose? Ethernet Cable Performance There are various categories or types of Ethernet cables on the market now. Data carried through these waves can be intercepted.
Networks are usually vulnerable to noise. Or you can read reviews on the best RJ45 crimper on the market. This category has almost the same specifications as cat5, except for some limits in for example the return loss. Each wire should find its own track leading it to the pin.
Remember, it can be tricky in the beginning, especially with the thick wires. STP refers to all the cables with either a shield or a foil to protect the signals from noise. Network devise to the network device. This is important when streaming or playing video games using your gaming consoles online.
You will get information such as category which is abbreviated as cat plus a number. The devices that the cable connects to include your laptops, PCs, network switch, and router. Read through this post to find the answer. The recommended maximum length for any structured cabling is m.
