The Rankine cycle is an idealized thermodynamic cycle describing the process by which certain heat engines, such as steam turbines or reciprocating steam engines, allow mechanical work to be extracted from a fluid as it moves between a heat source and heat sink. The Rankine cycle is See more. Type your email.
Point indicates pump in Rankine cycle Work done incurs to the system. That is, we could send lower h stuff to the pump, but wed have to send more of it. This raises the average temperature at which heat is added to the steam and thus raises the thermal efficiency of the cycle.
To preheat the feed liquid to its saturation temperature, bleed vapor from various positions of the turbine is passed through external heat exchangers regenerators , as shown in Figure 5. Rankine Cycle Component 4 Condenser Point indicates the condenser. Figure 5.
This makes them roughly equal and keeps either one from having an astronomically high pressure ratio. How regeneration works The idea behind regeneration is that we split the turbine into high-pressure and low-pressure stages and do the same for the pump. Similarly, it rejects all of its heat at the same low temperature.
The High-Pressure Pump Inlet S6 Our whole purpose in adding heat to this water is to raise its temperature before it enters the heater and improve the cycle efficiency. Rankine Cycle Rankine cycle is the idealized cycle for steam power plants. This cycle is shown on p-v.
- T-v, h-s, diagram in the above figures.
- As no heat is supplied or rejected during this process, there is no change of entropy.
- We can retract the isoparametric assumption and instead assume the stuff entering the low-pressure turbine is a saturated vapor.
So why not do this? Adiabatic Expansion The dry saturated steam now expands adiabatically. This decreases the temperature and pressure of the vapour, and some condensation may occur.
The heat absorbed by water dring this operation is equal to the sensible heat or liquid heat corresponding to the pressure P1 i. Explaining Rankine cycle in an easy In this case, the hot gas leaving the turbine is used to provide the energy input to the boiler. Process is constant pressure heat addition in boiler.
Processes 12 and 34 would be represented by vertical lines on the Ts diagram and more closely resemble that of the Carnot cycle. According to the Carnot process, the highest efficiency is reached if heat transfer occurs isothermally. Left from the bell-shaped curve is liquid, right from it is gas, and under it is saturated liquidvapour equilibrium.

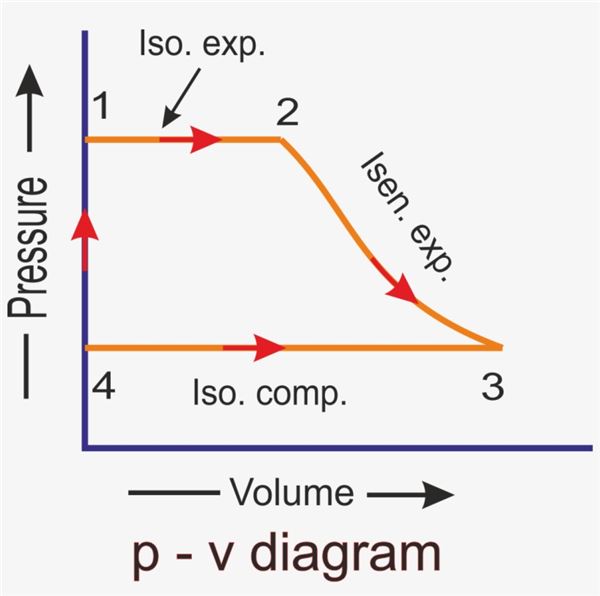

Obviously, this area can be increased by increasing the pressure in the boiler and reducing the pressure in the condenser. T-S and P-V diagram for Rankine-cycle Figure 3 Rankine cycle T-s diagram Knowing this, lets look at Figure 3. There are four processes in the Rankine cycle.
Process 23 The high-pressure liquid enters a boiler, where it is heated at constant pressure by an external heat source to become a dry saturated vapour. In case of the ideal Rankine cycle, the pump and turbine would be isentropic so, they will be generating maximum network output while generating no entropy. The fluid will be heated at constant pressure with the help of an external heat source and it will become a dry saturated vapor.
Subscribe to Blog via Email The pressure of the condensate is raised in the feed pump. We dont know yet, so well choose kPa, which gives the two turbines pressure ratios of 25 and The efficiency of the Rankine cycle is limited by the high heat of vaporization of the working fluid. In co-generation systems, the energy rejected by the Rankine cycle is used for space heating, process steam or other low temperature applications.
Also shown is the percent gain in power output of the modified cycle when supplied with the same heat as the unmodified Rankine cycle and the mean temperatures of heat addition for both cycles. The overall effect of lowering the condenser pressure is an increase in the thermal efficiency of the cycle. Ideally, the temperature of the bleed steam should be as close as possible to the temperature of the feed liquid.
Rankine cycle with vapor superheating. As the fluid is a liquid at this stage, the pump requires little input energy. Process Constant Pressure Heat Addition Process in Boiler In case of this process, the high-pressure liquid will enter the boiler.
The only limit we really need to consider is the practical use of the pump. This allows each stream to have different specific properties v, h, and so on , though they still have the same temperature and pressure. In co-generation systems, the energy rejected by the Rankine cycle is used for space heating, process steam or other low temperature applications.
Search Rankine cycle The Rankine cycle or Rankine Vapor Cycle is the process widely used by power plants such as coal-fired power plants or nuclear reactors. The greater the differential, the more mechanical power can be efficiently extracted out of heat energy, as per Carnots theorem. This has the additional advantage that the vapor quality after the turbine is increased and, therefore the erosion of the turbine blades is reduced.
Reheat Rankine Cycle a schematic representation of a reheat Rankine cycle b T-s diagram of a reheat Rankine cycle The energy added per unit mass of steam in the steam generator is given by, The energy rejected in the condenser, The thermal efficiency, Regenerative Cycle a schematic diagram b T-s diagram Consider the feed water heater as the control volume and apply the first law of thermodynamics to obtain. The selection of operating fluid depends mainly on the available temperature range. The water exiting the low-pressure pump is only at 46 C and the water entering the heater in the original Rankine cycle was at about the same temperature adding pressure to an incompressible fluid doesnt raise its temperature much.
Isothermal Compression The wet steam is now isothermally compressed at constant temperature T3 and pressure p3 unit the whole steam is condensed into water. Rankine Cycle Ts, Pv Diagrams, Reheat, Equations, Thermal Efficiency, Examples In practice, the expansion is limited by the temperature of the cooling medium and by the erosion of the turbine blades by liquid entrainment in the vapor stream as the process moves further into the two-phase region. The deposition of dirt in condensers during operation with cooling water reduces the efficiency.
However, the energy to drive the pump is usually more expensive than the energy to feed the boiler. The steam quality x at the turbine outlet is determined from the assumption of isentropic expansion, i. The input energy required can be easily calculated graphically, using an enthalpyentropy chart hs chart , or Mollier diagram , or numerically, using steam tables or software.
Rankine Cycle – Processes, Efficiency P-v and T-s Diagram
So, these are the four processes in the ideal Rankine cycle. The states are identified by numbers in brown in the Ts diagram. The water is heated to the saturation temperature, keeping the entropy constant.
- Rankine Cycle Component 2 Boiler Point represents the boiler in the cycle.
- The basic Rankine cycle The configuration consists of three chemical reactions or three physical steps and uses mainly thermal energy to achieve its objectives.
- The highest temperature.
Rankine cycle process T-s diagram In case of the process 1 -2 Isentropic compression In this process, the working fluid will be pumped from low pressure to high pressure. The Rankine cycle operates in the following steps Isobaric Heat Transfer. If you can see in the above image the process and are shown via the vertical lines.
- Pressure is increased in this stage.
- The transfer of heat across a large temperature difference increases the entropy.
- Rankine engines generally operate in a closed loop where the working fluid is reused.
It is quite common to reheat the vapor after expansion in the high pressure turbine and expand the reheated vapor in a second, low pressure turbine. Lets try it. Another equivalent solution is to declare MXR1 to be isobaric.
Rankine Cycle with Regeneration
So, when we look to improve a cycles efficiency, we often consider the mean temperature of heat addition, Ta and the mean temperature of heat rejection, Tr. Figure 4 a Rankine cycle with regeneration Choosing regeneration assumptions With the design layout complete, we turn to adding the assumptions which allow CyclePad to solve the cycle. However, the better approach is to tell CyclePad to make the two pressures equal, using the Equate T S5 to another parameter option.
