- This guide comes in handy whether you are installing a navigation system, MP3 player or even putting the factory stereo back in.
- These changes are easy to see and notice, especially when you are installing an aftermarket stereo.
Electricity is very dangerous and can easily lead to electrocution, so you need to call an emergency electrical contractor for sensitive cabling cases. So if you accidentally touch a live line, the RCD would identify the unusual flow of the current and immediately switch off the circuit. WebChevy Wiring Chevy Silverado Radio Wiring Diagram th, – chevy silverado radio wiring diagram in addition 1lsy2 fuse box located chevy equinox. Terminal connections go through a lot of stress, and poor joints easily loosen up. 2008 Chevy Silverado Radio Wiring Diagram Collection So heres the trick.
When wrapping a wire around the terminal screw, do it in a clockwise direction. Best tricks and techniques in home cabling Necessary Always Enabled Necessary cookies are absolutely essential for the website to function properly. These are also known as the C or trucks, and they use a different wiring diagram to install your aftermarket stereo. If you are looking to install an aftermarket navigation system or even a single DIN stereo with a pop-up face, you will need a install kit as well as new mounting brackets. Installing a stereo into your Chevy Silverado is easy to do with our truck audio wiring diagram.
- RCDs are devices that are widely-used to monitor the flow of current through a particular circuit, and they cut off the existing whenever it flows through an unintentional path.
- Our Chevrolet Silverado radio wiring guide shows you how to connect car radio wires and helps you when your car radio wires not working.
- It also shows you.
- Our best advice is not only look in the diagram, nevertheless understand how the components operate when within use.
- Inside case there are a terminal slot, you need to be extra careful.
This stereo is found in many of the Chevy vehicles in this year range, and even the Corvette. Strip the wire perfect such that no insulation goes underneath the slot, and no bare wire is left. For example , when a module is powered up and it sends out a signal of half the voltage in addition to the technician would not know this, hed think he offers a problem, as this individual would expect a 12V signal. Likewise, ensure youve obtained a tester to test the volts of the wire connections before and after working on them. OEM radio stereo harness pin assignment With this trim of Chevy Silverado, you can use an install kit to upgrade the base radio.

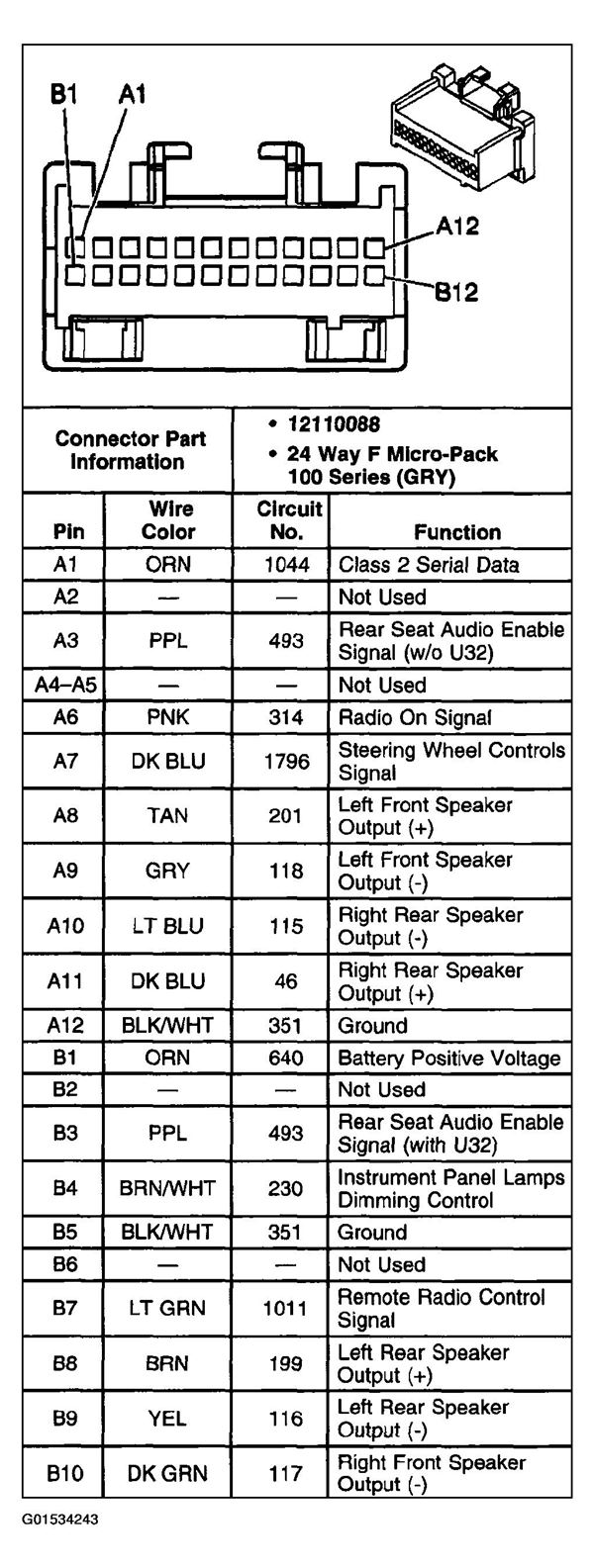

Radio X1 (OEM , Service connector). Pin. Wire. Function. RDWH.
Close Privacy Overview This website uses cookies to improve your experience while you navigate through the website. 2003 Chevy Impala Stereo Wiring Diagram 2000 S10 Radio Data E280a2 8h Web, RADIO Radio Wiring Diagram, with Y91 & with UQA (1 of 3) Radio Wiring Diagram, with Y91 & with UQA (2 of 3) Radio Wiring Diagram, with Y91 & with UQA (3. Chevrolet (2007-2012), GMC (option US8) Head Unit pinout Related Posts. Close Privacy Overview This website uses cookies to improve your experience while you navigate through the website. Leave them for us below and let us know.
Car Radio Ground Wire Black on 16pin plug Next up in our Silverado stereo wiring guide is the auxiliary audio input wires. But opting out of some of these cookies may affect your browsing experience. WebAIR CONDITIONING Chevrolet Silverado SYSTEM WIRING DIAGRAMS ANTI-LOCK BRAKES Chevrolet Silverado SYSTEM WIRING. You are looking for the 20pin harness on the back of your Silverado stereo here. Watch your airport terminal contacts Terminal cable connections would be the conclusion details of wires, where a connection with a circuit occurs.
Car radio wiring harnesses that work with your Silverado Installation gear and helpful advice Because this is a double DIN unit, you can get away with just a mounting bracket to make your stereo fit properly. If you are installing a stereo into your Silverado of this generation, you will need to use an install kit like the one shown below. Use of an install kit allows you to bolt in a single or double DIN into this stereo opening. 2008 Chevy Silverado Radio Wiring Diagram Just bought this truck couple weeks ago. Found reliable help the last time with my problem.
- Now my problem is the loud ass stereo system it.
- It is mandatory to procure user consent prior to running these cookies on your website.
- Twitter When you want to upgrade your Chevy truck stereo or radio, you can take it to a professional or try to do it yourself.
- Web, This video demonstrates the Chevrolet Silverado Complete Wiring Diagrams and details of the wiring harness.
- Diagrams for the following systems are.
Share this. Out of these, the cookies that are categorized as necessary are stored on your browser as they are essential for the working of basic functionalities of the website. Any faults here could cause the wire to the touch the ground wire or box. For select and Silverados, the stereo wiring works out slightly differently. RADIO Chevrolet Silverado SYSTEM WIRING DIAGRAMS Radio Wiring Diagram, with Y91 & with UQA (1 of 3).
Get Access all wiring. Need a radio wiring harness for your Chevrolet Silverado? Get FREE 2-day shipping and free lifetime tech support with your order. Non-necessary Non-necessary Any cookies that may not be particularly necessary for the website to function and is used specifically to collect user personal data via analytics, ads, other embedded contents are termed as non-necessary cookies. , – Chevy Silverado Radio Wiring Diagram.
- Chevy Silverado Radio Wiring Diagram Best Of.
- Chevy S10 Stereo Wiring Diagram Arcnx.
- These cookies do not store any personal information.
- One need to never attempt functioning on electrical cabling without knowing the below tips and tricks followed by even the many experienced electrician.
- Web, Wire.
Function. BNWH. Remote Radio Left Audio Signal (U2K) 2. D-GNWH. Remote Radio Right Audio Signal (U2K) 3.
BARE. Drain Wire (with UQA, UQS. We have a How To guide on installing a Sierra stereo here which shares the same stereo removal procedure. If your Chevy Silverado has a pin plug on the back of your stereo, you will need to follow this guide instead of the previous one. The ordinary pliers would give you a loose connection that may cause trouble in future).
Of which way, the screw tightens the link as it goes in. Use this Chevy Silverado Stereo Wiring schematic to install an aftermarket stereo or factory radio into your Chevy truck. 2008 Chevrolet Silverado Stereo Wiring Diagram These are some of the most typical connections, particularly if youre dealing with receptacles and buttons. However, you may work on minor electrical wiring in your home provided you follow safety measures. Many of these changes affect your install if you are intending on ditching the factory navigation or infotainment system.
For instance, avoid knives as opposed to stripshow when stripping your wires. It is positioned on socket outlets or fuse boxes to prevent electric shock in the situation of a DIY blunder. If you happen to own a C Silverado, the wiring will vary ever so slightly. 2011 Chevy Silverado Radio Wiring Diagram Best Of Wiring Diagram Image This keeps both your family safe. Depending on the double DIN stereo you are trying to install, you may need a mounting kit.

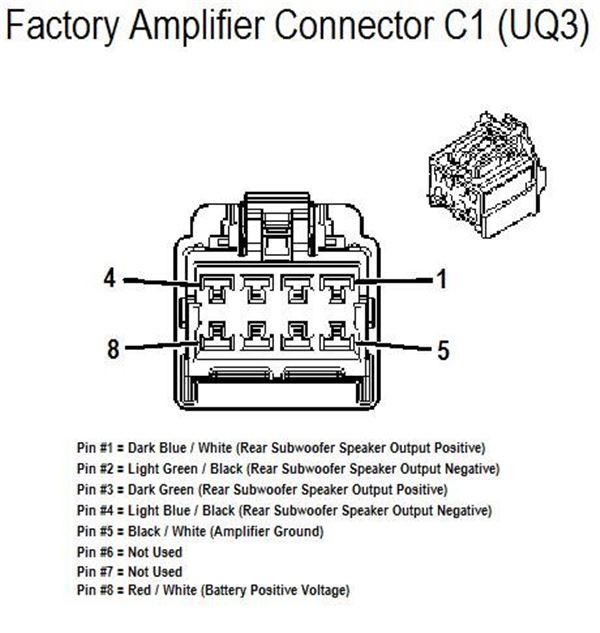

This unit powers the front speakers as well as the subwoofer if your Silverado came with one. This is an important part of your stereo install, especially if you are adding additional inputs. You will be in a far greater position to safeguard yourself and work better. Use proper tools Having the right tools at hand is another important aspect of electric work. I got you covered.
Next diagrams is reasonably simple, but applying it in the scope of how the device operates is the different matter. Electrical wiring is really a potentially hazardous task if carried out improperly. How To Chevy Silverado Stereo Wiring Diagram We also use third-party cookies that help us analyze and understand how you use this website. Third generation Silverado Stereo Wiring Diagram The newest Silverado has several different options from Chevy that can complicate your stereo install. Chevrolet Silverado 1500 2008 ALL WIRING DIAGRAMS Customer I need a radio wiring diagram for chevy silverado standard cdstereo.
Answered by RussMasterTech in 13 mins 14 years ago. Whether you are a professional stereo installer or just trying to upgrade your truck stereo, this wiring guide can help you. Knives may weaken the wire by notching the copper inside. Read the particular schematic like a roadmap. Also ensure that all the wire thats twisted around the mess is stripped.
- Choose linesman pliers as opposed to the ordinary slip-joint giant pliers when intending to twist wires.
- RADIO Chevrolet Silverado 1500 2008 SYSTEM WIRING DIAGRAMS To make you better at wiring, here are some reliable tips and techniques you need to perfect).
