Ensure proper power distribution by connecting your spa’s control panel and components according to the manufacturer’s instructions. Use dedicated circuits with the appropriate breaker size, usually 30 to 50 amps, depending on the model’s requirements. A GFCI breaker is essential for safety and to prevent electrical hazards due to moisture exposure.
Correct wire gauge is critical for safe operation. For most spas, a 10/3 or 8/3 wire is commonly recommended, but always verify with the manual. This ensures that the electrical load can be properly handled without risk of overheating.
The grounding system plays a vital role in protecting users from electrical shock. Proper grounding connections should be made from the spa unit to the grounding rod, ensuring there is no interruption in the safety path.
Before connecting any components, double-check the voltage requirements of the spa’s motor and heating elements. A mismatch between voltage and the electrical system can lead to failure or damage. Follow all guidelines on correct terminal connections and circuit ratings to avoid short circuits and other malfunctions.
For optimal performance, it’s recommended to use corrosion-resistant connectors, especially in outdoor installations, to prevent rust and ensure longevity of the system. Additionally, use waterproof seals and covers for exposed wiring connections to avoid water-related issues.
Electrical Layout for Spa Installation
When connecting a spa to a power supply, ensure a dedicated 240V circuit is used, typically rated for 50 amps. For proper safety and efficiency, use 6 AWG wire for the connection, and install a suitable ground fault circuit interrupter (GFCI) breaker. This ensures protection from electrical faults.
Begin by running the supply line from the breaker panel to the control panel of the spa. Use a flexible conduit for easier handling and installation. At the control panel, secure all incoming power cables to the designated terminals, ensuring tight and secure connections.
For the heater element, connect the wires to the terminals marked for high voltage, ensuring no cross-contact with the low-voltage components. Confirm that the ground wire is properly attached to the grounding terminal, reducing the risk of electrical shock.
Ensure that the junction box is properly sealed and rated for outdoor use. Outdoor-rated components are crucial for preventing moisture and corrosion from affecting the electrical system.
Lastly, test the system before full operation. Use a multimeter to confirm voltage at all terminals and check for any grounding issues. A functional test ensures that all components operate as expected, without any overheating or tripped breakers.
Understanding the Power Supply Connections for a Spa Electrical Setup
Ensure the main power source matches the unit’s voltage requirements. A typical unit operates on 240V, requiring a dedicated 40-50 amp breaker and a properly sized cable (usually 6 AWG). Verify that the electrical panel can handle the load to prevent overloads.

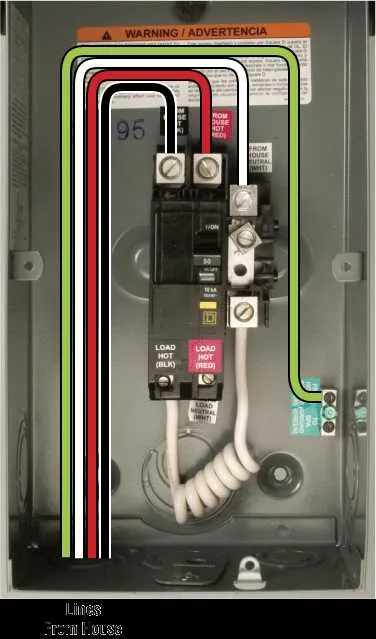

Install a GFCI (Ground Fault Circuit Interrupter) for safety. This protects against potential electric shocks by cutting power if a fault is detected. The breaker should be rated specifically for your unit, typically 240V and 50 amps, with the interrupter installed between the power source and the unit.
Correct grounding is crucial for safe operation. Use a copper grounding wire connected directly to the unit’s grounding terminal. Ensure that the ground wire is securely attached to the main panel’s ground bus bar to avoid any electrical hazards.
Verify the proper wire gauge for the distance between the power source and the unit. For runs over 100 feet, you may need to increase wire size to prevent voltage drop. Always calculate the exact length and check local regulations for compliance.
Check connections before powering up. Tighten all terminals and inspect the junction box for any loose connections or signs of corrosion. Poor connections can cause overheating or malfunction of the system.
How to Connect a Spa Control Panel and Heater System
Ensure power is disconnected before beginning any installation. Always verify the electrical supply is off to avoid electrical shock or damage.
The control panel should be installed in a dry location near the pool or spa unit. Mount it securely on a non-combustible surface, following the manufacturer’s recommended placement. For proper operation, the circuit breaker must be installed in close proximity and be clearly marked for easy identification in case of emergency.
Start by connecting the power supply to the main terminal of the panel. Use an appropriately rated 14/2 or 12/2 gauge wire based on the system’s voltage requirements (check the panel specifications). Strip about 1 inch of insulation from the ends of each wire before attaching them to the designated terminals. Securely tighten the screws to ensure a solid electrical connection.
Next, connect the heater’s input wires to the control panel. The heater unit typically requires a separate dedicated line. Use a four-wire connection (two for power and two for grounding) and ensure that the ground wire is attached to the panel’s designated grounding terminal. Insulate any exposed wire properly to prevent accidental contact.
Ensure the temperature sensors are correctly connected to their respective terminals, following the control panel’s guidelines. These sensors must be positioned in a way that they accurately measure water temperature, ensuring the system operates within safe limits.
After the panel is connected, verify all connections are correct. Double-check the wiring layout and confirm there are no loose or exposed wires. Once all connections are made, replace the panel cover and seal it securely to prevent water ingress.
Finally, restore power and test the system for proper function. The heater should activate when the panel is set to the desired temperature, and the control panel should respond to input commands without delay.
Troubleshooting Common Electrical Issues in Spa Systems
If your spa is not functioning correctly, begin by inspecting these key electrical components:
- Power Supply: Ensure the power source is properly connected and delivering the correct voltage. Use a multimeter to verify output levels.
- Breaker Trip: If the circuit breaker trips, check for any short circuits or overloaded connections. Reset the breaker after addressing the cause.
- Connection Check: Inspect all terminals for loose or corroded connections. Tighten or clean as necessary to restore full conductivity.
- Ground Faults: Test the ground fault circuit interrupter (GFCI) for functionality. A faulty GFCI could prevent power from reaching critical components.
- Element Failure: Verify if the heating element is working by measuring continuity. Replace it if it shows no continuity.
Use the following steps to isolate and address electrical malfunctions:
- Turn off the main power to avoid further damage.
- Inspect each electrical component systematically, starting from the power input to the control board.
- Use a continuity tester on wiring, ensuring there are no breaks or shorts.
- Replace damaged or worn-out components immediately to prevent safety hazards.
- After repairs, test the system step by step to ensure full operational functionality.
For more complex issues, contact a licensed technician for in-depth analysis and repairs.
