Ensure correct connections by following the standard arrangement of wires when linking a 6-point connector to a vehicle. Each slot serves a specific function, from grounding to controlling lights and other electrical features. Start by identifying the exact slots and the corresponding cables needed for each. Incorrect placement can lead to malfunctioning or short circuits.
Typically, the first slot should be used for the ground wire. This is crucial for the safety of the entire system, as it prevents any build-up of electrical charge that could damage other components. The second one is often reserved for the left indicator light, while the third is designated for the right indicator light.
The other slots are generally allocated for the brake light, reverse signal, and auxiliary power, depending on the vehicle’s needs. Consult your vehicle’s manual to ensure proper connections, as some systems may vary. Always double-check each wire’s placement and use high-quality connectors to ensure durability and reliability.
Remember: Using the wrong wire in the wrong slot could cause severe damage to the electrical system. Take extra care to test each connection before finalizing the setup.
Understanding the Connections of a 6-Terminal Connector
Connect the terminals correctly to ensure proper functionality. Each terminal on a 6-terminal connector serves a specific purpose. For example, the first terminal usually handles the ground connection, while the second one often manages the left turn signal. The third terminal is typically used for the right turn signal, and the fourth one is dedicated to the brake light.
Proper placement of the remaining terminals includes powering the tail lights and supplying the reverse light circuit. Double-check your connections with a multimeter to verify proper voltage levels across each terminal. Ensuring the wires are securely fastened will prevent shorts and electrical issues.
Test all connections after wiring is complete. Turn on the vehicle’s lights, signals, and brakes to confirm each function is correctly linked to the appropriate terminal. If any functions are not working as expected, recheck your wiring setup to troubleshoot the connections.
Understanding the Connector Configuration
To ensure proper function, begin by correctly assigning each connection point. The most common setup for a 6-point connector involves specific wire placements to accommodate both lighting and braking systems.
Typically, the first and second connectors manage the left and right indicators, while the third handles the tail light. The fourth and fifth are dedicated to ground and braking controls. Finally, the sixth is used for reverse or auxiliary power, depending on your setup.
It’s essential to follow the standard convention for each slot to avoid malfunction. If unsure, cross-check your connections with a multimeter to ensure each terminal corresponds to the right function.
Always use durable, weather-resistant cables to prevent corrosion or wear from prolonged exposure to outdoor conditions.
How to Properly Connect the Connector

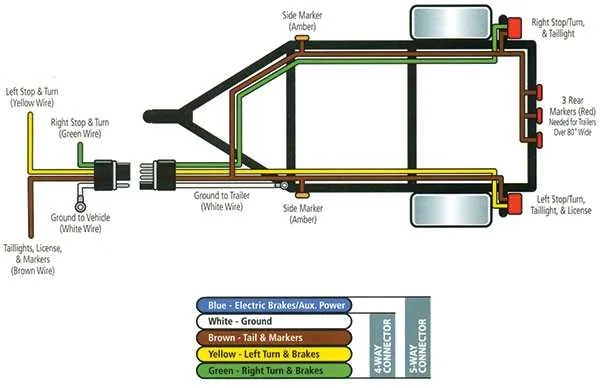

Ensure that the electrical contacts are clean and corrosion-free before beginning. Use a wire stripper to remove the insulation from the wires, exposing about 1 inch of copper. Match each wire to its corresponding terminal according to standard color coding–white for ground, brown for the right side lights, yellow for the left side, green for the brakes, and blue for auxiliary power.
Secure each wire with a crimp connector to ensure a strong bond, then insert the connectors into the terminal slots. Tighten the screws to hold the wires in place, ensuring a firm connection. Once all the connections are made, check for any loose wires or exposed metal. Use electrical tape to cover any exposed wires to prevent short circuits.
After the initial setup, test all connections with a multimeter to ensure proper functionality. Verify that the lights and power are functioning correctly, and check for any issues in the connections. Double-check that all wires are properly secured and insulated before use.
Common Connection Issues and Fixes
If the electrical setup is malfunctioning, first check the grounding. A poor ground connection is often the root cause of many problems, such as lights not working or intermittent connections. Ensure that the grounding point is clean and securely fastened.
- Verify that all contacts are corrosion-free and make proper contact with their counterparts.
- Inspect for loose or damaged wires, especially near connectors.
- Replace any worn-out or corroded connectors to ensure good electrical contact.
Incorrectly matched colors or terminal placements often lead to errors. Check the connections for each wire according to the correct standard, ensuring each wire is placed in the appropriate terminal for its intended function.
- Check if the right wire goes to the appropriate terminal (e.g., tail lights, brake lights, ground).
- Use a multimeter to test continuity across the entire circuit to ensure no breaks.
Fuses and relays often get overlooked. A blown fuse could cause some or all features to stop working, while a faulty relay may cause the electrical load to fail intermittently. Replace damaged fuses or relays and test the system again.
- Check each fuse for continuity and replace any blown fuses.
- Ensure the relay is functional and appropriately rated for the load.
Regularly cleaning connectors will prevent buildup that can obstruct electrical flow. Cleaning solutions specifically designed for electrical components will ensure that the contacts remain free of debris and corrosion.
