Start by ensuring you have a clear understanding of the power system layout. A reliable electrical connection is critical for efficient operation. Focus on the correct placement of the batteries, the controller, and the necessary switches to prevent damage to the components.
Battery Configuration: Place the batteries in a series arrangement, maintaining proper polarity. Ensure connections are tight to avoid power loss. Use high-quality cables to reduce resistance and improve performance. Double-check the battery terminals for corrosion, which can lead to operational issues.
Controller Placement: The controller must be connected to the battery pack with properly rated cables. Verify the controller’s input and output pins align with the corresponding terminals to avoid short circuits. An improperly wired controller can lead to failure or even cause dangerous sparks.
Switches and Relays: Relays should be correctly installed to handle the high current. Each relay should be tested to ensure it is functioning correctly before the system is powered up. Switches should be rated for the voltage and current to avoid overheating and malfunction.
Regularly inspect all connections and components for wear or damage. Over time, loose or degraded parts can compromise the system, leading to reduced performance or complete failure.

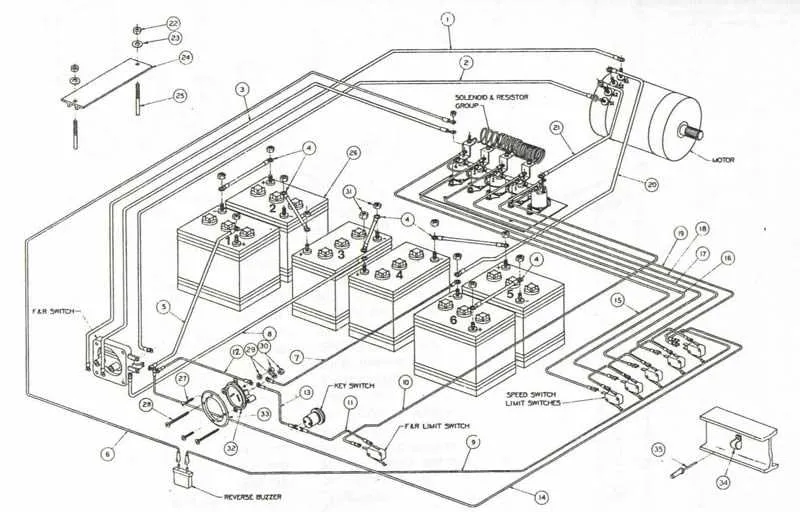

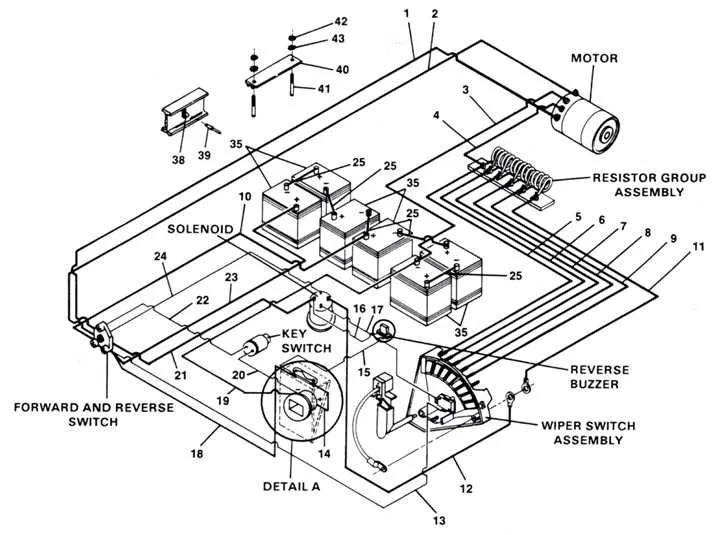

Electrical Layout for 48V Electric Vehicle
To ensure proper operation of your 48V electric vehicle, follow this essential guide for accurate connections and optimal performance.
- Connect the positive terminal of the main battery pack to the controller input.
- Ensure the ground wire from the battery is securely linked to the vehicle chassis.
- Run the positive and negative cables from the controller to the motor terminals, observing correct polarity.
- Link the key switch to the controller to control power flow from the battery.
- The throttle control should be wired to the controller, allowing smooth acceleration.
- Install the reverse switch and connect it to the controller, ensuring proper directionality.
- Connect the lights and horn to the appropriate circuits on the controller for ease of use.
Always use wires with suitable gauge for each connection to prevent overheating and voltage loss. A fuse should be installed in-line with the battery positive lead to protect the system from shorts or overloads.
- Use color-coded wiring for easier troubleshooting and maintenance.
- Check all connections regularly for wear and corrosion, particularly those involving high currents.
- Verify the controller’s fuse rating to match your specific electrical configuration.
Understanding the 48 Volt Electrical System Layout
The key to troubleshooting or upgrading your electric vehicle is grasping the configuration of its power system. A 48V setup typically involves batteries, a controller, and various components working together. Each battery is connected in series, providing the necessary power to the motor through a series of connectors and wiring. Understanding how these parts interact helps with maintenance and efficient performance.

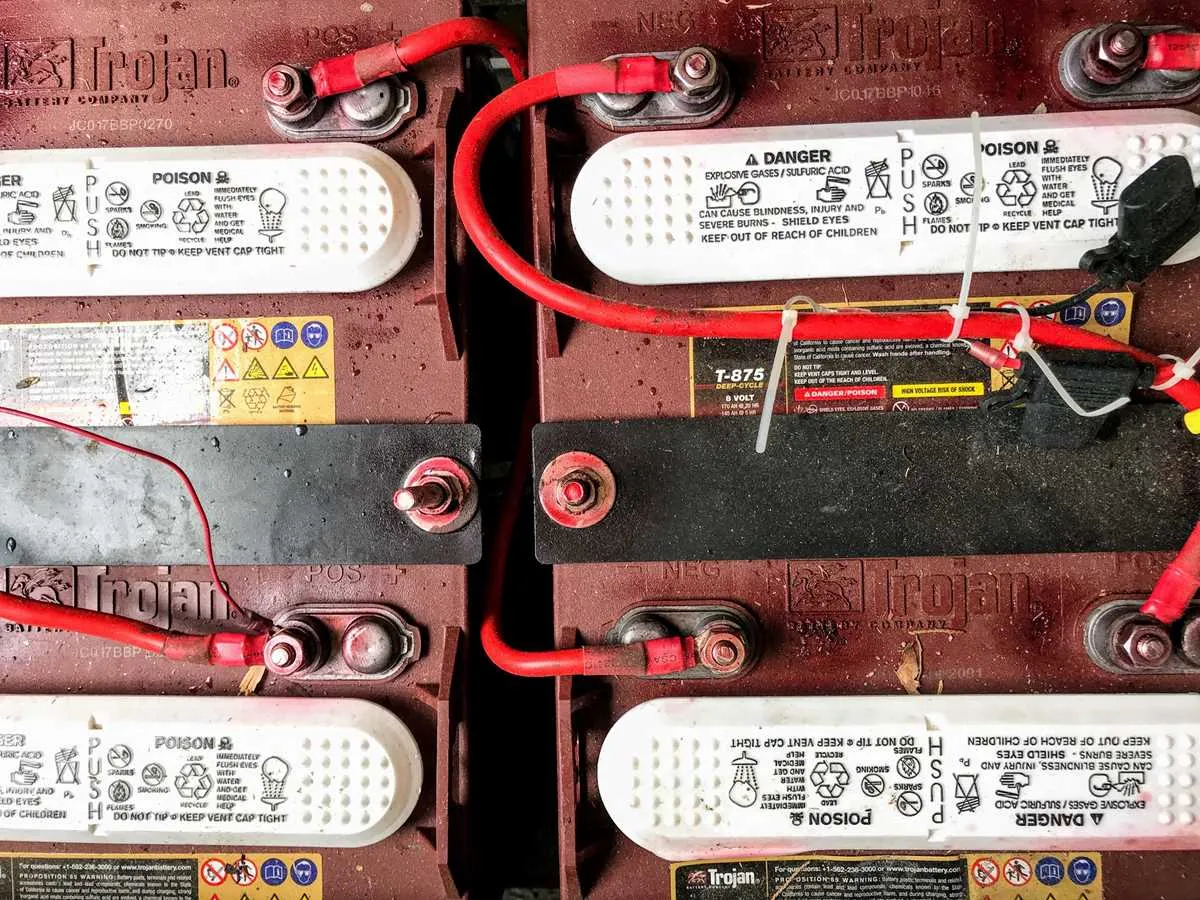

Start by identifying the main power source, usually a set of four 12V batteries wired to produce 48V. These are linked with the positive terminal of one battery connected to the negative terminal of the next. The battery pack feeds into the motor controller, which is responsible for regulating the flow of electricity based on user input via the throttle.
The motor controller receives power and sends it to the motor, adjusting speed and torque as needed. It’s critical to ensure that the controller’s wiring is intact and free from corrosion, as any damage can disrupt power delivery and affect overall performance. Keep an eye on the grounding system as well; poor ground connections can lead to erratic behavior or failure to operate.
Another essential part of this system is the fuse or circuit breaker, which protects against overcurrent or short circuits. Check the condition of these safety features regularly, as they act as the first line of defense against electrical faults. Any issues here can lead to damage of the more expensive components like the motor or controller.
When working on this type of setup, always ensure that the power is completely turned off. Disconnecting the battery pack entirely is a recommended safety measure before performing any maintenance or repairs. This prevents accidental shocks and damage to the components.
In some cases, upgrading components like the motor or controller can improve efficiency and performance. However, it’s crucial to match any new parts to the specifications of your current system to avoid mismatches that could cause damage or inefficiency.
How to Identify and Test Key Components in the Electrical System
Start by locating the main power supply, usually the battery pack. Ensure it is fully charged and check the voltage across terminals with a multimeter. If the reading is below specifications, replace or charge the battery.
Next, examine the controller. This component regulates the flow of electricity throughout the vehicle. Check for any visible damage, burnt areas, or signs of overheating. Test by measuring the output at the terminals; if it fluctuates irregularly or is absent, the controller may be faulty.
The solenoid is another crucial part. This component connects the power to the motor. When testing, you should hear a distinct click when the pedal is pressed. Use a multimeter to check for continuity between the terminals. If there is no continuity, the solenoid needs replacement.
The motor is responsible for the movement of the vehicle. Disconnect all power sources before testing. Use an ohmmeter to check the motor windings for shorts or open circuits. A properly functioning motor should have resistance within a specific range; refer to the manufacturer’s specifications for correct values.
Lastly, inspect the fuses. These protect your system from overcurrent and short circuits. Look for any blown fuses, and replace them with ones of the same rating. If a fuse blows repeatedly, it indicates an underlying issue that requires further investigation.
Common Electrical Issues and Troubleshooting for 48-Cell Vehicles
Start by checking the battery pack voltage. If there is insufficient charge, the system may fail to run properly. Ensure each cell is holding the correct charge. A poor connection between the battery terminals and cables can result in power loss. Tighten the connectors and clean any corrosion with a wire brush.
If the vehicle is not accelerating or has low power, inspect the controller for error codes. Faulty controllers can cause sluggish performance or non-responsiveness. Test the controller’s connections, and if damaged, replace it promptly.
Loose or worn-out connections to the motor can prevent proper operation. Regularly inspect the motor terminals for damage or signs of overheating. If you notice burnt components, replace them as needed.
Another critical point is the speed sensor. If the vehicle exhibits erratic speed behavior or inconsistent performance, verify the sensor’s integrity. A malfunctioning sensor can cause erratic operation and should be replaced if necessary.
| Issue | Potential Cause | Solution |
|---|---|---|
| Power failure | Low battery charge or poor connections | Charge the battery and inspect all connections for corrosion or looseness |
| Low acceleration | Controller malfunction | Check for error codes, inspect connections, and replace the controller if necessary |
| Motor not running | Loose or damaged motor connections | Inspect motor terminals for signs of damage and tighten connections |
| Erratic speed behavior | Faulty speed sensor | Test the sensor and replace it if it’s malfunctioning |
In case of malfunctioning lights or accessories, check fuses and relays. Replace any blown fuses and verify the proper operation of relays. Make sure they are properly seated and free from corrosion.
