Always verify the primary side configuration matches your input voltage. For residential applications in North America, the supply is typically 120V AC, while in many European regions it’s 230V. Ensure coil terminals marked for low-voltage input are correctly selected, and insulate unused taps to avoid accidental contact.
Secondary connections must be tailored to the load. For dual-voltage output, use center-tapped winding if available, connecting the midpoint to ground or neutral. If only one output is required, link the relevant endpoints according to the desired voltage level and confirm their compatibility with downstream devices.
Label all terminals clearly. Misidentifying input and output paths may lead to dangerous backfeeding or component damage. Use a multimeter to measure continuity across coils and verify expected resistance values before energizing the unit.
Pay close attention to wire gauge when selecting conductors. Primary side should accommodate higher current draws, especially under inductive loads. Secondary leads must be rated for the expected amperage to prevent overheating during prolonged use.

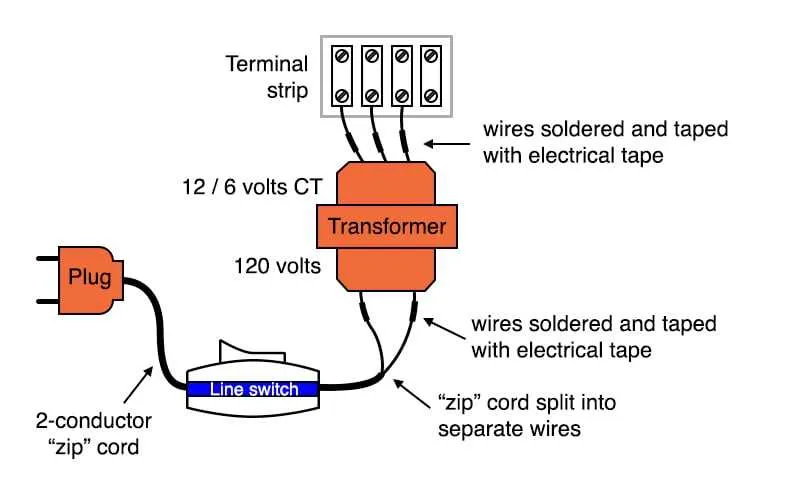

Wiring a Transformer Diagram
Begin by identifying the primary and secondary coil terminals, typically marked as H1, H2 (input) and X1, X2, X3, X4 (output). Always verify these using the manufacturer’s datasheet to prevent incorrect hookups.
Connect the input side to the designated voltage source–commonly 120V or 240V AC–ensuring that breakers and fuses are rated to match the load and inrush current. Use color-coded cables for clarity: black or red for live, white for neutral, and green for ground.
For center-tapped configurations, link X2 to the grounding terminal or neutral bar. When working with a delta-wye setup, respect the phase rotation to avoid phase shift or imbalance in three-phase systems.
Apply heat-shrink tubing or terminal blocks for insulation and mechanical reliability. Confirm all connections with a multimeter for continuity and isolation before powering the circuit. If operating at high frequency or power, consider twisted-pair or shielded wires to reduce EMI.
Identifying Primary and Secondary Windings for Proper Configuration
Always begin by measuring resistance across each coil set using a multimeter. The input side typically shows higher resistance due to thinner wire and more turns. For instance, a reading of 200 ohms often indicates the segment designed for mains entry, while the output side may register between 1 and 10 ohms.
Check for labeling such as “H1” and “H2” for the high-voltage entry points and “X1”, “X2” for the lower-voltage exit terminals. In absence of markings, apply a known low AC voltage to a suspected coil and measure output on the other side. A significantly stepped-up or stepped-down result confirms coil roles.
Insulation thickness also provides clues: thinner layers often indicate the high-voltage side. Visually inspect terminal layout–input pairs are often isolated or grouped together away from the output contacts. Avoid guessing; misidentification may result in overheating or equipment damage.
When dealing with dual-voltage models, locate any selector links or series/parallel jumpers. Incorrect pairing can disable voltage regulation or short the internal core. Verify the manufacturer’s specifications if uncertainty persists after physical testing.
Connecting Multiple Taps to Match Voltage Requirements
Always begin by identifying the exact output target–such as 208V, 220V, or 240V–and consult the device’s nameplate to determine the necessary terminal configuration. For a dual-voltage application, combine designated tap points using jumper links according to the schematics provided by the manufacturer, ensuring correct phase alignment.
For example, if a setup provides taps at 200V, 220V, and 240V, and a 220V output is required, connect the primary input to the 220V tap and insulate unused ends to prevent shorts. Never connect taps from different windings without confirmation they are electrically compatible; doing so may cause destructive phase conflict or incorrect voltage levels.
Use a calibrated multimeter to verify voltage between selected terminals before energizing the circuit. Confirm that the impedance is consistent across connected taps to avoid imbalanced loading. For fine-tuning, connect taps through switchgear or selector panels rated for the current involved to facilitate dynamic adjustment under load conditions.
Ensuring Polarity and Phasing in Multi-Transformer Setups
Always label terminals clearly before energizing any interconnected units. Mismatched phase orientation can lead to circulating currents and equipment damage.
- Use a continuity tester or digital multimeter to confirm terminal polarity before parallel operation.
- Apply a low-voltage AC signal (e.g., 12V) to primary inputs and measure secondary outputs to verify phase alignment.
- Mark the start (H1/X1) and finish (H2/X2) points on each winding to maintain consistency across units.
- Never assume uniform phase designation across different brands or models–always test each one individually.
- Phase-checking tools such as phase rotation meters can prevent 180° errors in multi-unit synchronization.
When connecting secondaries in parallel:
- Ensure identical voltage ratings and impedance values to avoid load imbalance.
- Terminate all X1s together and all X2s together only if confirmed to be in phase.
- After connection, measure voltage between paralleled outputs–should read near zero.
Failure to confirm phase sequence results in destructive short circuits. Perform all tests before load application.
