To ensure optimal functionality of your vehicle’s clearing system, follow these detailed instructions for connecting the electrical components. Proper installation of the control unit and its associated wiring is crucial for seamless operation during winter conditions. The key to success lies in precise attention to the polarity and placement of each wire.
Start with a thorough inspection of all wiring connections. Confirm the correct placement of power and ground cables. A simple mistake in wiring can result in malfunctions, ranging from intermittent operation to complete failure of the system. The power feed should be secure and free of any corrosion, which could disrupt the signal flow. Similarly, check that the ground wire is properly attached to the vehicle frame to avoid grounding issues.
Utilize the proper gauge wires to ensure efficient power transfer without overheating. Thin or underpowered wires can cause significant problems, including system instability. It’s also recommended to use high-quality connectors, such as weather-resistant terminals, to protect against external factors like moisture or ice.
Electric Connection Overview for Plow Equipment
Ensure that the electrical system is properly configured to avoid malfunction and ensure optimal functionality during operation. Below are key steps to follow when setting up the electrical components for your equipment:
- Check for proper ground connection. A loose or poor ground can cause irregular behavior in the control system and lighting.
- Verify that the power supply to the system matches the required voltage as per the manufacturer’s specifications.
- Confirm that all connectors are clean and free from corrosion to maintain a reliable electrical flow.
- Use high-quality fuses rated according to your system’s power demands. Do not use substitutes to avoid system failure.
- Double-check the controller connections for clear and secure attachment. Misconnections here can lead to inaccurate responses or system failure.
- Ensure that all cables are routed in a way that avoids friction or potential short circuits. Use appropriate cable ties to prevent movement and wear.
In addition, you should also test the system after installation:
- Power up the equipment and check for any signs of malfunction.
- Test all switches and indicators to ensure they are responsive and functioning as expected.
- Check for any power drops or instability under load. This might indicate issues with connections or power sources.
Proper maintenance and timely checks will ensure longevity and reduce the risk of failure during crucial tasks. Regularly inspect wiring, fuses, and connections to keep everything in good working order.

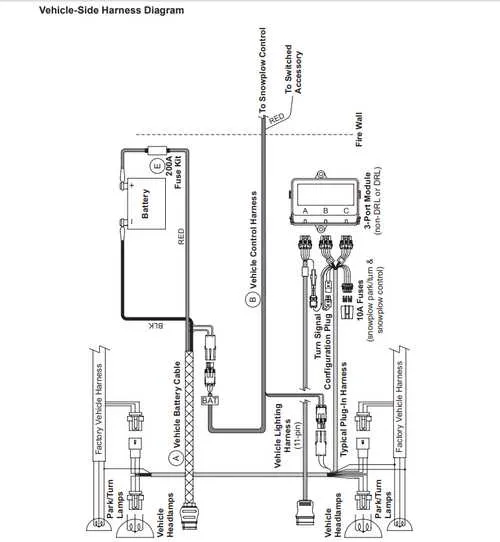

How to Identify and Wire the Control Harness for Snow Removal Equipment
To correctly identify and connect the control harness for your vehicle’s snow clearing system, follow these steps:
Step 1: Identify the Components
Start by locating the control module and all related connectors. Typically, the control harness will consist of a series of plugs: one for the joystick or hand control, one for the power supply, and another for the vehicle’s electrical system. Each component should be clearly marked for easy identification.
Step 2: Matching Connections
Ensure that all pins and connectors match in terms of function. The controller will have a designated power wire, ground, and signal wires for each function. Cross-reference these with the system’s manual to ensure correct pairing. Failure to match these wires correctly may result in malfunction or electrical damage.
Step 3: Wiring the Power Supply
Connect the power input from your vehicle’s battery to the designated power terminal on the controller. This will provide the necessary current for the system’s operation. It’s crucial that this connection is secure and free from corrosion, as poor contact can lead to power loss during use.
Step 4: Grounding the System
For proper operation, ensure the ground wire is securely attached to the vehicle’s metal frame. A loose or poor ground connection will prevent the system from functioning, as it creates an open circuit that can disrupt power flow.
Step 5: Testing the Connections
Once all connections are made, test the system by operating the controller. Verify that each function (such as raising, lowering, and angling) works as intended. If any actions are unresponsive, double-check the wiring to ensure proper connection and correct polarity.
Step 6: Final Checks
Before finalizing, inspect the entire setup for any exposed wires or loose connections. Secure any loose cables with zip ties to prevent wear and tear. Also, ensure that all connectors are firmly locked in place to avoid disconnecting during operation.
Connecting the Power Supply and Ground for Safe Operation
Ensure a secure and stable connection to the power source by using heavy-duty cables that can handle the maximum current draw of the system. The positive terminal should be connected to the main power input, while the negative lead must be securely grounded to the vehicle chassis. Use a dedicated, clean metal surface for the grounding point to minimize electrical resistance.
For the power supply, always use a fuse or circuit breaker rated for the amperage of the equipment. Place the fuse as close as possible to the power source to protect against short circuits. A 10-15 amp fuse is recommended for most setups, depending on the load requirements.
When connecting the negative side, make sure the grounding cable is no longer than necessary to avoid voltage drops. It is crucial to clean any rust, paint, or debris from the grounding point to ensure optimal conductivity. If possible, use a grounding block for a more organized and secure connection.
To prevent overheating or voltage irregularities, periodically check the connections for signs of wear, corrosion, or loose fittings. If any are found, clean or replace them immediately.
Understanding the Relay System in Snow Removal Equipment Electrical Setup
The relay system is integral for controlling heavy-duty functions such as lifting, angling, and the blade operation. It’s critical to ensure relays are installed correctly to prevent malfunctioning and electrical overloads. Each relay in this setup serves as an intermediary switch that allows low-current circuits to control high-current devices, thus protecting the rest of the electrical components from damage.
When troubleshooting, begin by checking the relay for signs of wear, corrosion, or damage. A malfunctioning relay could result in an intermittent or complete loss of function. Use a multimeter to test continuity between the relay’s terminals, ensuring the circuit is open or closed as required during activation. If no continuity is present when the system is engaged, replace the relay.
In some configurations, the relay is controlled by a central switch or a control module that sends a voltage signal. The relay then activates the high-current components. Be sure to verify that all wires are securely connected, especially the ground wire, as poor grounding can lead to erratic behavior or failure to engage the system.
Common relay types used in these setups are typically 5-pin or 4-pin relays. It’s important to replace a damaged relay with one of the same specifications to ensure optimal performance. Using an incorrect relay can cause overheating or a complete breakdown of the control system.
When troubleshooting, always check the fuse linked to the relay, as a blown fuse can often be the root cause of malfunctioning relays. If the fuse is intact, continue by testing the control switch to ensure it is sending the proper voltage to engage the relay correctly.
