To effectively install or troubleshoot your vehicle’s security system, it’s crucial to understand the key connections involved in the setup. Focus on the main components, such as the central control unit, sensors, and power supply lines. A thorough understanding of the wiring layout will ensure proper operation and prevent system malfunctions.
Start by identifying the key connections between the brain of the system and other parts like door sensors, ignition switches, and grounding points. These need to be connected correctly to ensure that the system functions as expected when armed or disarmed.
Pay attention to the color coding of the connections. Manufacturers typically use standard color schemes to differentiate between the various signals. For example, you’ll often find that ground wires are black, while trigger wires might be marked in a specific color like green or red. Ensuring that each wire matches its correct terminal can prevent miscommunication between components.
If you’re integrating additional features like remote start or auxiliary outputs, it’s vital to locate and properly connect those circuits as well. A comprehensive connection map will guide you through the process and highlight the proper way to configure each signal.
Essential Connections for Vehicle Security System Installation
For optimal setup, follow these guidelines to connect the various components of your vehicle protection system. Ensure each connection is properly made to avoid malfunction or improper activation.
- Red (12V Power): Connect this to a constant 12V power source, typically found in the vehicle’s fuse box or the battery terminal. This provides the necessary power for the unit.
- Black (Ground): Attach this to a clean, bare metal surface on the vehicle’s frame or chassis to establish a secure ground connection.
- Blue (Trigger/Status Output): This wire is used for sending signals to the vehicle’s central locking system. Proper connection to the locking system’s trigger wire is crucial for the system to lock or unlock the doors automatically.
- Green (Shock Sensor Input): This is connected to the vehicle’s shock sensor or impact detector. It ensures the system detects any sudden impact or vibration, activating the security features.
- Yellow (Ignition Input): Connect this wire to the ignition switch, enabling the system to recognize when the vehicle is on or off, preventing unauthorized starts.
- White (Door Trigger): This wire connects to the door switch, ensuring that the system detects if the vehicle’s doors are opened or tampered with.
- Orange (Horn Output): This wire is linked to the vehicle’s horn circuit. When an intrusion is detected, the system will sound the horn to alert nearby individuals.
- Brown (Starter Kill Relay): A critical wire that disables the vehicle’s ignition, preventing the engine from starting unless the system is disarmed.
Each connection must be made securely to prevent signal loss or failure. Consult the vehicle’s wiring manual for exact pinouts and verify each wire’s function before installation.

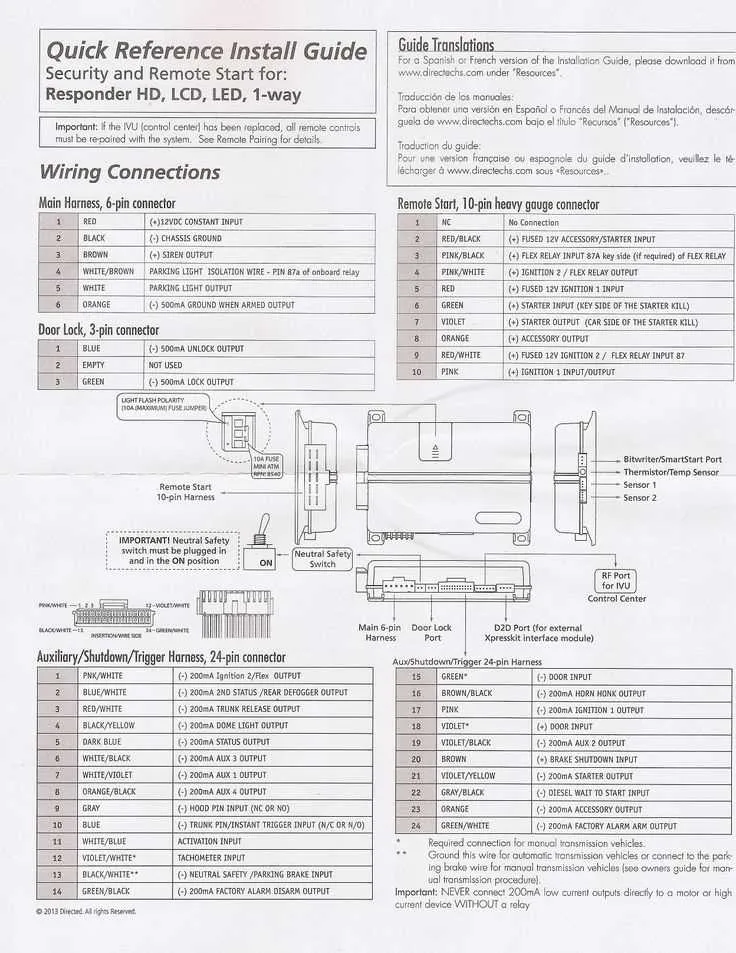

Understanding Viper Alarm Wiring: Key Connections and Pinouts
Start by identifying the main power source and ground connections, typically marked as +12V and GND. These should be securely connected to the car’s battery for proper operation. Ensure the fuse link is intact, and never bypass it to avoid damaging the system.
The ignition and accessory circuits are crucial for arming and disarming the system. Locate the ignition input and accessory wire, which are responsible for triggering activation when the vehicle starts. These connections are generally tied to the vehicle’s ignition switch and must be spliced correctly to avoid system failure.
Next, pay attention to the door trigger inputs, which detect whether the vehicle doors are open or closed. The wires corresponding to these triggers must be connected to the vehicle’s door pin switch or the central locking system for accurate monitoring.
The shock sensor and impact detection must be wired to the appropriate signal input, ensuring the system can respond to physical disturbances. These connections are vital for the system’s sensitivity settings and should be checked for correct calibration.
For remote start features, ensure the proper relay wiring. The relay should be integrated with the ignition circuit and neutral safety switch to prevent activation when the vehicle is in gear.
Always double-check the configuration of the tachometer input wire for proper RPM monitoring. This wire must be connected to the vehicle’s tach signal to ensure smooth functionality of the remote start feature.
After completing the connections, ensure all wires are secured with no exposed parts that could cause short circuits. Proper insulation and protection of all wire leads are essential to prevent malfunction or system failure over time.
Step-by-Step Guide to Installing Vehicle Security System Wires
Start by disconnecting the car battery to prevent any electrical accidents during installation.

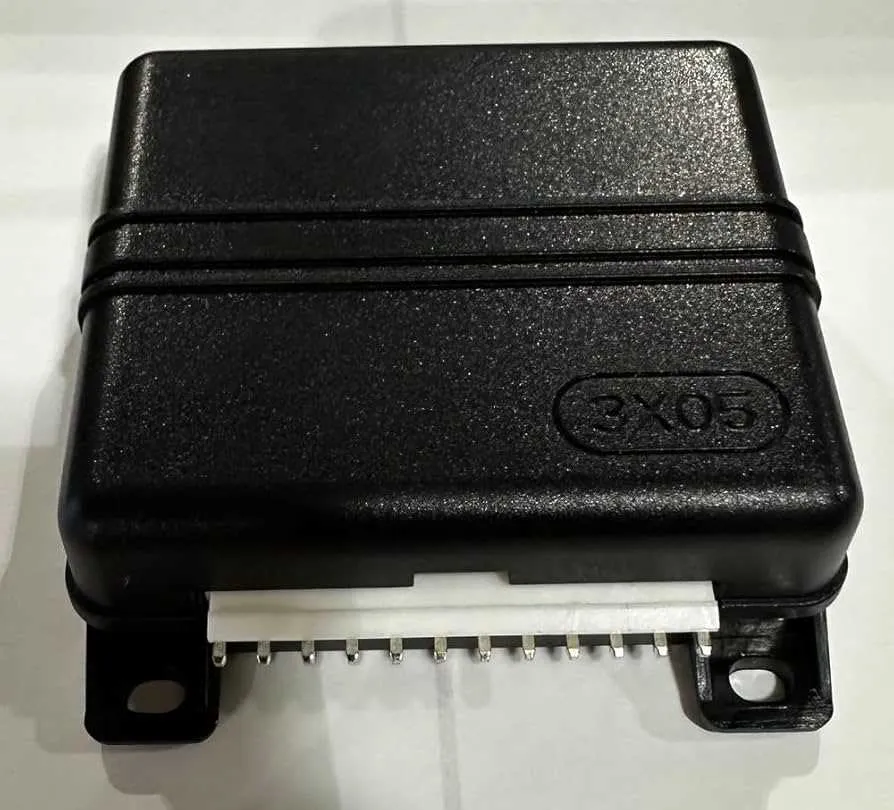

Locate the central control module, which is typically found beneath the dashboard or near the fuse box. This is where the majority of the connections will be made.
Connect the main power wire to the positive terminal of the vehicle’s battery. Ensure that this wire is securely attached and insulated to avoid any short circuits.
For ground connection, use a solid, unpainted metal surface on the vehicle’s frame. Clean the area before securing the grounding cable to ensure a reliable connection.
The ignition input should be connected to the ignition switch or fuse that powers the vehicle’s ignition system. Use a test light to confirm the correct wire before making a permanent connection.
Door trigger wires need to be attached to each door switch. Identify the door trigger circuit, typically located near the vehicle’s wiring harness in the door jamb. Secure the connection carefully, ensuring that it’s reliable and free of loose strands.
For shock sensor wiring, find the designated location under the dashboard or near the footwell. Ensure that the sensor is positioned properly for maximum sensitivity.
Test each wire connection before reassembling any components to verify that the system is receiving proper signals from all input sources. If needed, use a multimeter to check voltage and continuity.
Once all wires are securely connected and tested, reconnect the vehicle battery and perform a final functionality check to ensure that all features are operating correctly.
Troubleshooting Common Wiring Issues
Check the fuses first. If the system isn’t powering on, verify that the main fuse is intact. A blown fuse could indicate an overload or faulty connection. Replace with the correct fuse rating.
Ensure proper grounding. A poor ground connection can cause intermittent issues or complete system failure. Double-check the ground wire is securely attached to a clean, bare metal surface.
Inspect all connectors and crimps. Loose or corroded connections can disrupt signals, causing erratic behavior. Re-crimp or replace connectors if necessary.
Test voltage at key points. If the system isn’t responding, use a multimeter to verify that the power supply is consistent and within range. If you get a significant voltage drop, check for short circuits.
Verify the bypass switch or relay. If the system isn’t triggering or responding to commands, check if the bypass switch or relay is correctly installed and functioning.
Examine the signal wires. Any signal interruption from sensors or modules can prevent activation. Confirm that all signal lines are connected and free from damage.
Check the configuration settings. If the system isn’t activating as expected, ensure the programming matches the vehicle’s requirements and that no custom settings have been mistakenly altered.
Ensure the system components are not shorting out. Inspect areas where wires may rub against surfaces, potentially causing shorts. Use protective tape or reroute wires to avoid such issues.
If issues persist, perform a reset. Resetting the control module can sometimes resolve persistent problems. Follow the manufacturer’s reset procedure to clear any errors.
