Ensure that the emergency disconnect circuit is correctly installed and tested before every trip. Proper wiring ensures that the safety mechanism activates instantly in the event of separation, providing crucial protection. This electrical setup directly influences the emergency brake’s ability to engage without delay.
The connection from the primary power source to the emergency activation switch must be clean and free from corrosion. Inspect all connections, including the ground, to maintain optimal performance. Use high-quality components that are designed to withstand environmental exposure, ensuring long-lasting reliability.
Test the safety activation mechanism regularly. If the power link between the disconnect switch and the braking unit fails, the safety system won’t function as intended. Conduct a visual check, followed by a functional test under controlled conditions to verify the response of the emergency stop feature.
For a successful installation, avoid using substandard wires and connectors. Ensure that the cable thickness matches the recommended specifications for the circuit’s current load to prevent overheating or potential short circuits. Additionally, the placement of the emergency trigger must allow for quick and easy access in any situation.
Regular maintenance is key to ensuring the emergency disconnect circuit remains operational. Schedule checks at least once a year, focusing on wire integrity, switch function, and connector security. A proactive approach can prevent critical failures in high-stress situations.
Proper Electrical Setup for Emergency Disconnects
To ensure proper operation of the emergency disconnect feature, connect the activation pin to the trailer’s brake circuit. Use a 12-volt DC power source and a dedicated wire running directly from the vehicle’s battery to the safety switch. This circuit must include a fuse rated for 20 amps or lower to protect against potential short circuits.
The connection between the vehicle and trailer should involve a pair of wires: one for the primary brake circuit and one for the activation mechanism. These should be run through a weatherproof connector, ensuring a solid, corrosion-resistant link between components. The emergency circuit must always be live, with no interruptions in the connection, even when the vehicle is not in operation.
Ensure the activation mechanism on the trailer is secured and positioned to make reliable contact with the pin when disengaged. Test the entire setup regularly, especially after long hauls or inclement weather conditions, to confirm the functionality of all components.
Use high-quality wire insulation to avoid wear or damage. For optimal performance, the wire gauge should be 12 AWG or higher, capable of handling the continuous current draw. Avoid excessive wire lengths to prevent voltage loss or operational failures during activation.
When installing, ensure all connections are tightly secured and insulated, with no exposed terminals. Check for any loose connections after installation and periodically during maintenance checks. Proper installation and maintenance are critical for reliable performance in emergency situations.

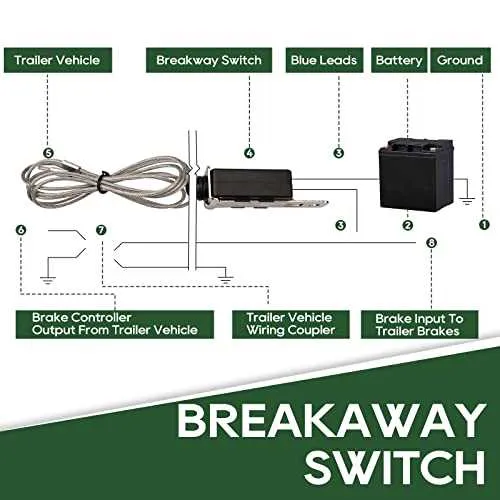

Identifying Key Components in the Emergency Disconnect Setup
Start by locating the safety switch, typically mounted on the towing vehicle. This device is responsible for triggering the automatic activation when the connection between the vehicle and trailer is lost. It must be positioned securely and easily accessible for regular inspection.
The next crucial element is the activation pin. This component is usually located on the trailer and connects to the towing vehicle’s safety mechanism. It ensures that once detached, the emergency circuit completes, activating the brake lights and emergency brakes on the towed unit.
Ensure that the power source, often a 12V battery, is fully charged and capable of supplying energy to the emergency braking system. A weak or damaged battery can result in failure to engage safety mechanisms during an emergency. Keep the battery well-maintained and check for corrosion or loose connections regularly.
Finally, check the grounding connections. A poor ground connection can cause intermittent or non-functioning safety features. The ground wire should be attached to a clean, metal surface on both the towing and towed vehicles for optimal performance.
Step-by-Step Instructions for Connecting Emergency Disconnect Circuit
Ensure all components are in good condition before starting. Gather tools such as wire cutters, crimping tool, electrical tape, and terminal connectors. Follow these steps precisely for a reliable connection:
- First, locate the power wire from the vehicle’s tow hitch. This will be your primary source of power for the emergency circuit.
- Cut the wire to an appropriate length, leaving extra slack for flexibility in the connection.
- Strip the insulation off both ends of the wire using a wire stripper tool, exposing about ½ inch of copper conductor.
- Attach one end of the wire to the designated terminal on the braking unit. Secure it using a crimp connector to ensure a tight, reliable connection.
- On the other end, attach a compatible terminal that matches the receiving connector on the emergency release mechanism.
- Secure the emergency release switch in an easily accessible location, preferably within the driver’s reach, ensuring it’s properly mounted.
- Connect the safety switch to the circuit by joining the prepared wire to the designated terminal on the switch. Use a crimp connector for a secure fit.
- Test the connection by activating the safety switch. The braking mechanism should engage as expected.
- Cover any exposed wire with electrical tape to prevent wear or short-circuiting.
- Once everything is connected, conduct a final check to ensure there are no loose or exposed wires, and test the entire setup before use.
By following these steps, you can ensure that your emergency disconnect circuit functions correctly and safely during operation.
Troubleshooting Common Electrical Failures in Emergency Disconnects
Check for continuity: Ensure there’s no break in the circuit by using a multimeter. Test all connections to ensure power flows correctly. A break in the circuit could indicate damaged wiring, poor connections, or faulty components.
Inspect connectors and terminals: Loose or corroded connectors can cause intermittent or total failure. Clean terminals with electrical contact cleaner and ensure all connectors are firmly secured. If connectors appear worn, replace them immediately.
Verify the battery voltage: A low or dead battery can prevent the emergency mechanism from activating. Test the battery’s charge and replace it if the voltage is below the recommended level. Always use the correct voltage rating for the device.
Examine the grounding: A poor ground connection can result in erratic behavior. Ensure all ground wires are tightly connected to a clean, rust-free surface. A weak or intermittent ground connection can lead to malfunction.
Test the switch: If the emergency function doesn’t trigger, test the switch for proper operation. If the switch is not engaging as intended, it might need to be cleaned, adjusted, or replaced.
Check for damaged or frayed cables: Visually inspect cables for signs of wear. A damaged cable can cause short circuits or prevent the system from functioning. Replace any cables that appear compromised to avoid further issues.
Look for fuse or circuit breaker issues: A blown fuse or tripped breaker can disrupt power to the emergency disconnect. Always check for a blown fuse or tripped breaker and replace or reset as necessary. Avoid using oversized fuses, as they can cause further damage.
Examine the mechanism’s activation: If the emergency disconnect fails to engage, ensure there are no obstructions preventing the mechanism from triggering. Inspect any springs, pins, or other physical parts involved in the activation.
