For optimal functionality, ensure each connection is made according to the vehicle’s audio setup requirements. Start by identifying the power, ground, and speaker connections that need to be linked. Carefully match the correct wires to prevent any damage to the electronics.
Power and Ground Connections: The first step is to establish power and grounding. The power cable typically connects directly to the car’s battery or an accessory power source. The ground wire should be securely attached to a metal part of the vehicle’s frame.
Speaker and Signal Wires: Next, focus on speaker connections. Depending on the system configuration, these wires will either be in pairs or grouped for multi-channel setups. Be sure to maintain correct polarity to avoid sound distortion or improper function.

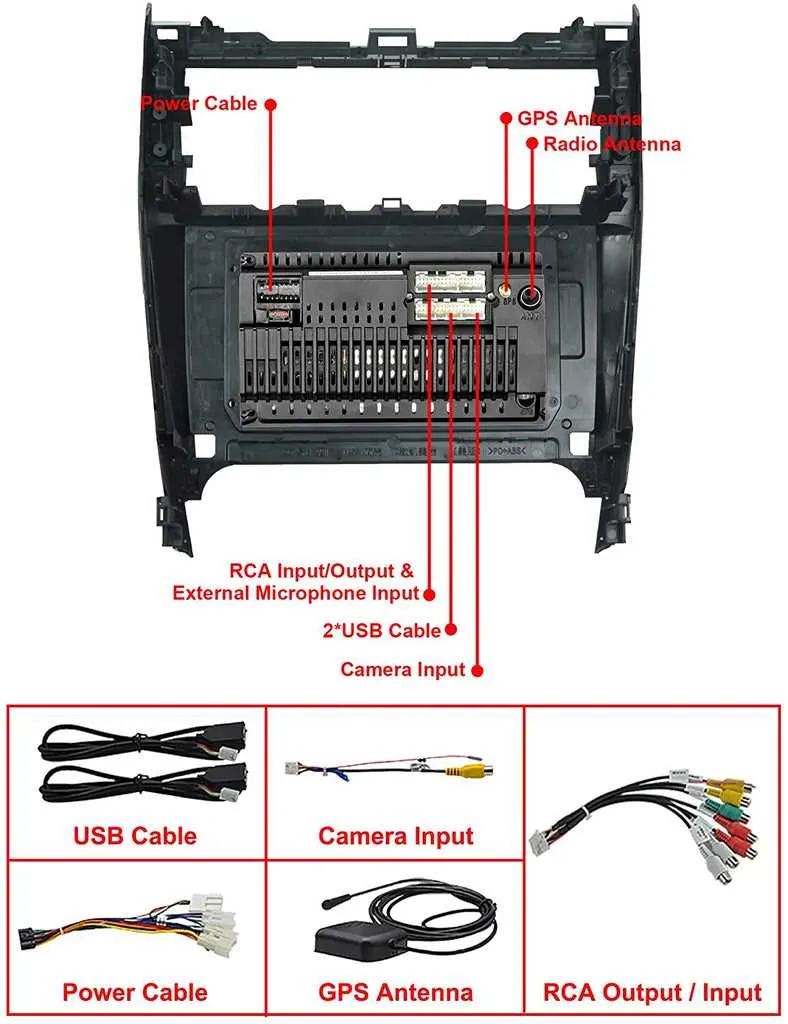

Connecting the Control Unit: Finally, connect the audio control unit, which may include a head unit or display. Pay attention to the data cables, ensuring they match the color code or diagram provided for ease of integration with your vehicle’s existing systems.
Following these guidelines ensures a smooth installation and prevents technical issues later. If unsure about the wiring process, refer to the vehicle’s manual for specific color codes and wiring instructions.
Electrical Connections for Car Audio Systems
For proper installation of your vehicle’s audio unit, focus on matching the correct wires from the harness to the corresponding terminals. Ensure that the power supply is connected to the constant 12V wire, while the ignition wire should be linked to the switched 12V supply. Ground the system to a metal part of the frame for optimal performance.
Identify the speaker outputs, typically color-coded, and match them to the corresponding speaker terminals, ensuring each speaker has the proper polarity (positive or negative). The front speakers will often have separate wires for left and right, while rear speakers may share a common ground wire.
If the vehicle includes additional features such as subwoofers or auxiliary outputs, locate the dedicated subwoofer connection to route the signal properly. For units with amplifier outputs, use RCA cables to connect to the amplifier for higher quality audio output.
Before finalizing the connections, double-check the wire functions using a multimeter to confirm voltage levels, ensuring everything is set up according to your unit’s specifications. Always test the system before fully securing the unit in place to avoid errors or faulty connections.
Identifying Wire Connections for Vehicle Audio System

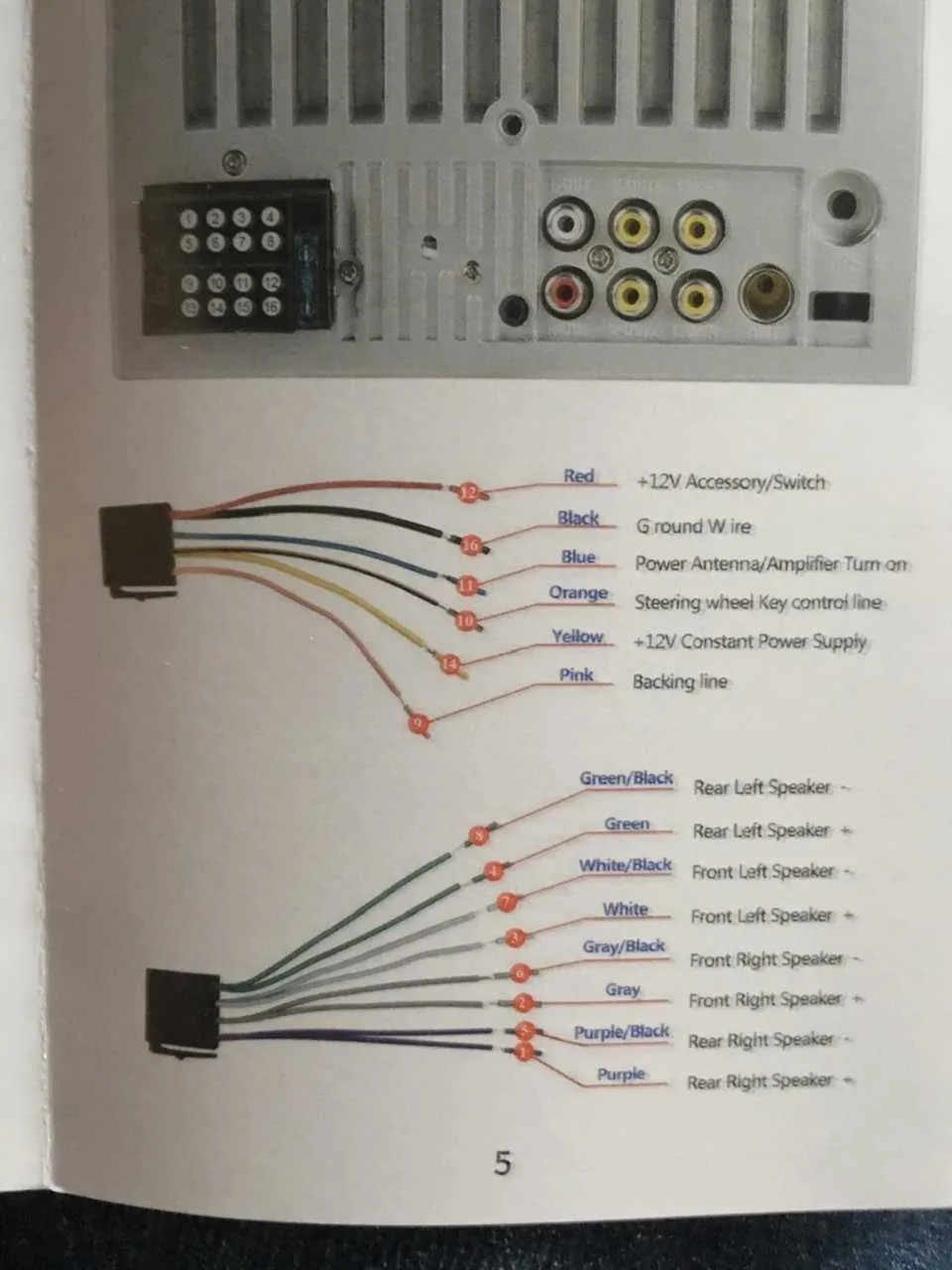

To properly connect your vehicle’s audio system, first locate the power wire, typically the red wire. This wire supplies power to the unit, ensuring it turns on when the vehicle is in use. The ground connection, often black, must be securely attached to the vehicle’s metal frame to prevent electrical issues.
The speaker wires should be identified by their distinct colors–front left speakers usually use white or white/black, while front right speakers typically use gray or gray/black. Rear speakers follow a similar pattern with green and purple wires for left and right, respectively. Make sure to match the positive and negative terminals for each speaker to ensure sound clarity.
The antenna wire is usually blue and must be connected to the corresponding pin for proper signal reception. For the ignition or accessory wire, look for the yellow wire, which allows the unit to remain powered when the car is in the accessory mode.
Tip: Always use a multimeter to verify the wire functions before making any final connections. This will ensure you’re connecting the correct wires and avoid potential damage to the audio system.
For a secure connection, consider using wire connectors or soldering the wires to ensure no loose connections that could disrupt functionality. Proper insulation is also crucial to prevent short circuits and ensure safety during installation.
Step-by-Step Guide to Wiring Installation
To properly install the audio system, follow these precise steps to ensure a secure and functional setup:
- Disconnect the battery: Start by removing the negative terminal of the car battery to prevent any electrical short circuits during installation.
- Remove the old unit: Unscrew and detach the existing system from the dashboard. Be careful not to damage surrounding components. Note the connector types and pin positions.
- Prepare the new harness: If necessary, prepare the new connection harness by matching it with your vehicle’s input terminals. Use color-coded wires to match the correct signals (power, ground, speaker connections).
- Secure the ground connection: Find a clean, metal surface for grounding. A direct metal contact will ensure a stable electrical connection, preventing noise and interference.
- Connect the power cable: Attach the power cable to the designated terminal on the unit. Ensure the connection is tight to avoid power loss or shorting.
- Wire the speakers: Connect the speaker leads to the corresponding terminals. Ensure that the positive and negative wires are correctly assigned for each speaker channel.
- Test the connections: Before reassembling, test the system by reconnecting the battery and turning the unit on. Verify that the speakers function and there is no distortion or power issues.
- Mount the new unit: Once all wiring is checked, secure the new system into the dashboard. Tighten the mounting screws and ensure the system is aligned correctly.
- Reassemble the components: Reattach any panels or components you removed during the process. Ensure everything is securely in place and there are no loose connections.
- Final check: Turn on the system again and verify that all functions work as expected. Adjust the settings for optimal sound quality and volume control.
Troubleshooting Common Audio System Connection Problems
Begin by checking the power supply. If there is no sound, ensure that the vehicle’s fuse for the entertainment unit is intact and the circuit is not overloaded. Replace any blown fuses with the correct amperage.
Next, confirm that the ground connection is secure. A poor ground can result in distorted sound or complete failure of the system. Verify the grounding point is clean and tight. If necessary, reconnect or clean the contact area.
When no display appears, inspect the connection between the control unit and the dashboard display. A loose or damaged cable can interrupt communication. Gently wiggle the connector to detect any intermittent issues.
If you experience static or distorted sound, check the connectors for corrosion or dirt. Clean the terminals with an electrical contact cleaner and ensure they are firmly seated.
For issues with low volume output, inspect the amplifier connections. Ensure that all wiring is correctly connected to the amplifier’s input and output terminals. A loose connection can result in reduced power delivery to the speakers.
If the audio cuts in and out, inspect the power and speaker cables for any signs of fraying or breaks. It’s important to replace any damaged cables and secure connections that may have come loose during installation.
Finally, if the system is not responding to input, check the wiring of the control panel. A malfunction in the touchscreen or button interface may be due to faulty wiring or a broken connection that needs immediate attention.
