Ensure you follow the proper wiring layout for the engine’s temperature regulation system. The switch responsible for controlling the activation of the cooling system should be carefully mapped out to avoid short circuits and improper activation. The contact points in the control system play a crucial role in determining when to power the cooling mechanism based on engine temperature thresholds.
Use a detailed map to trace the connections between the temperature sensor, power source, and switching mechanism. This ensures that the electrical components receive the right signals at the appropriate times. Avoid overloading the circuit by ensuring that the power drawn matches the specified capacity for each component.
The connection between the components is vital. Miswiring can lead to irregular operation, including delayed activation or failure to engage the cooling unit. Double-check the system’s response by simulating different temperature conditions to confirm that the system functions as expected under varying loads.
Wiring System for Engine Cooling Operation
To ensure proper engine temperature regulation, a functional system for activating airflow is critical. Follow these steps to identify the electrical components responsible for this task:
- Locate the activation switch in the vehicle’s control unit.
- Ensure that the current is properly directed to the switch when temperature thresholds are met.
- Verify the power source connection to the motor, ensuring there are no disruptions.
- Examine the wiring paths for continuity, using a multimeter to detect any breakages or misconfigurations.
When troubleshooting, focus on the following key components:
- Control module: Handles the command signal to start the system.
- Thermal sensor: Triggers the operational process once a predetermined temperature is reached.
- Motor: Converts electrical energy to mechanical power, driving the air movement needed for engine cooling.
- Switch: Regulates current flow based on input signals.
For a successful setup, maintain clear and secure connections between the components. Regular inspection for wear and tear on the wires can help avoid overheating and system failure.
Understanding the Function of a Cooling Fan Relay in Automotive Systems
In automotive systems, the component responsible for activating the engine’s ventilation system is critical for maintaining optimal engine temperature. It works by managing the electrical signal sent to the blower unit, ensuring it operates at the correct times. A malfunction in this part can lead to engine overheating, which can result in severe damage. The main function is to ensure that the air circulation device is activated when the engine temperature exceeds a certain threshold, preventing excessive heat buildup.
The unit is controlled by a sensor that detects the temperature inside the engine. Once the threshold is reached, the sensor sends a signal to the control mechanism, which engages the blower. This operation is usually triggered by a simple electrical current, with the control unit serving as the intermediary. In many cases, a malfunction in either the temperature sensor or the controlling unit can prevent the air circulation device from activating correctly, causing the engine to overheat.
It is essential to monitor the system regularly. If the device is not functioning as expected, the engine’s temperature regulation could be compromised. Common signs of failure include overheating or erratic operation of the air circulation system, often caused by a faulty switch or broken electrical connections. Proper maintenance, including checking for loose connections or damaged wires, can prevent these issues. Replacing defective components promptly is crucial to maintain engine performance.

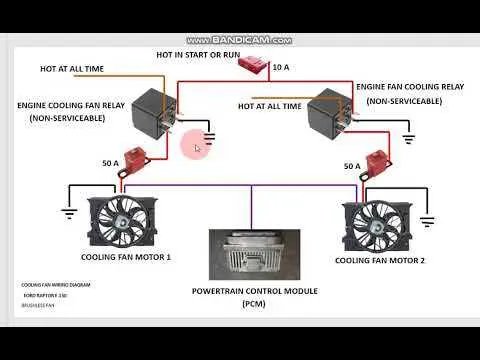

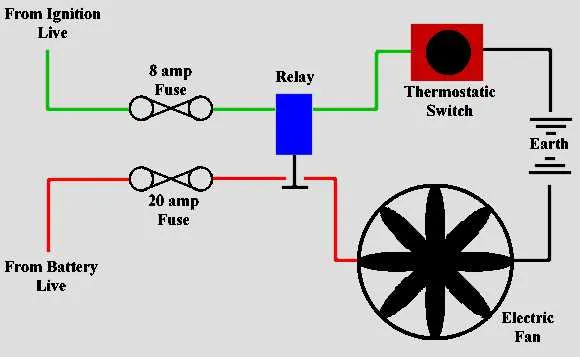

Wiring and Connections in a Cooling System Control Circuit
Ensure correct wire gauge selection to handle the current demand of the motor. Use at least 16 AWG for circuits carrying moderate loads, and 12 AWG for higher currents. Avoid using thinner wires that could overheat or cause voltage drops.
Power Supply Connection: The power source should connect directly to the primary terminal of the switch. This is usually a 12V or 24V DC input depending on the vehicle or equipment’s electrical specifications. Ensure that the connection is secure and insulated properly to avoid short circuits.
Switch to Ground: One side of the switch needs to be connected to the ground terminal. Verify that the connection to the chassis or battery negative is solid and free from corrosion, as poor grounding can lead to unreliable operation.
Motor Connection: The motor is typically connected to the second output terminal of the switch. This connection should be protected by a fuse, located as close to the switch as possible. Choose a fuse rated slightly higher than the motor’s operating current to prevent damage from power surges.
Control Signal Line: The control signal from the engine management system or thermal sensor should be connected to the input terminal. This signal triggers the switch and should be properly insulated to avoid accidental grounding or short-circuiting.
Relay Coil and Contacts: For circuits involving a relay, connect the coil to the control signal line. The relay contacts should then switch the motor’s power supply. Be sure that the contact ratings match the motor’s voltage and current requirements. Using contacts rated lower than the motor’s specifications can cause overheating or contact failure.
Testing: Before finalizing the installation, use a multimeter to check for proper continuity across each connection and verify that the motor operates correctly when the switch is activated. Pay special attention to the current draw and ensure all components are rated to handle the expected load.
Common Issues and Troubleshooting Electrical Component Diagrams
First, check for any blown fuses or disconnected wires. If there are no visible issues, inspect the electrical connectors for corrosion or loose connections. A faulty component might cause intermittent or no operation of the system. Next, use a multimeter to check for proper voltage at the input and output terminals.
If the component does not activate despite proper voltage, test the switches or sensors involved in the circuit. Malfunctioning sensors can prevent the system from operating as intended. Additionally, examine the ground connections; a poor ground can disrupt proper functionality.
In case of system failure, verify that the control module is functioning correctly by testing for error codes via an OBD scanner. In some cases, a software reset or reprogramming might be needed to restore normal operation.
Always refer to the component specifications to ensure compatibility and correct installation. Keep in mind that high current demands can lead to overheating, damaging internal parts, so avoid overloading the system. Regular maintenance of connections and checking for wear is essential for long-term reliability.
