Wiring Diagram for Switches and Electrical Outlets Explained in Detail

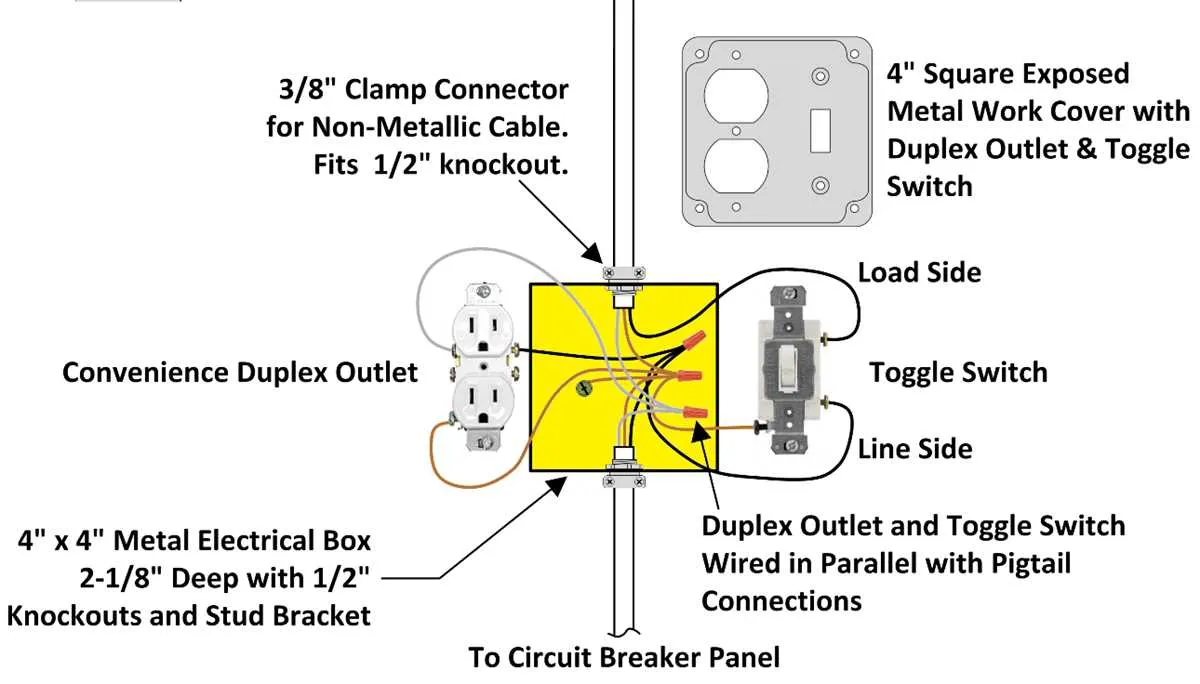

switch and outlet wiring diagram

For safe and reliable electrical installations, it’s crucial to follow the correct procedure when setting up control mechanisms and power points. First, always ensure the device’s specifications align with the load capacity to avoid overloading. Proper grounding and insulation must be prioritized to prevent hazards.

To make sure that the circuit functions correctly, use a dual-pole setup if connecting to higher voltage systems. A single-pole system is adequate for low-voltage applications, but remember to position the conductors securely, ensuring a firm connection at both the control and power source points. Use quality connectors to guarantee a long-lasting setup.

For installations in residential or commercial spaces, it’s essential to check local codes and regulations. Use proper breakers for each type of load, and always verify that the circuit is de-energized before beginning any work. A dedicated line should be used for high-power devices to avoid interference with other appliances.

Key Recommendations:

  • Ensure each conductor is tightly secured and insulated.
  • Verify grounding and continuity before energizing the system.
  • Use components rated for the specific electrical requirements.
  • Test connections with a multimeter before use.

Proper Connection Setup for Control and Power Points

switch and outlet wiring diagram

Ensure that the power source enters the first terminal in the control device, with the live wire securely connected. From there, route the current-carrying conductor to the next unit, where it will be linked to the power terminal, creating a continuous loop for functionality.

For proper functionality, connect the neutral wire directly from the incoming source to the second point. Maintain a clean connection to avoid power loss and ensure efficient flow throughout the system.

Grounding connections must be securely installed to prevent electric shock. The ground conductor should always be linked to the designated grounding terminal in both units, ensuring safety in case of malfunction.

When connecting multiple points, consider the load distribution. Ensure that each terminal can handle the intended current load without risking overheating or failure. If you’re installing more than one control unit in the same circuit, make sure the power flow remains balanced for optimal performance.

Check for any potential short circuits by testing continuity before finalizing the setup. Use a voltage tester to verify proper flow and ensure all connections are solid and safe to use.

How to Connect a Standard Light Switch to a Power Source

To properly connect a standard light controller to a power source, begin by turning off the main electrical supply. Ensure the circuit is completely de-energized before proceeding. Then, identify the live (hot) wire and neutral wire from the main panel. The live wire should be connected to one terminal of the controller, while the neutral wire is typically not required for the controller itself but should be properly secured or insulated.

Next, run the live wire to the device’s input, ensuring it is tightly attached to the terminal. Connect the corresponding wire from the device to the power source, ensuring that no exposed metal is left, as this could cause a short circuit. Make sure to connect the ground wire to the designated terminal for safety purposes.

After the connections are made, double-check each wire to ensure they are securely attached and insulated to prevent any accidental contact. Secure the device into its box, ensuring no part of the wiring is exposed. Once completed, restore power to the circuit and test the device to confirm proper operation.

Understanding Grounding Techniques in Circuit Connections

Ensure proper grounding in electrical systems to safeguard both users and equipment from electrical faults. Grounding prevents the risk of electric shock and directs stray currents safely to the earth. Below are key grounding techniques to follow:

  • Grounding the Neutral: Always connect the neutral wire to the grounding system at the main electrical panel. This establishes a path for fault currents to flow safely into the earth.
  • Using Grounding Conductors: Use a copper or aluminum conductor of appropriate size to connect the device to the grounding system. It must be securely fastened and free of any damage that could cause an unsafe situation.
  • Properly Grounding Metal Boxes: Metal enclosures must be connected to the grounding conductor. Attach a grounding wire from the grounding terminal of the panel to the metal box, ensuring a continuous path for any fault current.
  • Grounding for Protection: When faults occur, such as a short circuit, the grounding system ensures that the fault current is safely directed to the earth. This reduces the risk of fire and electrical shock.
  • Grounding for Equipment: Devices such as receptacles and light fixtures should be grounded. Use a grounding wire from the system’s panel to each piece of equipment, especially for installations in wet or damp locations.
  • Testing Ground Connections: Periodically test the ground connections with a multimeter or ground tester. Ensure there is no resistance and that the system is functioning as intended to prevent hazards.

Always follow local building codes and regulations regarding grounding to maintain safety standards in any electrical setup.

Common Mistakes to Avoid When Installing Electrical Fixtures

switch and outlet wiring diagram

Never connect a grounding wire to a neutral terminal. This can cause dangerous situations, leading to potential shocks or short circuits. Always ensure the ground is attached to the appropriate grounding screw or terminal.

Using an incorrect gauge of wire can lead to overheating and fire hazards. Ensure the wire gauge matches the recommended size for the specific circuit’s load and amperage rating.

Double-check polarity connections before sealing any boxes. Reversed polarity can result in malfunctioning devices or create shock hazards when touching the cover or device.

Avoid over-tightening terminal screws. This can damage the internal components of the fixture and affect its functionality. Tighten just enough to secure the wire without damaging it.

Do not skip the use of wire nuts or other approved connectors for splicing wires. Simply twisting wires together without proper connectors can lead to loose connections, overheating, or arcing.

Ensure that each fixture is mounted securely, without any slack in the wires. Loose connections can cause intermittent problems or even fires over time.

Pay attention to circuit ratings. Overloading a circuit with too many devices or high-power equipment can cause excessive strain, leading to tripped breakers or overheating of the system.

Ensure the installation complies with local electrical codes and standards. Failure to follow regulations can result in dangerous wiring setups and void insurance coverage in case of accidents.
