To efficiently power your RV off-grid, you need a clear understanding of how to connect your renewable energy system. Start by choosing the correct voltage for your system–12V is typical for most RVs, but 24V can be more efficient for larger setups. Make sure your battery bank is properly sized to store enough energy for your needs, considering daily consumption and weather conditions.
Connect the charge controller between the energy collection source and the battery bank. This step ensures the batteries are charged correctly without overcharging. Use appropriate fuses and disconnects to protect your system from power surges and shorts. For maximum safety, always ground the system to prevent any risk of electric shock.
When it comes to powering devices, integrate an inverter to convert stored DC power into AC for appliances. Choose an inverter with enough capacity to handle peak load demands. Consider adding a transfer switch to seamlessly switch between shore power and your renewable setup without manual intervention.
Lastly, ensure that all cables are sized properly to handle the maximum expected current. Over-sized cables will help prevent voltage drops and improve system efficiency, especially for longer distances between components. Regular maintenance checks are essential to ensure everything is functioning as expected, preventing unexpected failures during off-grid trips.
Electrical Setup for RV Charging System
Ensure proper voltage regulation by connecting your power generator directly to the battery bank through a charge controller. This step is crucial for preventing overcharging and ensuring the longevity of your energy storage system.
Follow these steps to set up your system effectively:
- Connect the Energy Collection Unit to the Controller: Use appropriately sized cables for this connection. Ensure polarity is maintained to avoid damage to the system.
- Link the Controller to the Battery Bank: Attach the output terminals of the charge controller to the batteries using heavy-duty wire. Ensure the terminals are tightly secured to avoid loose connections.
- Install a Fuse or Circuit Breaker: Place this protection mechanism between the charge controller and the batteries. It prevents damage in case of a short circuit or overload.
- Integrate a Monitoring System: Implement a battery monitor to keep track of energy levels and ensure everything is functioning within safe parameters.
For optimal performance, select a charge controller that matches the voltage and current rating of your storage and collection systems. This prevents unnecessary energy losses and inefficiency in the charging process.
Check for proper grounding of all components to prevent electrical hazards. Grounding should be done using dedicated grounding rods or the RV’s frame to ensure a safe and effective flow of current.

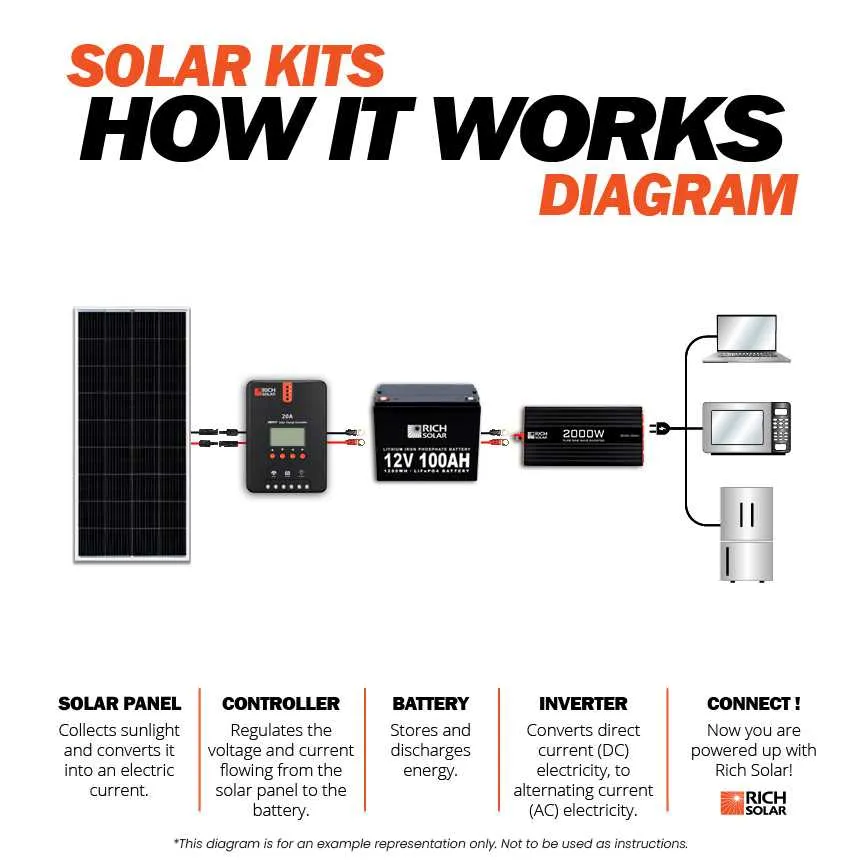

How to Connect Solar Panels to Your RV Battery System
Start by selecting an appropriate charge controller based on the voltage and current of your battery system. A MPPT (Maximum Power Point Tracking) controller is generally recommended for efficiency, especially with larger setups.
Next, securely mount the photovoltaic units to a roof rack or other sturdy surface. Use mounting brackets designed for outdoor conditions to prevent damage and ensure the units stay in place during travel.
Run the positive and negative leads from the energy collectors to the charge controller. The positive (red) wire connects to the positive terminal on the controller, while the negative (black) wire connects to the negative terminal.
From the charge controller, connect the corresponding wires to your RV’s battery. Again, ensure the polarity is correct: red to positive, black to negative. If you’re connecting multiple batteries, ensure they’re wired in parallel to maintain the same voltage level across the system.
Finally, double-check all connections, ensuring there are no loose or exposed wires. Consider using fuses or circuit breakers to prevent damage from potential short circuits. Once everything is secured, test the system to confirm it’s charging properly.
Choosing the Right Inverter for Power System Integration in Your RV
For efficient operation of your RV’s power setup, choose an inverter that matches both your energy needs and battery capacity. A pure sine wave inverter is preferred over a modified sine wave for smoother operation of sensitive electronics like laptops and TVs.
The inverter size should be based on the total wattage of devices you intend to run simultaneously. Add up the wattage of all appliances, then choose an inverter with a rating 20-30% higher to accommodate surge loads. For example, if your devices total 800W, opt for a 1000W or 1200W inverter to handle startup spikes.
Consider the inverter’s input voltage compatibility with your battery bank. A 12V system is common for smaller RV setups, while larger systems may require 24V or 48V inverters. Matching voltage prevents power loss and optimizes efficiency.
If you plan to run high-power devices such as air conditioners or microwaves, opt for inverters with high surge capacity. Check the inverter’s surge rating to ensure it can handle peak demand without shutting down or damaging the system.
Also, ensure the inverter includes built-in protections like overload, short-circuit, and overheat shutdowns. These features add safety and extend the lifespan of both the inverter and the entire power system.
Common Electrical Issues and Troubleshooting Tips for RV Power Systems
To avoid system failure, regularly check connections for signs of corrosion. Clean terminals with a wire brush or appropriate cleaner to maintain optimal conductivity. Corrosion is often found at junction points, particularly in areas exposed to moisture.
If the system is not charging correctly, inspect the connections to ensure they are tight and secure. Loose or improperly connected terminals can disrupt power flow, leading to inadequate charging. Tighten screws and connectors to eliminate any gaps.
If you’re experiencing reduced output, check the battery’s voltage. A reading below 12.4V indicates undercharging or a defective battery. Replace batteries that no longer hold charge effectively to restore full functionality.
Inconsistent performance can also stem from broken or damaged cables. Visually inspect all conductors for fraying, cuts, or exposed wires. Any visible damage should be addressed immediately by replacing the affected cable to prevent further issues.
To prevent overcharging, install a charge controller. Ensure it is properly calibrated to protect the battery from excessive current. Faulty or improperly set controllers may lead to battery damage or overheating.
If the system is not powering up at all, ensure the inverter is functioning. Check that the unit is turned on, connected, and receiving power. If the inverter fails to initiate, consider a reset or, if necessary, replacement.
For sudden drops in output, check for shading or obstructions that may affect the energy intake. Even partial shading can drastically reduce efficiency, so it’s important to reposition the setup if needed to ensure maximum sunlight exposure.
In some cases, malfunctioning charge controllers or inverters could be the result of a faulty ground connection. Ensure all grounding points are secure and follow recommended guidelines for grounding to avoid electrical safety issues.
