For an efficient and safe distribution of electricity within a household, it is crucial to understand the setup that connects the external grid to your internal system. Begin by identifying the key components: the meter, the main breaker, and the distribution panel. Each plays a pivotal role in regulating the flow of current throughout the structure.
The first step is the proper placement of the incoming line connection. This should be done in accordance with local building codes, ensuring that the wire gauge and connection type are suitable for the home’s total expected load. Inadequate wiring can result in overheating or tripped breakers, causing potential hazards.
The main breaker acts as the critical safety feature of the setup, allowing for an immediate disconnect in case of emergencies. It is important to verify its amperage rating matches the requirements of the overall system. A higher amperage can prevent unnecessary trips, while a lower one may compromise the safety and efficiency of the entire structure’s grid.
Finally, consider load distribution. The circuit panel, once connected, must be configured to ensure that the different circuits (lighting, outlets, appliances) receive the appropriate amount of current without overloading. Properly balance the loads across different branches to optimize the performance and longevity of your system.
Key Components of Power Supply Connection
Ensure the following key elements are properly installed for a secure and effective power feed to your property:
- Meter Base: The meter base should be weatherproof and placed in an easily accessible location for utility companies to perform meter readings.
- Utility Drop: This is the incoming cable that carries the main supply from the utility company to the meter base. Ensure it is rated for the correct voltage and capacity.
- Disconnect Switch: A disconnect switch must be installed at the point where the main power line enters the building. This ensures safe isolation during maintenance or emergencies.
- Main Panel: The main distribution panel should be located in a dry, accessible area. It should be equipped with properly rated breakers to handle incoming load demands.
- Grounding System: A reliable grounding system, including ground rods and conductors, is essential for safety. Ensure proper connections are made to avoid electrical hazards.
Each of these components must be installed according to local building codes and electrical standards to prevent hazards such as overloading, shorts, or fire risks.
Understanding the Role of the Main Breaker Panel in Power Distribution
The main breaker panel serves as the central hub for controlling the flow of electricity to a building. Positioned at the point where utility lines connect to the interior wiring, it houses the primary disconnect switch, known as the main breaker. This component allows for shutting off the entire electrical system, a crucial safety measure in emergencies or for maintenance. It is essential to ensure the main breaker is easily accessible and functional to prevent hazardous situations.
Inside the panel, individual circuit breakers provide overload protection by interrupting power to specific circuits when they detect excessive current. This minimizes the risk of fires or equipment damage. The main breaker also defines the maximum load capacity of the system, typically rated in amps. It’s crucial that the panel’s amperage rating aligns with the overall demand of the building to prevent overloading the system.
Regular inspection of the main breaker and the panel’s components is vital. Over time, connections can loosen, and breakers may wear out, potentially compromising the system’s effectiveness. Any signs of discoloration, buzzing, or sparking should be addressed immediately by a qualified technician.
Choosing the Right Wire Gauge for Home Power Connection
For optimal performance and safety, a 4 AWG wire is recommended for standard 100-amp circuits, while 2 AWG is suitable for 150-amp setups. If the expected load exceeds 200 amps, 1/0 AWG is the minimum required. The length of the wire also plays a critical role; for longer distances, consider a larger gauge to prevent voltage drop.
When selecting a gauge, always factor in the anticipated load demand, potential future upgrades, and local building codes. The National Electrical Code (NEC) specifies that wires should be sized based on the amperage, with additional consideration for temperature, insulation type, and whether the cable will be exposed to direct sunlight or buried underground.
For a more efficient setup, use copper over aluminum when possible, as copper provides lower resistance and superior conductivity. Always consult a licensed professional for compliance with local regulations and to ensure that your installation is both safe and reliable.
Safety Considerations When Installing the Service Entrance Equipment
Ensure proper grounding by connecting the ground wire to a copper or brass ground rod at least 8 feet deep. Grounding minimizes the risk of electrical shock and damage to the system components.
Verify that all connections are tight and secure to prevent overheating, which could lead to a fire hazard. Use torque wrenches to meet the manufacturer’s specifications for tightness.
Install a main disconnect switch within easy reach to quickly shut off the power in case of an emergency. The disconnect should be accessible from the outside and clearly labeled.
Ensure all wiring meets the National Electrical Code (NEC) standards for wire size, insulation, and conduit type to reduce the risk of electrical fires or system failures.

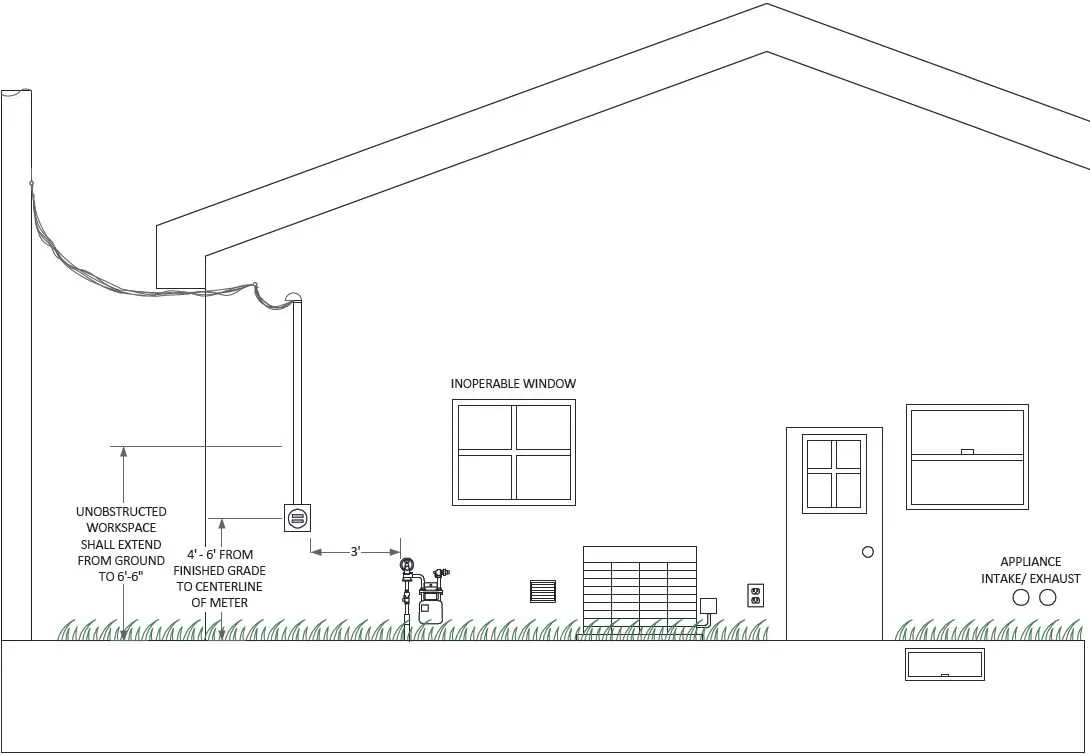

Install the meter base at a height that is accessible for utility company personnel but also complies with local regulations. It should not be obstructed by any physical structures.
Before starting any work, turn off the incoming supply to prevent accidental electrocution. Always verify the power is off using a non-contact voltage tester.
Use approved disconnecting means and overcurrent protection devices to safeguard against power surges and short circuits. This helps to prevent equipment damage and reduce fire risk.
Ensure the weatherhead and mast are securely fastened and positioned to avoid mechanical damage from high winds or other external forces.
