Wiring Diagram for Push Button Horn Installation and Connection

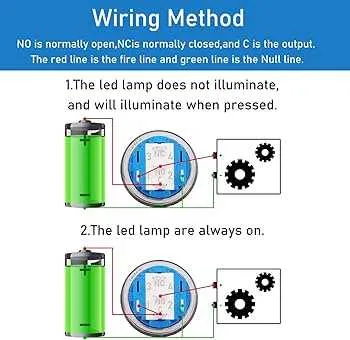

push button horn wiring diagram

For optimal functionality, connect the vehicle’s sound signaling system by ensuring proper placement of the activation mechanism and power connections. The first step is to locate the ideal position for the activation switch, typically near the steering wheel or dashboard, where it can be easily accessed. Verify the necessary components, such as the relay and the correct gauge wire, to guarantee a stable connection.

After positioning the activation switch, link it to the power source through the appropriate terminals. The system needs to be connected to the vehicle’s electrical supply in a way that allows the signal to be triggered when the switch is engaged. Make sure that the switch is properly grounded, as poor grounding may result in failure or weak signal transmission.

Next, check the system for compatibility with your vehicle’s existing wiring. If necessary, use an adapter to ensure a smooth interface between the activation unit and the vehicle’s electrical network. For added protection, it is advisable to use a fuse between the power supply and the signaling mechanism to prevent damage from electrical surges.

Finally, test the entire setup before use. Activate the switch and listen for the signal response. If the sound is weak or inconsistent, double-check all connections for any loose wires or improper contacts. Tighten any connections and repeat the test to confirm proper operation.

Connecting the Sound Signal System with a Single Switch

push button horn wiring diagram

For a seamless connection, begin by linking the control unit to the main power source using the appropriate gauge of wire. Ensure the grounding is secure to prevent electrical interference. Next, connect the actuator component to the relay. The relay should be wired to both the power supply and the output signal mechanism. Double-check for continuity using a multimeter to avoid wiring faults.

When routing the wires, position them away from areas that experience high heat or friction. Use protective coverings to minimize wear over time. Ensure that all connections are tight, and make use of insulating materials where necessary to prevent accidental shorts. Verify functionality by briefly testing the system before securing the components in place permanently.

Steps for Connecting the Switch to the Sound System

push button horn wiring diagram

Follow these steps for a secure and effective connection:

  1. Locate the power source: Identify the appropriate power supply for the system, ensuring it matches the voltage and current specifications.
  2. Prepare the switch: Choose a suitable device that will handle the electrical load. Inspect for any protective covers or features that might affect installation.
  3. Cut the necessary wires: Measure and cut wires of sufficient length to connect the switch to the power supply and the signaling device. Ensure there is enough slack for flexibility.
  4. Attach the wires to the device: Securely connect one wire to the positive terminal of the power source, and the other to the activation terminal of the alerting system.
  5. Check grounding: Ensure the grounding is properly connected to prevent electrical feedback or system failure.
  6. Secure the connections: Use appropriate terminals or connectors to make sure all wires are firmly attached. Inspect the connections to avoid loose or exposed wiring.
  7. Test the setup: Power on the system and activate the switch to check if the alerting mechanism responds properly. Make adjustments if necessary.

Choosing the Right Electrical Setup for Different Sound Devices

push button horn wiring diagram

For optimal performance, it’s essential to match the correct gauge of wire to the power demands of your sound device. Low-power devices require thin wires (20-22 AWG), while more powerful systems, such as those drawing higher amperage, should use thicker wires (16-18 AWG) to avoid overheating and voltage drop.

Consider the voltage rating of your system. For devices operating at 12V, ensure all components are rated for at least 14V to account for potential surges. When installing a relay to handle larger current, always use wires that can handle the relay’s rating, typically 12-14 AWG for most systems.

For long-distance installations, especially in larger vehicles, use thicker wires to prevent resistance from degrading performance. Ideally, the total length of the wire run should be kept as short as possible to maintain efficient current flow.

If you’re working with multiple devices, a fused distribution block can help manage the connections, protecting against overloads. Always ensure proper grounding, as an inadequate ground connection can cause a drop in performance or even potential damage to components.

Troubleshooting Common Issues with Vehicle Sound Activation Systems

First, check the connection between the power source and the activation mechanism. Loose or corroded connections can prevent proper function. If the contacts are dirty, clean them using electrical contact cleaner. Ensure that all wires are securely attached to their terminals, and inspect the cables for any visible wear or cuts that could cause a short.

If the system does not respond, verify the integrity of the relay. Faulty relays are often the culprit in cases of no sound output. Use a multimeter to check for continuity, and replace the relay if necessary.

Next, examine the voltage levels. If the system is not receiving enough power, check the fuse or circuit breaker. A blown fuse can be a quick fix, but if it blows repeatedly, there may be an underlying issue with the circuit, such as a short or overload.

If sound output is weak or intermittent, inspect the activation device itself. A worn or faulty contact mechanism may result in inconsistent performance. Replacing the actuator or adjusting its alignment could resolve the issue.

Lastly, make sure the grounding connection is secure. An improper ground can lead to irregular functionality. Ensure that the grounding point is clean and tightly fastened to a solid metal surface on the vehicle frame.
